Amp Guts Photos - Official Thread - Lets see those pics

[svtb15]

EDIT: Pardon my grammar on the above poll.

I did a search and did not find one here.
I don't know if this will go anywhere.. But i love photos of the inside of amps.
Amp Guts.
So i am starting the Amp Guts thread.. If anyone has pics of the inside of their rigs...
SPEAKERS ,Preamps, Power amps OK too.. Just has to be the inside, under the hood pic
Post them here.. Home projects are welcome too..

Current my Genz Benz GBE1200


No Longer have this Ampeg SVT3 Pro


No Longer have the Mesa Mpulse 600


Old Bagend S12 with an EV SRO

[KsPiNeSh]

Shucks - all I have is the GBE-1200 and M-Pulse 600... which you already posted. FWIW, mine look exactly the same

[Metal Matt]

If I feel like it later, I'll get some pictures up of my Sunn Concert Bass and Concert Slave.

[Norre]

Here's some pics of my Mesa/Boogie Bass 400+:





My tubes will be swapped for JJ's next week. I ordered them yesterday

[BartmanPDX]

Not the best pic by any stretch, but here's the inside of my pride and joy, my Brunetti Mister B! bass preamp.



Yep, that's seven tubes. Two channels of sonic bliss.

[Loudthud]

Picture of the power section of my Traynor YBA3. Shows four bias adjustment pots and phase inverter balance. The big brown things are the "widow maker" caps.

[svtb15]

oh that is sweet... I will have to get my SVT2 out ... oh my back

Originally Posted by Norre

Here's some pics of my Mesa/Boogie Bass 400+:





My tubes will be swapped for JJ's next week. I ordered them yesterday

[svtb15]

thats a piece of art

Originally Posted by BartmanPDX

Not the best pic by any stretch, but here's the inside of my pride and joy, my Brunetti Mister B! bass preamp.



Yep, that's seven tubes. Two channels of sonic bliss.

[BillyB_from_LZ]

Originally Posted by svtb15

...Old Bagend S12 with an EV SRO

A delicious little 60 watt speaker!!!

[EASonBass]

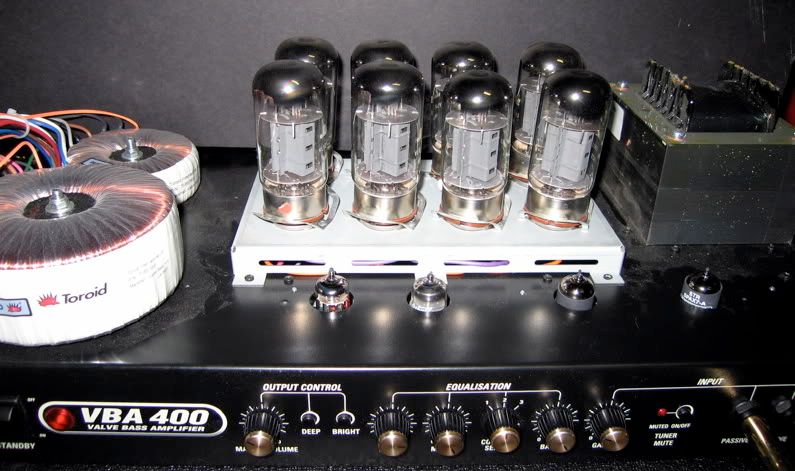

The business side of a Marshall VBA 400


And the warm side.

[Mcrelly]

I bought this amp for a friends daughter who is learning bass, and now guitar,keys and drums... I paired it up with a aggie gs112. IMHO it sounds AS GOOD as Eden wt550 or Thunderfunk 550. I've played them all myself at my fairly loud church gig.

I got the yorkville cheap ($125) because the input circuit board was "iffy". turns out two short wires going down to the main board. apparently when some past users would try to tighten the upper input jack which would put torque on the little circuit board (pictured upper right) finally cracking one or both wire soldering connections. a $15 fix.

[svtb15]

60 watts? gulp...... I have put alot more than that into it....double gulp.. i have lit the clip light one one channel of my old carvin dcm1500 on that little one... gulp again.. It still works and sounds great.... The thing is vintage for sure

Originally Posted by BillyB_from_LZ

A delicious little 60 watt speaker!!!

[Jazzman]

[fffreddy]

Love the guts of that Mesa 400+...big fat tubes like soldiers in a row!!

Here's the innards of an SWR Interstellar Overdrive.

[anderbass]

72 SVT guts:

[bobcruz]

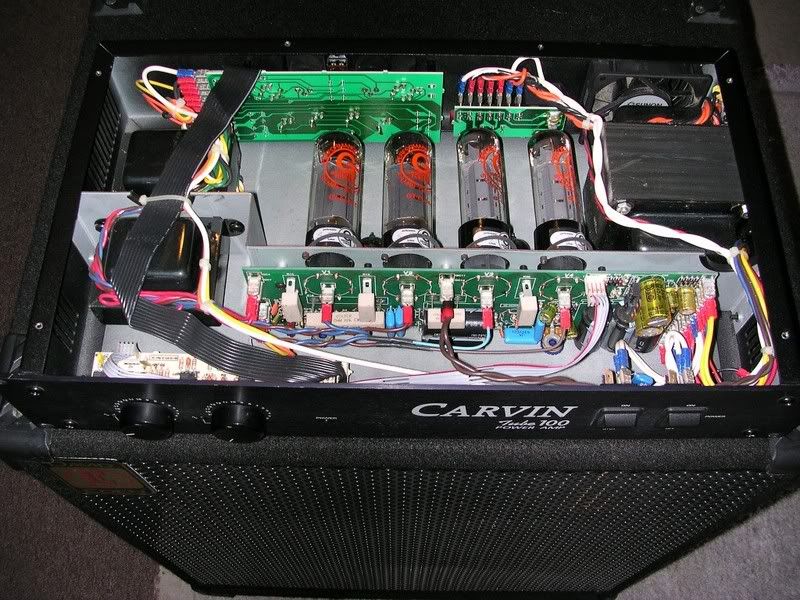

My Carvin tube power amp--100 watts of EL34s:

[renejaime]

I'm too lazy to open up my aggie so...

[JCM800]

Late 70's SVT chassis

[svtb15]

oohhhhh yaeahhh!!!

Originally Posted by anderbass

72 SVT guts:

[svtb15]

nice.... I should have made the thread Guess the AMP GUTS... show the guts and name what amp it is.. oh well.
Nice aggy..
I have to pull my SVT 2 apart this week so i will get some posted here.

Originally Posted by renejaime

I'm too lazy to open up my aggie so...
