Can a cracked neck-thru headstock be repaired?

Sign in to disble this ad
Hey Guys,
Unfortunately my import from Japan didn't work out like most on talkbass. I ordered an Aria Pro II SB1000 JT John Taylor sig in Paduak Red. Absolutely gorgeous but there are two cracks one on each side of the veloute where the headstock meets the neck. The bass still keeps it's tune but I'm wondering if it is even repairable. I am at he beginning of the damage claim process for the bass. Here are some pics, I have highlighted the areas that are cracked.
Brent
__________________
"We are the music makers and we are the dreamers of dreams"-Willy Wonka

Last edited by BrentSimons : 07-25-2008 at 09:24 AM.
  #2
Old 12-12-2007, 11:28 AM
Johnny Crab's Avatar
ACME, Line 6, SWR, QSC, Greco user/BOSE PAS abuser

Join Date: Feb 2004
Location: South Texas
GOLD Supporting Member
Yes.

I've had a '64 Gibson Thunderbird(neck thru) in the 70's that was peeled off and in a condition similar to this but located lower(almost like yours):



This great luthier fixed it to be better than "old/new".
http://www.fosterguitars.com/meetjimmy.html

He did add a minor thickness to the neck angle location.
Result here:

__________________
If you want to find truth, start by turning off your television.
  #3
Old 12-12-2007, 11:52 AM
Pilgrim's Avatar
Registered User

Join Date: Jul 2004
Location: Fort Collins, Colorado
Supporting Member
It's repairable, but I'd see a luthier right away. You want to minimize the damage. The Aria Pro II basses are supposed to be very darn nice.
  #4
Old 12-12-2007, 01:02 PM
BrentSimons's Avatar
Registered User

Join Date: Mar 2004
Location: Vergennes,VT USA
Supporting Member
Thank for the help guys I really appreciate it. Johnny Crab could you PM and tell me how much the repair was?
Yes I am quite impressed with the quality/playability of the bass...except for the cracks of course!
Brent
__________________
"We are the music makers and we are the dreamers of dreams"-Willy Wonka
  #5
Old 12-12-2007, 05:31 PM
Johnny Crab's Avatar
ACME, Line 6, SWR, QSC, Greco user/BOSE PAS abuser

Join Date: Feb 2004
Location: South Texas
GOLD Supporting Member
PM sent.

Let us know how it turns out and maybe do before/after pics.
__________________
If you want to find truth, start by turning off your television.
  #6
Old 12-13-2007, 06:58 PM
Registered User

Join Date: Nov 2004
Location: Brisbane, Australia
A luthier I know says any neck is repairable, provided that:
(a) it's not broken in more than three places, and
(b) you still have all the pieces.
So, yours is definitely an easy fix for a qualified repairer. Since it's clear finish, the cosmetics is more complicated than the actual woodwork.
  #7
Old 12-14-2007, 10:12 AM
Registered User

Luthier, Custom Builder

Join Date: Dec 2002
Location: West Lafayette, Indiana
Send a message via AIM to Bass Kahuna
That is a pretty easy fix...

As mentioned previously, fixing the crack is easy. Here is a few pics of a similar repair I did recently on a Gibson Les Paul (VERY common repair on Gibson headstocks btw...), and your local Luthier / Guitar Tech will probably follow the same process to repair this crack on your new Aria.

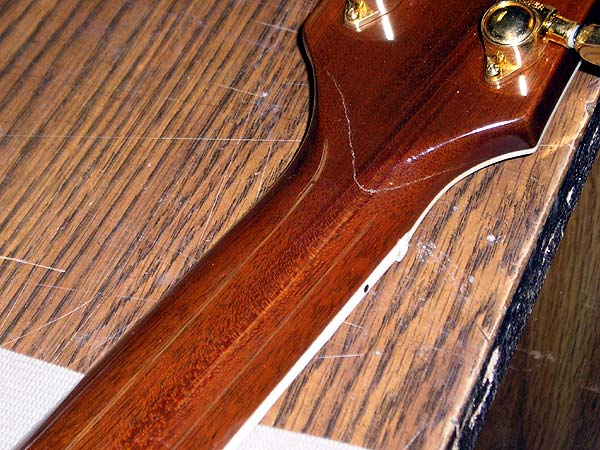

Before, simple crack, guitar still holds tune:

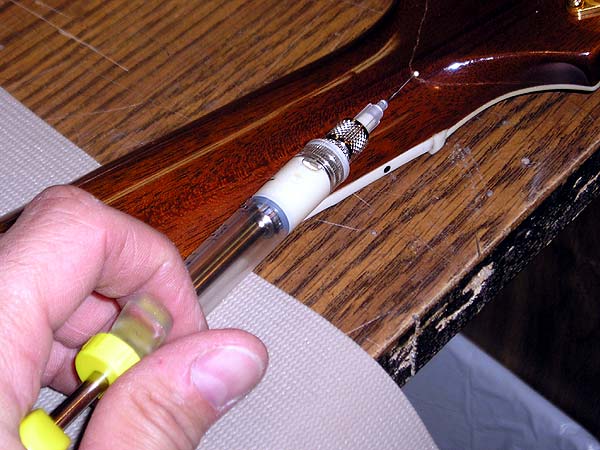

Using glue syringes from StewMac, I mixed original Titebond about 9:1 with water to lower the viscosity just a wee bit and injected it into the crack in multiple spots all along the crack until I got a small bit of glue coming out of the crack:

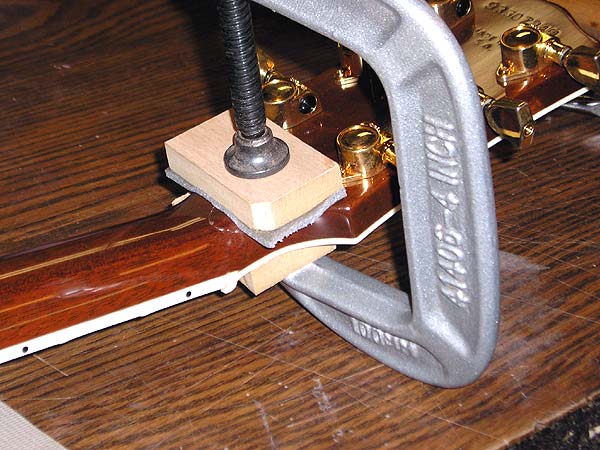

And then clamping it down:



You'll notice in this last pic that I like to put some type of thin, dense foam between the clamping block and the headstock or neck. This serves two purposes; one to protect the finish of the headstock and neck, and two to keep the glue that squeezes out of the crack from sticking to the clamping blocks, which would glue them to the headstock which would not be good! In this pic I've already wiped off the very small amount of glue that squeezed out of the crack.

It is important to put enough glue in that you do get some squeeze out when you apply clamping pressure, otherwise the crack could be glue starved and might come apart again the the future. I've had another Les Paul in recently that had this problem. It was repaired the first time somewhere else and came apart 2 weeks later. It ended up in my shop for the second repair attempt and it looked like there wasn't any glue in there at all.

Oh, and for clamping blocks on a crack in the neck like yours, the rear clamping block should be carved out hollow to pretty closely match the neck profile. And don't apply TOO much clamping pressure... you could crush some of the wood fibers and / or squeeze ALL the glue out of the crack leaving a glue starved repair.

I like to let these headstock/neck crack repairs sit with the clamps on for 3 days or so just because, then after I take the clamps off I let it set for another 4-5 days just to really ensure the glue is dried and set.

And, as mentioned above, the real work begins to blend the finish over the crack so as to keep out moisture, and make it impossible to feel it under your hands. For newer poly type finishes, I like to use CA to seal the outside of the crack in the finish. With a lacquer (nitro) finish you simply use the lacquer burn in process. This takes time to fill the crack in the finish, sand it all down level and buff it out properly.

I'd suggest talking to a few local repair shops and see which one sounds like they know what they're doing and have them do it.
__________________
Regards,

-Grandon-
"The Bass Kahuna"
www.gwbasses.com
www.basskahuna.com

Last edited by Bass Kahuna : 12-14-2007 at 10:15 AM. Reason: added more info about clamping blocks for rear of neck
  #8
Old 12-15-2007, 07:46 AM
BrentSimons's Avatar
Registered User

Join Date: Mar 2004
Location: Vergennes,VT USA
Supporting Member
Thanks Bass Kahuna. Hell I might even give you a ring about this repair. Could you PM me on a ballpark fee a luthier like yourself might charge for this?
Brent
__________________
"We are the music makers and we are the dreamers of dreams"-Willy Wonka
  #9
Old 12-15-2007, 08:43 AM
Zooberwerx's Avatar
Registered User

Join Date: Dec 2002
Location: Virginia Beach, VA
GOLD Supporting Member
Glad to hear she's fix-able. Will any repair efforts on your part interfere with the damage claim process?

Riis
