Convert 4 string fender jazz bass to 5

Hi.i have a fender jazz bass Japan fretless and I want to convert to a 5 string.is this possible???
  #2
Old 11-10-2012, 08:46 AM
ctmullins's Avatar
Registered 8er

Join Date: Apr 2008
Location: MS Gulf Coast
Supporting Member
It's possible. But string spacing will be very tight, especially at the nut. Replacing the neck will yield better options.
__________________
Todd
Tobias/ThumpyHollow/ThunderStick/Serendipity/RayBird/PentaBird/OctoBird/4620 | SansAmp | QSC | BFM
  #3
Old 11-10-2012, 08:58 AM
Registered User

Join Date: Feb 2011
More tight than warwicks?????
  #4
Old 11-10-2012, 09:03 AM
Registered User

Join Date: Jan 2008
Location: Winston Salem, NC
Back in the day

John Carruthers in LA did this with the wide neck P basses. It works. (the 1st model Yamaha BB5000 is essentially one of these) but the spacing is a bit narrow. At the time, this was done one of two ways- 1- punch a hole in the headstock and replace the nut and bridge, or 2 - reverse string the 5th string, ala Steinberger,with a bridge that has a tuner built into it.

Frankly, though, you'd probably be better off just buying an inexpensive 5, like from Rondo or a Squire..
__________________
BB5000 (mods), Douglas 955 (mods), GK MB212
  #5
Old 11-10-2012, 09:06 AM
Registered User

Join Date: Feb 2011
The p bass has wider neck than jazz bass??
  #6
Old 11-10-2012, 09:25 AM
Registered User

Join Date: Mar 2006
Location: Austin, TX
Yes,

The standard for Jazz width nuts is 1.5" at the nut. It's 1.65" for P basses. Still not a lot of difference when you're talking about adding a string.

I agree with agureblue.

I would go with an inexpensive 5 string. In addition to SX or Squire, maybe a Sterling by Musicman Sub5; http://www.sterlingbymusicman.com/sub-bass

Best of luck,

Bob
__________________
ESP Ltd B-1005, ESP Ltd B-4Z, ESP Ltd Surveyor-4, Squier VM Fretless P, Squire Affinity Jazz V Fretless (in work), Mesa Walkabout Scout
  #7
Old 11-10-2012, 09:28 PM
Registered User

Join Date: May 2004
Location: San Diego, Ca.
GOLD Supporting Member
Quote:
Originally Posted by ctmullins View Post
It's possible. But string spacing will be very tight, especially at the nut. Replacing the neck will yield better options.
Yeah but even then, can of worms. String spacing can't be an afterthought.get a 5ver with at least 1.75@ the nut and 17.5mm @bridge.
  #8
Old 11-10-2012, 09:36 PM
levis76's Avatar
Registered User

Join Date: Apr 2007
Location: 48313
Supporting Member
Quote:
Originally Posted by bsane View Post
Hi.i have a fender jazz bass Japan fretless and I want to convert to a 5 string.is this possible???
Yes and in just two easy steps:
1) Sell 4 string.
2) Buy 5 string.

Quote:
Originally Posted by bsane View Post
More tight than warwicks?????
Yes.

Quote:
Originally Posted by bsane View Post
The p bass has wider neck than jazz bass??
Yes.
__________________
Fender P > Darkglass VMT > Mesa BB750 > Mesa 212
Mesa/Boogie Club 88 - \m/etal Bassist Club 56 - Michigan Bassist Club 18 - Fender P Bass Club 1159
  #9
Old 11-11-2012, 01:02 AM
Registered User

Join Date: Feb 2011
thanks for the help guys...
  #10
Old 11-11-2012, 01:05 AM
Registered User

Join Date: Jan 2009
Location: Purple Mountain Majesties
You should PM TB user Ric5. This guy converts Rickenbacker 4-strings to fivers, but I'm sure his advice would pertain to Fenders as well. He really knows this area well, it wouldn't surprise me if he has done the conversion you are considering.
__________________
"That's right Mr. Martini, there is an Easter Bunny!"

WANTED: Vintage Hagstrom Concord in RED
  #11
Old 11-11-2012, 01:10 AM
Registered User

Join Date: Feb 2011
Quote:
Originally Posted by electracoyote View Post
You should PM TB user Ric5. This guy converts Rickenbacker 4-strings to fivers, but I'm sure his advice would pertain to Fenders as well. He really knows this area well, it wouldn't surprise me if he has done the conversion you are considering.

thank!!!!
  #12
Old 11-12-2012, 09:06 AM
Ric5's Avatar
Supporting Member

Join Date: Jan 2008
Location: Colorado
Supporting Member
Quote:
Originally Posted by bsane View Post
Hi.i have a fender jazz bass Japan fretless and I want to convert to a 5 string.is this possible???
I do it a lot. A p-bass neck works better than a jazz neck.





__________________
Clubs - 5 String, Black and Maple, Rickenbacker
Jeff Rath's web site http://www.3dentourage.com/425
Older basses are not better, they are just older.
  #13
Old 11-12-2012, 09:43 AM
Registered User

Join Date: Feb 2011
The string spacing???
  #14
Old 11-12-2012, 09:44 AM
Ric5's Avatar
Supporting Member

Join Date: Jan 2008
Location: Colorado
Supporting Member
Quote:
Originally Posted by bsane View Post
The string spacing???
At the bridge 2 1/2" or 2 5/8".

At the nut 1 1/2" or 1 5/8" depending on the neck used.

Also you can put on a 5 string neck and get a wider spacing. This will require some neck pocket routing
__________________
Clubs - 5 String, Black and Maple, Rickenbacker
Jeff Rath's web site http://www.3dentourage.com/425
Older basses are not better, they are just older.

Last edited by Ric5 : 11-12-2012 at 09:47 AM.
  #15
Old 11-12-2012, 09:58 AM
Handyman's Avatar
Registered User

Join Date: Sep 2007
Location: Austin, TX
Supporting Member
Possible, but almost certainly not worth the time and expense. You'll probably end up happier and with more money in your pocket if you turn your 4 stringer into a 5 by selling it then searching the classified for a 5er that works for you.
  #16
Old 11-12-2012, 12:29 PM
Registered User

Bass Technician, Club Bass - Toronto

Join Date: May 2004
Location: Toronto Canada
Quote:
Originally Posted by ctmullins View Post
It's possible. But string spacing will be very tight, especially at the nut.
And the pickups should be changed for 5-string versions - or else your strings will not be aligning with the pickup poles. Needless to say, you will need to replace the bridge as well, and the extra tension of a fifth string may be more than is healthy for the neck. All in all, a bit of the proverbial can of worms. Yes it can be done - it has been done. In all cases I have dealt with, I would judge the outcome to be less than satisfactory. Everyone I know that went this route ended up selling the bass shortly afterward.
__________________
Instrument Technician, Toronto
  #17
Old 11-12-2012, 03:02 PM
Ric5's Avatar
Supporting Member

Join Date: Jan 2008
Location: Colorado
Supporting Member
Quote:
Originally Posted by Turnaround View Post
And the pickups should be changed for 5-string versions - or else your strings will not be aligning with the pickup poles. Needless to say, you will need to replace the bridge as well, and the extra tension of a fifth string may be more than is healthy for the neck. All in all, a bit of the proverbial can of worms. Yes it can be done - it has been done. In all cases I have dealt with, I would judge the outcome to be less than satisfactory. Everyone I know that went this route ended up selling the bass shortly afterward.

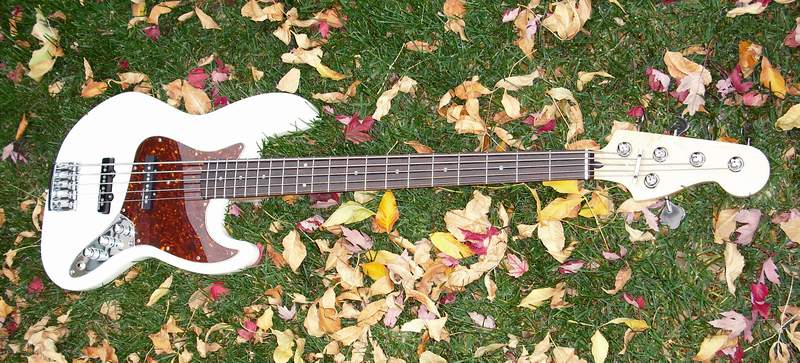

My best and favorite basses are conversions ... 8 poles usually cover 5 strings just fine. Most modern necks can easily handle a 5th string.
__________________
Clubs - 5 String, Black and Maple, Rickenbacker
Jeff Rath's web site http://www.3dentourage.com/425
Older basses are not better, they are just older.
  #18
Old 11-12-2012, 05:01 PM
Registered User

Bass Technician, Club Bass - Toronto

Join Date: May 2004
Location: Toronto Canada
Quote:
Originally Posted by Ric5 View Post
8 poles usually cover 5 strings just fine.

Tell that to all the people that complain that their pole pieces don't line up with the strings.
__________________
Instrument Technician, Toronto
  #19
Old 11-12-2012, 08:01 PM
Registered User

Bass Technician, Club Bass - Toronto

Join Date: May 2004
Location: Toronto Canada
Quote:
Originally Posted by Ric5 View Post
8 poles usually cover 5 strings just fine.
Part of the problem is the shape of the magnetic field. When Leo created the pickups for his basses, he started with one magnet pole per string. But he found that the response was improved with 2 per string. It has to do with the pattern of the field of magnets. It's an elliptical pattern that is broadened when two magnets are placed side by side. He he placed two magnets at a particular distance from each other to broaden the field. It worked exceedingly well. So well in fact that many other manufacturers adopted this pattern. Hence, the typical Precision and Jazz basses and their "clones" use this pattern.

There are some folks that say that a single magnet works fine, and those that say that string-to-pole misalignment works, but just because it works doesn't mean it's the best way to do it. Certainly it's not without compromises. How much you are willing to compromise is the issue. How good is good enough?
__________________
Instrument Technician, Toronto
  #20
Old 11-13-2012, 12:12 PM
Ric5's Avatar
Supporting Member

Join Date: Jan 2008
Location: Colorado
Supporting Member
when you have 8 poles lined up in a jazz pickup it really starts to act like a rail and it puts up a fairly consistant magnetic field for the strings to be in.

Rickenbacker uses the 6 pole toaster pickup for 4, 5, and 8 string basses as well as 6 string guitars. It works fine for all of them.

I have built a lot of frankensteined basses and rarely do I find an 8 pole pickup that does not cover 5 strings. It happens rarely.

The Seymour duncan 1/4 pound pickups handle 5 strings very easily because of the fatter poles.
__________________
Clubs - 5 String, Black and Maple, Rickenbacker
Jeff Rath's web site http://www.3dentourage.com/425
Older basses are not better, they are just older.
