home made boards....lets see them...

hey folks.... this is to inspire others to build their own boards.... im working on mine right now also... so lets see yours
__________________
My Band: MachineDNA

Rickenbacker Club Member #196
  #2
Old 03-15-2008, 08:01 PM
Registered User

Join Date: Jan 2008
Location: My Old Kentucky Home....
Well, since you asked.....

Here's mine right now, out in the workshop. I wanted a 2 foot by 15-16" wide pedal board made from red oak with a tier covering the power block. Couldn't find a 16 inch wide board so I'm gluing a 12" and a 3" together for the base.

It'll look a lot more like a pedal board in a couple of days.

I hope.



__________________
Quote:
Originally Posted by vene-nemesis View Post
Music has been with the human race like forever! cant you understand that some of us cant just say no to the cheese burger?
Loving my P basses, MarkBass heads and Schroeder cabs. Life is good....
  #3
Old 03-15-2008, 08:22 PM
Registered User

Join Date: Sep 2005
Location: Boca Raton, Florida


I dont use any of it anymore since I bought the Bass V-amp and Midi Controller
__________________
"I cannot teach anybody anything; I can only make them think" Socrates
Bongo Club Member #28: Florida Bassists Club #15: Avatar Owners Member #52
  #4
Old 03-15-2008, 10:47 PM
scotch's Avatar
Will play bass for fish tacos. Plus cash.

Please see Profile for Endorsement disclosures

Join Date: Nov 2006
Location: Nashville, TN USA
Supporting Member
Here's a board a I made last year. I'm not using it anymore as it was a little too big! I've since downsized to a different setup focused on preserving signal fidelity.

I used 7/16 plywood & covered it with carpet. Most of the hardware was bought on eBay. All in all a cheap & easy project.

Pics:















  #5
Old 03-15-2008, 11:36 PM
SpankyPants's Avatar
That's Mr. SpankyPants to you.

Join Date: Aug 2006
Location: Louisiana
Send a message via Skype™ to SpankyPants
Supporting Member
I made one a couple of years ago-ish.

Terrible Camera Phone Content

It took an afternoon with my guitarist, and more money than I thought I'd have to spend. I forget what wood I used. We built a box in which the pedals were nestled on two hinged planks. Underneath was a little storage space for power supplies, extra cables, etc. I used a layer of rubber lined with little grooves (to keep them from slipping), and I used a layer of foam rubber with cut-outs fitting each pedal so I wouldn't have to mar a pedal with adhesive :sarcasticvelcro, dual lock, etc.). The fundamental flaw in this sort of design (which we see very often here in Effects) is that it immediately becomes useless if you change your set up. Sell a pedal? New Board. New pedal? New board. Move a pedal? New board. Take a gnarly fall that splits your deck in two? New board.

Plus it was heavy as hell.

This is the board with cover:


And here was my setup:



Signal: GT-6B>A/B switch>LBM>Metal Zone>Ph-3>BF-2>DD-20>Line 6 (either the Verbzilla or Echo Park... I had a couple of modules...which reminds me that I should probably sell the Liqua Flange)>SAPBDDI>FV-500L

Yes, a goofy signal chain.

After I realized that it sucked, I dreamed about a Pedaltrain Pro. Then I woke up to being broke, and I opted for a Rondo instead. It was just a "temporary" solution, right? Wrong. Rondo board sucks too, and it broke very quickly. I was stuck with that piece of crap (I was still broke) until recently when someone was selling a board in the classifieds for less than the Rondo cost. It's one of those flat boards with no case or cover, but it has handles on the sides. It's not ideal for gigging or playing at all outside of home, but anything is better than Rondo. It was cheap and accessible especially considering my budget. So I couldn't really pay for groceries for a little while, and I ate cereal-and-gatorade for a couple of weeks. It was worth it.

Plus, while I was looking up those pictures I found these:






Yeah, I'm pretty photogenic.

Oooh! I found this one too!


Left to right: Whore, Me, Douche Bag, Flake, and weak-minded, attention seeking super hero from the nineties. He's our hero.

Random:
I also found some pictures of my pets, but I doubt you'd want to see them. It just reminded me that our smallest pug cut my thigh until it was bleeding last week. Of all of the dogs that we have (pitbull, German shepherd/Husky mix/Yellow Lab/(possibly)great dane mutt, and a few others) the one that tears me up is the smallest, sissiest, alien-fetus-looking lapdog.

Yeah, so I'm rambling. I just keep typing until I can post this.
Quote:
Originally Posted by Talkbass.com
1. TalkBass is currently offline breifly for routine maintenance. Please check back in 10 minutes.
  #6
Old 03-16-2008, 02:04 AM
Registered User

Join Date: Jan 2003
Location: Taipei, Taiwan
Definate candidate for post of the year above. I can't even remember what this thread was about.
  #7
Old 03-16-2008, 06:44 AM
Registered User

Join Date: Apr 2006
Location: Slovenija (Europe)
Send a message via MSN to fuNKmaster83
7up for me too... hehehehehehehe
__________________
May da FUNK be with you!
  #8
Old 03-16-2008, 07:15 AM
Registered User

Join Date: Jan 2008
Location: My Old Kentucky Home....
Quote:
Originally Posted by SpankyPants View Post
It took an afternoon with my guitarist, and more money than I thought I'd have to spend.
Ain't that the truth?
__________________
Quote:
Originally Posted by vene-nemesis View Post
Music has been with the human race like forever! cant you understand that some of us cant just say no to the cheese burger?
Loving my P basses, MarkBass heads and Schroeder cabs. Life is good....
  #9
Old 03-16-2008, 09:51 AM
Registered User

Join Date: Apr 2004
Location: WA...
This is my old board [just the board, not the pedals], that I'm using for my pedals that I deam cool but just doin't fit in live.
__________________
did you know?
  #10
Old 03-16-2008, 10:40 AM
Registered User

Join Date: Nov 2005
Location: forest hills ny
Send a message via AIM to beyondhairy Send a message via MSN to beyondhairy
Quote:
Originally Posted by Mudfuzz View Post
This is my old board [just the board, not the pedals], that I'm using for my pedals that I deam cool but just doin't fit in live.
how can you deam the br-2 and the tr-2 not cool for live? lol those are AWESOME in a live setting...



and i just finish the cutting phase of my board...

now i need to work on glueing and nailing and screwing...
Attached Thumbnails
Click image for larger version

Name:	IMG_1386.jpg
Views:	2078
Size:	44.5 KB
ID:	85480
__________________
My Band: MachineDNA

Rickenbacker Club Member #196
  #11
Old 03-16-2008, 10:44 AM
Registered User

Join Date: Jan 2008
Location: My Old Kentucky Home....
Quote:
Originally Posted by beyondhairy View Post
and i just finish the cutting phase of my board...

now i need to work on glueing and nailing and screwing...
Gotta love the tiers.....

What are the dimensions on your board? And, if you don't mind my asking, how much do you have into it so far? I just got back from Lowes (again) and this board is getting pretty expensive.
__________________
Quote:
Originally Posted by vene-nemesis View Post
Music has been with the human race like forever! cant you understand that some of us cant just say no to the cheese burger?
Loving my P basses, MarkBass heads and Schroeder cabs. Life is good....
  #12
Old 03-16-2008, 10:50 AM
coolrunner989's Avatar
Registered User

Join Date: Feb 2006
Location: Minneapolis, MN
Supporting Member
beyondhairy - that is a HUGE board....good luck schleping it around
  #13
Old 03-16-2008, 10:55 AM
Registered User

Join Date: Nov 2005
Location: forest hills ny
Send a message via AIM to beyondhairy Send a message via MSN to beyondhairy
Quote:
Originally Posted by rustynuts View Post
Gotta love the tiers.....

What are the dimensions on your board? And, if you don't mind my asking, how much do you have into it so far? I just got back from Lowes (again) and this board is getting pretty expensive.
yea, i love the layer thing.. i cant stress how much i hate only having a flat surface... doing the tip toe thing to turn a pedal on isnt my thing lol


the wood that was 2' x 4' cost me $14 total... did most of the cutting myself... had home depot cut out the large piece...

and so far thats all iv spent... i got some velcro on ebay that i need to pay for. its 4" wide and 10 feet long... soft side, and it comes with 1" wide and 3" long hook side and that shipped cost me $24...

headed out in a few minutes to pick up some gorilla glue and thats about $5~?

i'll eventually need to buy another slab of wood to make a lid, and i need to buy some casters, latches, and handle...

and its 17" x 35"

Quote:
Originally Posted by coolrunner989 View Post
beyondhairy - that is a HUGE board....good luck schleping it around
lol casters
__________________
My Band: MachineDNA

Rickenbacker Club Member #196
  #14
Old 03-16-2008, 11:15 AM
Registered User

Join Date: Apr 2004
Location: WA...
Quote:
Originally Posted by beyondhairy View Post
how can you deam the br-2 and the tr-2 not cool for live? lol those are AWESOME in a live setting...
I have a Tonefactor Sugarbaby on the live board which does the vintage trem thang better than the Tr-2, and that is not a br-2 but a BL-2 limiter, it stops the spikes from the Q-tron and FX25 but is noisy and distorts.
__________________
did you know?
  #15
Old 03-16-2008, 11:42 AM
Registered User

Join Date: Jan 2008
Location: My Old Kentucky Home....
Quote:
Originally Posted by beyondhairy View Post
yea, i love the layer thing.. i cant stress how much i hate only having a flat surface... doing the tip toe thing to turn a pedal on isnt my thing lol
Same here....I can't stand tap dancing.

Quote:
Originally Posted by beyondhairy View Post
the wood that was 2' x 4' cost me $14 total... did most of the cutting myself... had home depot cut out the large piece...
The only way I could get the oak boards was pre-cut in certain sizes, unless I wanted to by an 8 foot by 12 inch board...Didn't want to do that because I'd never use the rest of it. So far I have about $22.00 in the wood, including the oak riser blocks for the outlets. It'll have five double outlets built into the base with a ten foot 14 gauge cord.

Quote:
Originally Posted by beyondhairy View Post
and so far thats all iv spent... i got some velcro on ebay that i need to pay for. its 4" wide and 10 feet long... soft side, and it comes with 1" wide and 3" long hook side and that shipped cost me $24...

headed out in a few minutes to pick up some gorilla glue and thats about $5~?

i'll eventually need to buy another slab of wood to make a lid, and i need to buy some casters, latches, and handle...
I still need the velcro, had the glue. Total so far is right around fifty bucks though. I'm probably going to have a padded case made for it though, I don't have time to bother with that.

Quote:
Originally Posted by beyondhairy View Post
and its 17" x 35"

lol casters
It looks a lot bigger! It's only going to be 9" longer than mine. Looks good though, can't wait to see it complete. Are you going to be staining it or covering it?
__________________
Quote:
Originally Posted by vene-nemesis View Post
Music has been with the human race like forever! cant you understand that some of us cant just say no to the cheese burger?
Loving my P basses, MarkBass heads and Schroeder cabs. Life is good....
  #16
Old 03-16-2008, 12:00 PM
Registered User

Join Date: Nov 2005
Location: forest hills ny
Send a message via AIM to beyondhairy Send a message via MSN to beyondhairy
Quote:
Originally Posted by rustynuts View Post



The only way I could get the oak boards was pre-cut in certain sizes, unless I wanted to by an 8 foot by 12 inch board...Didn't want to do that because I'd never use the rest of it. So far I have about $22.00 in the wood, including the oak riser blocks for the outlets. It'll have five double outlets built into the base with a ten foot 14 gauge cord.



I still need the velcro, had the glue. Total so far is right around fifty bucks though. I'm probably going to have a padded case made for it though, I don't have time to bother with that.



It looks a lot bigger! It's only going to be 9" longer than mine. Looks good though, can't wait to see it complete. Are you going to be staining it or covering it?
your board will probably be better then mine over all lol, im trying to make it as simple and cost efficiant as possible. so im not going overboard on making a suped up board until i have a better idea of what i will be using live in my new band.

just got back from sears and they only had one of the large bottles of gorilla glue so it was a few bucks more... $8 and change i think....

dont think im going to stain it, i will either leave it as is or paint it black, i do have this wood finishing stuff though that blocks out water, and i think that stains the wood a bit, so this isnt decided yet, but do u know if the wood finish or the spray paint goes on first? the velcro will be covering all of the upper surfaces though,

and it was actually about 5ish inches narrower, but i got the silver dragon unexpectedly, so i had to make room
__________________
My Band: MachineDNA

Rickenbacker Club Member #196
  #17
Old 03-16-2008, 12:18 PM
Registered User

Join Date: Dec 2007
Location: New Delhi, India

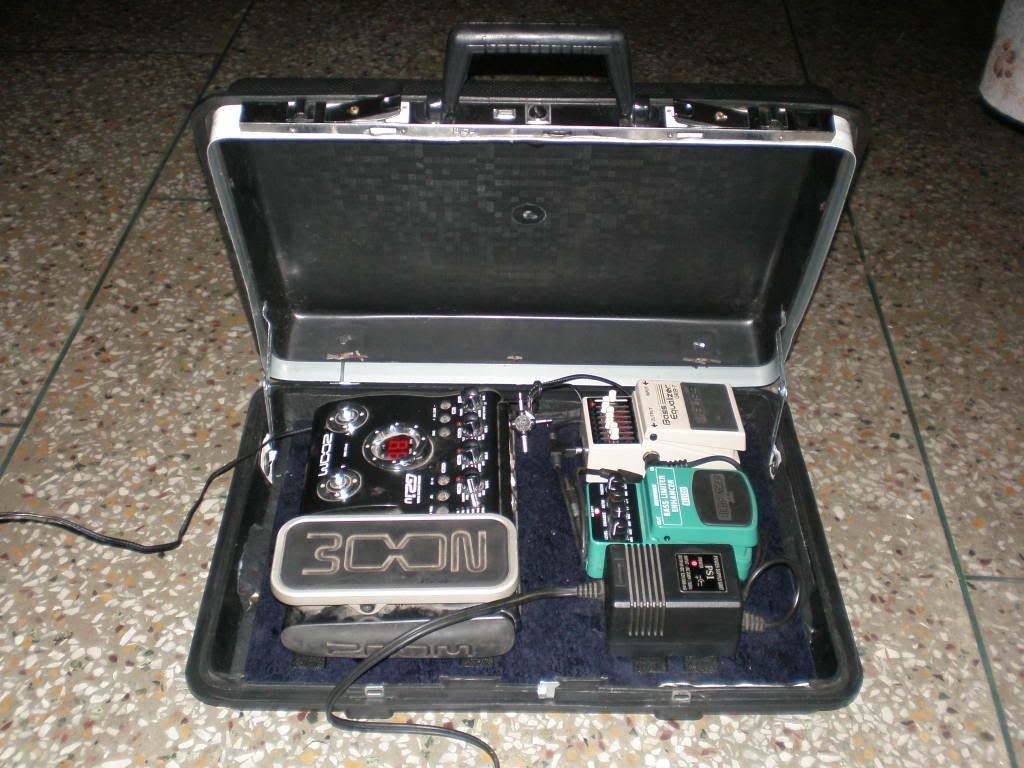

i built this pedal board
nothing too fancy neither the look nor the pedals
and yeah thats zoom is a guitar multi fx i used it for crazy sounds (envelop filters and wah and phasor and flanger and etc) but actually it stays on bypass or unplugged most of the time ( a friend left it at my place so am using it for now)
BUT NOW ITS GONE!



__________________
LESSONS = GAS killers!
  #18
Old 03-16-2008, 01:23 PM
Registered User

Join Date: Sep 2007
Location: Wausau, WI
Send a message via AIM to OhThePeacock
Syciprider has an excellent home made board, he might post it here.
__________________
Poney.bandcamp.com <--my band
  #19
Old 03-16-2008, 01:41 PM
Registered User

Join Date: Aug 2006
Location: Baltimore
Ran out of velcor at the top...Im thinking about spray painting it
  #20
Old 03-16-2008, 03:45 PM
bigchiefbc's Avatar
Registered User

Join Date: Oct 2006
Location: Rhode Island, USA
Supporting Member

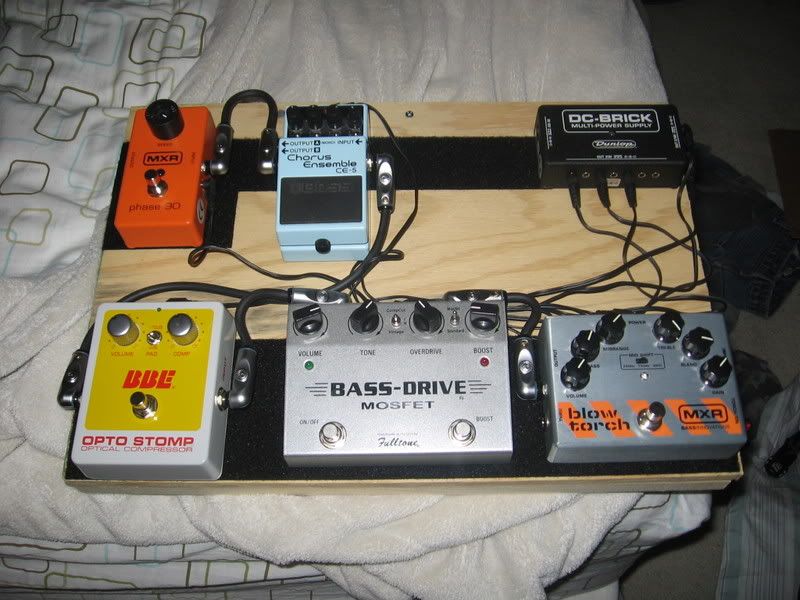

Here is my board, built with my guitarist in a long afternoon. Total money spent - 65 bucks
Its not as heavy as it looks, although I never built a proper cover for it. Most of the pedals have changed.
