Lumber conservation>neck construction......

Sign in to disble this ad
As I was leaving Peavey( the Leakesville guitar facility ) in 1999, the plant manager gave me a pallet of lumber...mostly cutoff pieces from the mfg. process. Among these were some cutoff from the Cirrus bass project that was just getting started. These neck blanks started off as a 4" X 3" five piece glue up....either maple/purpleheart or walnut/maple. We would then remove the "back" side of the neck blank...and the resulting pieces were part of that pallet of lumber.

I'd given almost all of them to my father in law...he was using them as mounts for some wood carving projects. Anyway, a couple of weeks ago, he returned about twenty of them to me.....I measured them, and determined I could use them in my neck construction process.

Since I'd set up some pretty good QC at the Peavey plant, these things are very consistent regarding tolerances. By gluing a piece to the back side of the blanks...after running them across my jointer and planer....it appears I have enough blanks for a dozen or so necks.

Lumber conservation....I like it!!!

So I'm planning on a few "specials" with these "naturally aged" blanks....almost ten years old now....they are absolutely stable and should work great.

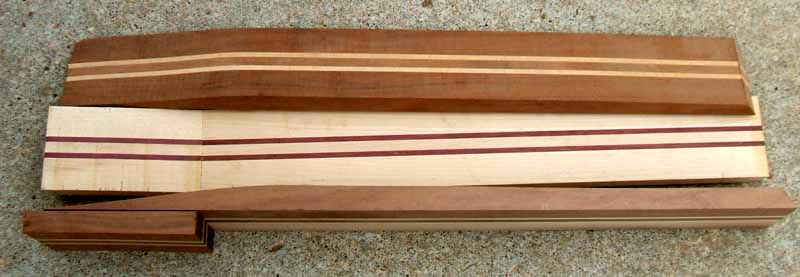

Here's a photo of the blanks....the maple blank is ready to carve; the bottom walnut blank shows how the glue up works...and the top blank is "as is" before processing.....


__________________
Dave
Wendler Instruments
  #2
Old 08-14-2008, 10:29 AM
Georynn's Avatar
Registered User

Join Date: Dec 2007
Location: Memphis,Tn
Supporting Member
Dang, I got a few projects goin on, this would save me some serious time, you wanna get rid of a couple of these let me know...
  #3
Old 08-14-2008, 01:33 PM
SDB Guitars's Avatar
Registered User

Shawn Ball - Owner, SDB Guitars

Join Date: Jul 2007
Location: Coeur d'Alene, ID
Supporting Member
What are the dimensions on those?

Thanks,

Shawn.
__________________
SDB Guitars - Turning exotic woods into sawdust and firewood scraps since 2002...
  #4
Old 08-14-2008, 02:11 PM
Wendler Instruments

Join Date: Feb 2004
Location: Lawrence, KS
They are about 5/4, and 4" width. Length is just barely enough for a 21 fret, 34" scale bass neck with a small peghead.

I plane them to .800" and then glue the extra piece( cut from another blank) on the back for my tilt back peghead.
__________________
Dave
Wendler Instruments
  #5
Old 08-14-2008, 02:24 PM
SDB Guitars's Avatar
Registered User

Shawn Ball - Owner, SDB Guitars

Join Date: Jul 2007
Location: Coeur d'Alene, ID
Supporting Member
Yeah, I thought they looked a little short for standard scale/24 fret... but they'd be great for short scale basses. If you decide to off-load some of those, drop me a line.

Thanks,

Shawn.
