  #21
Old 12-16-2012, 12:33 PM
JIO's Avatar
JIO JIO is online now
Registered User

musician/artist/owner - Gildaxe

Join Date: Jun 2010
Location: northern CA
GOLD Supporting Member
Quote:
Originally Posted by MPU View Post
And finally bagged.



Will be out of vacuum tonight. Tomorrow it's time for cf layer under the fretboard.
vacuum... as in the green bag is air tight and you attach a vacuum to an opening to suck all air out creating pressure- thus pressing the cf into the body?
__________________
Gildaxe - your guitar should dress like a star!

http://gildaxe.com
  #22
Old 12-16-2012, 12:58 PM
Registered User

Join Date: Nov 2012
Quote:
Originally Posted by iamlowsound View Post
Have you ever considered doing a foam core with CF skin? I would think that you would be able to make a very light bass that way.

lowsound
Or a foam core with a fiberglass skin, maybe even most of the neck, with a one inch maple core, similar to a surfboard? The core would be just wide enough for a truss rod........ Then some type of synthetic fretboard? Hmmmmm. Not trying to pirate this thread or nothin, just throwing the idea out there.

Last edited by slappa_dat_bass : 12-16-2012 at 01:00 PM.
  #23
Old 12-16-2012, 10:06 PM
AltGrendel's Avatar
Registered User

Join Date: May 2009
Location: Mid-Atlantic USA.
Supporting Member
Subbed mainly to see how you deal with routing and such.
__________________
Squier Jaguar Short Scale Club - #1
Olympic White Bass club member - #38.
Fender Jazz club member - #503.
Wood doesn't matter club - #2
Brony Bassists #11
Warmoth Owners club - #73
PRBC - #121

Last edited by AltGrendel : 12-16-2012 at 10:16 PM.
  #24
Old 12-16-2012, 11:07 PM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
Quote:
Originally Posted by JIO View Post
vacuum... as in the green bag is air tight and you attach a vacuum to an opening to suck all air out creating pressure- thus pressing the cf into the body?
You got it. That green bag stretches about 300% and follows the shapes of the vacuumed piece. The bag presses the cf tightly to the core and also presses the excess epoxy out of the laminate. My vacuum pump is made of an recycled refridgerator compressor and vacuum pressure switch. A bit slow air intake but works fine in this.
I'm going to use an acrylic impregnated fretboard. Should be very stable.
Routing goes just like routing wood, cf can be worked with carbide bladed router bits.

Last edited by MPU : 12-16-2012 at 11:38 PM.
  #25
Old 12-17-2012, 05:03 PM
Registered User

Join Date: Nov 2005
Location: Listowel/KW Ontario
Quote:
Originally Posted by slappa_dat_bass View Post
Or a foam core with a fiberglass skin, maybe even most of the neck, with a one inch maple core, similar to a surfboard? The core would be just wide enough for a truss rod........ Then some type of synthetic fretboard? Hmmmmm. Not trying to pirate this thread or nothin, just throwing the idea out there.
I have thought of doing this, but I need to finish my first bass first.

lowsound
__________________
Quote:
Originally Posted by MarkMgibson View Post
She may be "hot", but so's your pet bunny boiling on the stove.
  #26
Old 12-23-2012, 01:33 AM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
Laminating finished and two filler coats of epoxy added. They will cure over Christmas and then it's time for sanding. After sanding I'm routing slot for trussrod and making the fretboard.



First filler coat on. Second coat made the surface a lot smoother.
  #27
Old 12-23-2012, 02:36 AM
Registered User

Join Date: Mar 2011
Too cool for school
  #28
Old 12-23-2012, 11:12 AM
JIO's Avatar
JIO JIO is online now
Registered User

musician/artist/owner - Gildaxe

Join Date: Jun 2010
Location: northern CA
GOLD Supporting Member
Quote:
Originally Posted by MPU View Post
Laminating finished and two filler coats of epoxy added. They will cure over Christmas and then it's time for sanding. After sanding I'm routing slot for trussrod and making the fretboard.

First filler coat on. Second coat made the surface a lot smoother.
so what do you anticipate your bass w/approximately weigh in at?
__________________
Gildaxe - your guitar should dress like a star!

http://gildaxe.com
  #29
Old 12-23-2012, 12:42 PM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
I haven't weighted the bass yet. When fretboard is glued I'll weight it. It feels quite a lot lighter than similar shaped four stringer.
  #30
Old 12-23-2012, 12:53 PM
RedMoses's Avatar
Registered User

Join Date: Jul 2012
Location: NYC
Supporting Member
Cool! Sub'd
__________________
Marco Bass P/J 4 || 87' Thumb Bass 5 || Azola Hollow Jazz || Tomkins Australia P/J 4 || GenzBenz GBE750 || Aguilar DB212 ||
  #31
Old 12-24-2012, 05:55 PM
Registered User

Join Date: Sep 2000
Location: Virginia Beach ,VA USA
More,must see more!!! Absolutely beautiful!
__________________
I want to be a lumberjack...
  #32
Old 12-25-2012, 05:06 PM
astack's Avatar
Registered User

Join Date: Nov 2011
Location: SF Bay Area
Supporting Member
Nice! Sub'd.
__________________
Ampeg V4 Club member #67 (V4B) | Fender Bassman Club member #107 (Bassman 100)
Tone Hammer 500 | Terror Bass 500
  #33
Old 12-27-2012, 11:25 PM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland

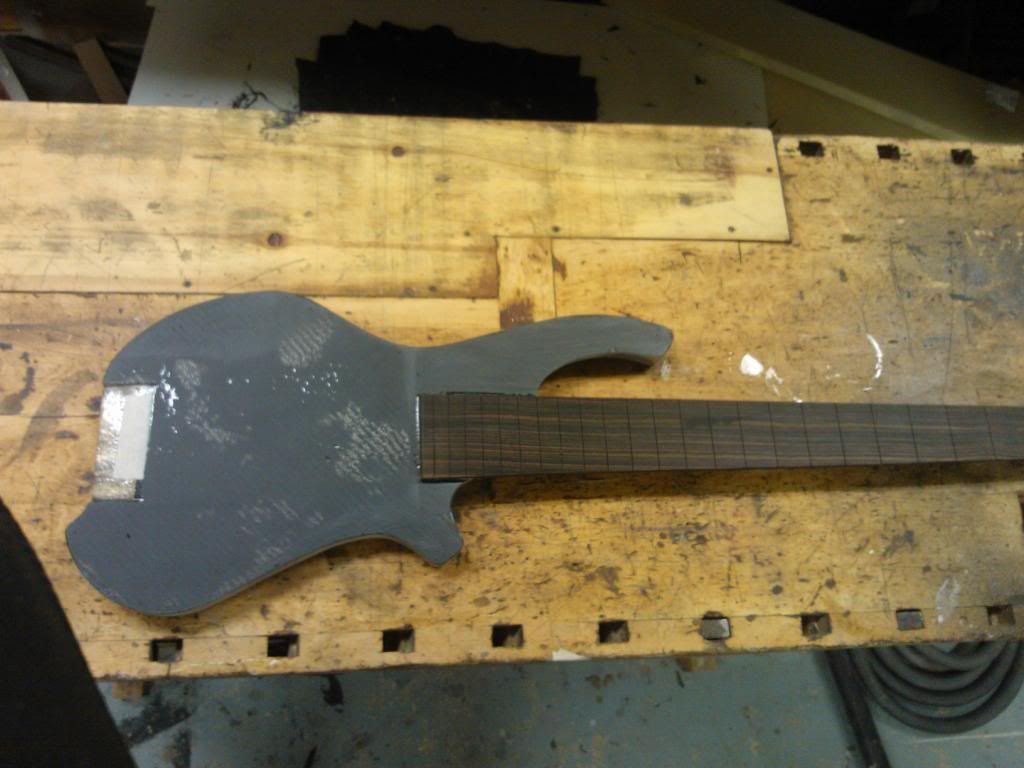

Some progress. Two filler layers sanded, one more needed. Truss rod slot routed, fretboard slotted and glued. Next it's fretboard sanding and fretting and cavities for pickup and controls before final fill layer.



  #34
Old 12-28-2012, 08:39 AM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
Fretted weight is 1,95kg. I just leveled and crowned the frets. I may do a test play after I've fitted the headpiece. Can't wait to hear some test sounds. Even acoustic sounds will do.
  #35
Old 12-28-2012, 09:13 AM
Registered User

Join Date: Mar 2011
Looking good, and the weight is amazing. If I played fivers, I'd start saving for when you'll offload this before building the next one...
  #36
Old 12-30-2012, 12:07 PM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
Test fitted the bridge/tuner and headpiece. I also got to play the bass. Sounds nice acoustically.



Weight of the finished bass will be around 2800g. Feels quite light.

Last epoxy coat added, now it will harden for two days before sanding and routing the cavities. Then it's time for final sanding and painting.

  #37
Old 12-30-2012, 12:18 PM
Registered User

Join Date: Feb 2007
Location: Canadia
I gotta say you do wonderful work...
  #38
Old 12-30-2012, 01:25 PM
younggun's Avatar
Registered User

Join Date: Jul 2008
Supporting Member
What brand hardware are you using for the tuners and headpiece?
  #39
Old 12-30-2012, 01:40 PM
MPU MPU is online now
Registered User

Join Date: Sep 2004
Location: Valkeala Finland
Ets tuner/bridge and Hohner/Steinberger headpiece. Double ball end strings only. Status makes great db strings at quite nice price.
Pickup will be either 10-coil Wal-like or Q-tuner inspired sidewinder, both custom-made in my shop.
  #40
Old 12-30-2012, 11:47 PM
Registered User

Join Date: Jul 2003
Location: San diego, CA
Love me some Carbon Fiber!
__________________
Squier Classic Vibe Club #108, G&L Club Member # 470

Quote:
Originally Posted by Prostheta View Post
Indiana Jones of course would take a different approach which I cannot fully advocate.
