4 string to 5 string project

Discussion in 'Luthier's Corner' started by iriegnome, Feb 24, 2014.


  1. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    I have come to the realization that the only way I am going to get what I want is to build it. Now, I am not going to chop the tree start from scratch, but I would love some help with this. I am looking for a 4 string of any kind that I can modify into a 5'er. I am looking to make a 1-3/4" nut to a 2-1/2" heel into a 5 banger. I was looking into Warmoth bodies and necks, but would not be opposed to messing with a MIM fender or even a Epiphone LP kind of thing.
    I don't know at all what I am doing, but I do know what I want. Any help??
    I am looking for 16mm string spacing (5 string) 44mm at the nut, 64mm at the heel and a 34" scale.

  2. ctmullins

    ctmullins Registered thumper Supporting Member

    Joined:
    Apr 18, 2008
    Location:
    MS Gulf Coast

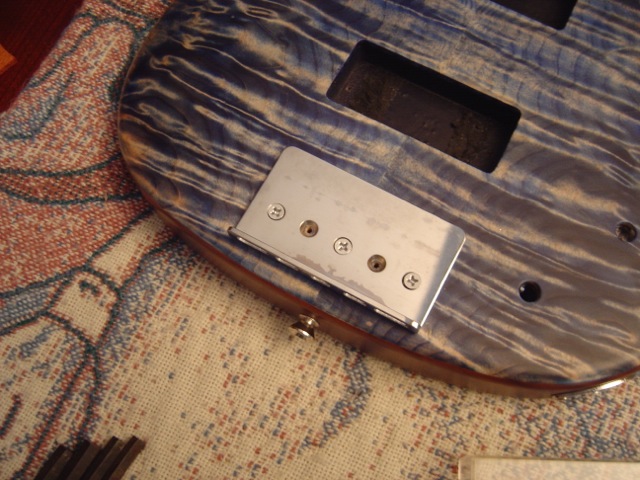

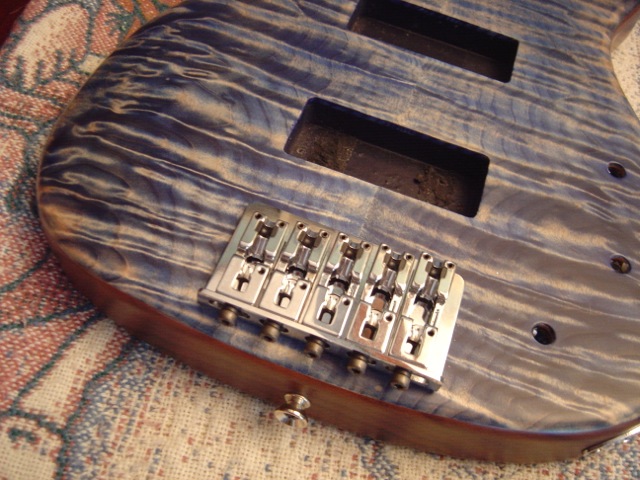

    I discovered recently that the Schaller 2000 five-string bridge is a perfect retrofit to the standard Fender five-hole bridge mount:

    [​IMG]

    [​IMG]

    It's not the cheapest bridge available, but the quality is excellent, and it's highly adjustable. 16mm spacing is no problem here.

  3. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    I am also going to need a 44mm 5 string nut as well.

  4. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    Does anyone know if 16.5mm string spacing would work on a Standard Fender P bass to convert to a 5'er

  5. Register to disable this ad
  6. ctmullins

    ctmullins Registered thumper Supporting Member

    Joined:
    Apr 18, 2008
    Location:
    MS Gulf Coast
  7. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    I sent him a message

  8. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
  9. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Location:
    Colorado
    All 3 of those are frankensteined parts basses.

  10. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Location:
    Colorado

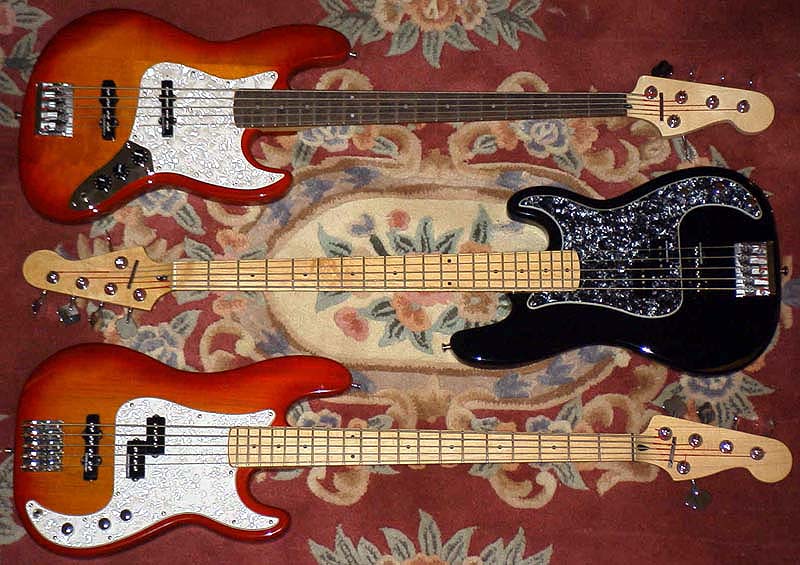

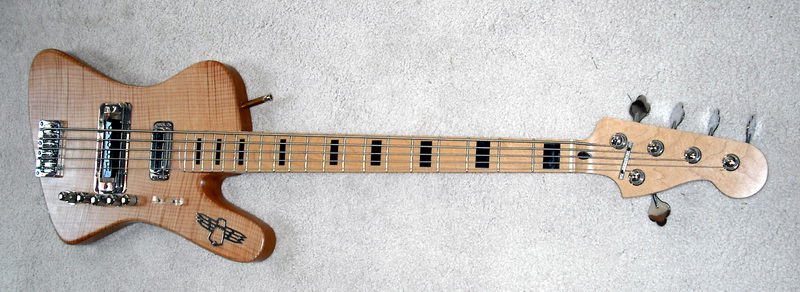

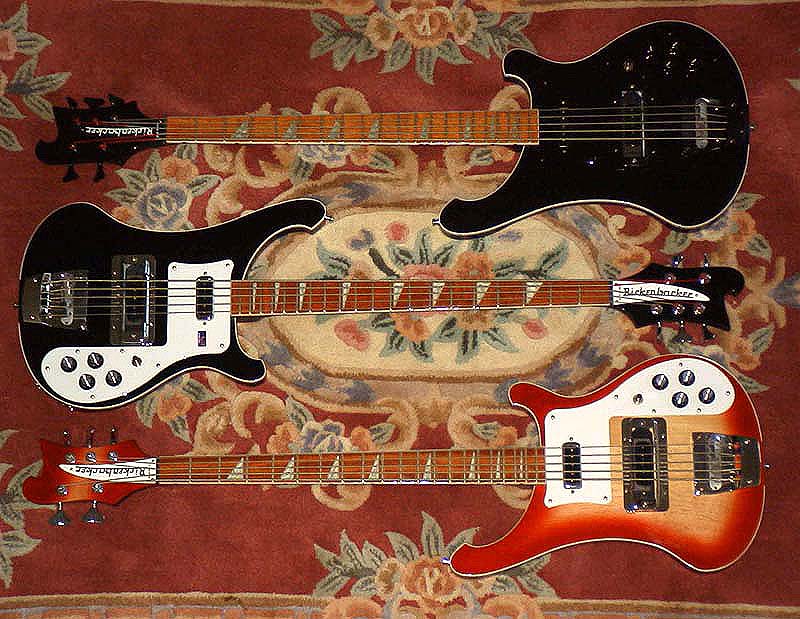

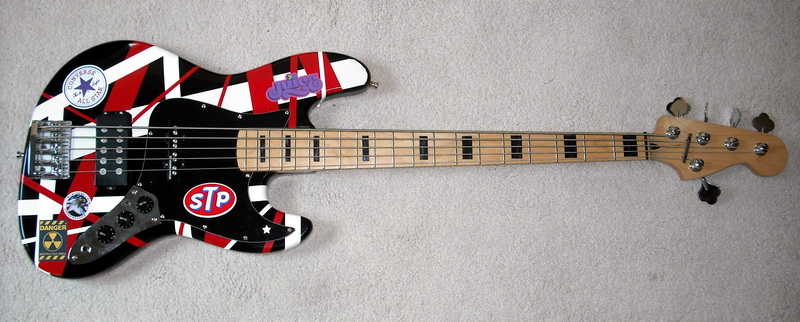

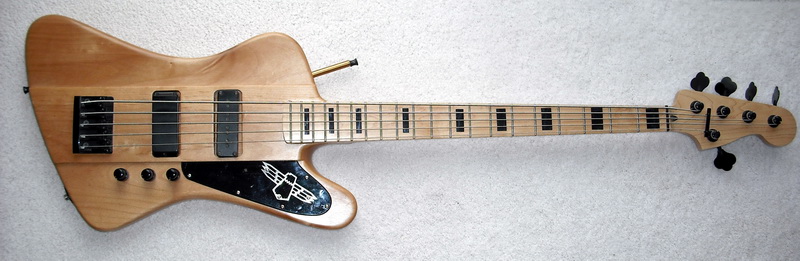

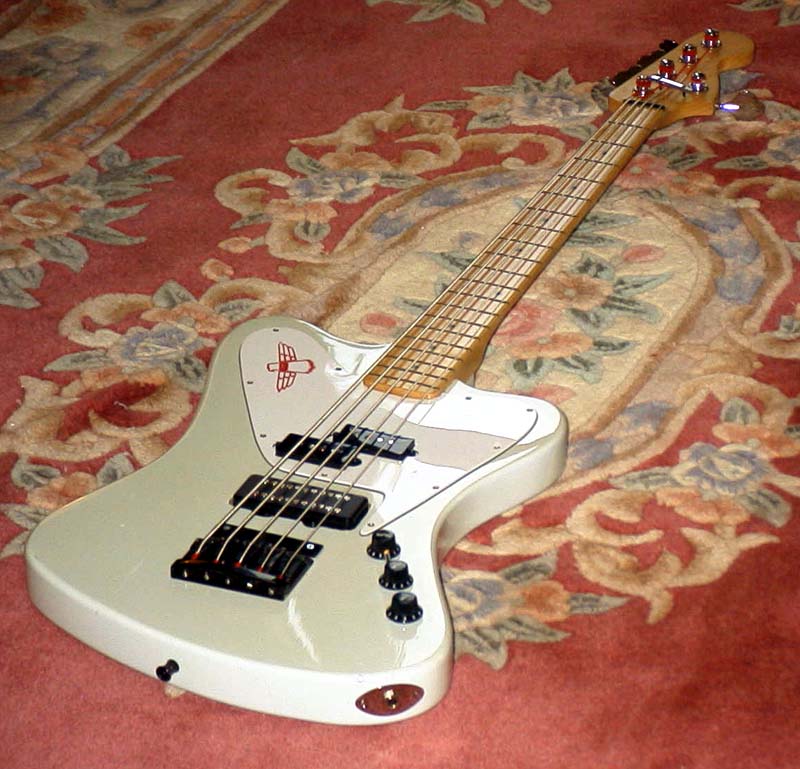

    Some of my frankensteined basses

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  11. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    Great looking work. Just some beautiful basses... Are you using basses with 1-3/4 nut widths for that.. I really want to try one.

  12. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    Made my 4 string purchase. Now have to figure out the bridge. Picked up the string retainer and the tuners. Going with a 3+2 configuration

  13. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Location:
    Colorado
    1 3/4" 1 5/8" 1 1/2" all can work.

  14. mormoyboy

    mormoyboy

    Joined:
    Oct 9, 2012
    Location:
    NWOhio
    What did you purchase as your starting point?

    Ric5, what about pickups? do you find that the 4-string designs are workable even with 5 strings at a different string spacing?

  15. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140

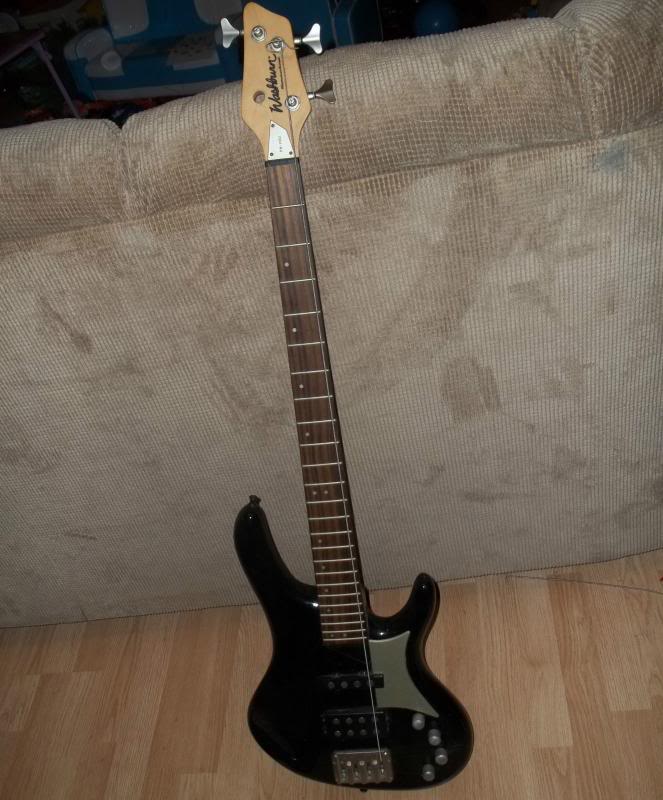

    I picked up a washburn rb 2002. They are great basses. Pretty cheap too. Just have to figure out exactly what bridge to pic up

  16. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
  17. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    I believe I will be going with a 3+2 tuner config. Just got to find the proper bridge and have a nut made for it.

  18. Ronbeast

    Ronbeast

    Joined:
    Sep 20, 2008
    Location:
    Placentia,Newfoundland,Canada
    Looks like a cool bass for the project. I bought a beat up p-bass for a 4 to 5 conversion.

  19. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    Shout out to Ric5 for being such a fantastic help.. My bass needed 2 tuners, I found Grover brushed chrome ones to match what is all ready there. Picked up the bridge and the nut blank. Total for transformation $33! Gotta love Make Offers on Ebay..

  20. BioWeapon

    BioWeapon

    Joined:
    Feb 16, 2013
    Location:
    Calgary, Alberta
    Those 4 string pups aren't going to be a problem?
    I know 4 string P pups and some jazz pups work with 5ers, but won't your D string go right between magnets?

  21. iriegnome

    iriegnome Bassstar style Supporting Member

    Joined:
    Nov 23, 2001
    Media:
    20
    Location:
    Kenosha, WI 53140
    From what I understand, they should work. I think that the pole pieces are just extensions that create a magnetic field. I could be wrong though.
