Acoustic 360

Discussion in 'Amps [BG]' started by Jazz_bass2664, Oct 12, 2010.


  1. Jazz_bass2664

    Jazz_bass2664 Supporting Member

    Joined:
    Aug 6, 2010
    Location:
    Glendora CA

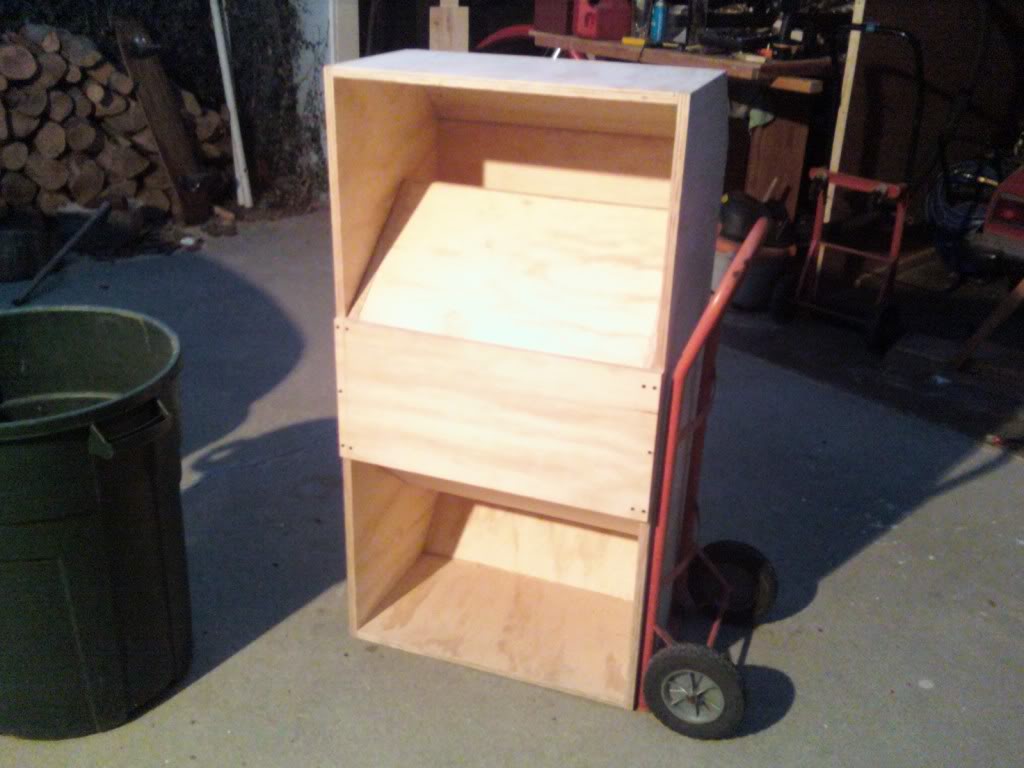

    Here u go! Just finished the final woodwork on my 360 replica, now time for tolex and that wonderful blueish front piece
    [​IMG]
  2. SurferJoe46

    SurferJoe46

    Joined:
    Feb 22, 2010
    Location:
    The Bitterroot Mounts, Montana
    What size driver(s) ya gonna use?
  3. poorbassist15

    poorbassist15

    Joined:
    Dec 29, 2009
    Location:
    Danville, VA
    I was gonna do the exact same thing. Can you send me plans for that beast? PLEASE???? :D
  4. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Location:
    Colorado
    very cool
  5. Register to disable this ad
  6. KramerBassFan

    KramerBassFan

    Joined:
    Jan 3, 2009
    +1

    Plans please...
  7. Jim Carr

    Jim Carr Dr. Jim Gold Supporting Member

    Joined:
    Jan 21, 2006
    Location:
    Denton, TX or Kailua, HI
    Disclosures:
    Union card-carrying liberal academic musician

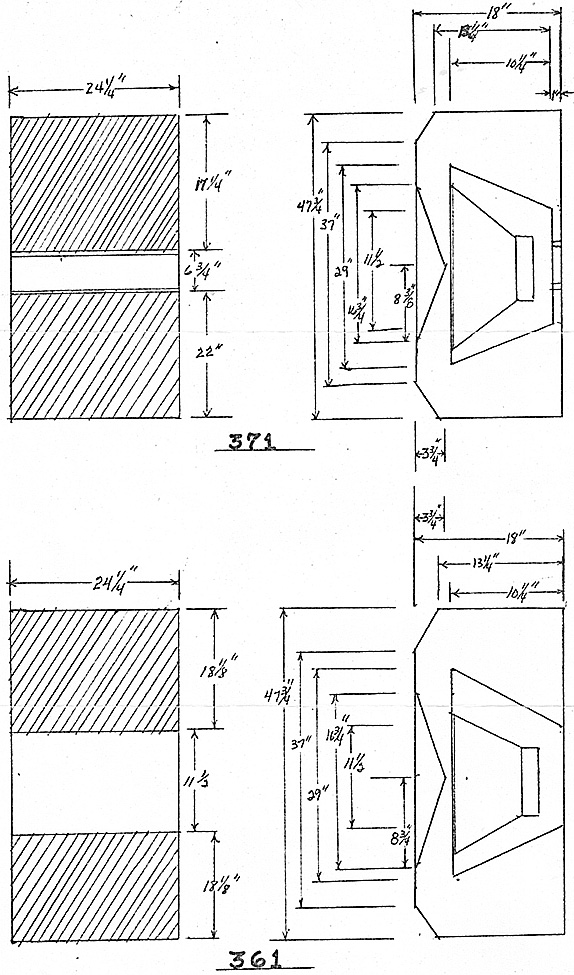

    Plans? Well here are some "dimensional drawings" of the two basic variants:

    [​IMG]
  8. hachi kid

    hachi kid

    Joined:
    Jun 2, 2008
    Location:
    Pelham, AL
    wasn't that supposed to be a 4x18 cab?...
  9. Nightlyraider

    Nightlyraider

    Joined:
    Sep 30, 2009
    Location:
    Minneapolis
    They are single 15s...
  10. poorbassist15

    poorbassist15

    Joined:
    Dec 29, 2009
    Location:
    Danville, VA
    Single 18, not 15s. It was so loud because of the horn design.
  11. hachi kid

    hachi kid

    Joined:
    Jun 2, 2008
    Location:
    Pelham, AL
    I knew 18's were involved...that does make more sense with it being a 1x18...I was wondering how 4 freakin 18's fit in a cab the size of a fridge cab...I got some wrong info somewhere down the line.....
  12. Nightlyraider

    Nightlyraider

    Joined:
    Sep 30, 2009
    Location:
    Minneapolis
    18s? Good to know, I thought they were just in a huge sized box to develop that volume.
  13. JohnMCA72

    JohnMCA72

    Joined:
    Feb 4, 2009
    What power amp are you going to install?
  14. BillyB_from_LZ

    BillyB_from_LZ Supporting Member

    Joined:
    Sep 7, 2000
    Location:
    Chicago
    How is the speaker installed? I've seen at least three variations in Acoustic cabinets over the years.
  15. Jazz_bass2664

    Jazz_bass2664 Supporting Member

    Joined:
    Aug 6, 2010
    Location:
    Glendora CA
    its installed in the back of the trapezoid shaped thingy. the drawings posted here are the plans i used to build it. Now i just gotta track down a cerwin vega 18" to throw in there
  16. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Location:
    Colorado
  17. KJung

    KJung Supporting Member

    Joined:
    Apr 9, 2005
    Location:
    Wisconsin and Upper Michigan
    I believe he is talking about an old Acoustic cab that looked similar, but had 4 15's, with two firing into each other mounted horizonally at the center of the cab (can't remember the model number on that one... I believe it was associated with then 370 series of heads in the early 70's). Kind of a strange cab... weighed a ton, sounded 'OK'.
  18. chadds

    chadds

    Joined:
    Mar 18, 2000
    Traynor had two 8"s in the space where the blue panel resides. That would take care of it's mid/high deficiency.
  19. KramerBassFan

    KramerBassFan

    Joined:
    Jan 3, 2009
    The Acoustic 4x15 was the 408.
  20. KJung

    KJung Supporting Member

    Joined:
    Apr 9, 2005
    Location:
    Wisconsin and Upper Michigan
    Yeah, Cerwin Vega had a similar design with their horn loaded 18 (with a single 8" driver front mounted so you could at least hear some note definition. That would still sound like mush compared to today's cabs, but back in the day, it was an impressive cab, and meshed will with the low end attenuated and mid grindy/distorted solid state heads of that day (Acoustic, GK, etc.).
  21. KJung

    KJung Supporting Member

    Joined:
    Apr 9, 2005
    Location:
    Wisconsin and Upper Michigan
    Thanks... couldn't remember. They put out another 'strange' cab during that period... If I remember right, it had multiple 6x9" drivers. Another awful cab, but sure was unique!
