Carbon expression out

Discussion in 'Effects [BG]' started by sugarmagnolia97, Mar 17, 2014.


  1. sugarmagnolia97

    sugarmagnolia97

    Joined:
    Aug 4, 2012

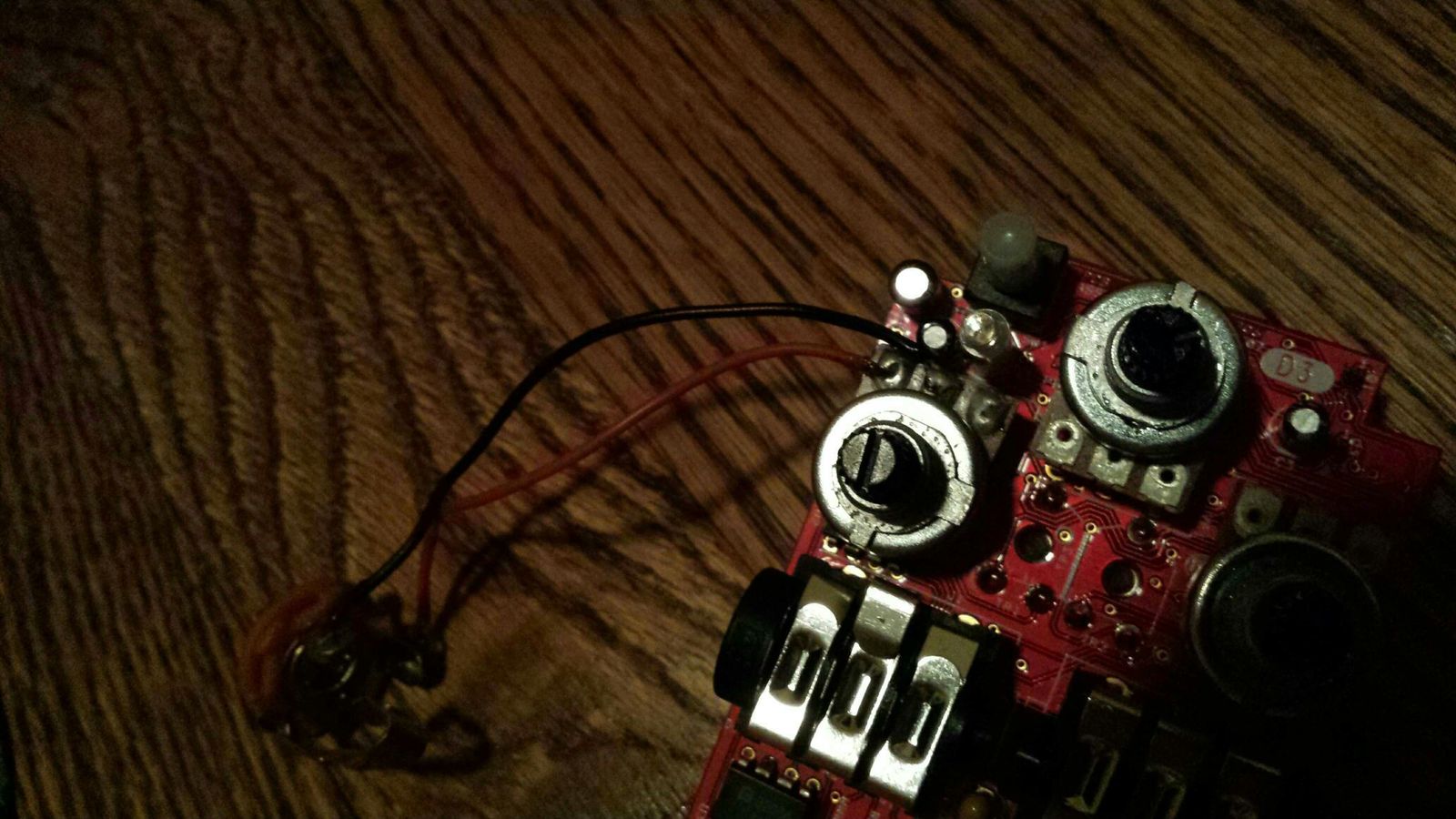

    So I have a carbon copy delay that I added an expression out to so when you hit a momentary switch it ramps up the regen. It works well until I put it back in the enclosure. When the pedal and expression plug are both touching the enclosure at the same time the pedal will only do a slap back type thing and the expression does nothing. I'm new to this and I'm not really sure what's going on. Thanks for the help. Here's a pic of it. [​IMG]
  2. bigmoosepi

    bigmoosepi

    Joined:
    Oct 1, 2012
    Location:
    Tasmania, Australia
    if something works outside an enclosure and not in, something is shorting.

    What I would do probably takes the most effort but the least thought and troubleshooting. I would just cover the inside of the pedal in tape.
  3. sugarmagnolia97

    sugarmagnolia97

    Joined:
    Aug 4, 2012
    Alright thanks. Would electrical tape work? Or duct tape?
  4. eddododo

    eddododo Supporting Member

    Joined:
    Apr 7, 2010
    Well you'd have to prevent all of the metal areas of the Jack from grounding to the enclosure.. this includes the face the shaft and the washer/nut. I, for that reason, use plastic jacks for all but the output jack in pedals.

    Clever taping can work, just be observant and diligent
  5. eddododo

    eddododo Supporting Member

    Joined:
    Apr 7, 2010
    Electrical.. duct tape is messy and working with it on that small an assignment can be awful.
