Custom painted/finished pedals - let's see 'em!

Discussion in 'Effects [BG]' started by rtav, Mar 11, 2014.


  1. rtav

    rtav Millionaire Stuntman, Half-Jackalope Supporting Member

    Joined:
    Dec 12, 2008
    Location:
    Chicago, IL
    Hey TBers!

    I have been perusing the threads for effects and seeing some nice looking custom paint and finishing jobs that some of you have done to your pedals, but haven't seen a thread dedicated to showing custom painted or finished pedals, so I thought I'd start one.

    Now, I don't have any custom ones of my own, so sadly I can't start the thread :bawl: .

    Enough of my yappin... Let's boogy! Show off your work!
  2. DagoMaino

    DagoMaino Supporting Member

    Joined:
    Feb 1, 2013
    I just posted this one recently, but I'll get the thread rollin'... DAM Ezekial 25:17 clone
    [​IMG]

    Another recent project for a friend, Joyo UD refinish.

    [​IMG]
  3. mmbongo

    mmbongo I like turtles. Supporting Member

    Joined:
    Aug 5, 2009
    Location:
    Upstate, South Carolina
    My first (and only so far!) pedal rehousing:


    [​IMG]
    [​IMG]
  4. LSMFT6

    LSMFT6 Supporting Member

    Joined:
    Aug 16, 2006
    Location:
    California
    I sharpied my EBS Sheehan drive from the knobs down because I think it looks super lame, but it sounds great so I had to keep it.
  5. Register to disable this ad
  6. Vlad5

    Vlad5 Chronic Knob Twiddling Tone Chaser Supporting Member

    Joined:
    Feb 17, 2011
    Location:
    New England
    Here are those I've done:

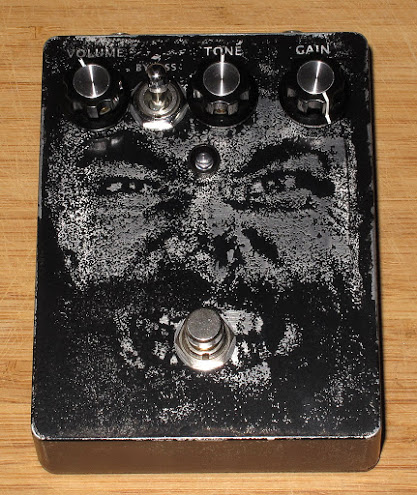

    Bluebeard
    ...with Prince Voltan from Flash Gordon (Brian Blessed)
    [​IMG]

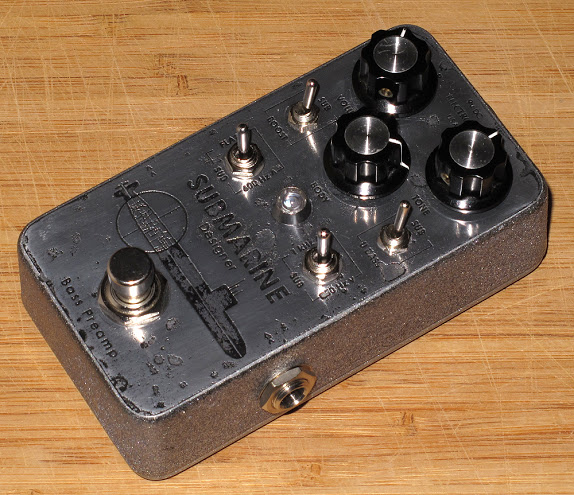

    Submarine Designer
    ... with a 688i schematic
    [​IMG]

    Mountainking Frequency~LSD (rehoused)
    ...complete with LSD molecule and Mandelbrot set.
    [​IMG]
  7. MCS4

    MCS4 Supporting Member

    Joined:
    Sep 26, 2012
    Location:
    Fort Lauderdale, FL
    I've got a few:

    [​IMG]

    On the bottom row are three stones from the movie "The Fifth Element," which now house a Blackeye Effects Palmetto boost, a Fuzzrocious Demon, and a basic bypass looper made for me by Fuzzrocious. I have the fourth and last Fifth Element stone as well but haven't rehoused anything in it yet. Fuzzrocious did a limited run of etched boxes that included these, so I got the Demon and looper in them and picked up a couple of empties for rehousing.

    Top left is an EQD Dispatch Master rehoused in a TARDIS (from Dr. Who). Since the EQD's usual enclosure is decorated with a telephone, I thought it was a perfect match. This was done by Handsome Beard Etching, the same etcher who did the Fifth Element stones, and I specifically had him "weather" the box to match the stones. Bigger photo of that one:

    [​IMG]


    All rehousing work done by Top Dog Effects (i.e. my dad and I), except for the etching.
  8. rtav

    rtav Millionaire Stuntman, Half-Jackalope Supporting Member

    Joined:
    Dec 12, 2008
    Location:
    Chicago, IL
    Wow... some really nice ones!
  9. Woodsbass

    Woodsbass

    Joined:
    Apr 11, 2011
    Location:
    Carleton County, New Brunswick
    [​IMG][/URL][/IMG]

    This is a Fuzzrocious Demon that I got Ryan to put some extra LEDs into and I got a custom paint job done as well. It has the extra drive setting, so when the pedal is kicked on two LEDs come on and when the second setting is kicked on the other two come on as well, making the saber fully lit up.

    Me likey!
  10. Knettgummi

    Knettgummi

    Joined:
    Sep 28, 2011

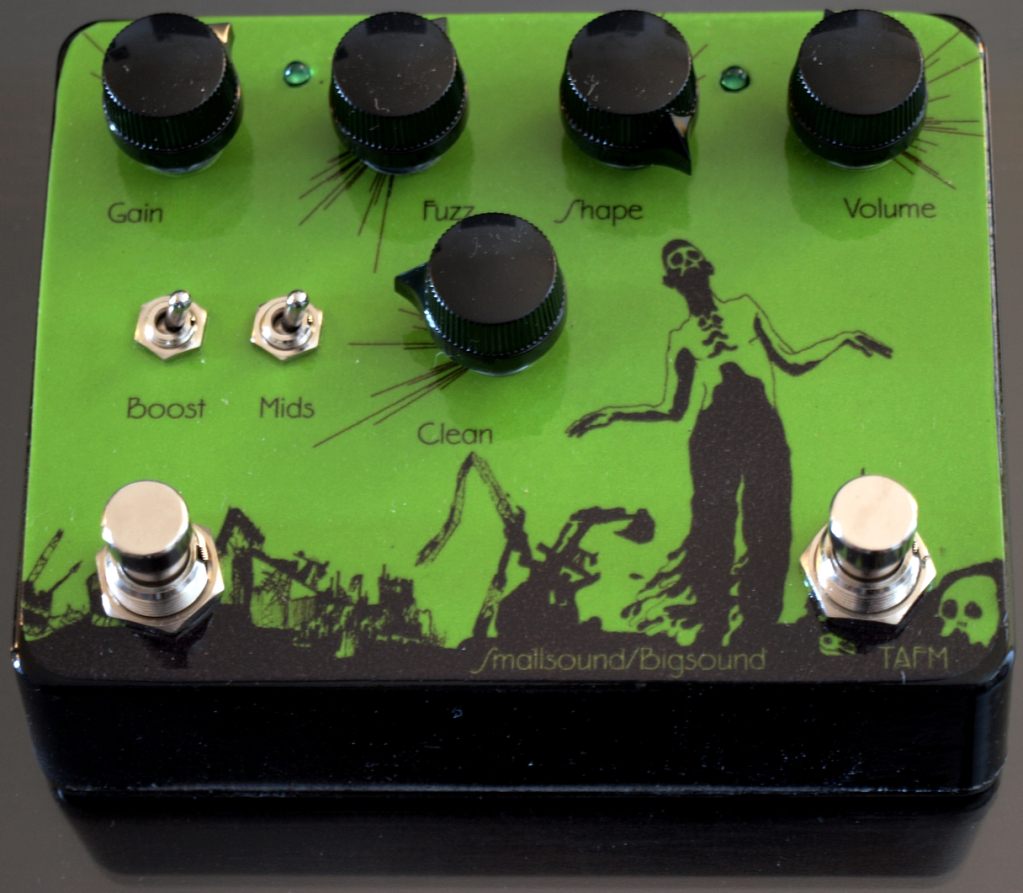

    I have a custom TAFM:

    [​IMG]
  11. Kevindavid3

    Kevindavid3

    Joined:
    Jul 11, 2010
    I need that tardis pedal!!!!
  12. MCS4

    MCS4 Supporting Member

    Joined:
    Sep 26, 2012
    Location:
    Fort Lauderdale, FL
    No sir! All mine.

    The Dispatch Master is far easier to use live after the rehousing, since the footswitch is now at least twice as far away from the knobs. Ditto with the Palmetto Boost. That's the primary reason why I rehouse these pedals.
  13. rtav

    rtav Millionaire Stuntman, Half-Jackalope Supporting Member

    Joined:
    Dec 12, 2008
    Location:
    Chicago, IL
    Great stuff... I really love that rehoused Joyo UD. VERY nice.
  14. gregmon79

    gregmon79 Supporting Member

    Joined:
    Dec 20, 2012
    Media:
    49
    Albums:
    2
    Location:
    Chicagoland area
    Guess I'll post mine. I'm working on my Joyo Dyna comp now as well.
    Comp so far
    [​IMG]

    My Ultimate Drive
    [​IMG]

    And California Sound
    [​IMG]
  15. rtav

    rtav Millionaire Stuntman, Half-Jackalope Supporting Member

    Joined:
    Dec 12, 2008
    Location:
    Chicago, IL
    Awesome... How did you do the stamping for the bare-metal looking pedals?
  16. Darknut

    Darknut Supporting Member

    Joined:
    Apr 4, 2009

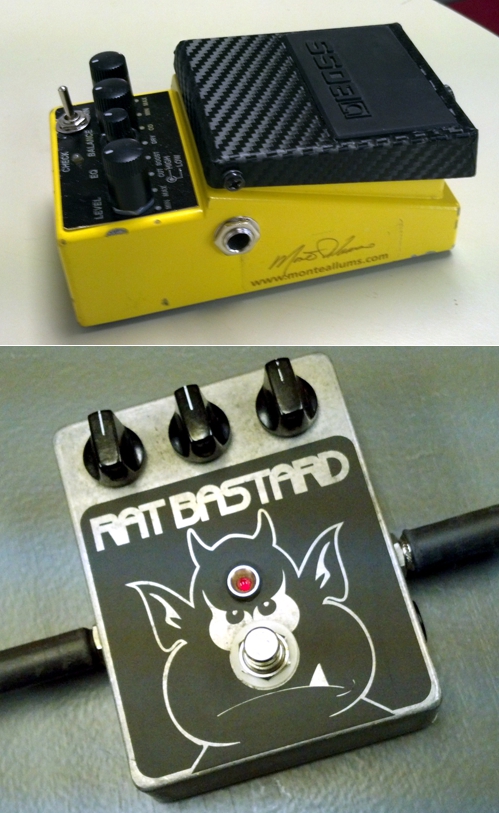

    A couple I did ... I have a sign shop I used vinyl


    [​IMG]
  17. gregmon79

    gregmon79 Supporting Member

    Joined:
    Dec 20, 2012
    Media:
    49
    Albums:
    2
    Location:
    Chicagoland area
    I used a simple 1/8' steel stamp kit. Hammered them in. Worked great.
  18. eyeballkid

    eyeballkid Supporting Member

    Joined:
    Jul 19, 2009
    Location:
    wes virginny
    Disclosures:
    Records of Existence/PyrE owner

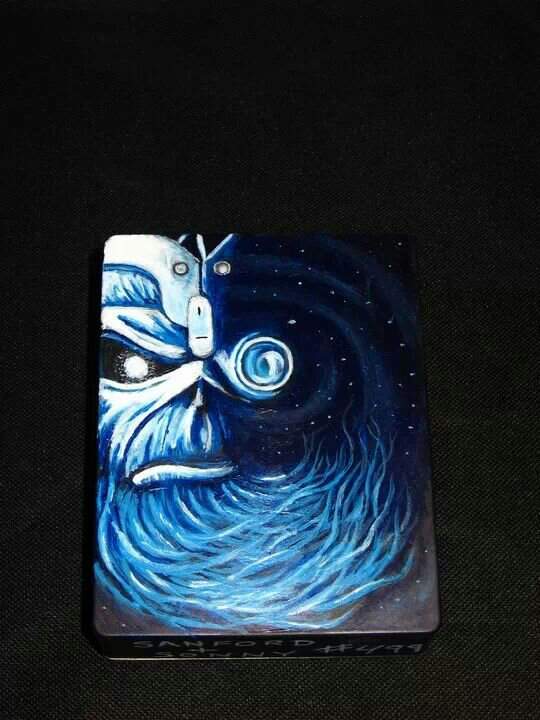

    Here's the housing for a custom bluebeard I did before it was drilled. The LED went in the cyborg eye.

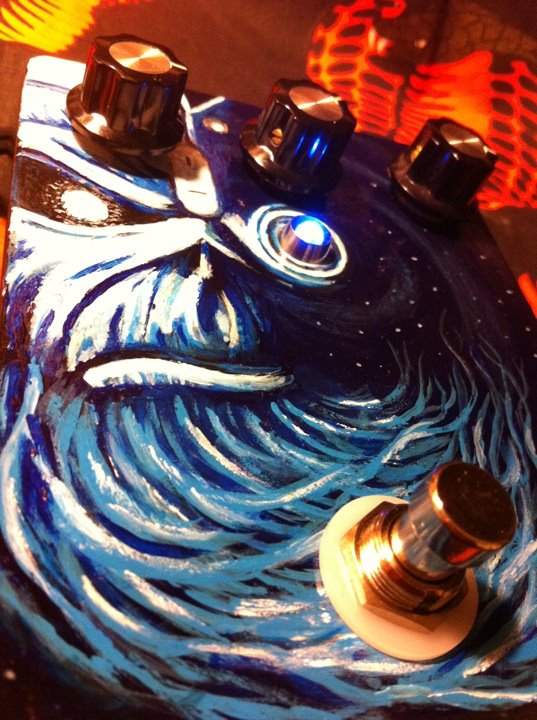

    and the finished pedal.

    Attached Files:

  19. kleinenenten

    kleinenenten

    Joined:
    Jan 30, 2012
    Location:
    Florissant MO
    Maiden FTW!
  20. rtav

    rtav Millionaire Stuntman, Half-Jackalope Supporting Member

    Joined:
    Dec 12, 2008
    Location:
    Chicago, IL
    Some great looking stuff here... keeping posting those pedals!
  21. J_Rock

    J_Rock Supporting Member

    Joined:
    May 19, 2012
    Location:
    Ohio
    Both of these were done by Chase at Dawes Audio.

    Devil Dog Drive - Barbershop clone

    Irrational Squid - Mastotron clone

    [​IMG]
