Did Fender change their P pickups between 62 and 77?

Discussion in 'Pickups & Electronics [BG]' started by thedudebrah, Jan 1, 2013.


  1. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    I have a 77 P that had active EMG's in it when I bought it. I'm a passive guy, so I swapped them out with some spare pups from an old squier and I don't feel that the instrument is at it's full potential right now.

    I'm aware of the Fender original 62 replacement pickups, but I'm wondering how much they're different from an actual 77 pickup, sound wise. If they are different, which aftermarket replacements would get me closest to that sound without buying pickups from another 77 P? Original replacements are a little out of my price range right now.

  2. JimmyM

    JimmyM Supporting Member

    Joined:
    Apr 11, 2005
    Messages:
    79,980
    Location:
    Apopka, FL
    Disclosures:
    Endorsing: Ampeg Amps, EMG Pickups
    They are quite different. The 62 has rounded pole pieces, the 77 has flat magnet pole pieces. Soundwise, I think the 70's pickups aren't as beefy in the lows as the 62 nor quite as bright on the top end. Been my experience straight down the line with them. For that reason I'd go 62.

  3. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    Any aftermarket companies offering anything close to a 70s pickup? I'm looking on eBay and 70s pickups aren't as expensive as I thought. I guess I have more options than I thought.

  4. JimmyM

    JimmyM Supporting Member

    Joined:
    Apr 11, 2005
    Messages:
    79,980
    Location:
    Apopka, FL
    Disclosures:
    Endorsing: Ampeg Amps, EMG Pickups
    Actually I said I thought the 62 had MORE highs ;) But you have way more experience with pickups than I do, so I defer to your judgment.

  5. Register to disable this ad
  6. SGD Lutherie

    SGD Lutherie Banned

    Joined:
    Aug 21, 2008
    Messages:
    10,388
    Location:
    Bloomfield, NJ
    Disclosures:
    Owner, SGD Music Products
    You know I was thinking Jazz pickups and not P pickups... so nevermind!

  7. JimmyM

    JimmyM Supporting Member

    Joined:
    Apr 11, 2005
    Messages:
    79,980
    Location:
    Apopka, FL
    Disclosures:
    Endorsing: Ampeg Amps, EMG Pickups
    Way to work in a plug, bro ;)

    Anyway, that sounds logical to me.

  8. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    So here I was thinking original pickups were way out of my price range, and I ended up finding a working set with harness, pots and jack on eBay for 154 bucks. Should be here by next week!

  9. ko stradivarius

    ko stradivarius Supporting Member

    Joined:
    Aug 14, 2006
    Messages:
    641
    Location:
    St. Louis
    I hope that wasnt the set that had the oem pots/jack but (located in fine print) unknown pickups since the solder was wonky.

  10. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    The ones I grabbed said they were working fine and ready to bolt in. The seller also had 99% feedback. We shall see.

  11. ko stradivarius

    ko stradivarius Supporting Member

    Joined:
    Aug 14, 2006
    Messages:
    641
    Location:
    St. Louis
    I dont mean to sound like a jerk I just hope you get what youre hoping it is.

  12. Danelectrofy

    Danelectrofy

    Joined:
    Dec 17, 2011
    Messages:
    7
    Location:
    Amish Country Pa.
    It has been my experience that the DiMarzio P-pickups have all the low grunt and all the highs of both the 60's and 70's pickups. I replaced both my 60's era pickups and later with DiMarzios. Not plugging them specifically but that has been the way I rolled.

    That being said, I have an 82 Hamer Cruise Bass, Version one with original 1982 DiMarzio pickups that absolutely roars.

  13. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    It's all good. I hope so too, i know ebay is always a risk.

    If we're talking about the same ones, one of the foam spacers is fused to the bottom of the pickup and they said they couldn't inspect it. To me, that meant that they just couldn't physically look at the bottom of the pickup. I'll be bumping this thread with either joy or disappointment when they get here lol

  14. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    I'll keep this in mind! Thank you.

  15. 9mmMike

    9mmMike Would you happen to have a cookie for me? Supporting Member

    Joined:
    Apr 25, 2008
    Messages:
    3,530
    Location:
    Wee bit west-o-Philly - SEPA
    So the current "Fender Originals" sometimes called "62 Originals" are wound with the heavy wire like the '60's?

  16. TN WOODMAN

    TN WOODMAN

    Joined:
    Jan 31, 2011
    Messages:
    1,470
    Location:
    Smyrna, Tennessee.
    Picked up a used ESP Vintage 4 last year. Previous owner had swapped out the Duncan hots for an original EMG P/J set.

    Always thought of myself as a passive guy and assumed I's swap to something passive. Surprise ! I'm actually digging the EMGs and plan on leaving them since I have another ESP/LTD Vintage 204 P/J with '62 original p and duncan vintage jazz and a 50s classic p for passive tones.

    Just saying maybe you could have given the EMGs a chance to grow on you. In the P/J set the volume was more balanced than you usually see in P/J config.

  17. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    So I got the pickups in the mail yesterday. Put them in today and got everything set up...wow what a difference! Well balanced, warm and fat, yet the highs are punchy without being harsh. I'm glad I gambled because it paid off!

  18. 9mmMike

    9mmMike Would you happen to have a cookie for me? Supporting Member

    Joined:
    Apr 25, 2008
    Messages:
    3,530
    Location:
    Wee bit west-o-Philly - SEPA
    What pickups did you get? I mean do you know what year they are from?

  19. thedudebrah

    thedudebrah Supporting Member

    Joined:
    Jan 9, 2012
    Messages:
    620
    Location:
    Philly suburbs
    I grabbed an original 77 set from eBay. Pickups, pots, jack and original wiring.

  20. narud

    narud Supporting Member

    Joined:
    Mar 15, 2001
    Messages:
    6,198
    Location:
    santa maria,california
    Pre CBS bass pickups weren't heavy formvar (the strats were) and the current reissue pickup is plain enamel.

  21. SGD Lutherie

    SGD Lutherie Banned

    Joined:
    Aug 21, 2008
    Messages:
    10,388
    Location:
    Bloomfield, NJ
    Disclosures:
    Owner, SGD Music Products
    The pre CBS pickups weren't plain enamel. But what did they use?

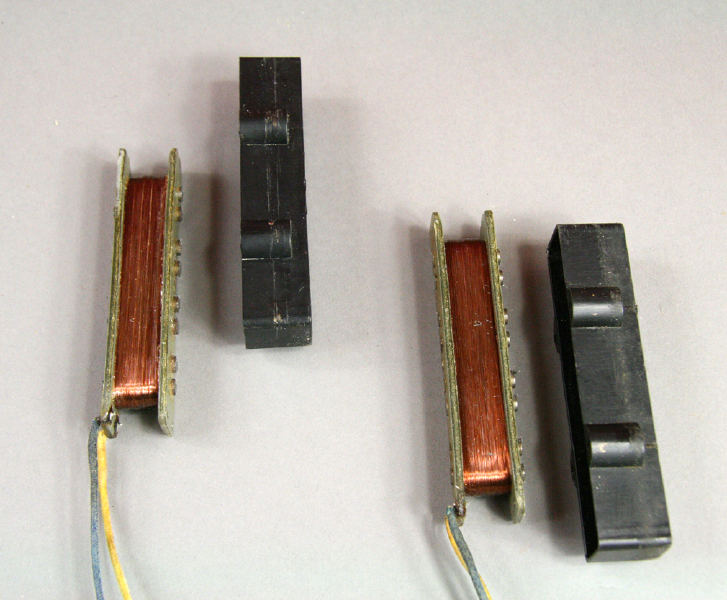

    Here's a set of '65 Jazz pickups:

    [​IMG]

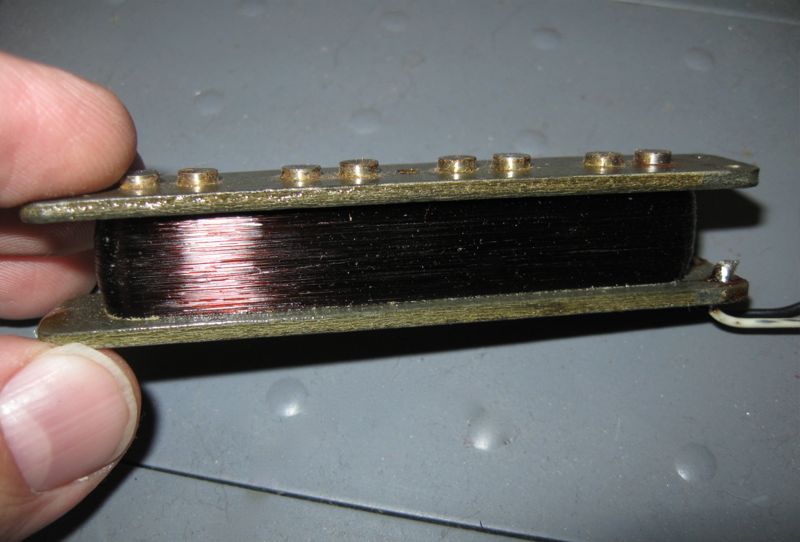

    Here's a '76 Jazz with plain enamel:

    [​IMG]

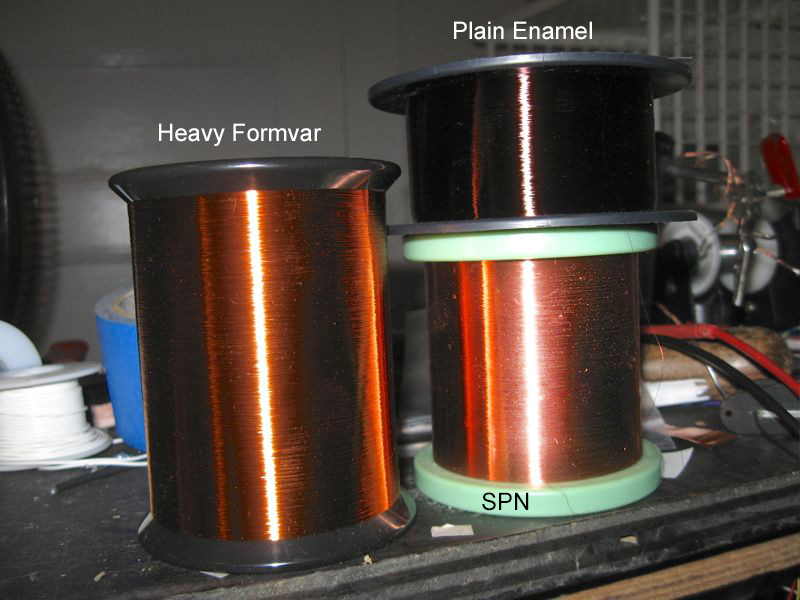

    Note that plain enamel is a dark purple/brown color. Heavy formvar is a burnt orange color. Uncolored SPN (Solderable Poly Nylon) is a pinkish copper color. Colored magnet wire is often red.

    [​IMG]

    These colors are easier to see in person. In the photo the formvar and poly look closer in color.

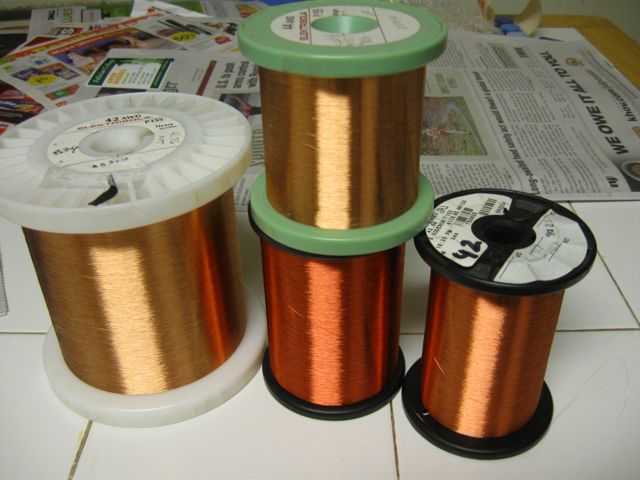

    Find the Formvar in this photo:
    [​IMG]
    (Lower right is single build formvar. Middle bottom is red SPN. The other two are natural colored SPN. The big roll is heavy poly)

    The '65s Jazz set above could be formvar, judging from the color. But not necessarily heavy build insulation. I don't think fender used poly nylon until more recently. I'm not even sure when that insulation was introduced. Fender used what ever was available, and was cheap! Formvar and plain enamel were common types of magnet wire insulation at the time.

    Some sources say the pre CBS bass pickups might have used bondable magnet wire. Other sources seem to say it's heavy formvar (as used by a lot of the repro pickups on the market). Personally I don't have the answer.
