DIY 3015 Cabinet

Discussion in 'Amps [BG]' started by V63, Feb 19, 2014.


  1. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    Finally started my project based on Eminence's Mid-Sized cab specs.

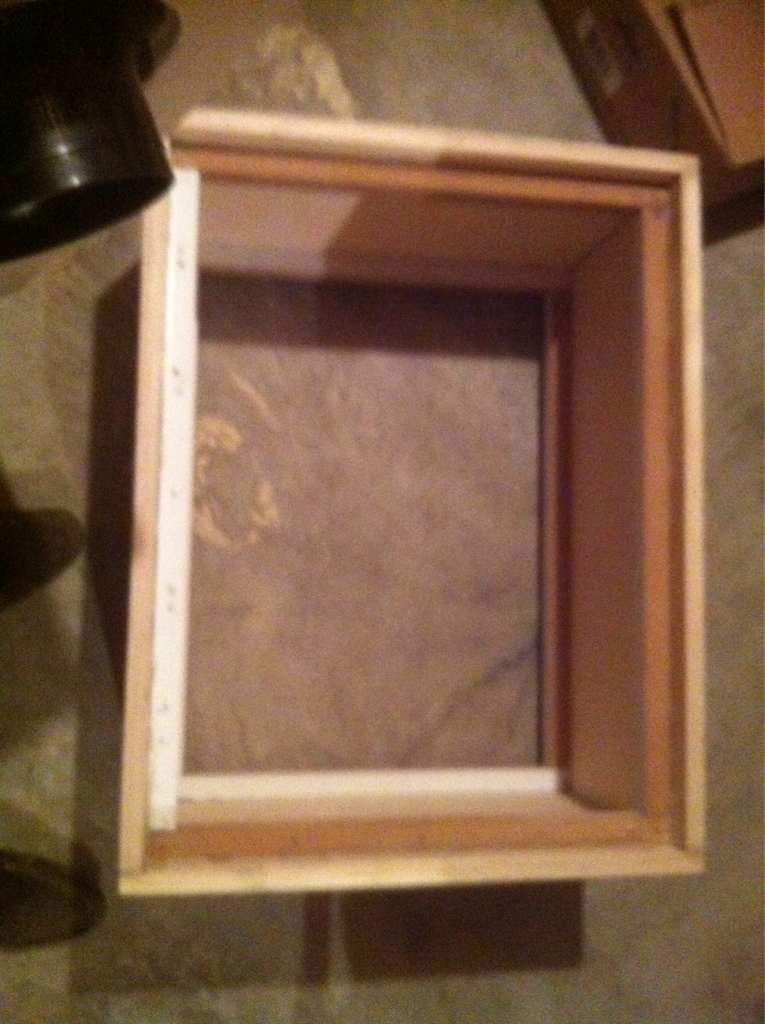

    Here's the box:

    And

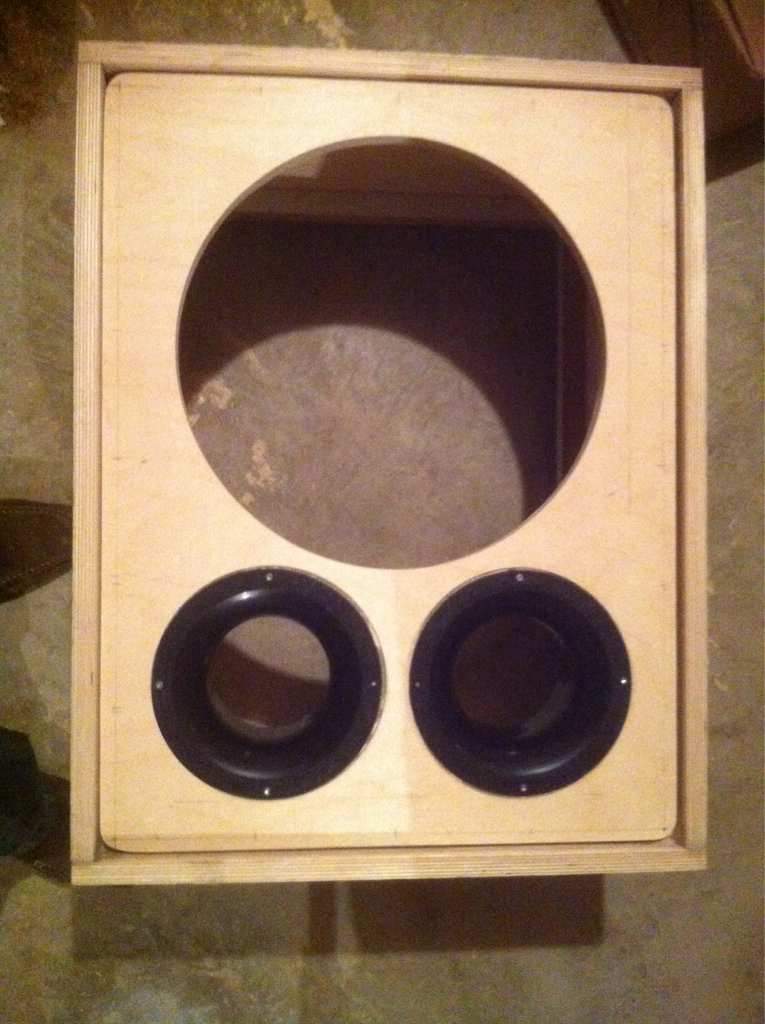

    Here's the baffle with the speaker cut-out and the ports in place

    Hope to post more as I go along. It will be slow going. Hope this works!

  2. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    I can also post more details if anyone is interested.

  3. CL400Peavey

    CL400Peavey Supporting Member

    Joined:
    Nov 7, 2011
    Messages:
    13,810
    Media:
    11
    Albums:
    1
    Location:
    Grand Rapids Michigan
    3/4" with no bracing?

  4. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    Yup. It's 3/4" (18 mm) Baltic Birch. There will bracing on the back panel. It's 26" X 20" X 13"

  5. Register to disable this ad
  6. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    After looking at many commercial cabs that were either too big or too heavy, too awkward to carry easily or too wimpy, sounded horrible or too ugly, I was inspired by the DIY threads here on TB to make my own that would sound and look good, with a reasonably sized foot-print and weight.
    I know the 1/2" plywood with bracing, front loaded, Duratex cab is popular here but these cabs always looked funny to me. They look too "homemade" and well... How do I put this delicately?
    ...fugly. IMVHO

    I just want something a little more vintage and classy looking. So after talking to BogeyBass in his DIY 2X 15 (the real deal) thread I thought I'd just go ahead with 3/4" and fawn AC30 type of look.
    My wood skills are not great so I went with a fairly easy design.

  7. brendanbassist

    brendanbassist Supporting Member

    Joined:
    Jul 9, 2010
    Messages:
    1,090
    Location:
    Albuquerque NM
    I would definitely add bracing on the sides, and probably the top and bottom as well.

  8. Passinwind

    Passinwind Charlie Escher Supporting Member

    Joined:
    Dec 3, 2003
    Messages:
    9,998
    Media:
    17
    Albums:
    1
    Location:
    Columbia River Gorge, WA.
    +1, I hate working with 1/2" ply.

  9. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    Yeah I know, more bracing=better, but the space between the front and rear "bracing" is only about 10" so with the 3/4" I hope I can get away with it. Plus the internal volume is set and I don't want the cab any bigger. JohnK_10's streamliner didn't have any extra bracing either. I hope I will be O.K.

    P.S. Thanks to all they TB'ers that answered my many many stupid newbie questions.

  10. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    Just trying to avoid this:

  11. takeout

    takeout

    Joined:
    Dec 27, 2002
    Messages:
    504
    Location:
    Kansas City area
    Yep.

  12. Blues Bass 2

    Blues Bass 2

    Joined:
    Oct 3, 2001
    Messages:
    2,519
    Location:
    Davenport Iowa
    Nice . One thing you could do if you don't want to add much bracing is to run a brace from the baffle right between the ports and the woofer to the back panel . That would help stiffen up the area where the least amout of wood is . As long as you keep to the specs internal volume and port size and length, keep all the joints airtight and solid and add dampening to all the walls it should sound good .

  13. mapleglo

    mapleglo Gold Supporting Member

    Joined:
    Sep 7, 2013
    Messages:
    1,317
    Media:
    1
    Albums:
    1
    Location:
    phoenix, az
    I'm not an expert (though I play one on TalkBass), I think the size of that cabinet with 3/4" plywood doesn't need bracing. I've built a few cabinets that size without any bracing using 3/4" plywood and they came out just fine. Your milage may vary. Just be sure to glue all joints securely and seal up all the seams.

  14. DukeLeJeune

    DukeLeJeune Only immortal for a limited time Gold Supporting Member

    Joined:
    Nov 24, 2008
    Messages:
    2,572
    Location:
    Preston, Idaho
    Disclosures:
    Owner & designer, AudioKinesis; Auth. mfg, Big E (Home Audio only)
    +1

    Those cut-outs in the front panel create weakness, and the front panel is where the woofer is mounted, so it is not only the weakest (due to the cut-outs) but will also receive the strongest vibrational energy. You want the woofer to launch its vibrations into the air from as rigid a foundation as you can get without the weight becoming unreasonable. Even thought light weight is one of the goals of my commercial cabs, I almost always double-thick the front panel and always brace it aggressively.

  15. Bassmec

    Bassmec

    Joined:
    May 9, 2008
    Messages:
    3,107
    Location:
    Ipswich UK
    Disclosures:
    Proprietor Springvale Studios
    This is what my son Henry does for a sealed 3015 cab, He is an ultra aggressive bracer.

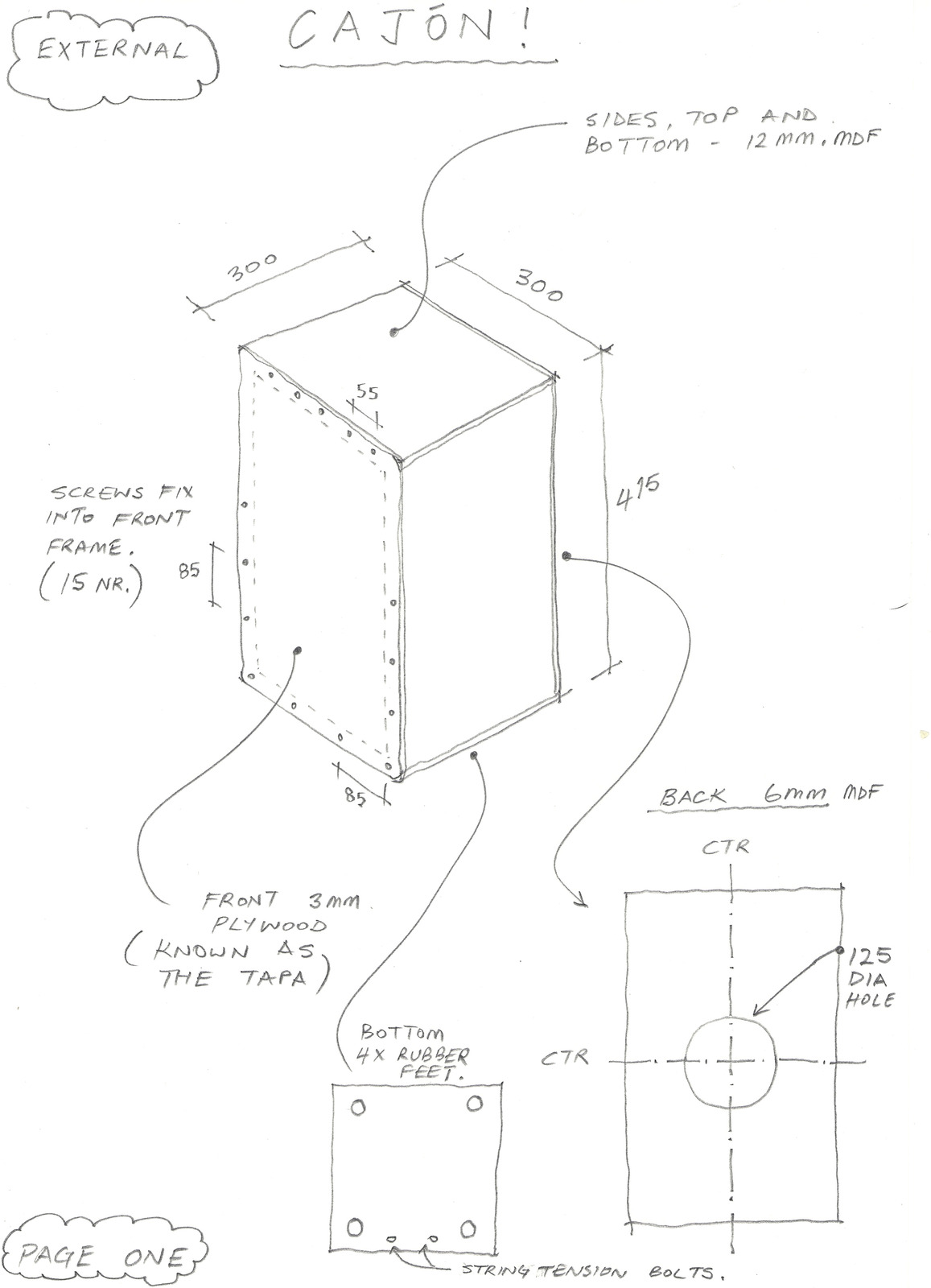

    His theory is you have saved loads of weight on the Neo magnet driver so don't be basing your 15" bass cabinet design on what works for your girlfriends lightweight Cajon.
    [​IMG]
    :spit::bawl::help:
    This is a proper cab for men!
    [​IMG]
    :bassist::D
    [​IMG]
    Aggressive bracing? Check!:hyper:

  16. DukeLeJeune

    DukeLeJeune Only immortal for a limited time Gold Supporting Member

    Joined:
    Nov 24, 2008
    Messages:
    2,572
    Location:
    Preston, Idaho
    Disclosures:
    Owner & designer, AudioKinesis; Auth. mfg, Big E (Home Audio only)
    Holey interlocking braces, Batman!!

    Seriously, that is beautiful. A real artisan DIYer like your son will leave a commercial builder in the (saw)dust because we can't afford the time to do something like that. And most of us (myself included!) never would have thought to do that.

    My only nit to pick is, imo the 3015 isn't all that well suited for a sealed cab. Any chance your son might be talkable into adding one or two pluggable ports in the back? If so, PM me the dimensions (outer is okay if you tell me the thicknesses) and I'll fire up my modeling program.

  17. Bassmec

    Bassmec

    Joined:
    May 9, 2008
    Messages:
    3,107
    Location:
    Ipswich UK
    Disclosures:
    Proprietor Springvale Studios
    He is doing rectangular ports built as the handles which, will be in the sides and angled upward and cut at an angle to increase the cross sectional entry and allow a better grip than if they where at right angles to the sides.
    Henry is very smart and full of novel ideas.:D

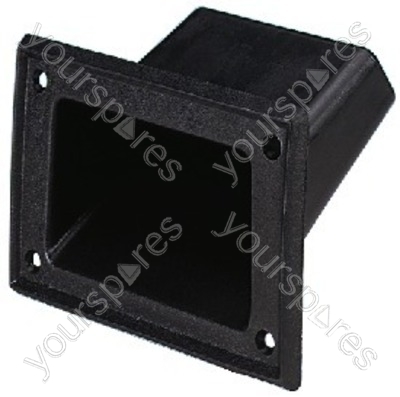

    Like why buy handles to fill holes you just made in the sides if you need a couple of ports?[​IMG]
    Like if you cut the inboard end off this, its no longer a nasty cheep handle but its now a small port instead.
    He thinks you can put ports anywhere, even on the back if you like.
    If you have a pair you would stack them vertically for better dispersion anyway, so nothing will be blocking them.

  18. DukeLeJeune

    DukeLeJeune Only immortal for a limited time Gold Supporting Member

    Joined:
    Nov 24, 2008
    Messages:
    2,572
    Location:
    Preston, Idaho
    Disclosures:
    Owner & designer, AudioKinesis; Auth. mfg, Big E (Home Audio only)
    Brilliant idea.

    I did something like that on a prototype guitar cab once. But I guarantee you is was fugly as all get-out compared to Henry's work.

    Tell your son that at least one commercial builder tips his virtual hat to him.

  19. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    186
    Location:
    New Zealand
    Incredible! What a beautifully built cab.
    And I was pretty chuffed to finish my TL-606 build the other day for my 2nd 3015HO (my 1st cab build)...

  20. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    These pictures make me ashamed and embarrassed that I started this post. The most I can do at this stage is put a 1" MDF strip along the back of the baffle by taking one off the back panel. This is my first and only build! Does your son want to build me a cab?
    Really beautiful.
    Puts me to shame.

  21. V63

    V63 Supporting Member

    Joined:
    Sep 13, 2008
    Messages:
    113
    Because I was going for a guitar cab aesthetic I am basically building a sealed and ported guitar cab. That's the only way I could think of doing it! (Let the chiding about physics begin!) I don't know how I could brace from front to back at this point.
    Hey Duke,
    Your the Man, and since you're here...
    If my 4" Precision Ports are 18 mm less then 4 inches from the sides and bottom how much will this lower the tuning?
    What gage wire should I use to connect the driver?

    Thanks
