Does this look off center?

Discussion in 'Luthier's Corner' started by TheCatalyst, Nov 22, 2012.


  1. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Hello all,

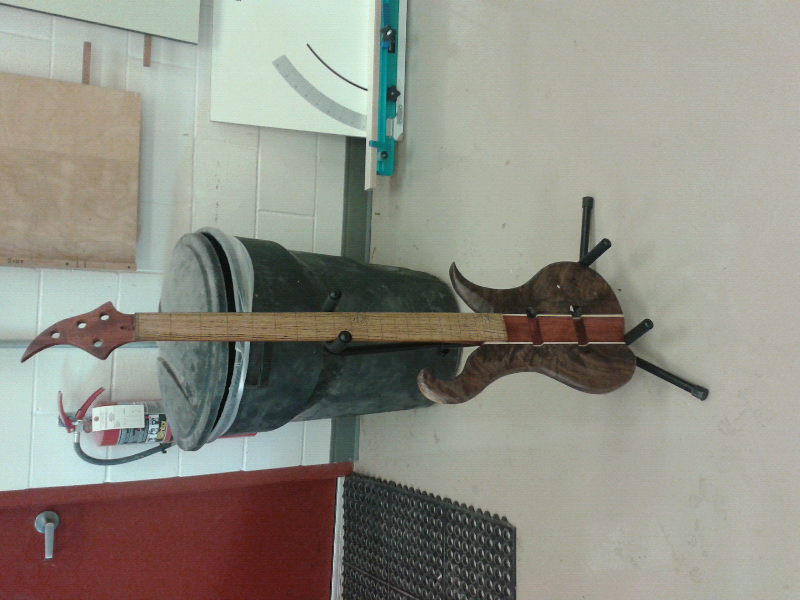

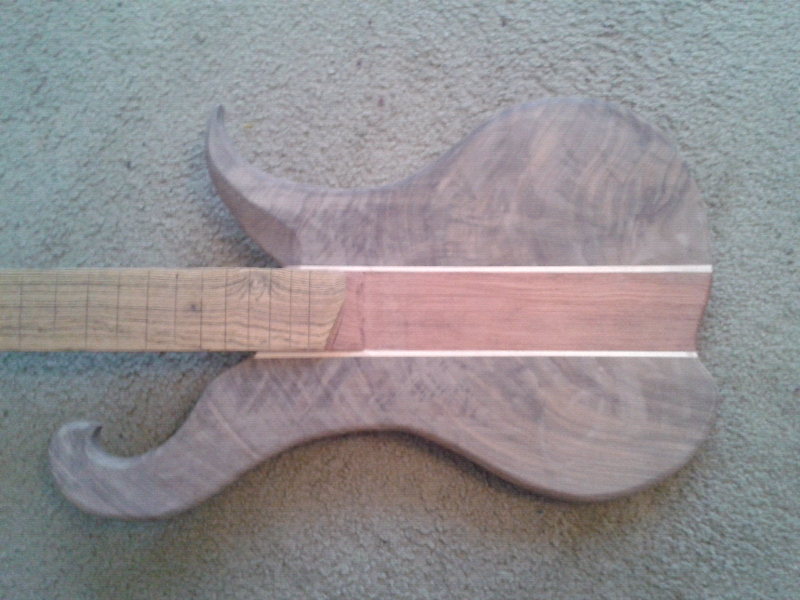

    I'm not usually one to start a new thread but I'm in need of some opinions. I have been working on this bass for the past few months and just recently mated the wings to the neck. I like the body style but when I look at it, it looks as if the neck is way off center because of the lower wings shape. Does anyone agree and do you think it should be corrected or am I just over analyzing it?





    Any feedback would be greatly appreciated

    Thanks, Vaughn

  2. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Location:
    Norway
    Does it look a bit lopsided? Yes

    Does it have to be corrected? Entirely up top you. If you like it, let it be. If you don't like it now is the time to do changes. :)

    You could cut the larger wing a bit smaller. If you imagine the same shape pivoted on the treble side horn you could simply "push" the shape in a bit.

    It's a bit hard to tell from the pictures, but there seems to be a small "bulge" in the arch going from the center of the body and around the treble side wing that looks a bit odd. It could very well be the picture playing tricks on me, though.

  3. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Thanks for the input. I know what you mean about cutting the larger wing but then I feel that it would look too small. I know its all about preference but from an outside perspective, would you take off any? And I think the bulge is just the picture. I couldn't see it when I looked just now

  4. Kmonk

    Kmonk

    Joined:
    Oct 18, 2012
    Location:
    South Shore, Massachusetts
    Disclosures:
    Endorsing Artist: Fender, Spector, Ampeg, Curt Mangan Strings
    Is it off center but if you like and its playable there is no reason to change it. There is no rule that basses must be symmetrical.

  5. Register to disable this ad
  6. FerK

    FerK Supporting Member

    Joined:
    Dec 11, 2011
    Location:
    Switzerland
    To begin I have to say it's a great, beautiful shape. It does look a bit lopsided, by it can be "easily corrected" by pushing the treble side belly in.

  7. FrenchBassQC

    FrenchBassQC Supporting Member

    Joined:
    Jul 13, 2011
    Location:
    Gatineau QC CA
    +1 I wouldn't touch it if I were you, it looks great like this.:D

  8. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Thanks everyone. I think I might leave it how it is. You don't usually see an instrument off centered so much but the look is starting to grow on me.

    It really helps to get opinions from other builders and players since I don't know any personally so thank you the input is greatly appreciated

  9. ctmullins

    ctmullins Registered thumper Supporting Member

    Joined:
    Apr 18, 2008
    Location:
    MS Gulf Coast
    It's definitely off-center. But (as others have already stated) there's nothing wrong with that. Ever stared at a Rickenbacker 4001/4003? :)

  10. pilotjones

    pilotjones Supporting Member

    Joined:
    Nov 8, 2001
    Location:
    US-NY-NYC
    If you do do something to alter it, you might consider making it so that the bass side upper "horn" curve no longer sticks further out from the center line than the bass side lower "butt" curve.

  11. Herrlster

    Herrlster

    Joined:
    Oct 27, 2004
    Location:
    Ontario, Canada
    +1

  12. suraj

    suraj

    Joined:
    Oct 1, 2008
    Location:
    Mumbai, India
    I feel you will have some difficulty reaching the last few frets with the treble horn shaped like that.. The asymmetry is not very evident in the playing position, which is good. But in the upright position, if it were on a guitar stand, it is quite noticeable.. My 2 rupees :p

  13. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Well, thanks again for your input. It is greatly appreciated. I think its goin to stay as is. It may look different but I'm starting to like it that way.

    Since the scale is 35'' and the neck is already so long I don't want to push the fretboard any more out from the body any more than it already is.I made the lower horn a little thinner on the edge to accommodate the frets so they can be reached.

    On a side note... :) does anyone know where I can find a 26 inch scale template for the guitar I'm building for the low price of 0$.00?

    Thanks

  14. abarson

    abarson

    Joined:
    Nov 6, 2003
    Location:
    Santa Cruz
    I've seen some Japanese basses that the lower wing was definitely larger than the top. Some of them look cool, some just odd. I don't think yours looks problematic. Maybe wipe it down, and lay it against a background with better color contrast would help highlight the shape a bit, and then make your decision.

    For the guitar, use FretFind2D, print out your own template.
    http://www.ekips.org/tools/guitar/fretfind2d/

  15. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011

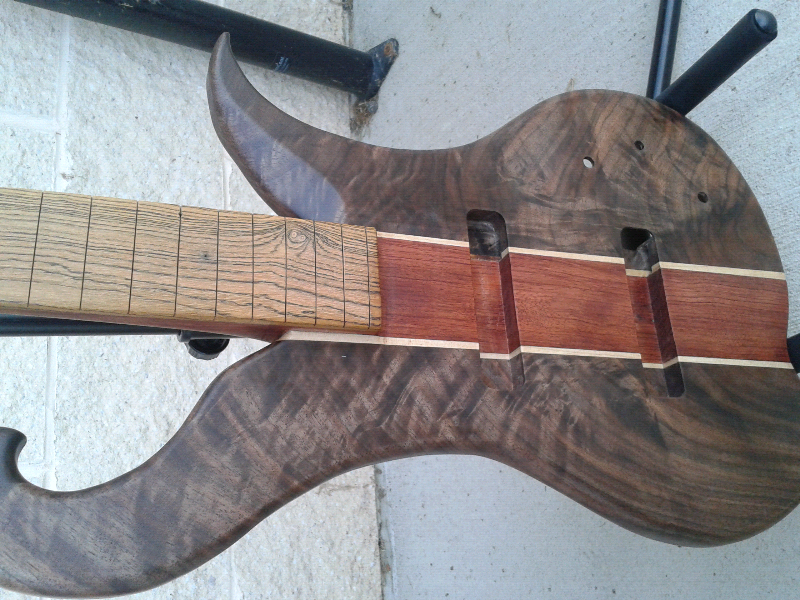

    Thanks for the link. I've decided to leave the bass as is. I think it looks prety good now that its almost finished. I have to put a few more coats on but what do you think? I need some critiques


    Attached Files:

  16. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Location:
    Norway
    Now that I see it it better contrast it looks much better. The huge upper horn helps to balance it a bit.

    Looking at the overall shape with the headstock and all I absolutely love it! It's unusual, but good. :)


    "There is no excellent beauty that hath not some strangeness in the proportion" -Francis Bacon

    :smug:

  17. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Thankyou sir. I apreciated the critique. I almost have it finished so ill post a few more pics when I get it all set up next week

  18. Jazzdogg

    Jazzdogg Less barking, more wagging! Supporting Member

    Joined:
    Jul 29, 2006
    Location:
    San Diego, CA
    The most important thing (IMHO) is: How does it feel, both on the lap, and on the strap?

    I like to install the bridge and strap pins, string it up, and play it - even before the electronics are installed or the finish is applied - just to make sure it feels as good as possible before I complete an instrument; it's not at all uncommon for me to modify the body contours at this stage of the game.

    If it feels good and plays well, you're good to go! :D

  19. RedMoses

    RedMoses Supporting Member

    Joined:
    Jul 4, 2012
    Location:
    NYC
    I dig it! The fun of this Bass is that its not symetrical.

  20. TheCatalyst

    TheCatalyst

    Joined:
    Mar 15, 2011
    Thanks guys, I've had it all together for a while and I feels really nice with the strap. Its also pretty light as compared to the other body styles I have come up with. The body is only 1.25 inches thick though. The only thing I don't like is the lower horn being a little hostile in the seated position. Everyone who has played it likes it a lot though. I revised the design again to make it a bit more comfortable. Ill post a picture of the new rendering when I get back home.

  21. JIO

    JIO Gold Supporting Member

    Joined:
    Jun 30, 2010
    Location:
    northern CA
    Disclosures:
    musician/artist/owner - Gildaxe
    [​IMG]
    Well, thanks again for your input. It is greatly appreciated. I think its goin to stay as is. It may look different but I'm starting to like it that way.


    you're in good company
