Electro Voice ELX112p My next bass amp

Discussion in 'Amps [BG]' started by gmarcus, Dec 25, 2012.

  1. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    So I've been struggling with the boomy low end on my GK MB212 combo. Great amp, light powerful enough for an out door gig (sounds perfect outside), over-all great tone, but I've been playing a lot of smaller theater gigs and the low end is just too much. I bought an FDeck HPF pedal which allows me to roll off the lows at anywhere from 35hz to 140 hz and I'm finding that inside I have the lows rolled off at 12 db/octave from about 130Hz down. This did the trick, but its Christmas and daddy needed a new toy so I pulled the trigger on an Electro Voice ELX112p cabinet (with Mrs gmarcus's blessing)

    http://www.musiciansfriend.com/pro-audio/electro-voice-elx112p-active-12-loudspeaker

    I played in a band that used the 115 version as mains and my bass sounded great. These are only 37 lbs ( according to the EV manual) and pretty compact, plus they are kind of like a powered AK Thunder child (not as much bass, but I don't need that much deep bass). It's supposed to show up on Thursday. I'll let you know how it sounds and I might have an MB212 for sale......or a lightly used ELX112p if it doesn't work out.

    advertised specs:

    Freq. Response (-3dB): 60Hz-18kHz
    Freq. Response (-10dB): 50Hz-20kHz
    Max. Measured SPL: 132dB
    Coverage (Horiz. x Vert.): 90° x 50°
    Power Handling: 1000W
    LF Transducer: (1) EVS-12K, 305mm (12") Woofer
    HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
    Crossover Frequency: 1.7kHz
    Connectors: (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
    Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint

    I get all of my tone from my pedal board (VTbass, Pork Loin HPF + some fuzz) so I really just need an accurate monitor. This particular model has 3 vents on the front so I'm keeping my fingers crossed that it doesn't chuff. Its a plywood box so I can put some big rubber feet on the bottom and on the monitor position side.
  2. Tuned

    Tuned

    Joined:
    Dec 6, 2007
    Likes Received:
    0
    Powered speakers have 50Hz high pass filters as part of the speaker processing, a little high for a bass amp, hope you're not playing a 5-string. As long as you're playing rooms with subwoofers it can work well, but I'd hate to try to drive a room bigger than a cafe, and you'll never feel it in the chest like a bass rig.
  3. ThisBass

    ThisBass

    Joined:
    Aug 29, 2012
    Likes Received:
    0
    Relevance of 2nd Harmonic?
  4. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    I'm playing an Ernie Ball SR5

    Here is a recording from one of our shows. I had the HPF set at ~130Hz. We are not super loud. The theater held about 170 people and was round and pretty boomy. I was amazed at how high I had that filter set. I play with a really dirty tone, but there was plenty of thump. We have another gig lined up there in March.

    https://soundcloud.com/slpcalamus/revelations-closing-set

    This was recorded with a sony PCM-M10 using the internal mics located in front of the sound man who was about 30 feet from the band.
  5. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
  6. 1954bassman

    1954bassman

    Joined:
    Jun 7, 2004
    Likes Received:
    0
    I have always loved EV speakers. We use the older SX112 (powered) with the Sb120a powered subs in my main band and they have worked great for over 10 years.

    I will be curious how the ELX112 works out for you.

    One of my favorite amps of all time was a GK head with two Mesa EV loaded cabs (210 & 115). Too bad I got lazy and went with a lighter rig.

    Are you planning on using a preamp at all, or just plugging straight into the EV?
  7. Tuned

    Tuned

    Joined:
    Dec 6, 2007
    Likes Received:
    0
    What was doing the HP filtering? The mics on Sony portable recorders have a 75Hz HPF so the recording isn't useful as evidence. Cool tune though!
  8. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    Glad you liked the music....that is what its all about anyways.

    I didn't have the High Pass engaged on the recorder. Its actually 200Hz on this recorder. Without the filter this one has a very low cut off frequency. See measurements here:

    http://kenrockwell.com/audio/sony/pcm-m10.htm#meas

    I was using an HPF-pre series 3 by fellow TBer fDeck. He is a really smart thorough guy and designed a very useful little box that will probably always be on my board. It was the only way I was able to clean up my sound in that theater with my combo. fDeck is a straight shooter and great to do business with, his posts are always right on the money too.

    https://sites.google.com/site/hpftechllc/home/hpf-pre
  9. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    I use a Tech21 VTbass pedal for a preamp and it works very well. Plugging straight in sounds pretty thin and lifeless. I've been testing it out with an 8" EV ZXA1-90, which has a similar frequency response, but a much lower SPL. It sounds great in the studio with recorded music. I'm hoping that scaling up to the 12 speaker will make it usable with the band.

    http://www.musiciansfriend.com/pro-audio/electro-voice-zxa1-90-powered-pa-speaker
  10. nanymoa

    nanymoa

    Joined:
    Oct 22, 2010
    Likes Received:
    0
    I have ELX-215's for PA, but sometimes I plug my bass in for practice when I want to thump my chest a little. It sounds great standing at least at 6 feet away. Usually I practice on a 20w (eminence alpha 8a loaded) cheap combo, but i tend to get hungry for a little shirt-shaking low-B action. That's when I call my EV's in. Love them.
  11. Tuned

    Tuned

    Joined:
    Dec 6, 2007
    Likes Received:
    0
    Interesting, back in my taper days portable audio recorders were poorly designed for taping live shows, now that I'm not recording anymore the gear finally works great :\

    I've heard of those HPF units, very handy for maxing out bass rigs and tightening up tone, essential for upright.
  12. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    It is amazing how good the music recording and playback gear is these days. Could you imagine a 37 lb 1000 watt self powered speaker powered with an analog simulation of an SVT in a 9 volt pedal even 10 years ago?
  13. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0

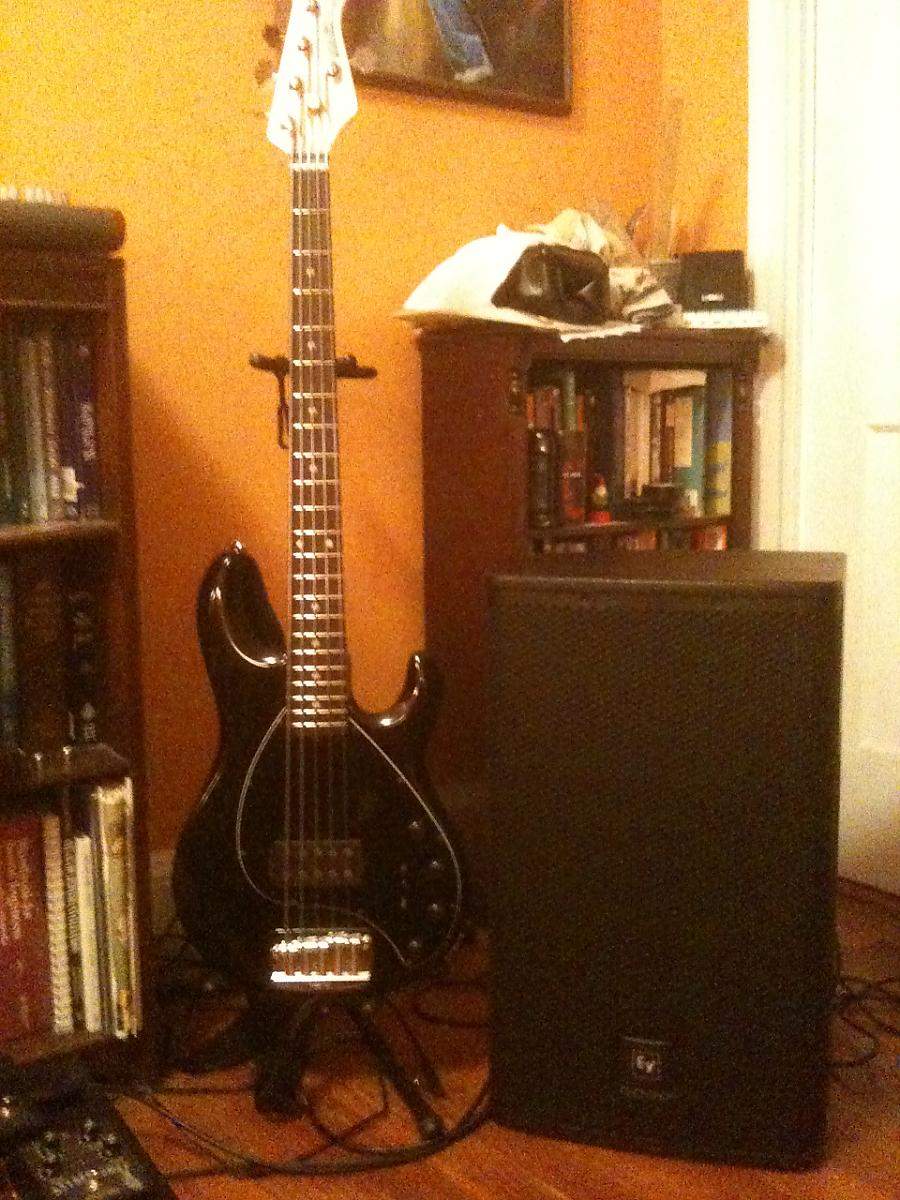

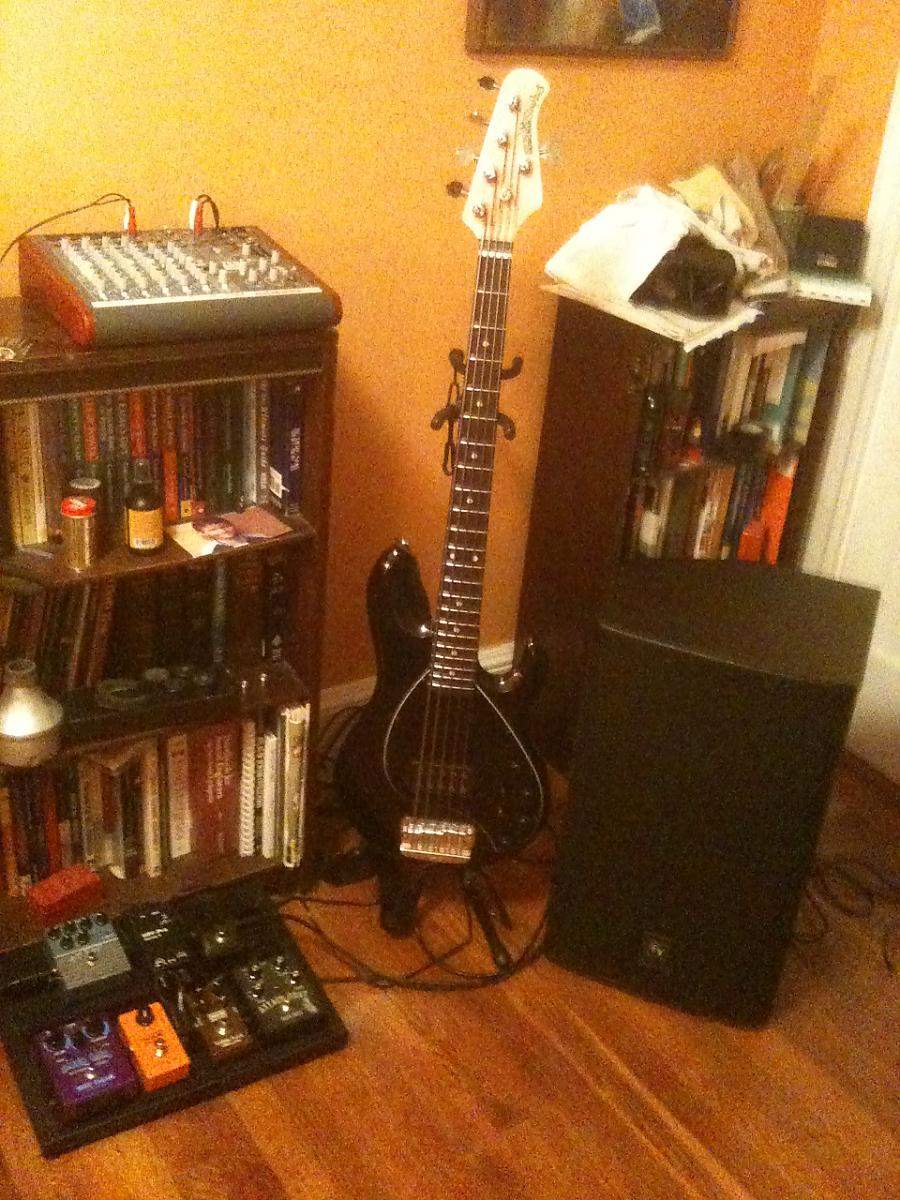

    The speaker showed up today. It sounds really good, I can't get it to chuff, plenty of bass and its very loud. It definitely has that smooth mid response that requires you to bump up the mids a little bit to get it to sound like a bass amp, but once it is dialed in it sounds great.....at home playing to recorded music. It will be a couple of weeks before I get to play it live with the band. Our gig on Saturday comes complete with a sound man and back line:hyper: Here are a couple of pictures

    Attached Files:

  14. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0

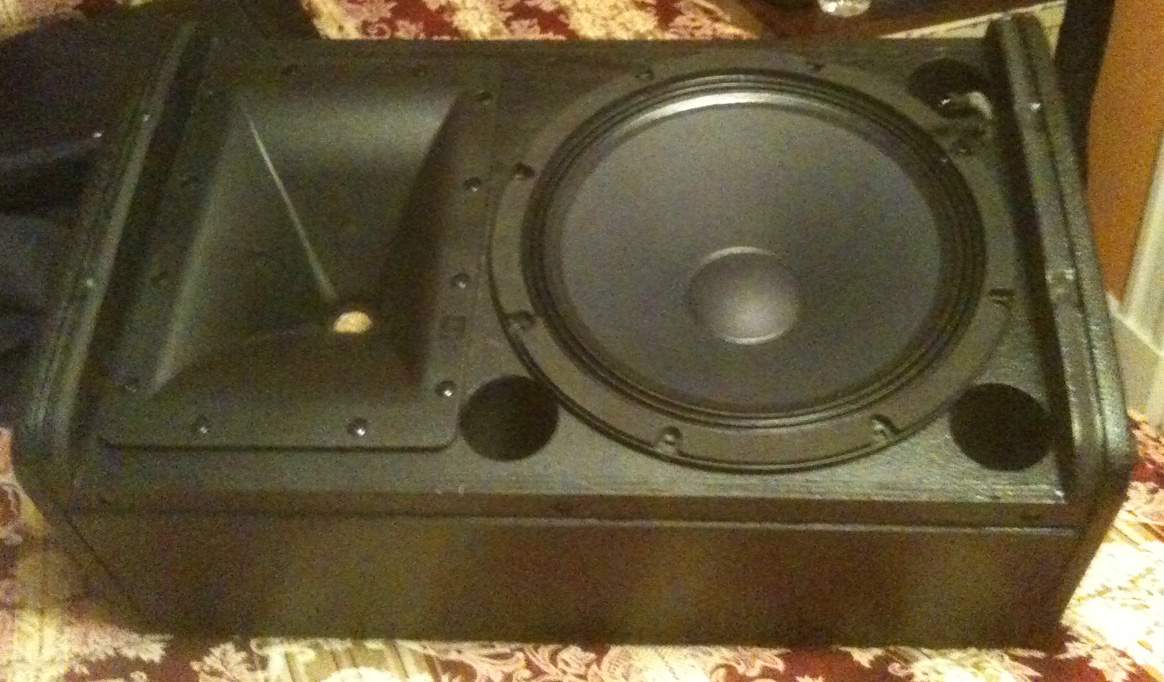

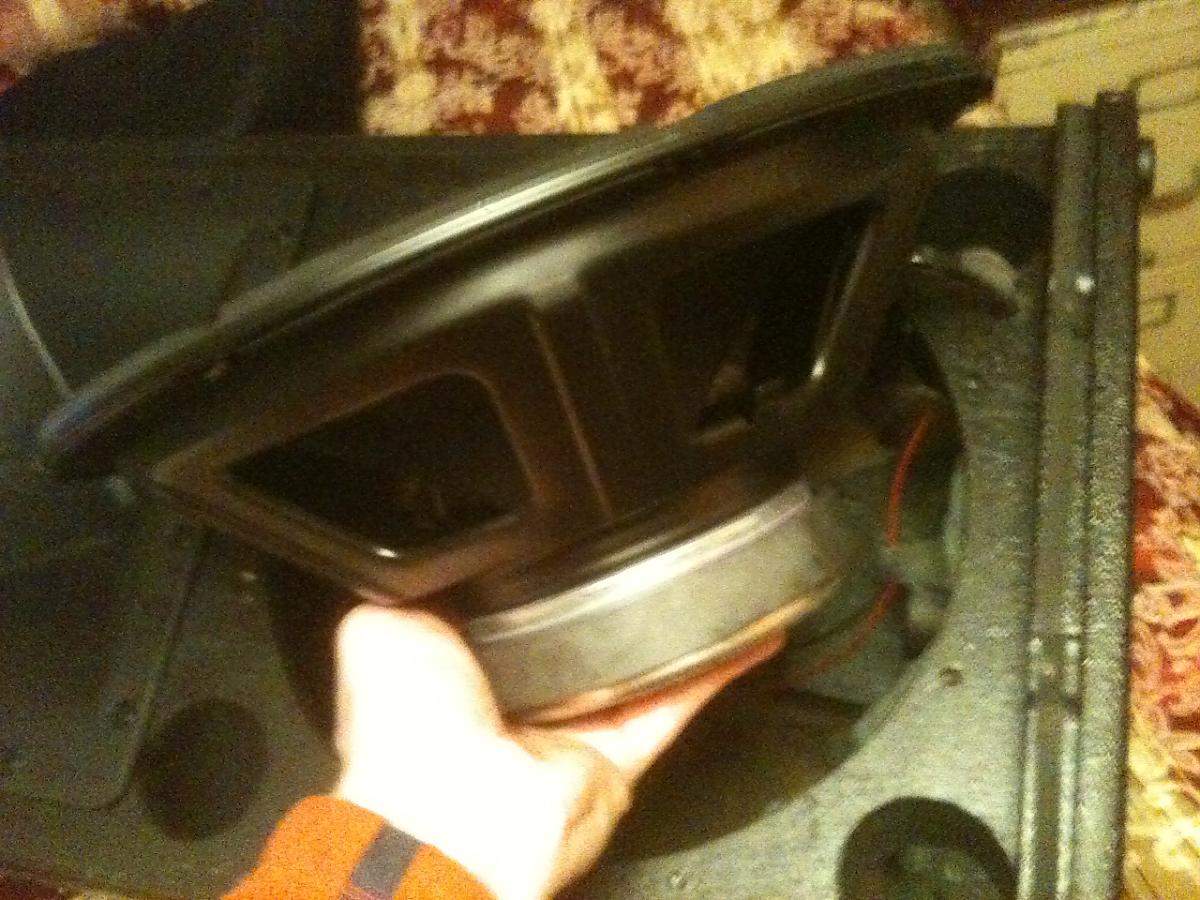

    So the engineer in me required me to take it apart. The grill comes off easy enough but it require a star driver (kind of like an allen wrench). The ports are 2.2" in diameter and 3.75" long. The woofer is stamped steel with a medium sized ceramic magnet...(I see a possible upgrade in the future) and held in with T-nuts and machine screws. The cabinet has some felt stuffing on the bottom and the top but nothing behind the woofer so I added a little bit of mattress topper for good measure.

    Attached Files:

  15. JimmyM

    JimmyM Supporting Member

    Joined:
    Apr 11, 2005
    Likes Received:
    83
    Disclosures:
    Endorsing: Ampeg Amps, EMG Pickups
    Cool...I'm with you. Who needs all that low end? Just interferes with the bass drum anyway. Have to wonder how a 3012HO would do in it, though...

    ;)
  16. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0

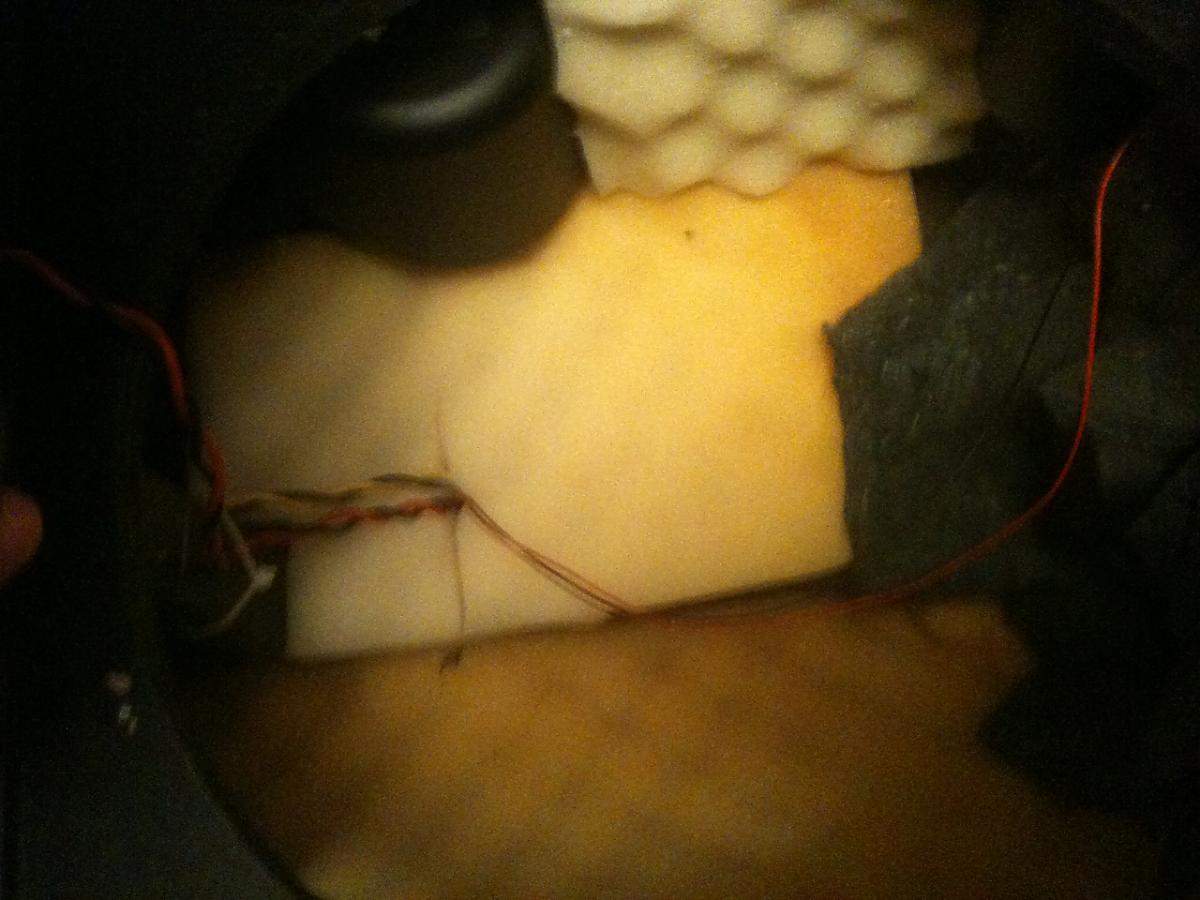

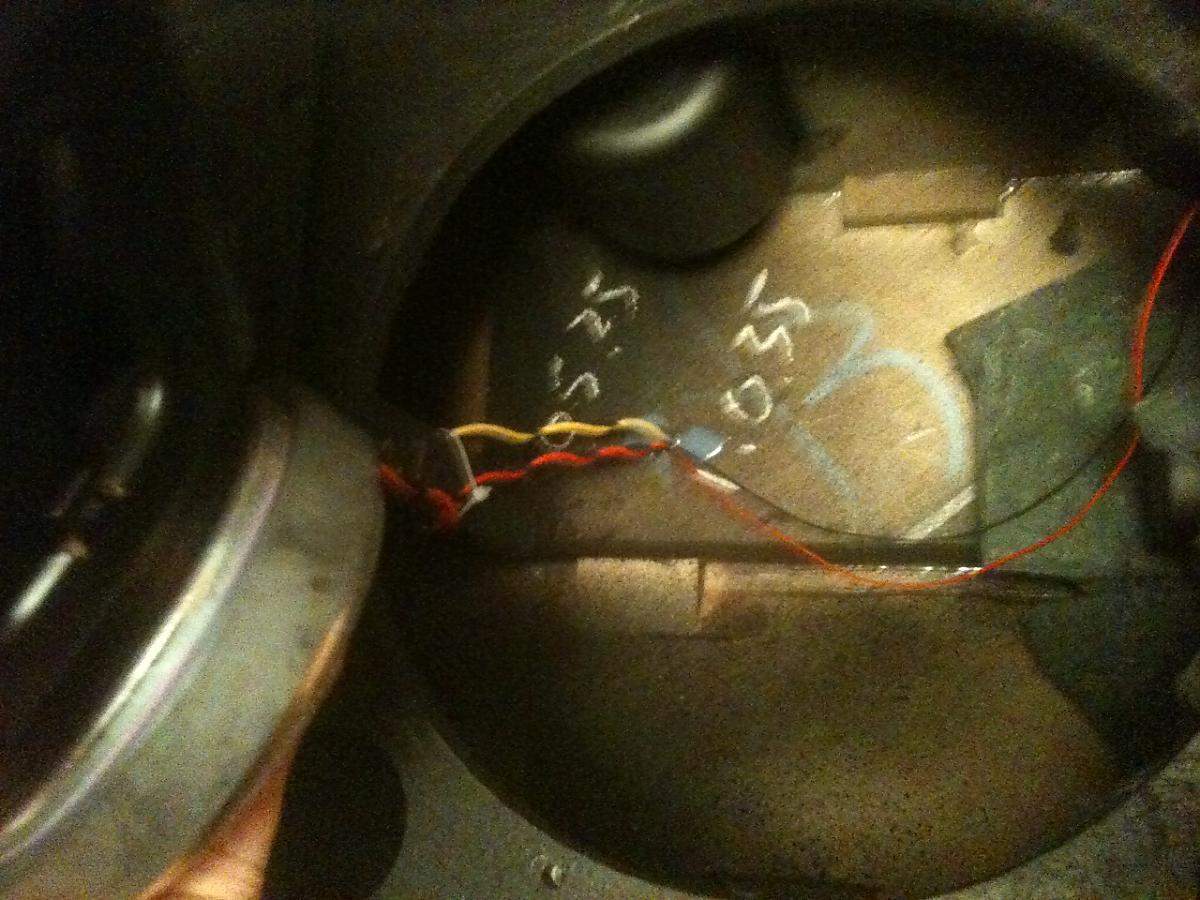

    Here is the inside. The stuffing cleaned up the mid range a little bit.

    Attached Files:

  17. JimmyM

    JimmyM Supporting Member

    Joined:
    Apr 11, 2005
    Likes Received:
    83
    Disclosures:
    Endorsing: Ampeg Amps, EMG Pickups
    They didn't line the inside? Sorry, but that's kind of lame if you ask me.
  18. seamonkey

    seamonkey

    Joined:
    Aug 6, 2004
    Likes Received:
    4
    Nice Cabs!
    These new breeds of power speakers are really a great value.
    Add a little signal processing and you're set for any tone you'd ever want.
  19. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    Here is a little sound clip with my Sony PCM-m10 recorder about 1 foot from the center of the woofer. First I play with just a VTbass, then I kick on a phase 90, then phase 90 off and a pork loin on, then I add a Bass fuzz deluxe, then an Attack goat, then the phase 90. Some off the low notes sound like they are rattling, but I didn't hear that in the room, could have been built in the microphones giving up. Anyways, this tells you nothing about how this sounds in a mix, but does give you some idea of the sound of this thing with some effects. Oh yeah the HPF was set to ~60hz for the recording so you can get a sense of the bass extension.

    Enjoy

    https://soundcloud.com/gregg-marcus/112p-sound-check
  20. gmarcus

    gmarcus Supporting Member

    Joined:
    Apr 4, 2003
    Likes Received:
    0
    I had the recorder sitting on my trumpet case. I think the low notes were shaking the case causing that distortion, or causing the recorder to vibrate against the case.
