Getting first custom made bass built!!

Discussion in 'Basses [BG]' started by Macrocosmcwh, Dec 11, 2012.


  1. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
    Just had to tell someone... Hahaha I am having my first fully custom bass built by Andy Zoldo.
    Specs so far in the build:
    6 stirng 35 scale
    Single cut design
    5 piece body with myrtle burl/ebony veneer/sapele core/ ebony/myrtle
    11 piece set neck (maple/lyptus/maple veneer/lyptus/veneer/sapele/veneer/wenge/veneer/lyptus/maple)
    24 fret jatoba fingerboard with wedge binding and inlays 20" radius
    Matching pickup cover custom bridge custom three piece knobs
    String through body
    Single truss rod with dual carbon fiber reinforcement bars
    45 mm nut width
    Bartolini J pickups with HR5.4 AP/918 custom preamp.

    I am so excited...
    :hyper:
    :bassist:

  2. jbossolo

    jbossolo

    Joined:
    Sep 22, 2011
    WOW! Impressive specs. Post some pics of the build. Congrats!

  3. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
    Thank you.... He has promised to send me pics of the build. I will be sure to post those.

  4. Hobobob

    Hobobob Don't feed the troll, folks. Supporting Member

    Joined:
    Jan 25, 2011
    Location:
    Camarillo, CA
    Killer specs! I'd love to see progress pics of this one.

  5. Register to disable this ad
  6. atomicdog

    atomicdog Supporting Member

    Joined:
    Jun 18, 2011
    Sweet. Post pix of the work-in-progress, if possible. Curious, how did you pick this luthier? What kind of process went into deciding on the specs and what role did Andy play?

  7. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona

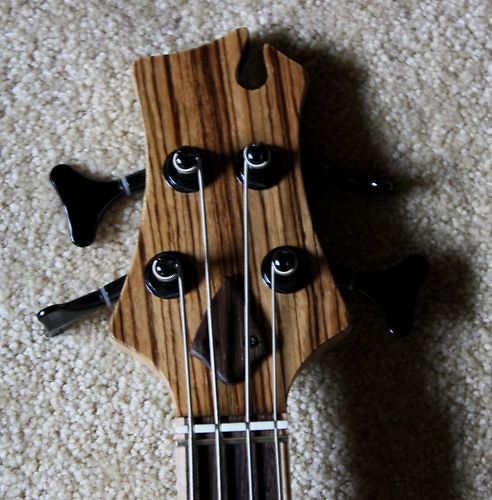

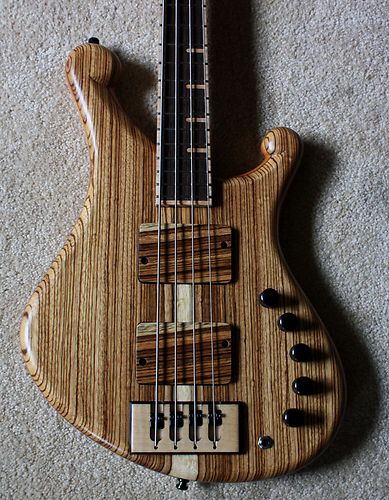

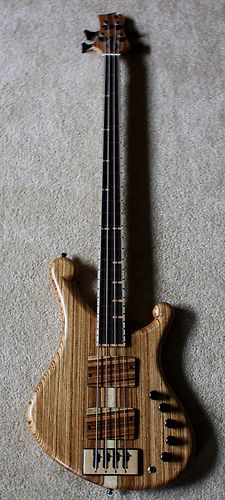

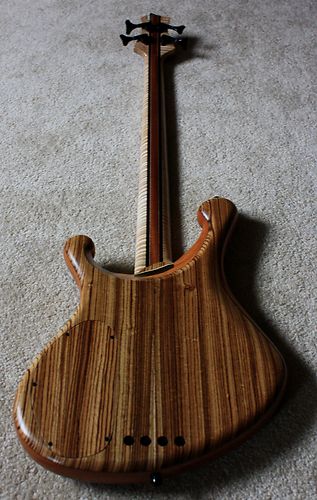

    I found him because he had a killer 4 string on eBay. The wood working was amazing. I mean amazing. So I searched for him on here and found him. I sent him a message he and on eBay. He said that he builds basses as a hobby but was a bass player himself. I asked he said yes.

    He asked me about me... Who I was... What my influences where style of playing... What kind of design I wanted and the general specs. The rest he came up with based upon our agreed upon price. The best part is he is as excited about this build as I am. If he puts as much passion into this build as I am getting it.... It will be a great bass.

    I will be sure to post pictures as he sends them to me.

  8. Mr Guy

    Mr Guy

    Joined:
    Sep 27, 2010
    Don't forget fret size!

  9. ZoldosCustom

    ZoldosCustom

    Joined:
    Nov 27, 2007
    Just wanted to chime in real quick and say how grateful and humbled I am that Christian is letting me build this bass. I am truly excited for this one. I will be posting some pics of the progress thus far probably tomorrow. It is still early, so not a great deal is complete. We finally settled on a bass that we are both very happy with, so the build itself is very new. So far the neck is glued up, sanded to thickness, and the scarf is cut and glued. Will be working on some templates for the neck, and routing for truss rod tomorrow. Still need to order most everything else for this bass, but i am doing what I can while we wait. Thanks again, and have patience.

  10. alembicbones

    alembicbones

    Joined:
    Nov 10, 2000
    Location:
    Seattle, WA
    This build sounds very cool. I'm psyched to see how it all comes together.

    Here's hoping it's a work of art sounds as good as it looks.

    Bones

  11. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
    Thank you I am very excited about the new build.

  12. TolerancEJ

    TolerancEJ

    Joined:
    May 27, 2010
    Location:
    Vancouver, BC Canada
    This is gonna be a wild piece of craftsmanship!

  13. millsbass5

    millsbass5

    Joined:
    Dec 7, 2008
    Location:
    Logan,W.V.(not up some holler)
    I've never heard of a wood called (Hall's mentho) lyptus. What could it be compared to, as far as looks/tone?

  14. TolerancEJ

    TolerancEJ

    Joined:
    May 27, 2010
    Location:
    Vancouver, BC Canada
    If it's eucalyptus, better make sure there are no Koala Bears nearby. They'll start munching on the bass.

  15. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona

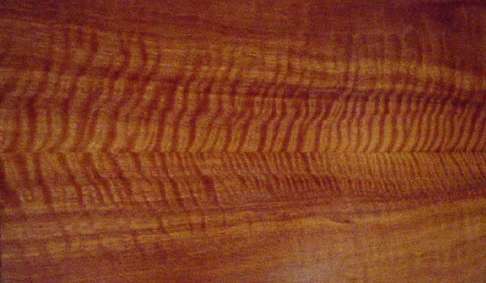

    [​IMG]You would have to ask Andy. I looked it up on google. It's a very pretty red wood.

  16. ZoldosCustom

    ZoldosCustom

    Joined:
    Nov 27, 2007
    I am using the Lyptus primarily as an accent in the neck. It is a very straight interlocked grain, and kind of looks like a pickish mahogany. As far as a tone wood for a body goes, I couldn't tell ya. It's a little denser than Mahogany, at least from what I can tell. We made a few countertops at work out of it and it is great to work with. Easy machinability. Its actually a hybrid. If you look up pictures of the tree, its tall,, straight and only has leaves at the top. Again, not sure as a body wood, but great for accents...and countertops.

  17. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
    [​IMG]

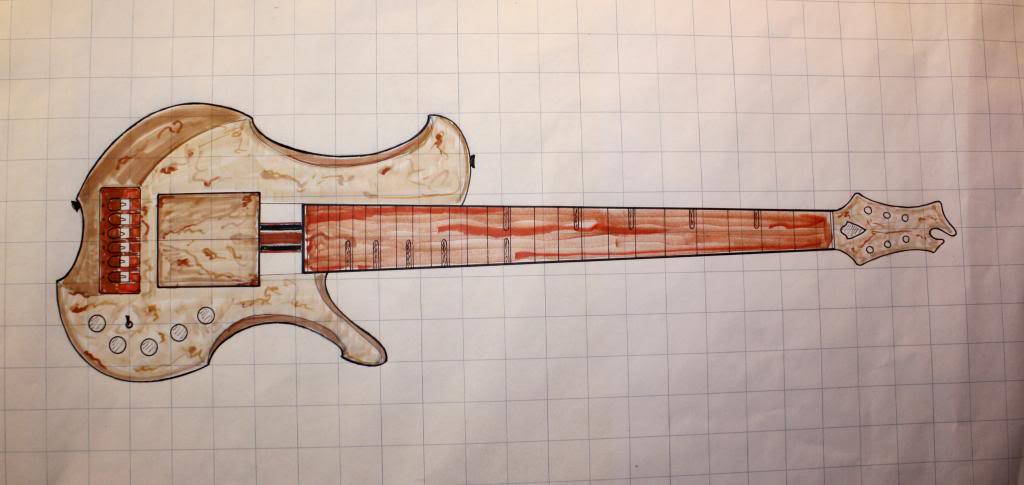

    Final Sketch of the bass
    [​IMG]

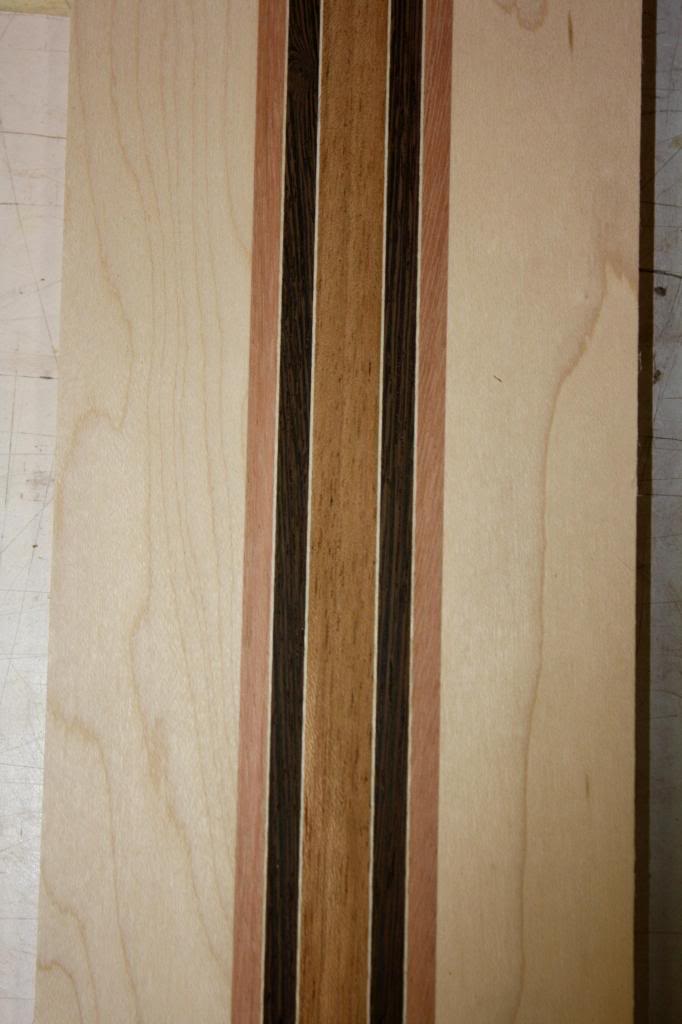

    Neck pieces detail
    [​IMG]

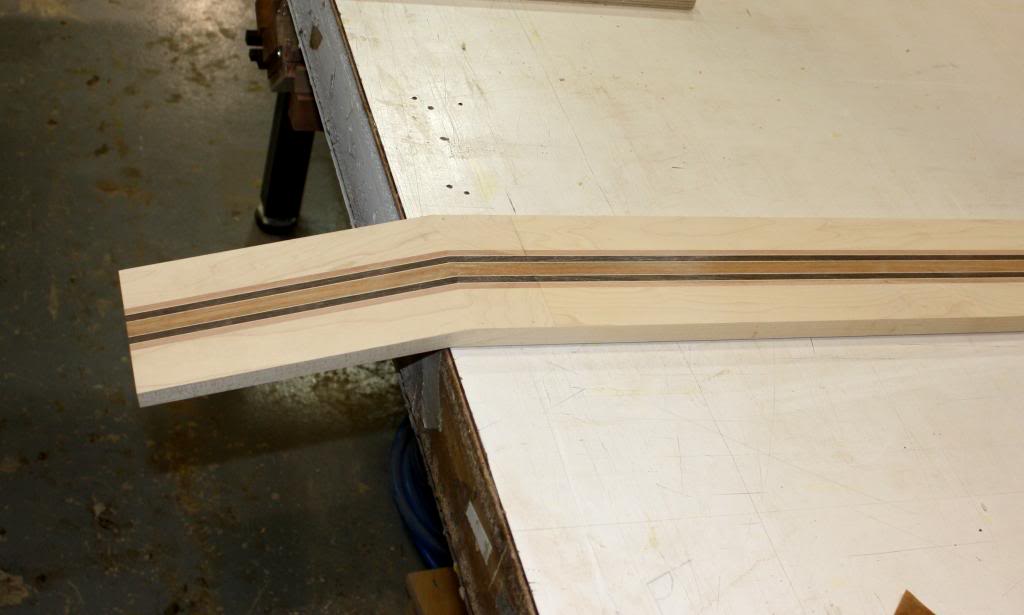

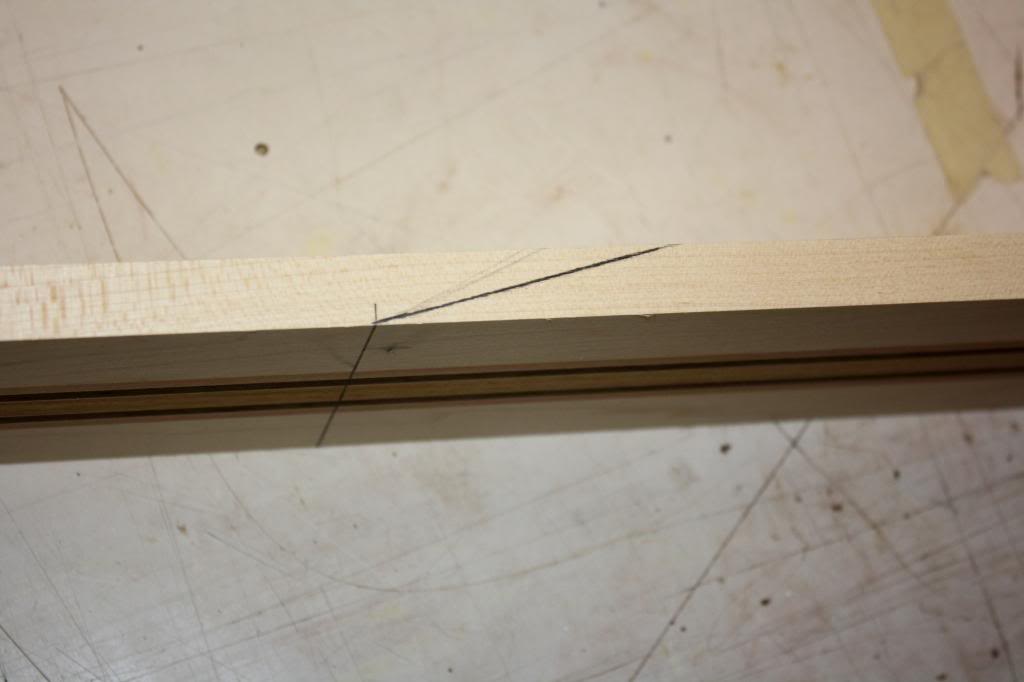

    Making the cut
    [​IMG]

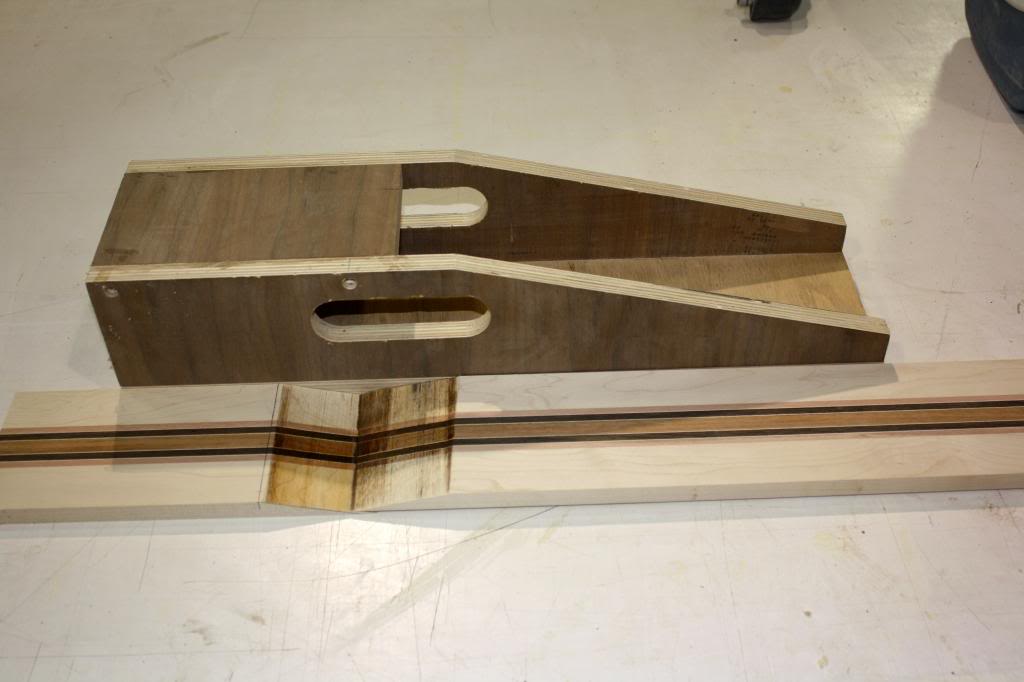

    Custom JIG
    [​IMG]

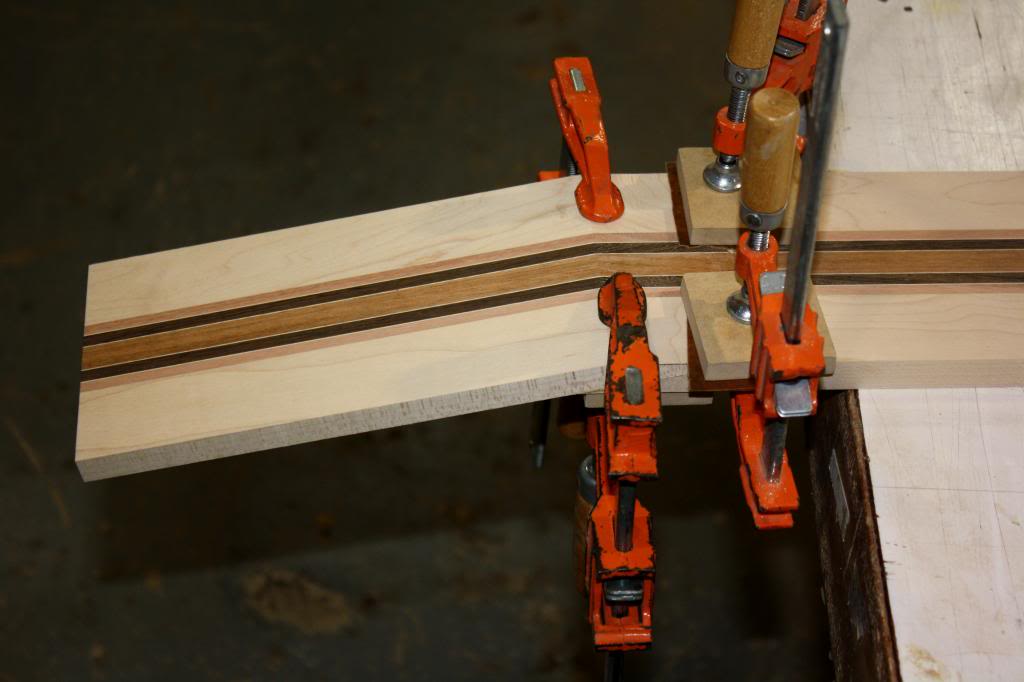

    glue her up!
    [​IMG]

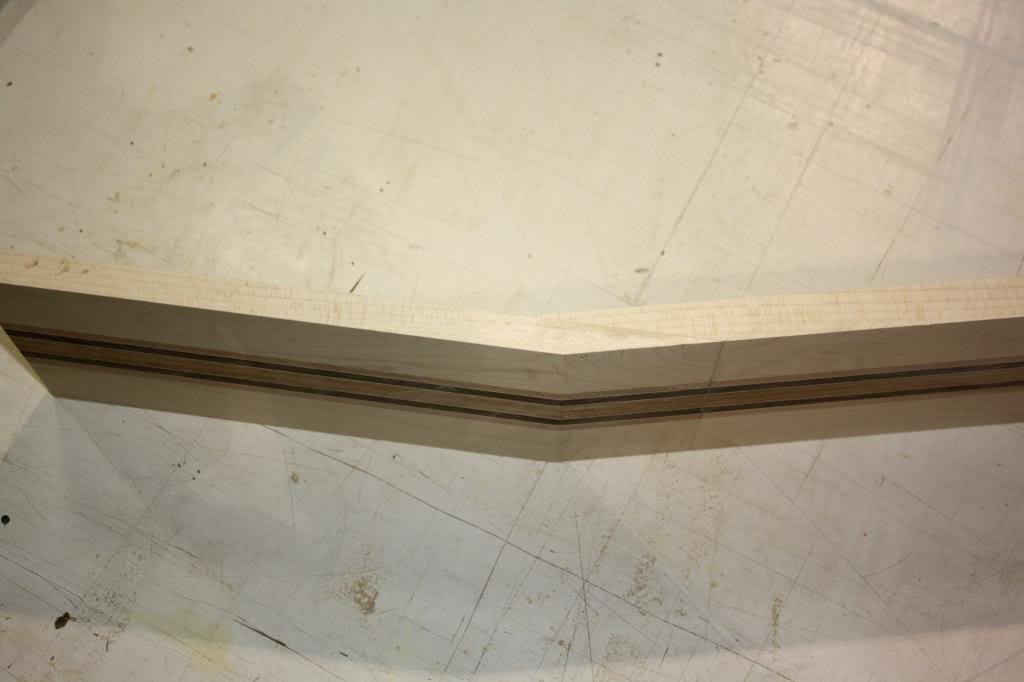

    Niiiiice!
    [​IMG]
    [​IMG]
    [​IMG]

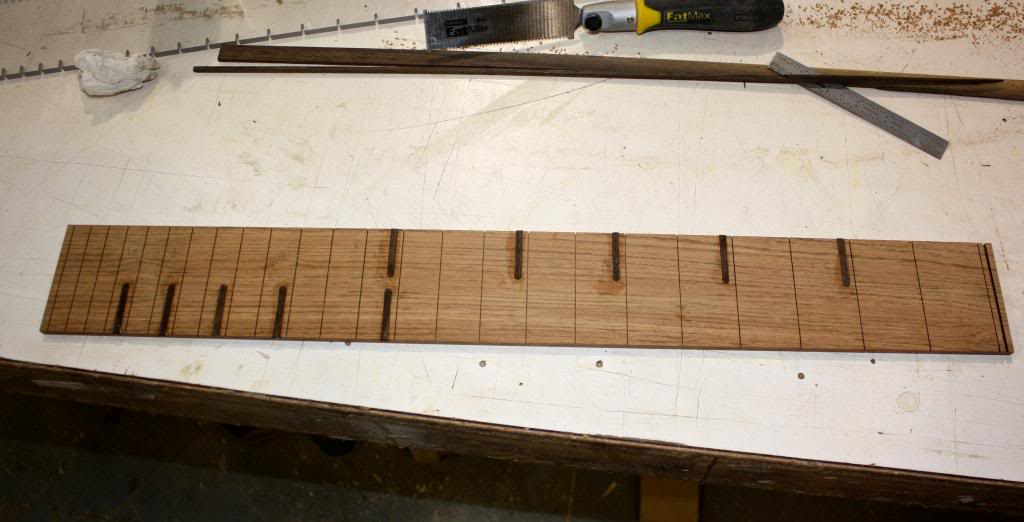

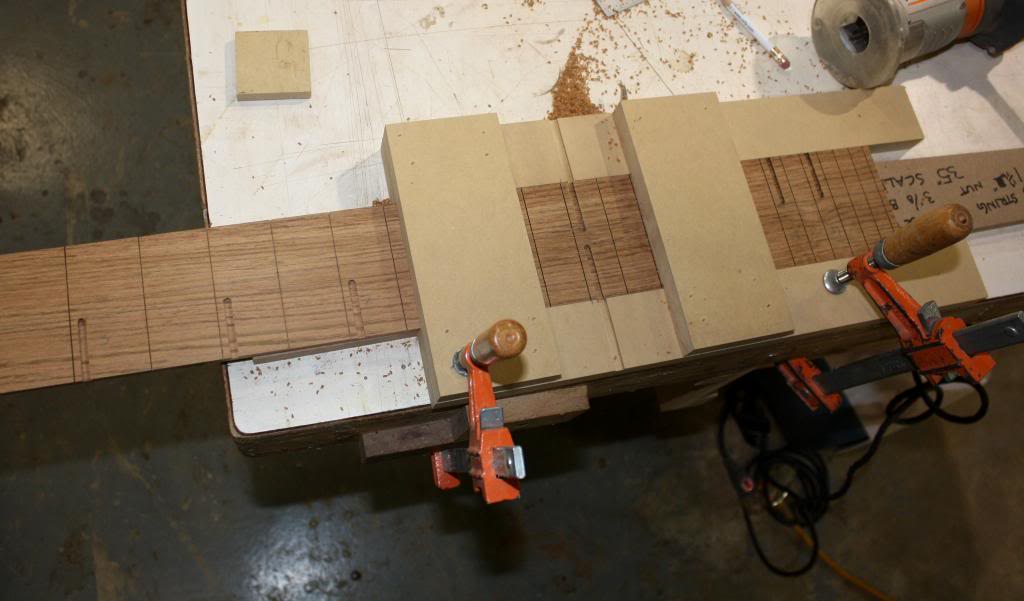

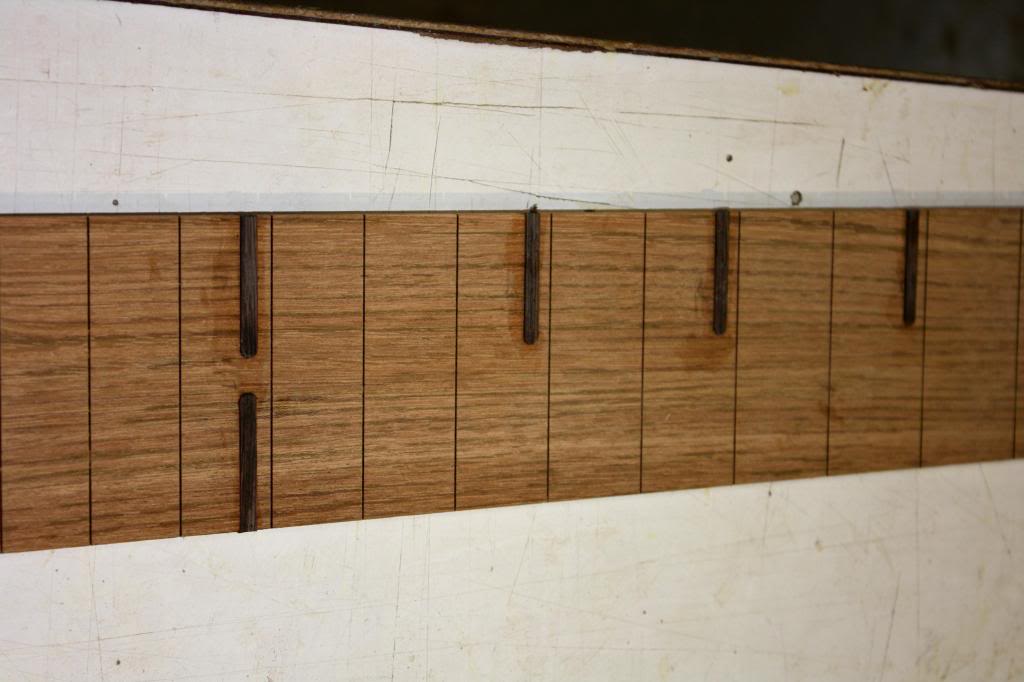

    Inlay of fret markers
    [​IMG]
    nice!!!!
    [​IMG]

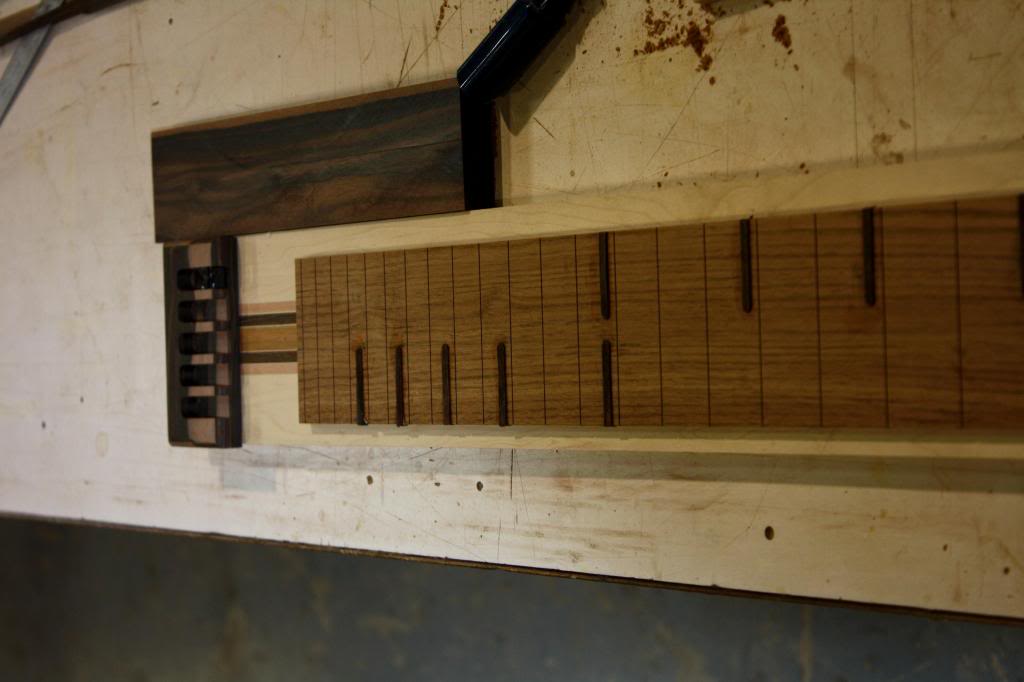

    detail of fret markers
    [​IMG]

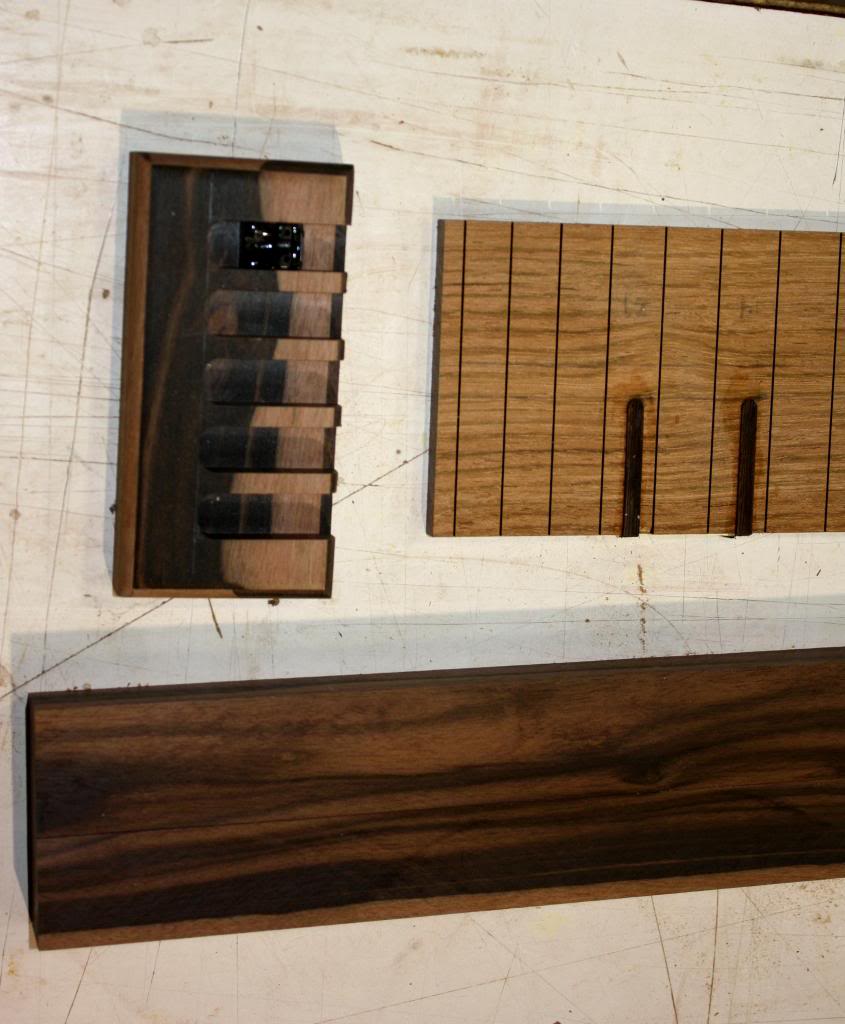

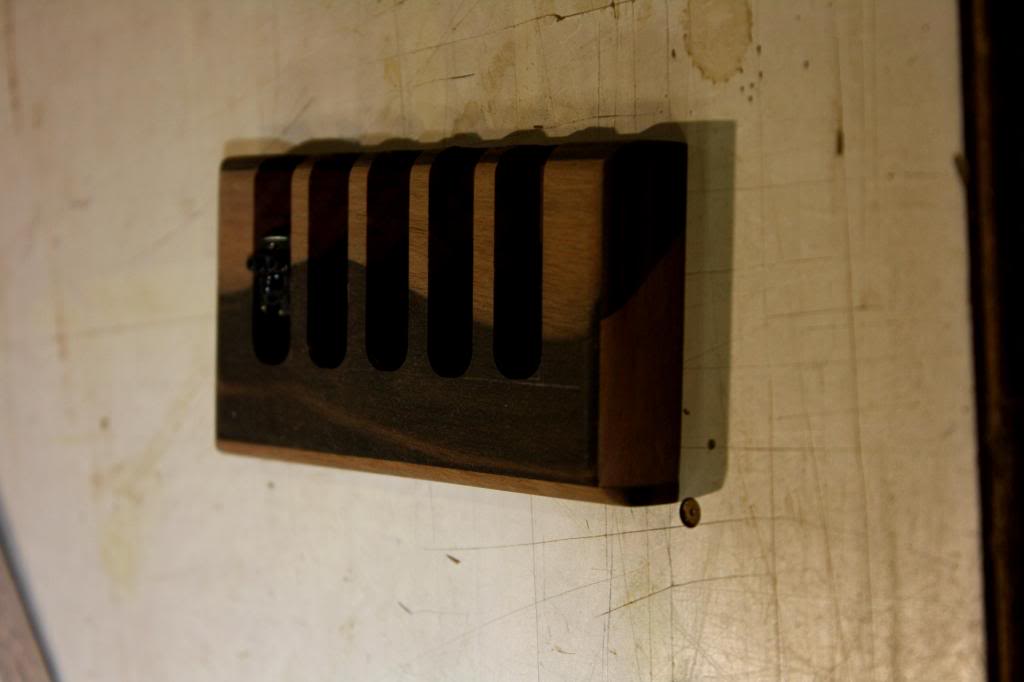

    Custom made bridge (this one is a five string... but making one for 6 string)
    [​IMG]
    [​IMG]

    more to come.... I am so excited!

  18. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
  19. Macrocosmcwh

    Macrocosmcwh Gold Supporting Member

    Joined:
    Nov 1, 2012
    Location:
    Gilbert, Arizona
    quick question for you guys.... How do you determine the best place for pickups? I am using Bartolini J style pickups. I just want to make sure I am giving my new bass the best chances for big sound. I like a warm sound with good articulation. Thanks!

  20. Hobobob

    Hobobob Don't feed the troll, folks. Supporting Member

    Joined:
    Jan 25, 2011
    Location:
    Camarillo, CA
    Specify standard 60's jazz bass spacing. Great tone, and a warmer bridge pup tone than 70's position.

  21. awesomesawyer

    awesomesawyer

    Joined:
    Aug 27, 2012
    does he have a website for his basses?
