Help me wire my P/J

Discussion in 'Pickups & Electronics [BG]' started by RockBobby, Mar 6, 2014.


  1. RockBobby

    RockBobby Supporting Member

    Joined:
    Feb 14, 2002
    Messages:
    2,229
    Media:
    1
    Albums:
    1
    Location:
    Greenfield, MA(Nowheres'ville)

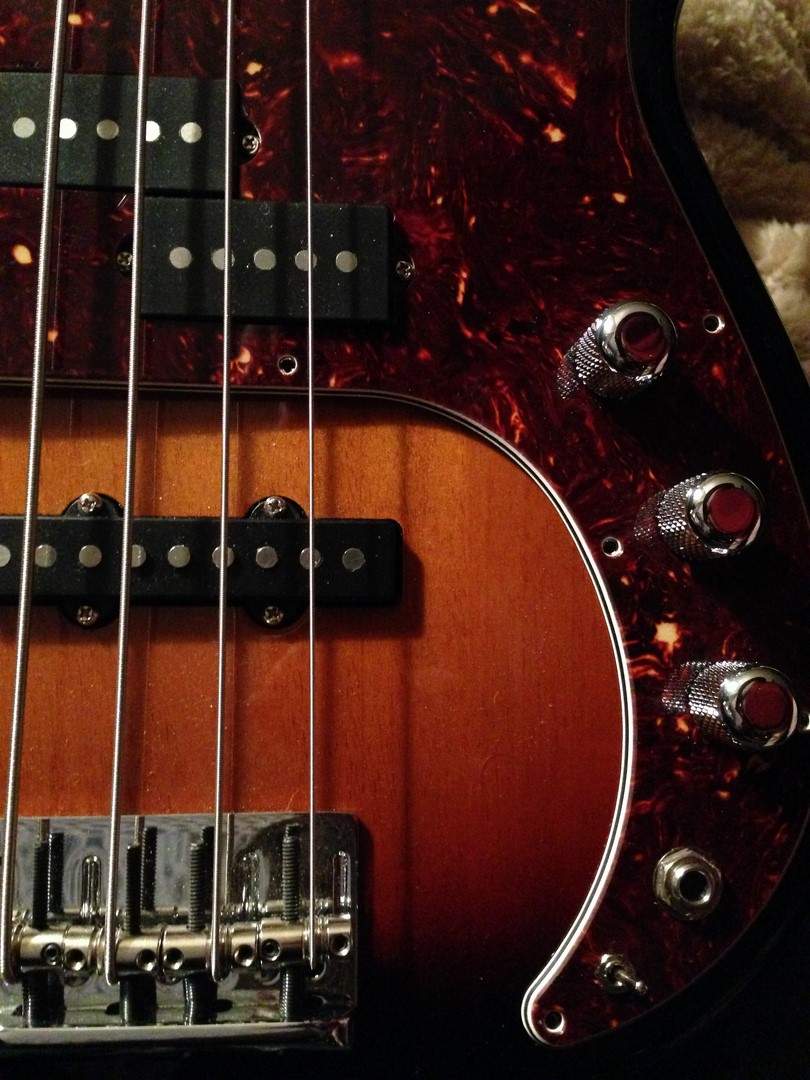

    Hi, I've been scouring the internet and can't find the diagram form my needs. Here's the layout:

    5 faceplate holes, 4 lg for pots and 1 sm for mini switch.
    Jack hole is on edge mounted.
    My pickups are passive Bill Lawrence P46/J45 matched set.

    I would LIKE to have V-V-T-T Series/Parallel with the on/on switch. It does'nt need to have 2 tones but I'm trying to fill all the holes. I can also just put a side plate on it and use one front hole for the jack- but that may interfere with the mini switch.

    Also, should I series/parallel just the Precision or series/parallel the 2 pickups? I have it wired like Bill's blend pot diagram, but it lacks mids that way.

    Thanks.


    Attached Files:

  2. RockBobby

    RockBobby Supporting Member

    Joined:
    Feb 14, 2002
    Messages:
    2,229
    Media:
    1
    Albums:
    1
    Location:
    Greenfield, MA(Nowheres'ville)
  3. line6man

    line6man

    Joined:
    Jun 20, 2008
    Messages:
    12,590
    Location:
    Close to Los Angeles, CA
  4. RockBobby

    RockBobby Supporting Member

    Joined:
    Feb 14, 2002
    Messages:
    2,229
    Media:
    1
    Albums:
    1
    Location:
    Greenfield, MA(Nowheres'ville)
    so run the P singles in series, then use the group P+-?

    The tone go to ground (case)?

  5. Register to disable this ad
  6. line6man

    line6man

    Joined:
    Jun 20, 2008
    Messages:
    12,590
    Location:
    Close to Los Angeles, CA
    Split coil P pickups are almost always wired for series coils. Parallel will not yield good results.

    All pots must be grounded.

  7. RockBobby

    RockBobby Supporting Member

    Joined:
    Feb 14, 2002
    Messages:
    2,229
    Media:
    1
    Albums:
    1
    Location:
    Greenfield, MA(Nowheres'ville)
    OK Thanks. I'm trying to re draw it with the pots/switch oriented to my config.

  8. RockBobby

    RockBobby Supporting Member

    Joined:
    Feb 14, 2002
    Messages:
    2,229
    Media:
    1
    Albums:
    1
    Location:
    Greenfield, MA(Nowheres'ville)
    Got it wired. It's working- Kinda. I have to take it apart and re trace.
