Help with roscoe preamp!

Discussion in 'Pickups & Electronics [BG]' started by ilustre, Jan 25, 2013.

  1. ilustre

    ilustre Supporting Member

    Joined:
    Sep 29, 2010
    Likes Received:
    0
    Hi, everyone, I want to install the original preamp to my friends roscoe, he changed it before and he wants to go back, but I can't find the wiring layout, if someone can help me out, so its the bartolini preamp with volume,blend,mid (pull-push), and stacked bass-treble pots. Thanks!
  2. testing1two

    testing1two Gold Supporting Member

    Joined:
    Feb 25, 2009
    Likes Received:
    0
  3. ilustre

    ilustre Supporting Member

    Joined:
    Sep 29, 2010
    Likes Received:
    0
    I have the NTMB but I cant find the push pull mid configuration or the stacked vass treble!
  4. ilustre

    ilustre Supporting Member

    Joined:
    Sep 29, 2010
    Likes Received:
    0
  5. eddododo

    eddododo Supporting Member

    Joined:
    Apr 7, 2010
    Likes Received:
    3
    I'll try to take a look at mine when I get home
  6. eddododo

    eddododo Supporting Member

    Joined:
    Apr 7, 2010
    Likes Received:
    3
    you may want to change the title to Bartolini preamp..
    also you probably get a pretty quick and dependable answer if you post this in the Roscoe forum.. Gard and company are extremely helpful
  7. ilustre

    ilustre Supporting Member

    Joined:
    Sep 29, 2010
    Likes Received:
    0
  8. DaveyM69

    DaveyM69

    Joined:
    Jan 1, 2011
    Likes Received:
    0
    Only last week I got the 5.2 version which is the same but separate treble and bass.

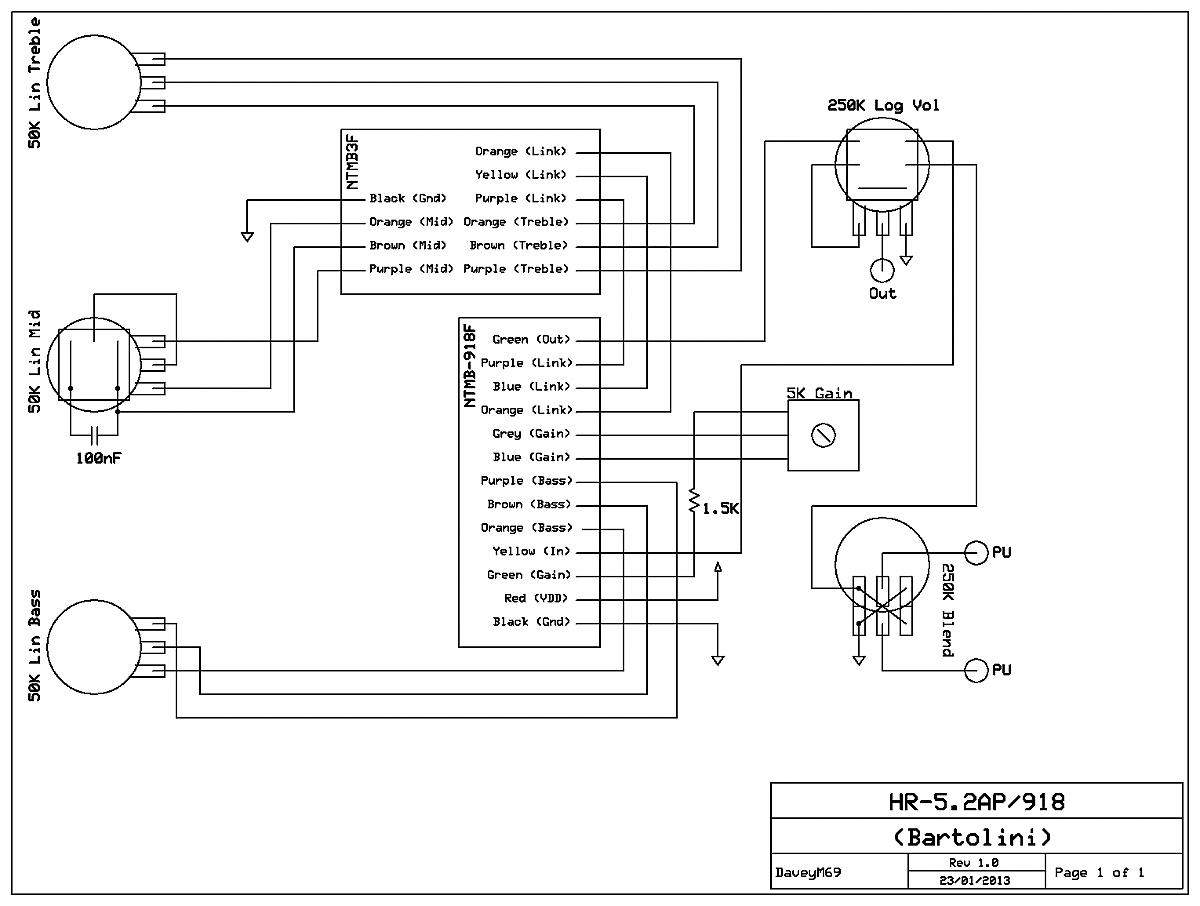

    I made a quick wiring schematic before installing it!

    On the mid push pull there are also 2 x 47K resistors on the switch - on the right (turning this pic 90 degrees clockwise) from the top to the middle and bottom to middle, middle being where the wiper connects. They are there to prevent switch 'pop' I believe.

    Attached Files:

    • Bart.jpg
      File size:
      104.9 KB
      Views:
      29
  9. ilustre

    ilustre Supporting Member

    Joined:
    Sep 29, 2010
    Likes Received:
    0
    Thanks!!!!!!
