Input needed on pickguard form!

Discussion in 'Hardware, Setup & Repair [BG]' started by belzebass, Dec 20, 2012.

  1. belzebass

    belzebass

    Joined:
    Feb 21, 2012
    Likes Received:
    0
    Hello!

    I'm planning to make a pickguard for my bass , so I made a paper design to what it would look like. I has to cover the area around the bridge pickup.

    What do you think? The upper curve is hard to make pretty.
    Feel free to unleash your photoshop skills if you have suggestions

    Thanks a lot.

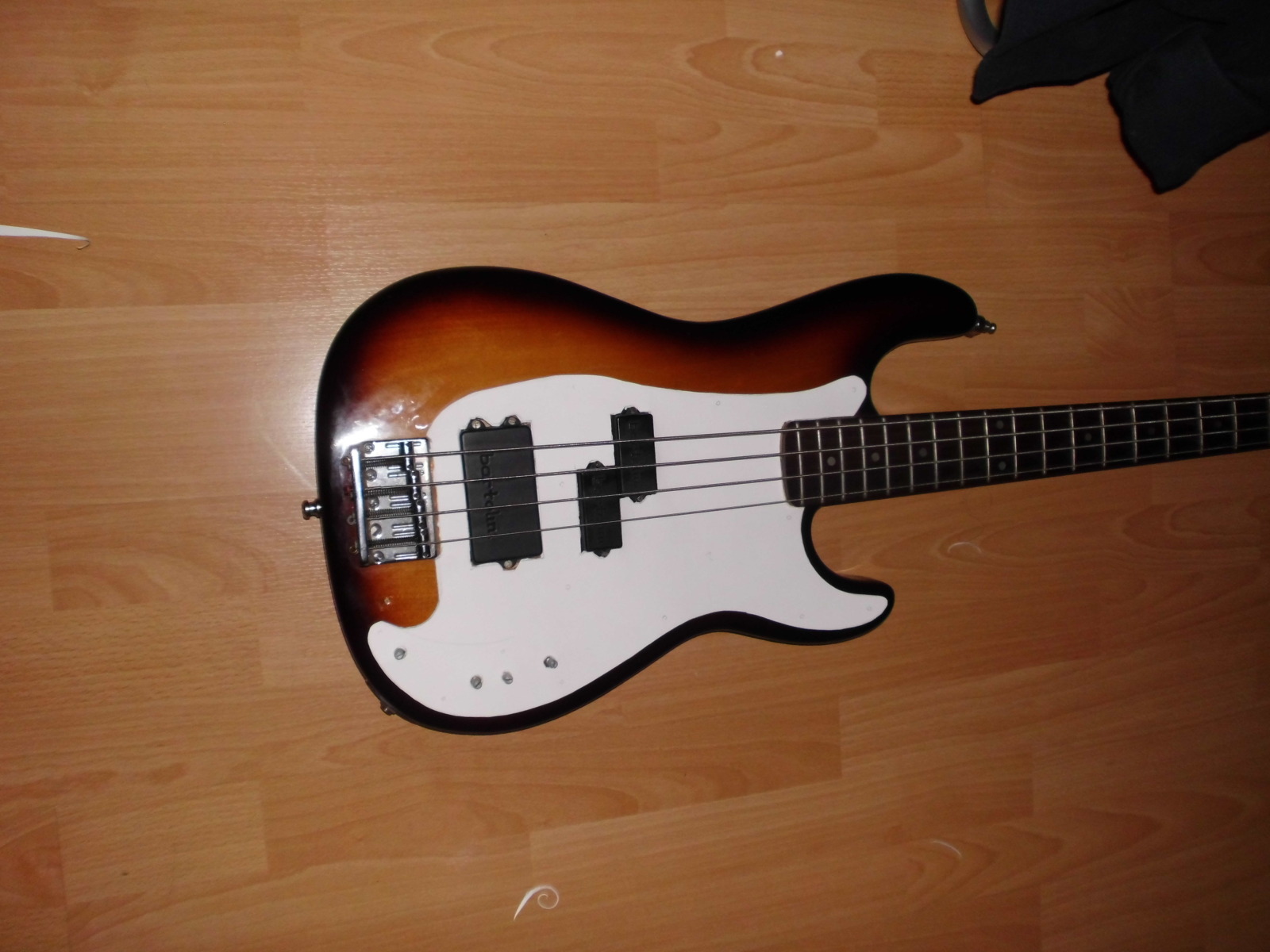

    Here's the beast:

    [​IMG]
  2. Turnaround

    Turnaround

    Joined:
    May 6, 2004
    Likes Received:
    0
    Disclosures:
    Bass Technician, Club Bass - Toronto
    OK, now you have a white bass with a bit of sunburst around the edges. I really dislike it. (You did ask for our opinions, right?)
  3. EricssonB

    EricssonB

    Joined:
    Apr 5, 2011
    Likes Received:
    0
    I actually kind like the idea of a white bass with a bit of sunburst around it. This doesn't quite fit. I'm not really sure what to contribute beyond that.

    Is this to compensate for some handiwork on that MM pickup? :cool:
  4. Stilettoprefer

    Stilettoprefer

    Joined:
    Nov 26, 2010
    Likes Received:
    0
    Too much pickguard IMO. Maybe do a pickup ring around the MM pup? I hate it when I see custom pickguards that cover over 75% of the bass.

    EDIT:

    How about a stingray style pickguard? That would cover the MM route and the P pup. Then a control plate would cover the control cavity.

    It would be nice to see a pic of what the pickguard is covering;)
  5. Kenzy

    Kenzy

    Joined:
    Dec 12, 2012
    Likes Received:
    0
    Why do you want such a huge pickguard? I don't really dig it, personally.
  6. belzebass

    belzebass

    Joined:
    Feb 21, 2012
    Likes Received:
    0
    No-no-no, not at all, I don't see what are you talking about :confused:

    It wasn't my handiwork, at least.


    As for colour, I intend to make it more of a beige or cream.
    This is a paper version just to model it, that's why it's spankin' white :)

    Now that's an interesting idea. I'll model it tonight to see how it goes.

    Yesterday I thought that it just didn't belong, but this morning it looked somewhat ok. Guess I got used to it. Definitely, the P-Bass design is so well-known, that changing it even a little different looks weird.

    Hey, but maybe with tort pickguard and flats it will be traditional enough?
  7. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Likes Received:
    0
    I have to agree wit the rest here. It does look a bit too dominating.


    IF you go for this design, at least refine the bass side part next to the MM pickup. That kink in the curve looks strange.
  8. 96tbird

    96tbird Supporter Supporting Member

    Joined:
    Dec 13, 2010
    Likes Received:
    1
    Yeah, no. Time for plan B.
  9. 202dy

    202dy Supporting Member

    Joined:
    Sep 26, 2006
    Likes Received:
    0
    Ugly as sin dipped in misery. :)
  10. jobo4

    jobo4

    Joined:
    Apr 19, 2006
    Likes Received:
    0
    Plus 1 on the pickup ring idea.
  11. belzebass

    belzebass

    Joined:
    Feb 21, 2012
    Likes Received:
    0
    Now here are the options I have modeled:

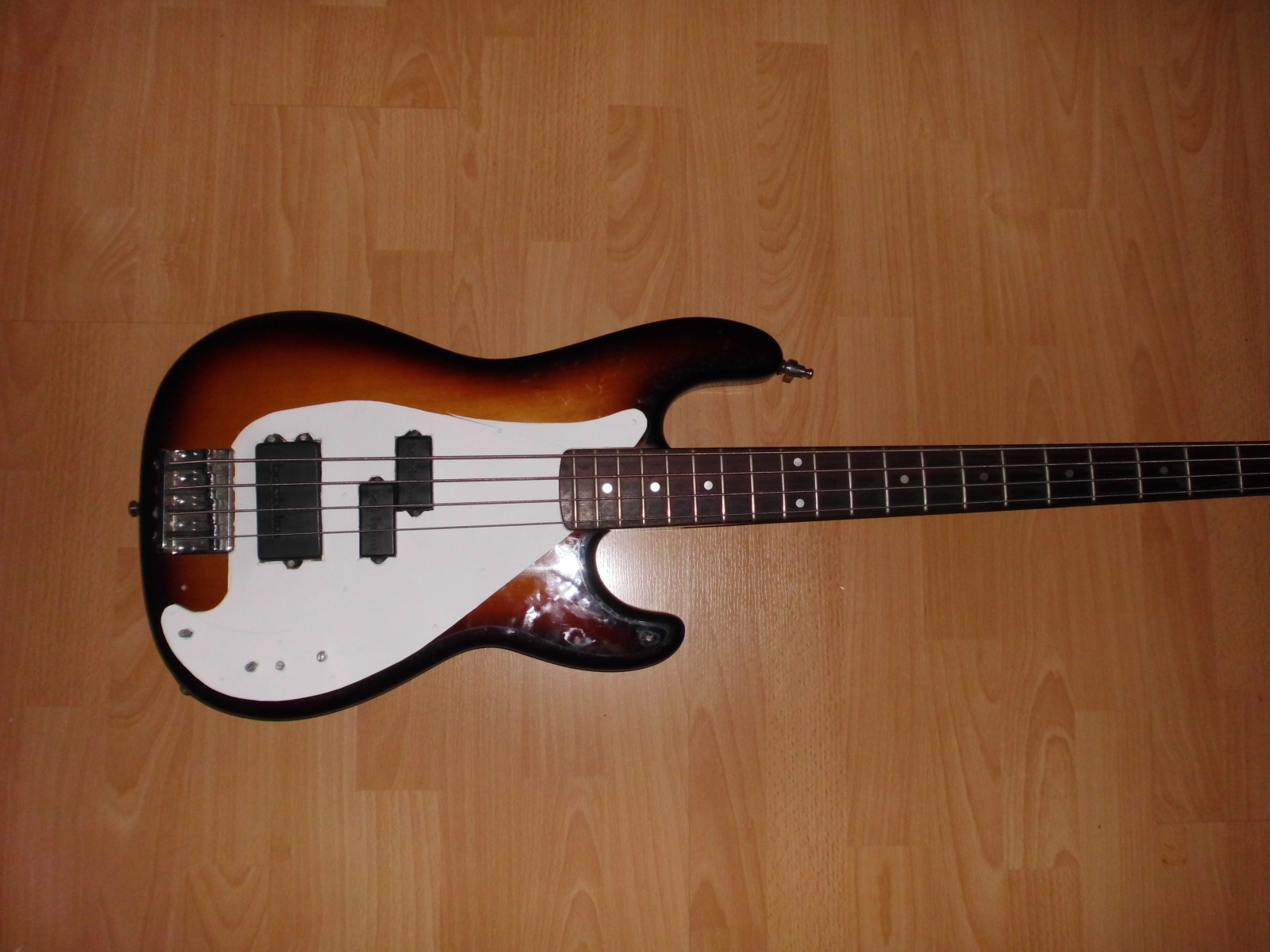

    The huge total pickguard:
    [​IMG]

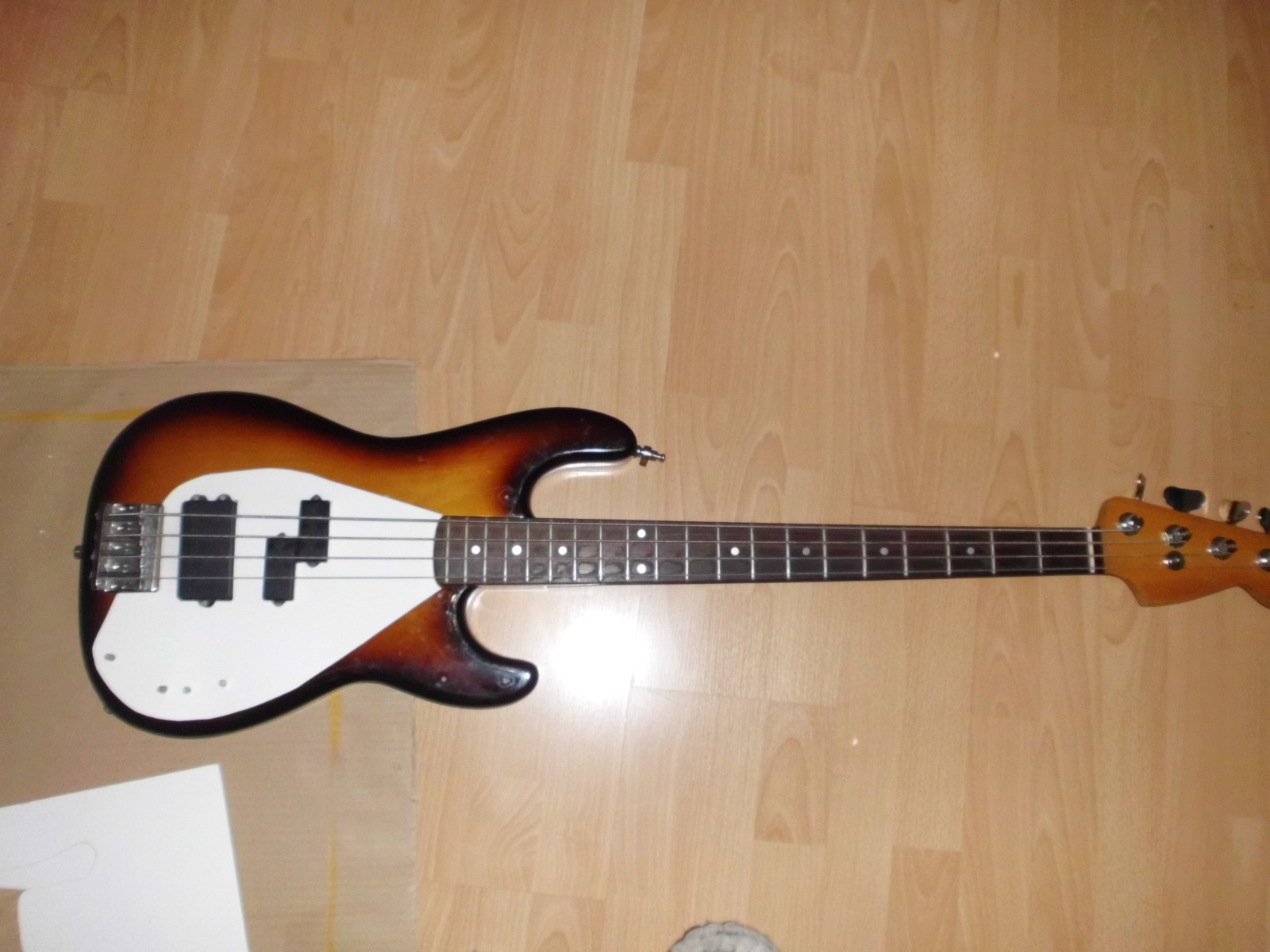

    The sterling inspired design:
    [​IMG]

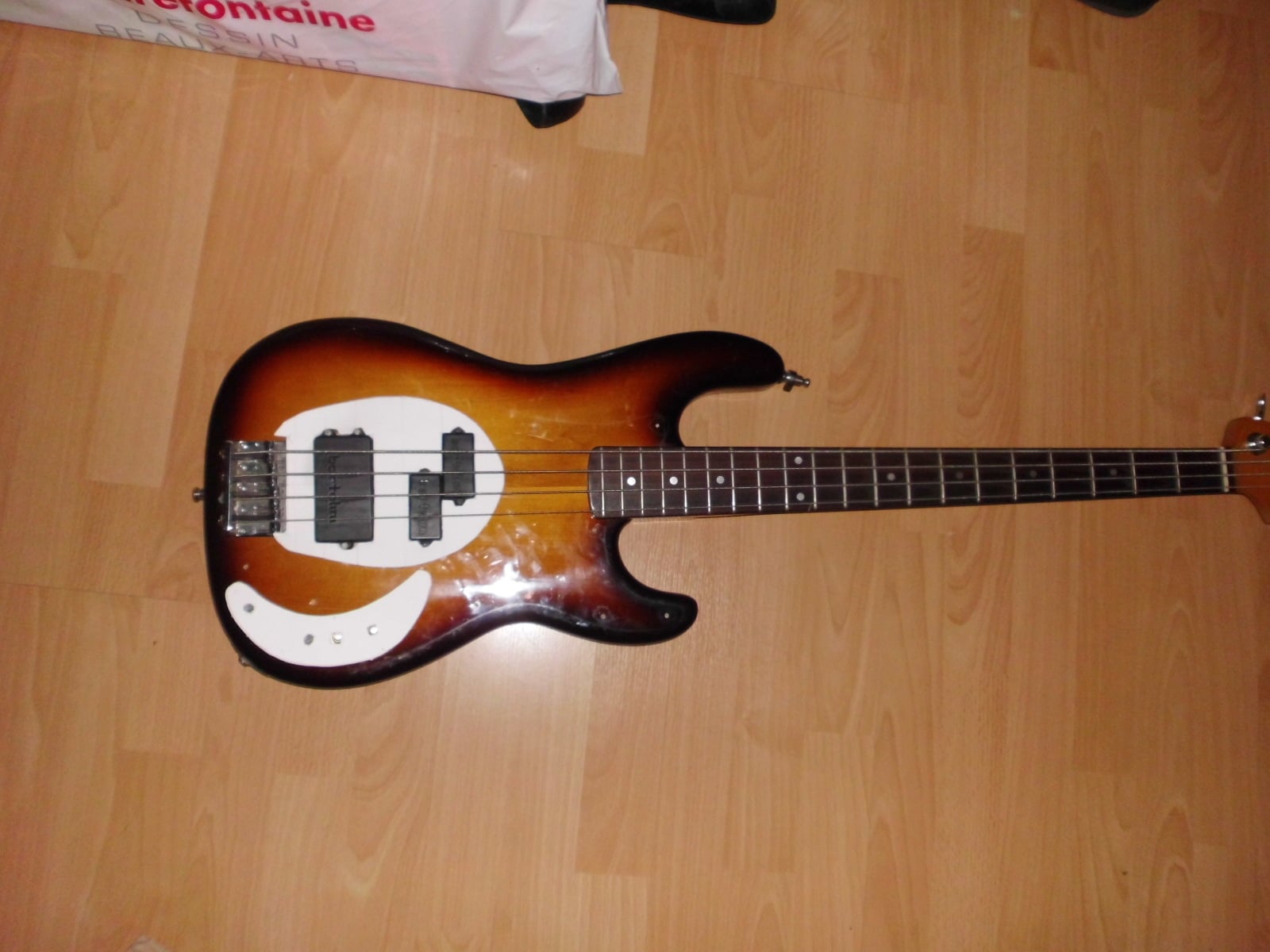

    The stringray inspired design (I find it really ugly):
    [​IMG]

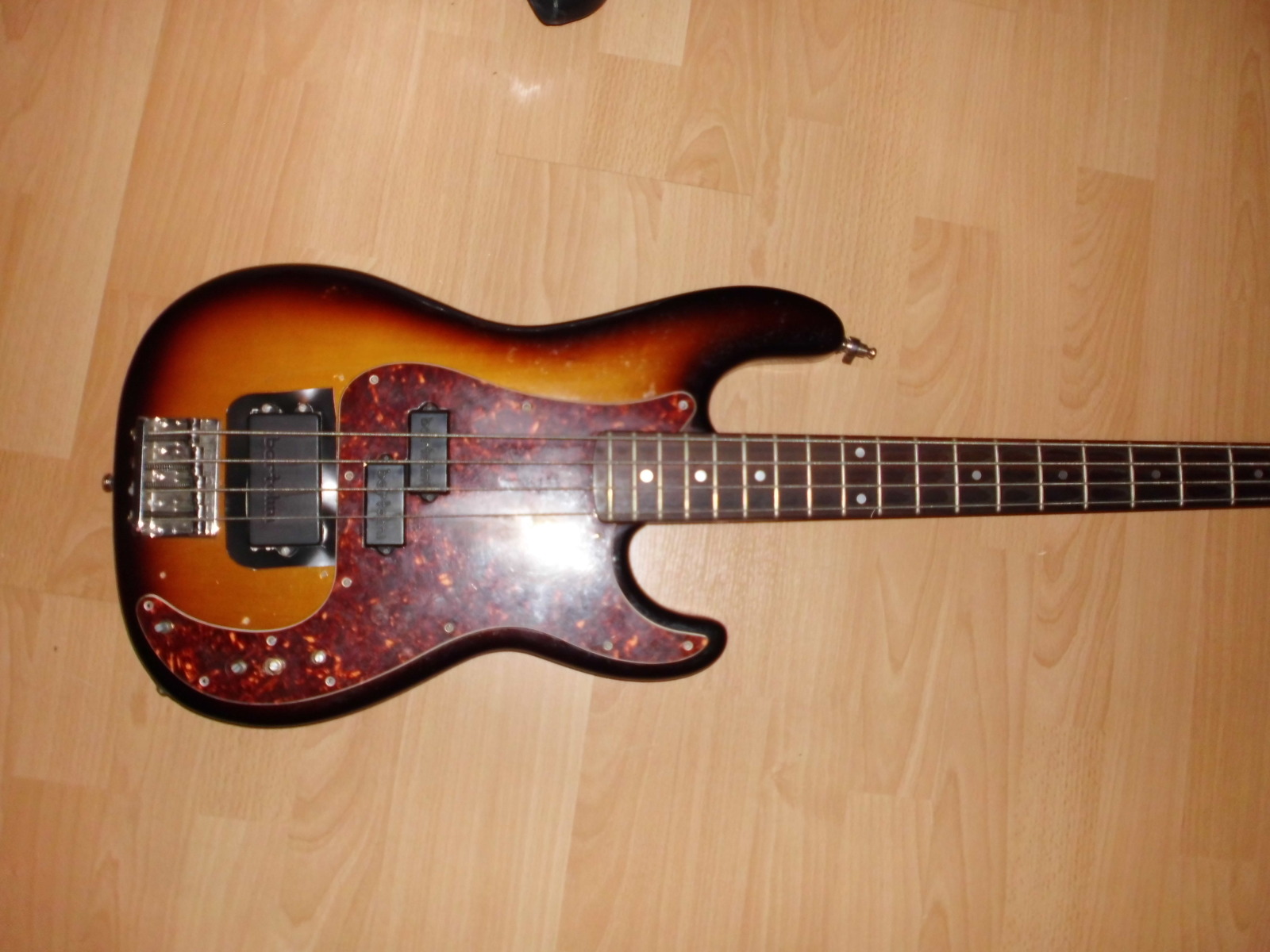

    And for the last one, I thought just to "Keep It Simple, Stupid" and to put a black frame around the bridge pickguard, and voilà:
    [​IMG]


    What do you think about it?
  12. belzebass

    belzebass

    Joined:
    Feb 21, 2012
    Likes Received:
    0
    And since I'm into it, I made the mix-n-match of the first and the second designs, and that's what I got:

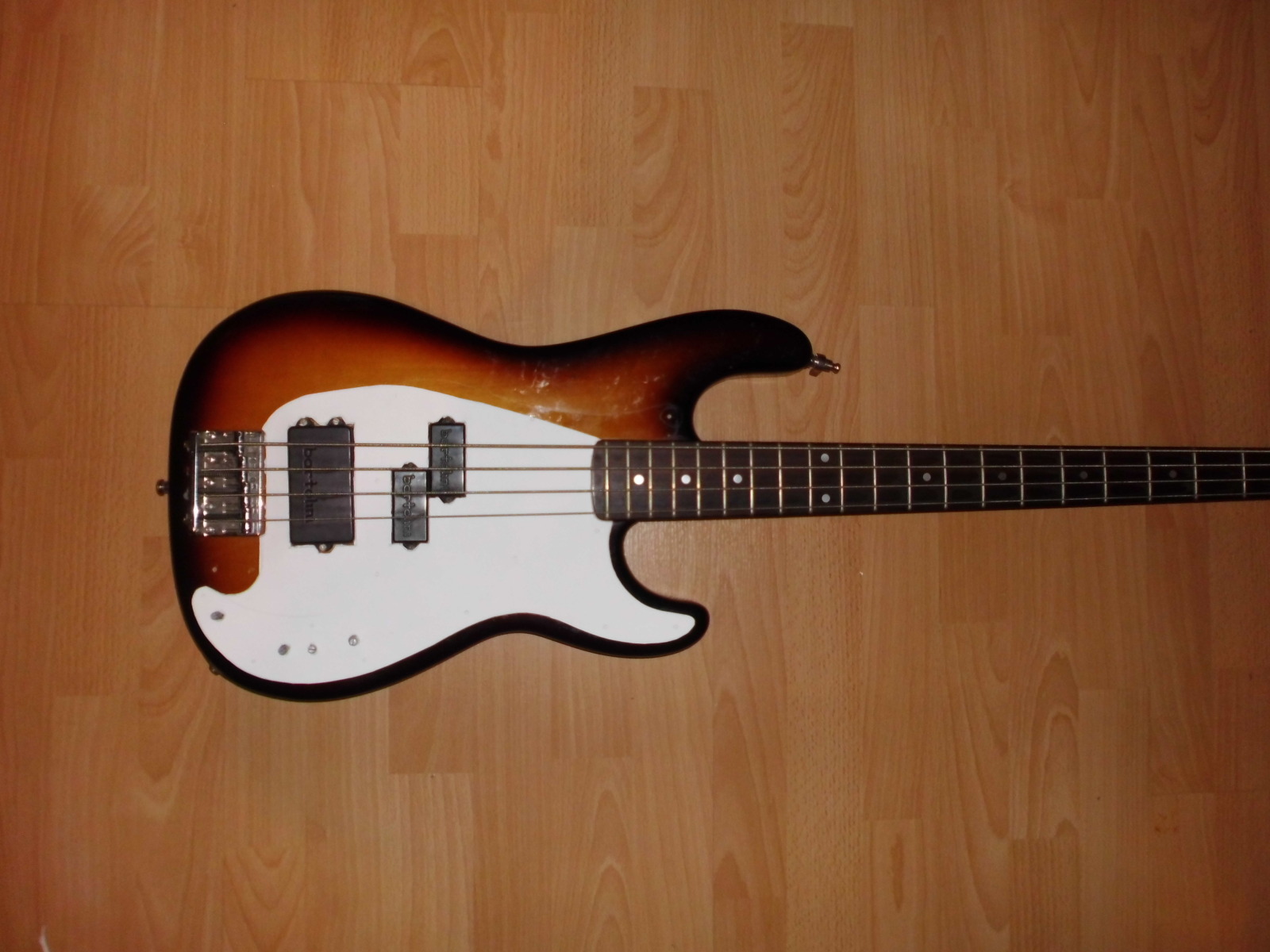

    1) This one looks lighter than the initial "huge pickguard" design:
    [​IMG]



    2) This one is lighter and, personally, I find it quite funky and strage in a good way.

    [​IMG]

    I'll wait for your opinions before starting the real work :)

    Which one is better than others?
  13. Kmonk

    Kmonk

    Joined:
    Oct 18, 2012
    Likes Received:
    0
    Disclosures:
    Endorsing Artist: Fender and Spector, Ampeg, Curt Mangan Strings
    I honestly don't like any of them. If I had to choose, I would pick the tort but without the black frame around the bridge pickup.
  14. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Likes Received:
    0
    Of those posted I would definitively go for the normal pickguard and small pickup ring.

    How does the MM pickup route look without any cover? If it looks alright I would just leave it as it is.
  15. belzebass

    belzebass

    Joined:
    Feb 21, 2012
    Likes Received:
    0

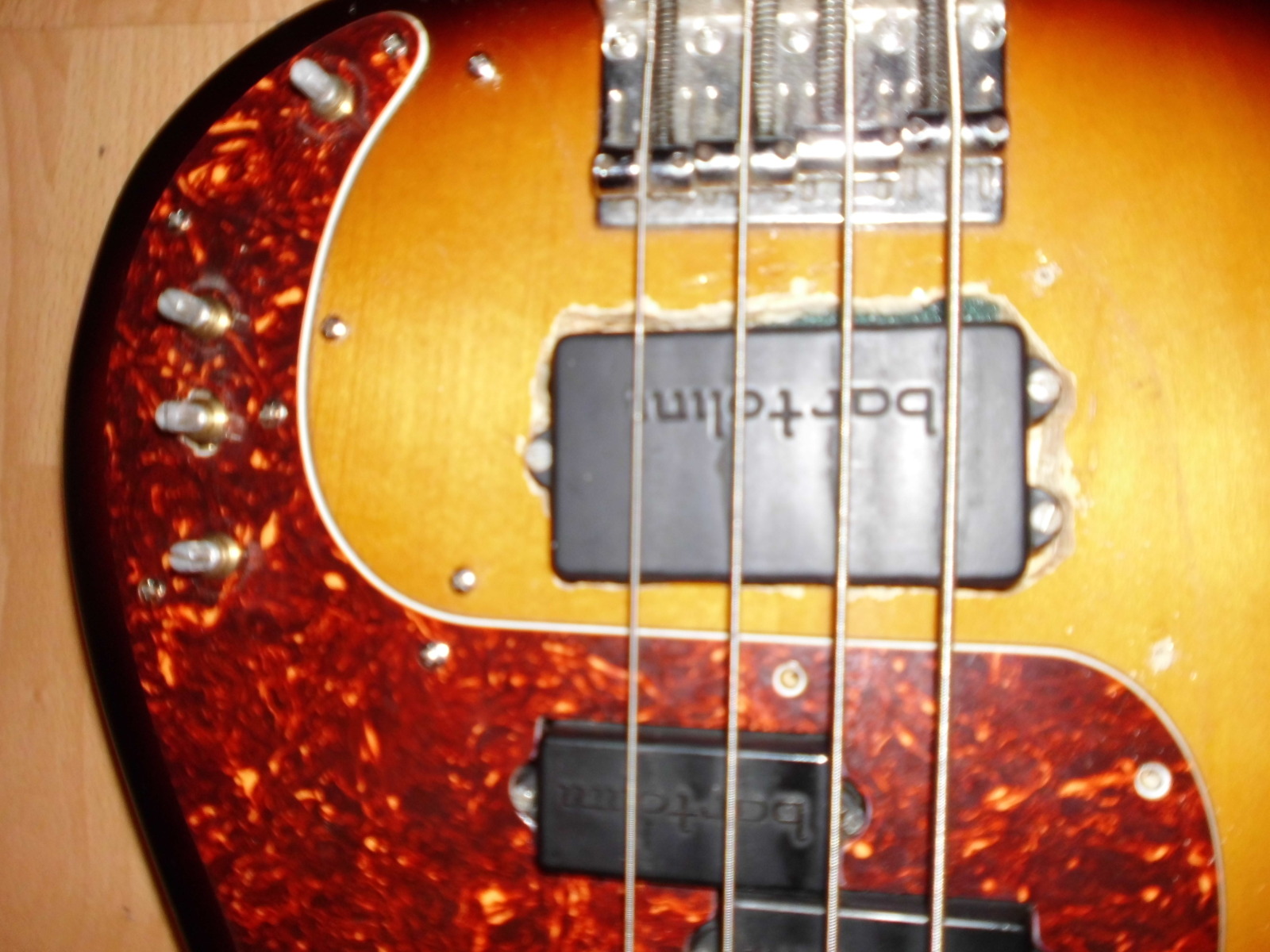

    Well, I do need some sort of cover around the MM pickup because of this:

    [​IMG]


    Initially, I bought the bass for pieces because of the pickups and the preamp, as well really good hardware at a low price. But finally I love the way it pays and it sounds, as well as real-life relic look (it was owned and gigged regularly by a restaurant bass player, and sold by his son who didn't seem to understand much in instruments). The former player seems to have used an axe to make the routing :-\ And then he slapped a piece of plastic on it, and gigged it. And it was not even a punk band.

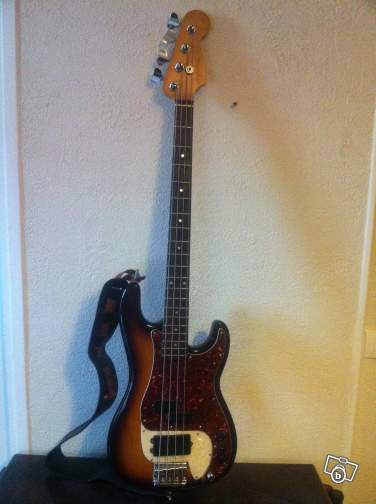

    Here's the photo of how it was when I bought it:

    [​IMG]
  16. 96tbird

    96tbird Supporter Supporting Member

    Joined:
    Dec 13, 2010
    Likes Received:
    1
    Maybe it's just the angle of the pics but the MM pup looks crooked. You may as well correct that and then go with the ring idea; it's the least offensive.
  17. Lee Bruton

    Lee Bruton Guest

    Joined:
    May 11, 2012
    Likes Received:
    0
    Buy a new body and start over!!
  18. monti2889

    monti2889

    Joined:
    Jul 19, 2012
    Likes Received:
    0
    Why not try a larger style MM pick guard with a P pickup cutout, if you want to extend the guard past the pickups why not try to tapper it towards the neck pocket.
    Kind of like a big tear drop.
  19. 202dy

    202dy Supporting Member

    Joined:
    Sep 26, 2006
    Likes Received:
    0
    The first order of business is to straighten out the MM rout. Then commence the design. This is a good time to move the fourth pot up to space evenly with the others. A thick ring at the MM pickup that does not allow some margin between the pickup and the bridge will look heavy handed.

    A single ring at the MM coupled with a control plate may provide the cleanest look. Red tortoise would tend to blend rather than contrast the differences.
  20. Andyman001

    Andyman001 Supporting Member Supporting Member

    Joined:
    Feb 11, 2010
    Likes Received:
    0
    How about a chrome bridge cover?
