    OK, so I was feeling experimental. In talking with a buddy of mine who's pretty savvy with WinISD, we decided to do our own take on the Phil Jones bass cabs. Sort of.

    What we came up with was a 16x5 cabinet, loaded with Dayton Audio Aluminum-cone drivers.

    Last night, another buddy and I began the build.

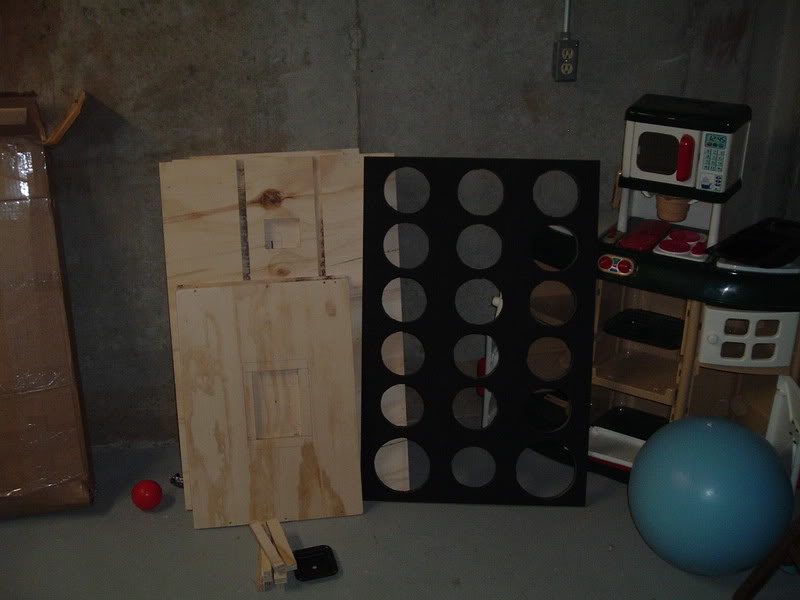

    Step 1 - take everything out of the box.

    [​IMG]

    I would strongly suggest standing it all up against your kids' broken toys, to make your stuff look that much better...

    :D:D

  2. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    I had painted the baffle prior to assembly, because I'm pretty fond of my house and didn't want to explode it with paint fumes in the basement. And because I had a couple of minutes to spare.

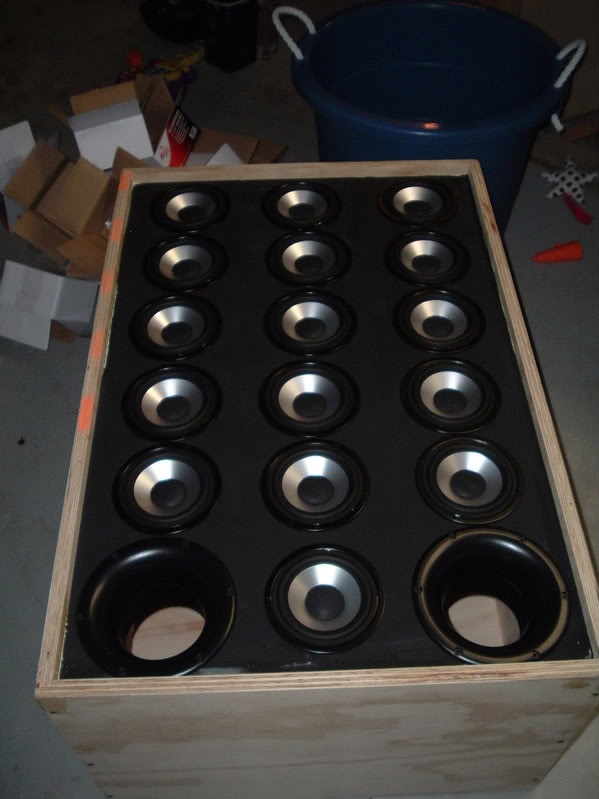

    Once the cab was assembled, we did a dry-fit/drop-in install on the drivers and ports.

    [​IMG]

  3. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    Here is part of the aftermath:

    [​IMG]


    Not visible in this pic is the 6-pack of O'Dell's Cutthroat Porter that we polished off in the process.

    :D:D


    Next step is handle installation and covering/sealing the cabinet.

  4. p-nut95

    p-nut95

    Joined:
    May 27, 2007
    Messages:
    249
    Location:
    Philadelphia
    OMG! that is a beast I've been wanting something like that. Like the discontinued trace elliot brite box

  5. Register to disable this ad
  6. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    except it's designed to be a full-range, stand-alone bass cab...

    (i hope :D:D )

  7. p-nut95

    p-nut95

    Joined:
    May 27, 2007
    Messages:
    249
    Location:
    Philadelphia
    tru dat although i dont think is would be a bad idea to add the ,i forget if its accugroove or epifani, 21 inch subwoofer:smug:

  8. Chris V.

    Chris V.

    Joined:
    Jun 8, 2007
    Messages:
    1,118
    Location:
    Guildford / Exeter
    When are you going to be able to try it out?

  9. Alowishus

    Alowishus

    Joined:
    Feb 28, 2005
    Messages:
    72
    Might want to wear a cup when you try that thing out.

  10. Bassenstien

    Bassenstien

    Joined:
    Jun 13, 2006
    Messages:
    1,093
    Location:
    Mississippi
    Sick
    Wouldn't mind a couple :smug:

  11. coyoteboy

    coyoteboy easy there, Ned Supporting Member

    Joined:
    Mar 29, 2000
    Messages:
    1,998
    Location:
    Sactomato, CA
    So, is it going to be a 2 ohm box?

  12. thehangingmist

    thehangingmist

    Joined:
    Dec 14, 2007
    Messages:
    5,537
    Location:
    New Delhi, India
    Disclosures:
    MTD kingston international emerging artist
  13. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    not entirely sure. it depends on how quickly i can hone my soldering skills.

    i should have the cabinet portion finished tonight. then a day or three or twelve to load and wire it, give or take.

    hopefully, i should be delivering a review within a week...

  14. Stu L.

    Stu L.

    Joined:
    Nov 27, 2001
    Messages:
    3,896
    Location:
    Corsicana, Texas
    Man, I take pictures of my stuff against my girls toys, just to make the picture prettier :D

  15. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    8 actually.

    according to the designer, i should be able to expect flat to (IIRC) 44 hZ, and somewhere in the neighborhood of 124 dB when pushed with a GK 1001RBII...

  16. p-nut95

    p-nut95

    Joined:
    May 27, 2007
    Messages:
    249
    Location:
    Philadelphia
    sound clips would be awesome! How much did the whole project put you under? Wana build me 5x5??:smug:lol

  17. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    TCI (total cost involved) so far is under $400. that includes materials, shipping, and beer.

    to be fair, i didn't do the wood work myself. i don't have the skills or tools. the designer did the wood, then packed it flat and shipped it to me. i'm doing assembly and wiring.

  18. lomo

    lomo passionate hack Gold Supporting Member

    Joined:
    Apr 15, 2006
    Messages:
    8,700
    Location:
    NE US/CAN line
    I love the PJ sound and I can't wait to hear your results.

  19. Kitsapbass

    Kitsapbass A.K.A. Pimp Lucius

    Joined:
    May 26, 2005
    Messages:
    1,839
    Location:
    Kitsap County, WA
    I am SO subscribed to this......!

    And not just because it looks awesome....:cool:

  20. alanbass1

    alanbass1

    Joined:
    Feb 8, 2006
    Messages:
    421
    Location:
    London
    I'm gonna have to see/hear this in person.

  21. mlwarriner

    mlwarriner Supporting Member

    Joined:
    Nov 8, 2003
    Messages:
    1,684
    Location:
    KC, MO, USA
    april 4th at the pig (formerly known as nieners) will likely be our first in-town show that i use it for.
