Mute Clamp Concept

Discussion in 'Basses [BG]' started by maguire, Dec 15, 2012.

  1. maguire

    maguire

    Joined:
    Nov 24, 2010
    Likes Received:
    0

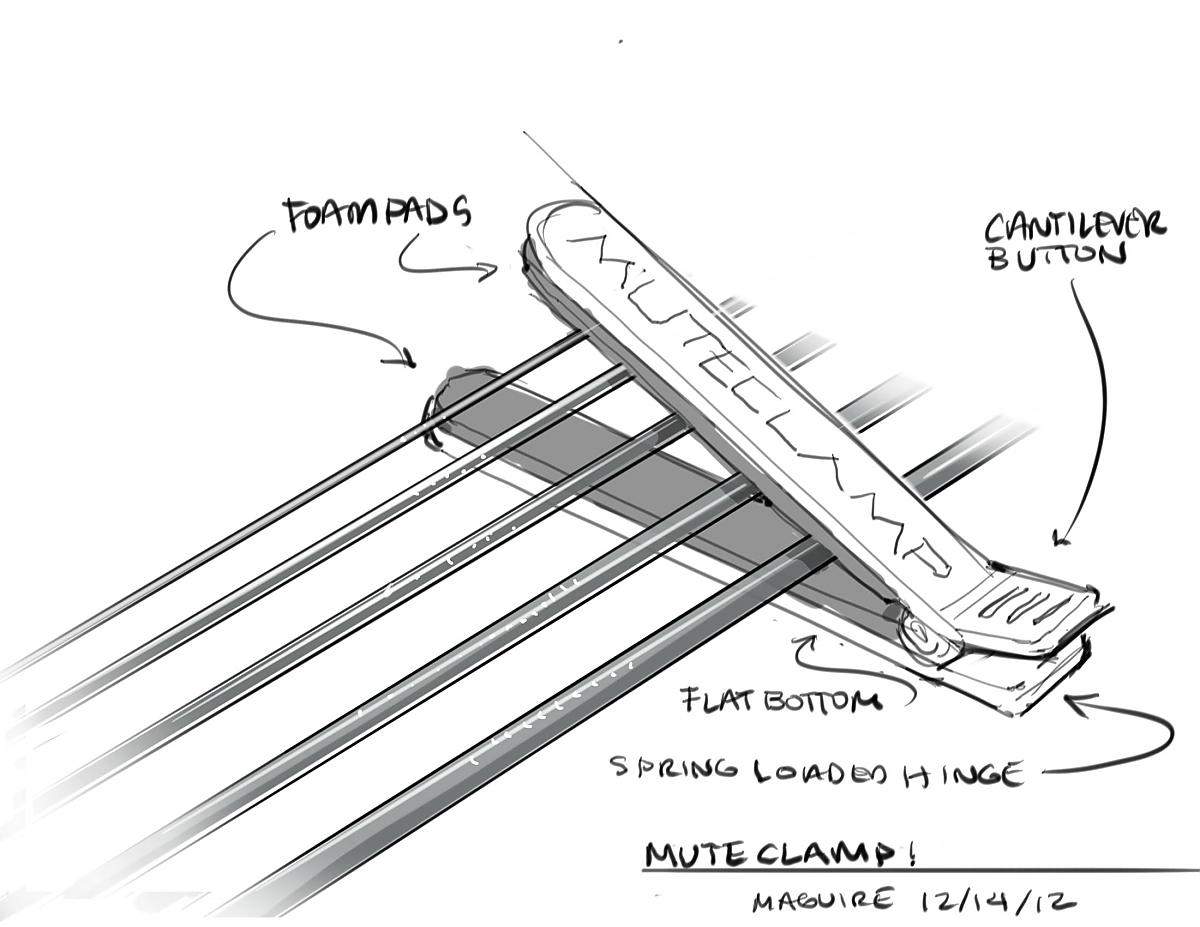

    Here is a drawing in response to an old thread about a simple bridge mute. In particular, a non-permanent, easy to apply/remove bridge mute.

    I would like to make this. If anyone is interested in starting up a little project, let me know.

    Anyone have a 3D printer? I can create a Solid works part for output...

    [​IMG]



    http://www.talkbass.com/forum/f8/clamp-bridge-mute-582298/
  2. tabdog

    tabdog

    Joined:
    Feb 9, 2011
    Likes Received:
    2
    I see no reason for the spring or the part
    that goes over the strings. All you have to
    do is slip something under the strings. The
    string tension will hold it in place.

    Tabdog
  3. bootsox

    bootsox

    Joined:
    Apr 28, 2012
    Likes Received:
    0
    has to be anchored (or pressed against) to the body somehow, otherwise if you hit a note on one string it'll ring out on others
  4. maguire

    maguire

    Joined:
    Nov 24, 2010
    Likes Received:
    0
    Great feedback!
    Time to hit the drawing board again. I'll see if I can change it to meet your comments!

    Tabdog - I was trying to make it super fast to put on and take off. I have found that sliding a foam pad underneath takes some time and adjusting. Maybe I'm just using the wrong foam density or foam size. Any experience with that?
  5. Immigrant

    Immigrant Supporting Member

    Joined:
    Jul 2, 2010
    Likes Received:
    10
    I still like it.

    How about something similar to a Roland pickup that has a lever like yours that raises and lowers? Maybe an adjustment for different heights or foam inserts of different thicknesses?

    It's a great concept. True that most mutes are between body and strings, but your design may still work.
  6. bill reed

    bill reed

    Joined:
    Apr 2, 2012
    Likes Received:
    0
    would using a clamp like that not make it act like a bridge and put out your intonation. the damp under the strings does not change the tuning.
    I may be wrong as i have only tried the foam under the strings.
  7. Rebop

    Rebop Supporting Member

    Joined:
    Jul 9, 2008
    Likes Received:
    0
    You could probably modify a hair-clip of some sort to see how practical this would be. I think the energy from the string you're playing would transfer across to the other strings, but it may still work.
  8. grisezd

    grisezd Supporting Member

    Joined:
    Oct 14, 2009
    Likes Received:
    0
    If you use a nice, soft foam in the jaws it would work like a piece of felt woven through the strings. I think it's a nice idea, at least worth a quick prototype or two.
  9. maguire

    maguire

    Joined:
    Nov 24, 2010
    Likes Received:
    0

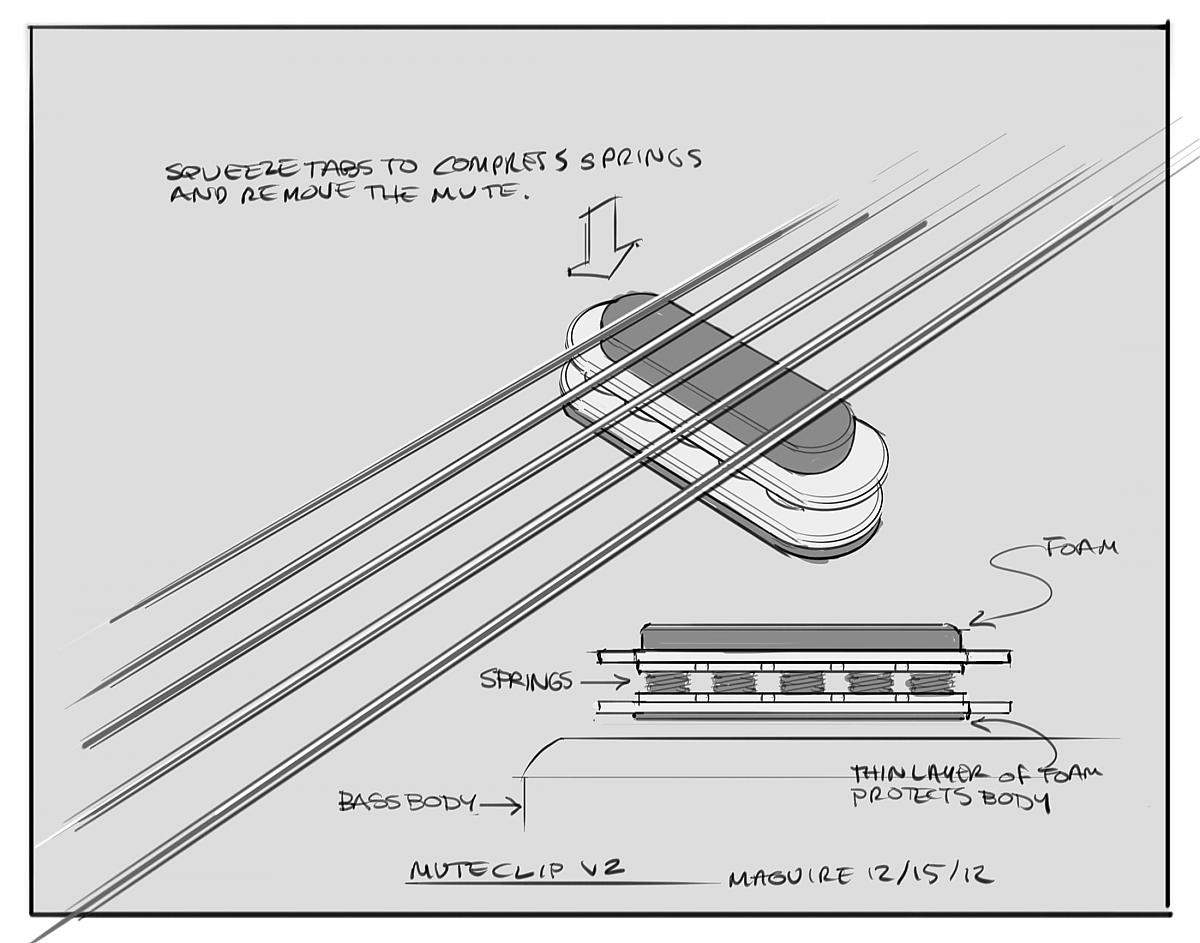

    OKay, here is another shot at it - using a more conventional layout but may still be easy to remove. Probably easier to manufacture too - due to the lack of hinge assembly.

    [​IMG]

    Good comment about intonation. I wonder how any muting above the bridge intonation point changes the intonation...

    Attached Files:

  10. M.R. Ogle

    M.R. Ogle Supporting Member

    Joined:
    Nov 5, 2004
    Likes Received:
    2
    You're making a complex device that does exactly the same thing as a single thicker piece of foam rubber.

    Just remove the springs and use a thicker piece of foam, it's already springy.
  11. RCCollins

    RCCollins Supporting Member

    Joined:
    Mar 23, 2008
    Likes Received:
    1
    some nice ideas. i endorse this project!
  12. timonvh

    timonvh

    Joined:
    Oct 16, 2010
    Likes Received:
    0
    Useful or useless, the drawing is a work of art in itself.
    Timon
  13. wvbass

    wvbass

    Joined:
    Mar 1, 2004
    Likes Received:
    1
    I like the clip idea. I think it is upside down in your drawing, though - i wonder is the hinge should follow the gauge of the strings.

    When a put a mute between the body and the strings, adjusting individual string mutes is important. With the clamp, i could probably angle it to get even sounding dampening.

    I like it. Seems like a useful part of any bass player's bag of tricks. Currently, I use a wadded up piece of polar fleece.
  14. Immigrant

    Immigrant Supporting Member

    Joined:
    Jul 2, 2010
    Likes Received:
    10
    I agree!

    There's a few reincarnated da Vincis around here...

    da Vincii?
  15. wvbass

    wvbass

    Joined:
    Mar 1, 2004
    Likes Received:
    1
    I would probably be interested in buying and testing one of the prototypes.
  16. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19
    That device will make all of your notes played go sharp. That is what mechanical mutes do.
  17. sevdog

    sevdog

    Joined:
    Mar 2, 2008
    Likes Received:
    0
    Put screws on the ends so that you can adjust it like on a Music Man bridge and you've got a winner.

  18. wvbass

    wvbass

    Joined:
    Mar 1, 2004
    Likes Received:
    1
    Don't let this stop you. Palm muting is also mechanical muting, and is a valid technique.
  19. maguire

    maguire

    Joined:
    Nov 24, 2010
    Likes Received:
    0
    Awesome feedback all around.

    I think that both concepts could use a few tweaks to become more perfect.

    I'll take any comments and try to improve the designs in drawing format, before modeling and printing a prototype. Both will be prototyped.

    I think V2 (bridge style) is probably less of a risk, but V1 (hairclip) is kind of cool in my opinion I'd like to give it a try.

    Not quite there yet, but I think it would be awesome to get some testers send comments and help out with the refinement of the prototypes...
  20. maguire

    maguire

    Joined:
    Nov 24, 2010
    Likes Received:
    0
    Hi Ogle,

    I like your approach to simplicity - and I agree with you about the foam pad - it is the simplest way to mute the strings. I've always had trouble with shimming the foam pad in and out from under the strings in the middle of a set (or even a song).

    Like I said earlier - maybe I am using the wrong shape or softness of foam but usually it takes a lot of fussing to cram the foam in there.

    This design is meant to be a quick application mute.

    Do you have any dimensions or foam types that you think generally work well for a simple foam pad version?

    Thanks for the input!
