NAD - Jansen Liberator 9-180

Discussion in 'Amps [BG]' started by webmonster, Jan 23, 2014.


  1. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand

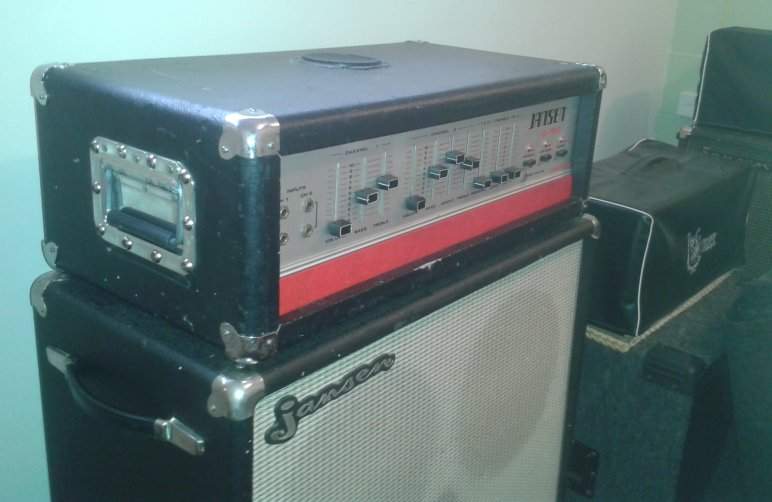

    This arrived today :)

    I needed a more powerful amp, and I like tube amps and I like NZ made Jansens.
    I emailed a couple of techs to see if they knew the whereabouts of one of these and to my surprise the one in Wellington did.
    It was languishing unused in a cafe. They were using it as a PA and it had broken down.
    I organised a swap for a SS Jansen PA head I found on trademe - far better suited to playing quiet music for hours on end, and still has that classic look they wanted.

    The tech did the swap for me and has worked on the Liberator on and off over the holiday season. He replaced caps, some tube sockets and bits and pieces.
    Big heavy transformers in this.

    Unfortunately someone has removed the tremolo circuit board completely and cut a hole in the top for an extra cooling grille :meh:
    Also needs new handles and the faders on the front need cleaning because they're a bit noisy.

    This mid 1970's Liberator is 200W from 4 KT88s (or 6550s).
    It is running with 700V on the plates - a bit over spec - and I have ValveArt KT88s installed.

    Sounds great :) It has a real sense of power even at low volumes and the tone has a bit more 'tang' compared to my Bassman. Sounds great with my 4001 :)

  2. BassmanPaul

    BassmanPaul Gold Supporting Member

    Joined:
    Aug 25, 2007
    Messages:
    13,849
    Location:
    Toronto Ontario Canada
    I'm glad you're enjoying your new toy. Have fun with it and remember never run it without a speaker system connected.

  3. christw

    christw Get low!

    Joined:
    May 11, 2008
    Messages:
    6,055
    Location:
    Dayton OH
    Disclosures:
    Endorsing: J Worrell Bass
  4. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    A bit of an update.

    I've cleaned up most of the noise in the faders using compressed air and CRC2.26

    and

    I've replaced the handles.
    The original handles had only 4 screws each for a c.25kg amp and the case is chipboard...

    So I blagged a pair of old Penn handles from a friend and cleaned them up using Autosol.

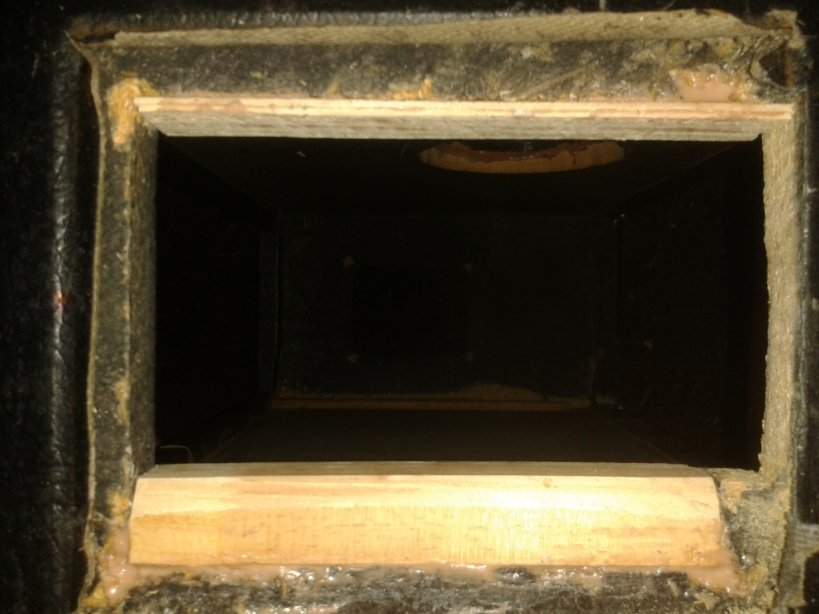

    Then I reshaped the holes (carefully! - measure twice, cut once), filling in with shaped woodblocks and fillets and re-gluing the vinyl.

    The new handles have 10 screws each and I hope they will deal with the weight of the amp better.
    Cosmetically, it would be nice to re-chrome the corners at some point.

    No luck sourcing a replacement tremolo circuit board, so it is likely I'll get the circuit built up next time the amp goes to the tech.

  5. Register to disable this ad
  6. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    Some more pics. Guts shots :)

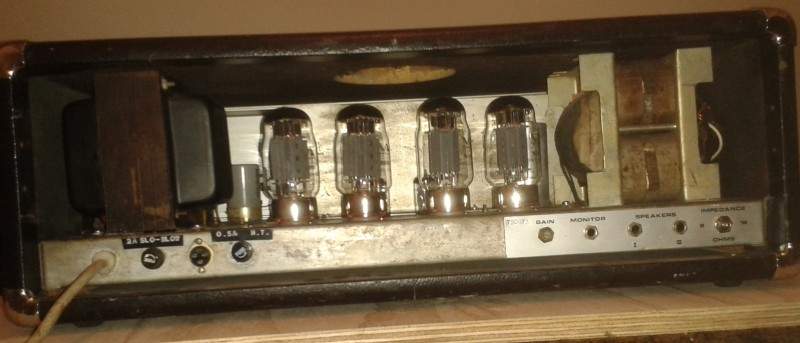

    Back panel removed. Nice big transformers.

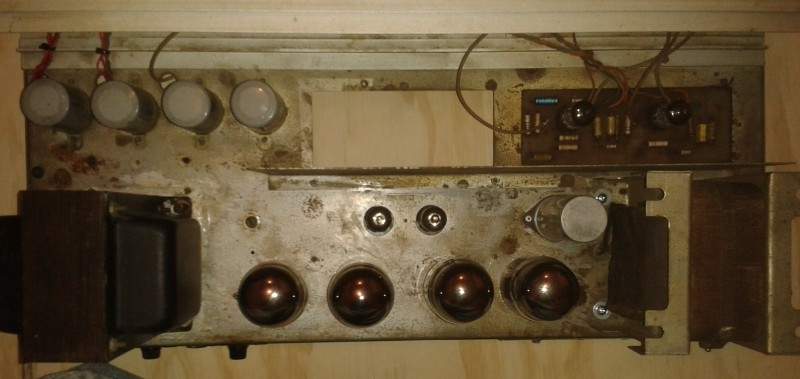

    Chassis from the top. Hole where tremolo PCB should be is in the middle.

  7. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand

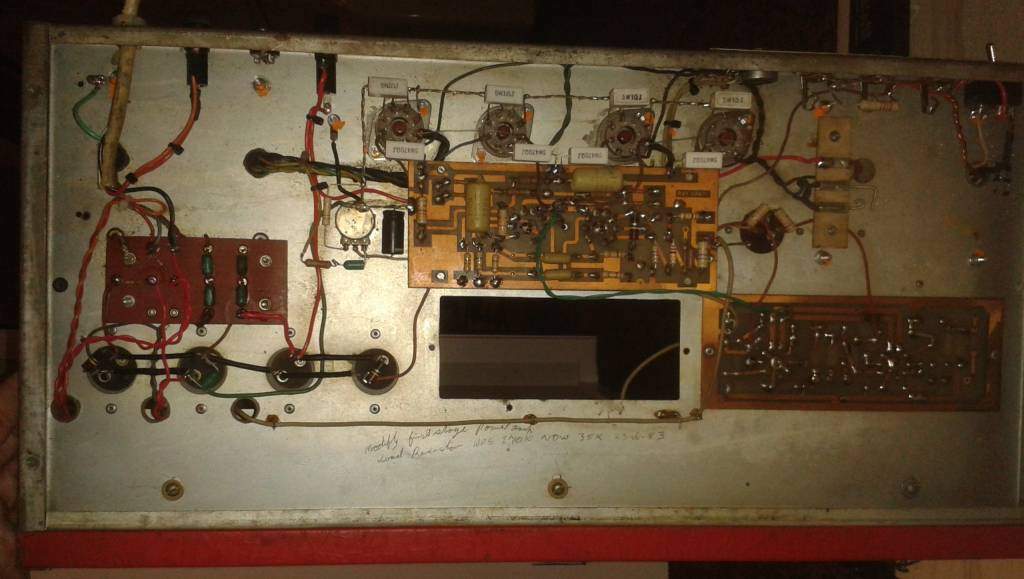

    Chassis from underneath.

    Any idea what this logo on the side of the chassis means? Beware of 700V? :)

  8. SirMjac28

    SirMjac28 Patiently Waiting For The Next British Invasion Gold Supporting Member

    Joined:
    Aug 25, 2010
    Messages:
    8,576
    Location:
    The Great Midwest
    That is some very pretty iron congrats and that logo looks like a grave with a headstone direct and to the point :)

  9. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    Thank you kindly :)
    The output transformer is different to my other 2 amps - the OT in those look the same as the PT.
    Can anyone tell me how these two types are different?
    Hmm! I see what you mean about the grave & headstone. It also looks a bit like a hand with a pointing index finger.

    Certainly a joy to play my 4001 through this with 1 or 2 TL 606 cabs :)

  10. G-Unit 01

    G-Unit 01

    Joined:
    Mar 5, 2009
    Messages:
    73
    Location:
    New Zealand
    Nice amp, as a fellow Kiwi, I have never seen one of these though I have played through a 50 Bassman many times.

  11. Sartori

    Sartori

    Joined:
    Apr 9, 2009
    Messages:
    13,233
    Location:
    San Francisco Bay Area, CA
    Cool find. I'm not sure I've actually ever seen a tube amp with an all fader EQ rather than rotary controls.

  12. Downunderwonder

    Downunderwonder

    Joined:
    Aug 26, 2009
    Messages:
    10,818
    Location:
    New Zealand
    There was another one on TM a couple of years ago.

    The logo is a finger pointed at something ( and knuckles ), maybe the cross is commemorating someone who didn't mind where they poked their fingers.

  13. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    There are certainly very few 200W Liberators, so I feel quite fortunate to have a good one. The cosmetically similar 100W Dominators are a bit more common - 1 or 2 per year come up on trademe.

    Oddly enough, I've never played through a Bassman 50; by coincidence my friends and I all had 75's. They had 'silverface' models, while I still have my blackface.
    Nice amps in correct working order. Crazy bass response!

  14. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    Me too. The EQs are all passive BTW. Quite unusual, but works well in practise.

    There was another NZ tube amp - the Holden Graphic - which had mostly faders (incl. Gain - like my Liberator), but it had a graphic (active) EQ. It also had a few rotary controls.

  15. Menno

    Menno Supporting Member

    Joined:
    Feb 21, 2011
    Messages:
    148
    Location:
    The Netherlands
    The logo seems a warning. Touch this and die (high voltage).

  16. foal30

    foal30

    Joined:
    Dec 3, 2007
    Messages:
    136
    Location:
    New Zealand
    Webmonster, did you ever find a replacement trem unit?

  17. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    Not yet - I'm still looking. Best option is probably to wait for a 9-80 Dominator or 9/100 to come up for sale then remove and copy the trem PCB. A 9-80 sold on trademe the other day for $200, but I missed it.

    I was using the Liberator and 2x TL-606 cabs tonight at a gig (just winding down now).
    It works well and can keep up with two loud guitarists and excitable drummer :)

  18. foal30

    foal30

    Joined:
    Dec 3, 2007
    Messages:
    136
    Location:
    New Zealand
    nice one
    I thought I had found a Liberator here in Chch but I was wrong , different model entirely, whoops.

  19. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    What model was it? A Pacer?

  20. webmonster

    webmonster

    Joined:
    May 19, 2013
    Messages:
    187
    Location:
    New Zealand
    I've got to the bottom of it - a few of the blokes assembling Jansens in the 1970's were staunch Christians, so it is common to see this 'one way' logo or a fish logo.

  21. foal30

    foal30

    Joined:
    Dec 3, 2007
    Messages:
    136
    Location:
    New Zealand
    Jansen Crusader, I was way off the mark
    Heard a few rumours about a Jansen cult

    webmonster likes this.
