NBD - Rickenbacker Imbassenator

Discussion in 'Basses [BG]' started by jallenbass, Mar 14, 2014.


  1. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    I wanted to add the Rickenbacker sound to my stable but had 2 issues:

    1. Needed a 5 string
    2. Can't really afford a Rickenbacker right now.

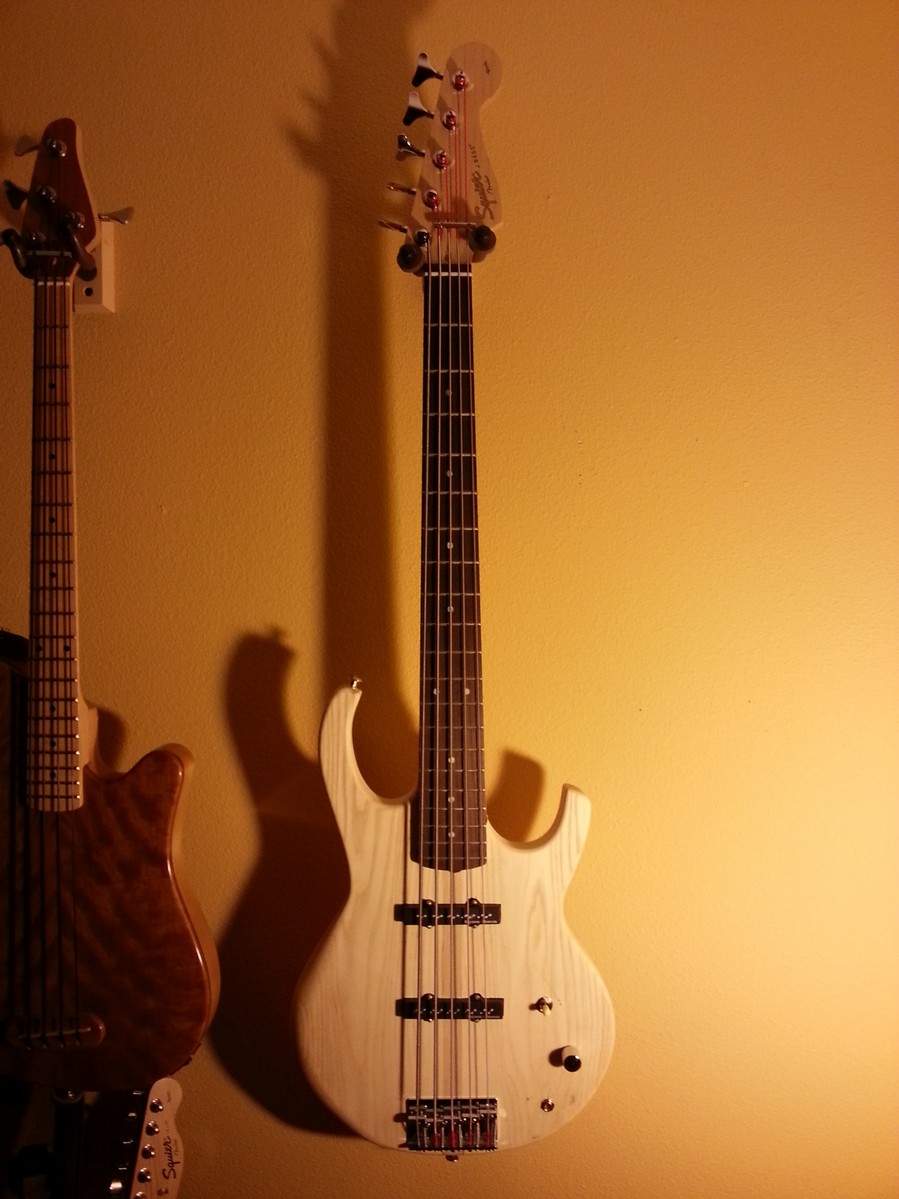

    So, I took a Squier Affinity Jazz V neck and built my own design of a body around it out of Northern White Ash. It's chambered to reduce weight. Around 9 lbs. I just got it wired up yesterday and right now it's just both pickups (Seymour Duncan Quarter Pounder Jazz per Ric5's suggestion) wired straight to the jack. The pickups are in as near to Rickenbacker position as I could and adjusted to a 34" string length. No finish on the body and still some shaping to do. Pictures and sound clip for your amusement.

    Those of you who have Rickenbackers let me know how close I am to the sound.


    Attached Files:

    DougieB likes this.
  2. Draculea

    Draculea

    Joined:
    Oct 2, 2011
    Messages:
    315
    Location:
    Mexico City
    IMO it sounds "rickenbackerishly" enough, however the tone from a Rick is obviously something you will only get from, well, a Rick.

    BY the way, nice body design. Also, using an Affinity Jazz Bass V neck was something wise to do, those basses are not expensive at all but the latest batches seem to be built with much higher quality than usual, and the necks are no exception to this, I can attest to that. Enjoy your bass!

  3. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Messages:
    13,455
    Location:
    Colorado
    I love it ... My kind of bass ...

  4. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Messages:
    13,455
    Location:
    Colorado
    It will get more of a Ric tone if you wire it like a Rick with toggle, 2 vol and 2 tone and use 250k ohm volume pots and 500k ohm tone pots.

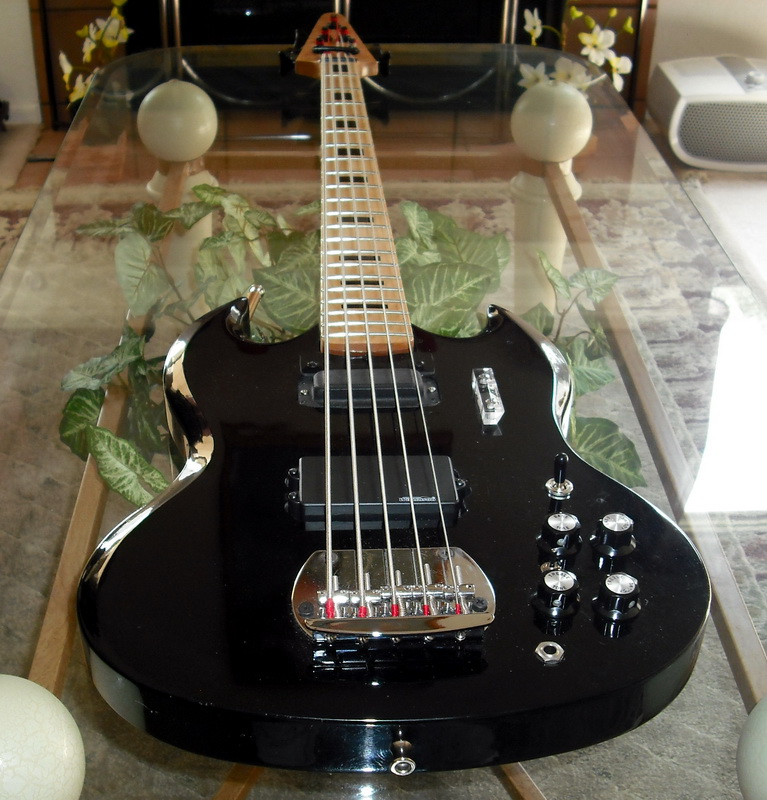

    Like this bass here ...

    [​IMG]

  5. Register to disable this ad
  6. sloppy_phil

    sloppy_phil Supporting Member

    Joined:
    Aug 21, 2011
    Messages:
    886
    Location:
    Toronto, ON, Canada
    I'll be honest, I don't really know that you're getting that close to the true Rick tone; it's definitely in the general ballpark, but it's still quite Jazz sounding.

    That sounded like both pickups up full? I was gonna say, maybe try recording some clips of the individual pickups too; your spacing of them looks to be pretty near to Rick-spec. They might get closer to the vibe on their own.

    Also, Ric5 just made a couple good points on the wiring setup that would help for sure.

    And if you wanna go full on 4001/3, try adding a stereo output jack so you can run the p'ups a la Ric-o-Sound

  7. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    Regarding the wiring - IME I haven't found that changing the wiring affects the voice of the instrument. Do you mean that having the control over each pickup will get it closer to a Rickenbacker?

  8. JellinWellen

    JellinWellen

    Joined:
    Oct 18, 2012
    Messages:
    1,243
    Location:
    Houston Tx
    The pot values will affect the sound in a noticeable way.

  9. IPA

    IPA

    Joined:
    May 5, 2010
    Messages:
    1,149
    You should've posted the sample before the pic, people are gonna see those jazz pickups and start thinking Jazz...

  10. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    Good point. I hadn't thought of that.

    I just tried and they stayed in the same order. Oh well.

  11. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    Absolutely but usually darker/brighter.

  12. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Messages:
    13,455
    Location:
    Colorado
    The Rickenbacker wiring brightens up an instrument, if you use their schematic, that is compared to the jazz bass wiring of volume, volume, tone and all 250k ohm pots. Also having a seperate tone control for each pickup adds dimensions.

    http://www.rickenbacker.com/pdfs/19501.pdf

    http://www.talkbass.com/forum/f38/g...e-bass-wiring-without-selector-switch-630353/

    http://www.joeysbassnotes.com/Rick_maint.htm

    http://www.rickysounds.co.uk/Electronics.html

  13. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    Thanks Ric5. I'll take a look at those when I have some brain.

  14. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Messages:
    13,455
    Location:
    Colorado

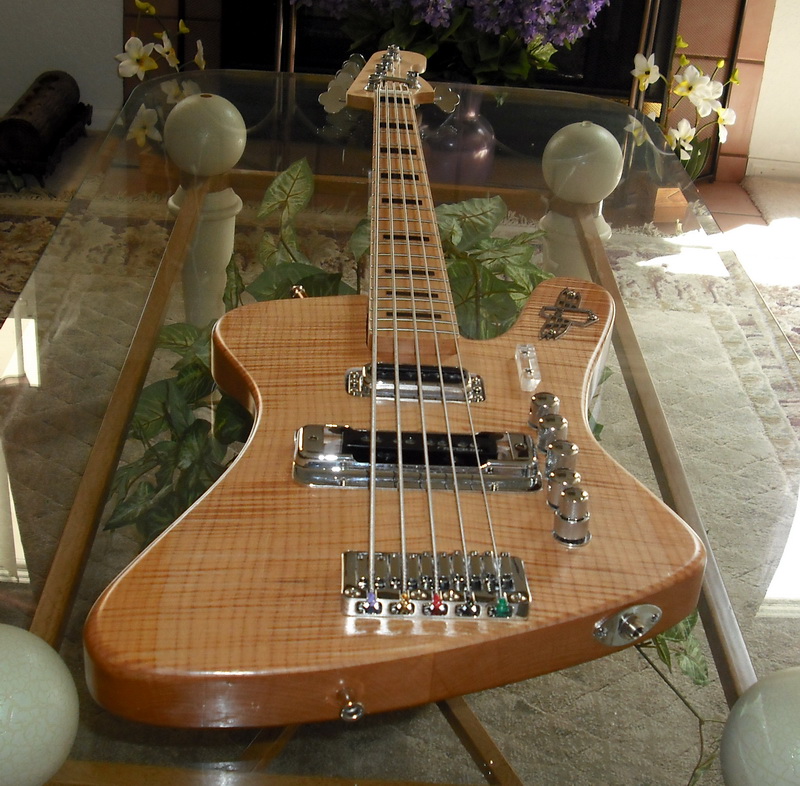

    Here's one of my basses ...

    Part Fender, Part Thunderbird, part Rickenbacker and completely Frankenstein.

    The neck pickup is Rickenbacker and the pickups are in the Rickenbacker positions, and it has a 4 band audere preamp. To get the old 4001 tone I boost the high mids.

    [​IMG]

    Gaolee likes this.
  15. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    No sound clips of that one on your web site?

  16. EagleMoon

    EagleMoon

    Joined:
    Jul 13, 2007
    Messages:
    11,979
    Location:
    Wexford, PA
    I think a lot of the Ric tone is in the maple body. You have a bright-ish twangy tone there but to me it doesn't sound like a Ric.

  17. jallenbass

    jallenbass Supporting Member

    Joined:
    May 17, 2005
    Messages:
    2,452
    Location:
    Bend, Oregon
    What about the new walnut body that they came out with? Surely that must sound like a Ric.

  18. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Messages:
    13,455
    Location:
    Colorado
    Walnut and Maple are similar in tone ...

  19. EagleMoon

    EagleMoon

    Joined:
    Jul 13, 2007
    Messages:
    11,979
    Location:
    Wexford, PA

    Exactly what I was going to say. I'm sure that's one of the main reasons they chose it.

  20. iunno

    iunno

    Joined:
    Dec 16, 2010
    Messages:
    206
    Doesn't really sound too much like a Ric, it's in the same ballpark, but it sounds very Jazzy with those pickups. A big part of the Ric sound is the underwound ceramic pickups and all maple neck-through body.

  21. mapleglo

    mapleglo Gold Supporting Member

    Joined:
    Sep 7, 2013
    Messages:
    1,317
    Media:
    1
    Albums:
    1
    Location:
    phoenix, az
    Except for the few Ric's that had set necks.
