NBD Warmoth build complete !

Discussion in 'Basses [BG]' started by topcat2069, Nov 7, 2012.


  1. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    :hyper::hyper::hyper:

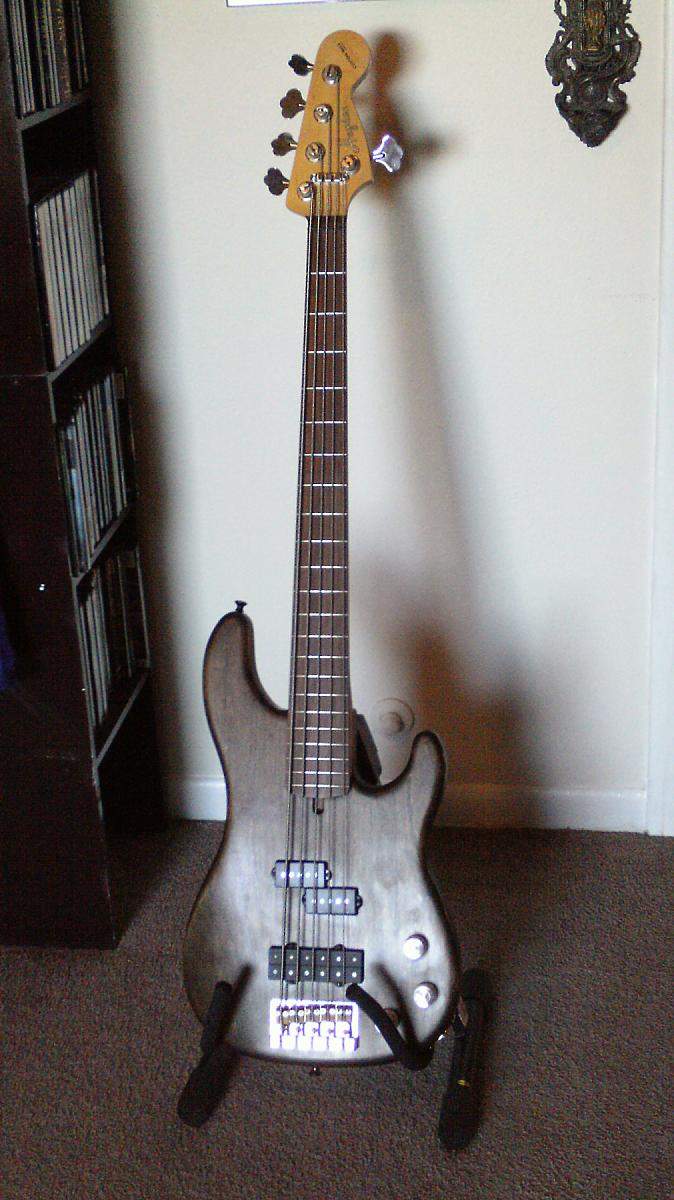

    I picked her up yesterday (Nov. 5th)
    My Luthier started with one coat of Dark Walnut stain and the put on 6 coats of true oil. He put the whole thing together after he routed the bridge pickup cavity.
    Total charge, route, finish, assembly and setup just under $200.00 !
    The total cost, parts and labor….. just under $800.00 !

    I took the Bass to band rehearsal (about 4 blocks from the shop) at just after noon. I tried her out through my Acoustic B20 practice amp and after some adjustments of my own (pickup height and string height) I got her sounding like I wanted.
    Rehearsal started at 6:00 and I had played her off and on up until then.

    She fit right into the band mix without getting lost and kept the low end of the band strong with true pitch recognition.

    The neck plays like butter and the tone is just what I was looking for, the Bill Lawrence P-46 sounds just like a P pickup but with a little something more (clarity and punch ?) and the Bill Lawrence designed bridge pickup makes my right hand technique present and clear (I play from a whisper to a scream with my 1st, 2nd and ring fingers, bridge to neck heal.)
    The Bass is 1.5 to 2 lbs lighter than my G&L or Lakland, about 7.75lbs…… a joy to play.
    I can't wait to play a gig so I can run her through my GK 1001RB II and both 1X15 NEOs.

    Body: Warmoth Deluxe 5 P, standard P route (with added bridge pickup route) 4 lbs

    Neck: Warmoth Deluxe 5 4+1, 1-3/4" nut, maple with pau ferro fingerboard with no dots, side dots are there though. Graphite rods, Hipshot ultralites. (Thank You mwolff)

    Pickups: Bill Lawrence P-46 and a Bridge pickup from a Fender Am. Dlx P 5

    prewired harness from Best Bass Gear:
    - 1 Audio Taper 250K Pot (Noble)
    - 1 250K Blend Pot (Noble)
    - 1 Audio Taper 250K Pot (Noble) w/Capacitor (Sprague Orange Drop .047)
    - 1 Standard Stero Jack (Switchcraft)

    Bridge: The Takeuchi T5 5-string bridge is machined from solid brass. The string pitch is 17.5mm (.688"). Each individual saddle rides in machined tracks to eliminate any side to side movement. This is the perfect bridge to use with the Deluxe 5-string basses. Stringing is easy through the notches on top of the bridge, or for better sonic coupling, the strings can go through the body.

    I used Gold Speed Knobs, gold football jack plate and a Gold neck plate.... I left the tuners as is because I don't have the scratch to "go with the gold" at the moment.








    better pictures to come (after I figure out how to work this damn camera) :cool:

    Attached Files:

  2. mfbolton

    mfbolton Freelance Bassist Supporting Member

    Joined:
    Oct 30, 2007
    Location:
    St. Louis, MO
    Looks nice. Congrats!
  3. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
  4. Matt R.

    Matt R. Supporting Member

    Joined:
    Jul 18, 2007
    Location:
    Huntsville AL
    Congrats. Just finished a Warmoth build myself.
  5. pasta4lnch

    pasta4lnch

    Joined:
    Apr 24, 2008
    Location:
    Farmingville(NOT FarmVille),NY
    Nice! Passive? Does the bucker in the bridge ease the usual p/j issues . . . noise, volume dip?
  6. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    Yeah, passive, I get a very nice blend between the two pickups
    All the Low growl of the P-46 mixed in with a very nice (but a little fatter w/ no buzz) Jazz.... I'll record something soon... I just want to wait for the strings to lose that "just out of the package zing" because there are a lot of harmonics (which is nice) but I want to lose the odd # harmonics.... that takes playing and a little time.:cool:

    I had already bought the pickup set out of a Fender Am. Dlx. P 5 and the bridge pickup was designed by Bill Lawrence so I used that pickup.... but I had my eye on the NYC-5 Passive Phase II NYC Soapbar for the bridge http://www.bestbassgear.com/basslines-pickups-nyc-5.htm (which, I believe, would look more ...um.... balanced as far as the scale of the two pickups using a regular P-Bass size pickup) I'll bet that the Nordy P-5 pickup with a DC in the EMG 40 size would be a nice look......

    But I may build another Bass with a set of the SDs or Nordy DCs EMG 40s with series/parallel switches for each pickup and have a poor man's Roscoe Beck....... another passive
  7. georgiagoodie

    georgiagoodie It's all fun&games 'til the flying monkeys show up Supporting Member

    Joined:
    Jan 8, 2008
    Media:
    12
    Location:
    Atlanta, GA
    Nice. My Warmoth build is almost done. 'Will post when I get it!
  8. pasta4lnch

    pasta4lnch

    Joined:
    Apr 24, 2008
    Location:
    Farmingville(NOT FarmVille),NY
    Nice...if I ever need another five I'm building a warmoth pj. Been thinking about it for a while. Natural w a status neck. Seeing the bucker in the bridge has me thinking...I love my Fender pj but hate the buzz and volume dip. Also not a fan of active electronics.

    Anyway, cool bass. Lots of luck!!
  9. Smallmouth_Bass

    Smallmouth_Bass Supporting Member

    Joined:
    Dec 29, 2005
    Location:
    Canada
    That looks really nice. I think we need to see more pictures of it!
  10. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    I'm trying to take better ones, but I'm a camera spaz (no offense meant) I'm hoping it's me and not the camera

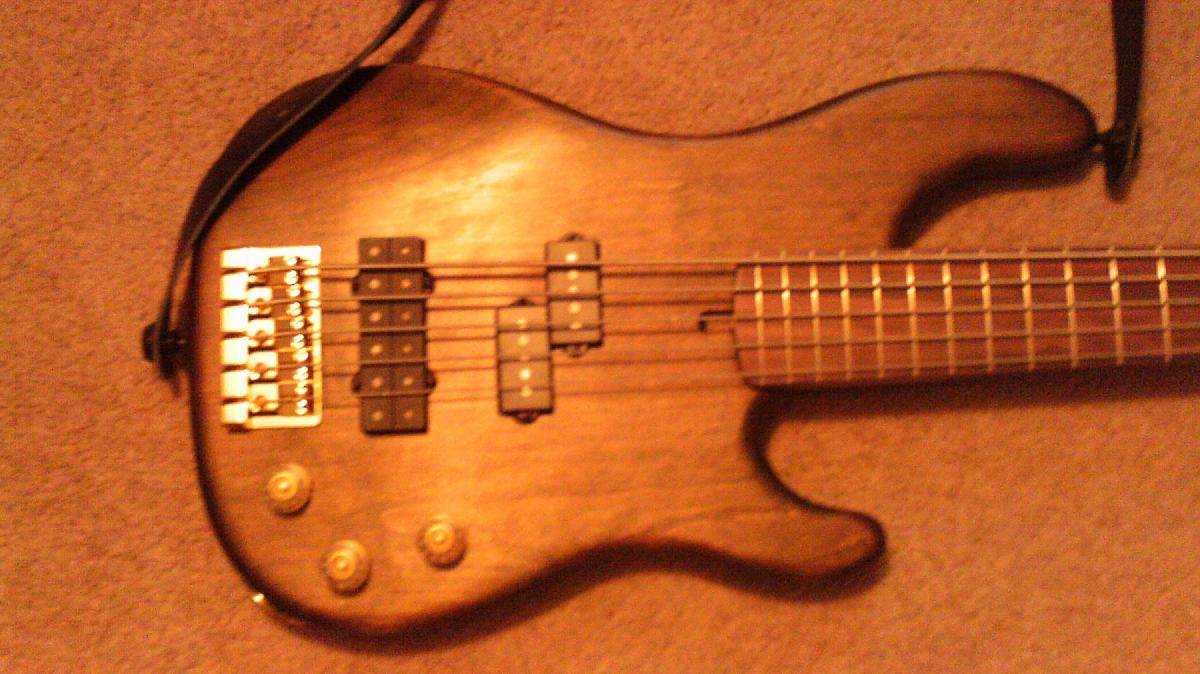

    This one is a little better

    The decal is one I had made, it says Hayden (my last name) in a Fender-like font... on the "ball end" of the headstock it says "Custom Bass 001"

    I had the Luthier sign the back of the headstock......

    Attached Files:

  11. RoadRanger

    RoadRanger Supporting Member

    Joined:
    Feb 18, 2004
    Location:
    NE CT
    That's a beauty for sure :) . I have a similar build shipped to me last Wednesday that seems to be lost in transit :( . In mine I used the Bill Lawrence blade style pickups - an EB-60PB "P" style and an EB-50PB humbucker in the bridge position.
  12. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    I gotta know what you think of the sound !:hyper:
  13. RoadRanger

    RoadRanger Supporting Member

    Joined:
    Feb 18, 2004
    Location:
    NE CT

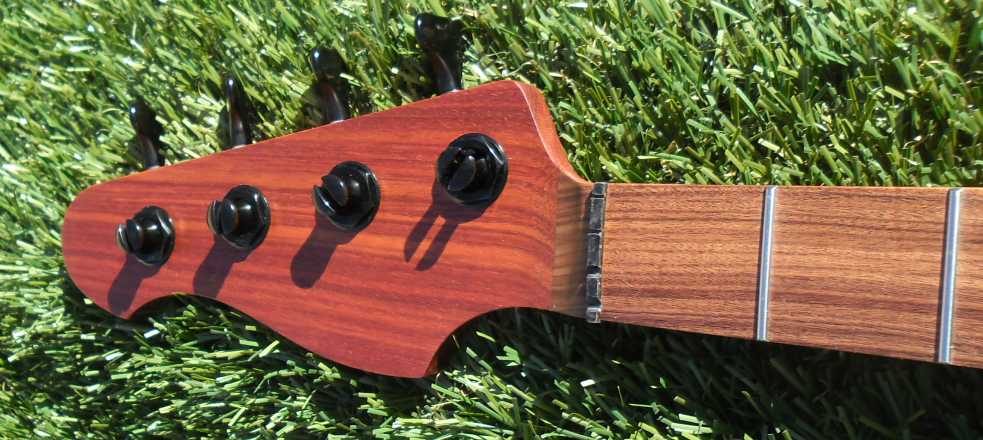

    If I ever receive it I'll let you know. I had an EB-50P in my 70's Guild B-301 and liked it a lot :) but that was 30 years ago. BTW I went with a top-slot-load bridge bolted through the body.

    [​IMG]
    [​IMG]
  14. wilfred

    wilfred

    Joined:
    Jun 17, 2012
    Nice!!!!
  15. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts

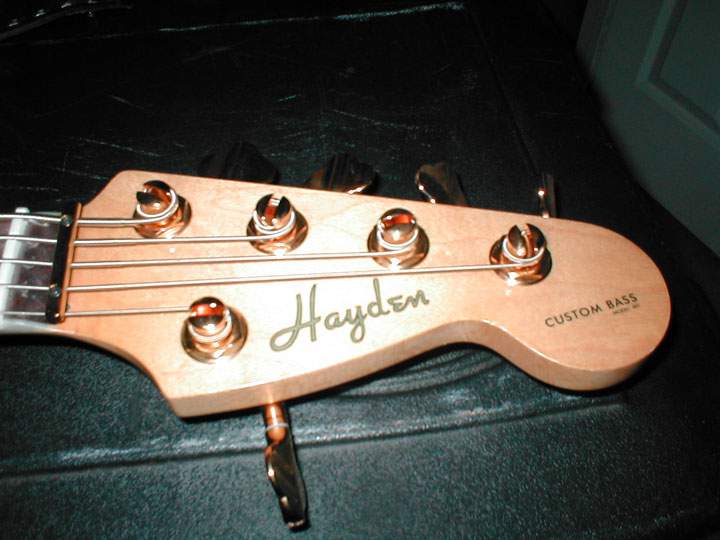

    a close up of the decals ..(this was a different neck but the decals are the same...)

    Attached Files:

  16. RoadRanger

    RoadRanger Supporting Member

    Joined:
    Feb 18, 2004
    Location:
    NE CT
    Ha ha, that'll keep the "gear sniffers" guessin' ;).
  17. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    Until they find out my last name it sure does :smug:
  18. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    check out this thread:

    http://www.talkbass.com/forum/f8/warmoth-5-string-652796/

    it's an old thread but scroll down and check out the Valenti builds... now imagine a Nordy DC at the bridge ;)


    I'm going the passive route after playing a Yammy BB425 and a Schector Diamond P-5 custom, both passive.... the Schector had ceramic mags in the pickups and sounded REAL strong!

    So I thought I'd try passive in this build... and I'm glad I did......

    Yammy & Schector

    Attached Files:

  19. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts
    :bag:

    I must just be old and shaky, "can't seem to get a clear shot there Luke"

    I put the block "decals" on this morning

    Attached Files:

  20. topcat2069

    topcat2069 Supporting Member

    Joined:
    Dec 2, 2007
    Location:
    Cathedral City, CA
    Disclosures:
    Endorsing Artist: GK Amps / non compensated Warmoth Guitar and Bass Parts

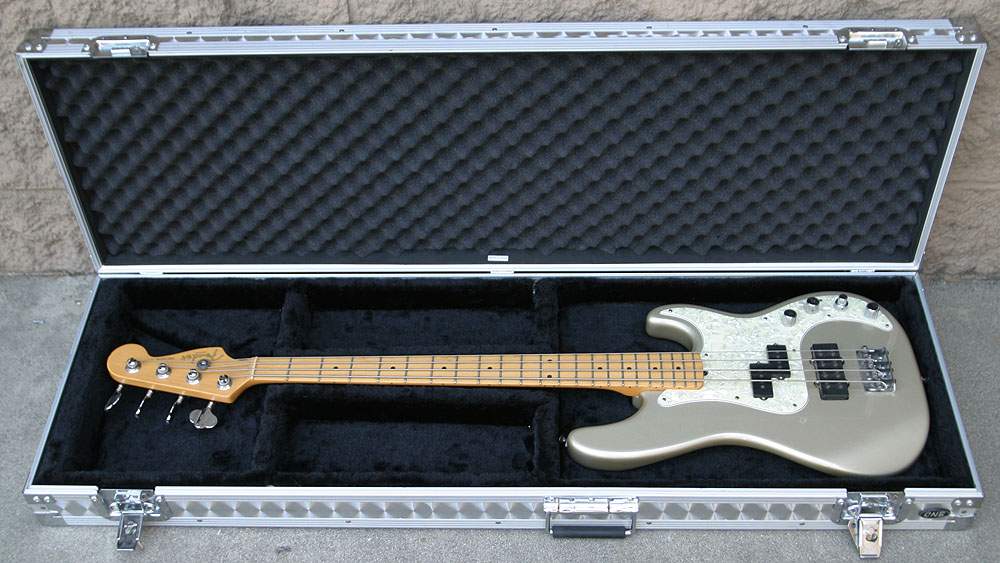

    This was the 4 string inspiration Fender Am. Dlx. P Bass 1997 This one got sold to a guy in Russia

    I just loved the sound and I've been wanting a 5 string version for years but just couldn't come up with the dough when I'd see one on line.....

    Attached Files:
