need ideas to cover pickup over route mistake.

Discussion in 'Luthier's Corner' started by Arnie, Nov 3, 2012.


  1. Arnie

    Arnie

    Joined:
    May 14, 2005
    Location:
    Kingston, NY
    I had a fight with my router today cutting my emg35 style pickups. The router bit guide left me short by about 1/8 or so, so I had to manually move move template and fix the difference. Well that didn't work so well with one of my opickup routes.

    I assume I can make a pickup bezel out of wood, (really hate to do that) but I would rather see what you guys have done as I am sure this has happened before.

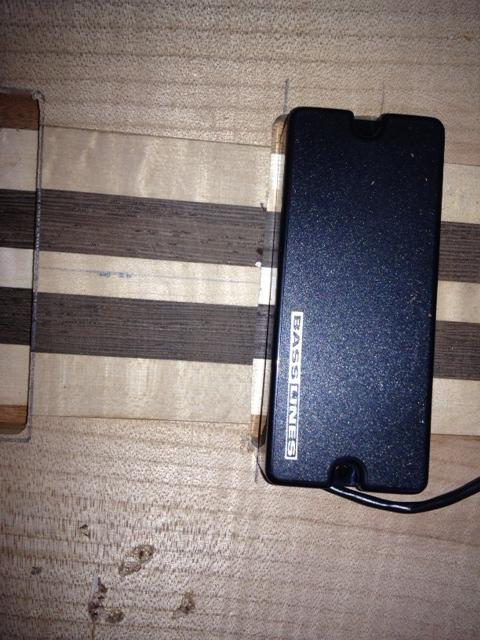

    [​IMG]

    it may be hard to see but the gap is about 1/8 or more.
  2. smogg

    smogg

    Joined:
    Mar 27, 2007
    Location:
    Florida
    Center the pup so the gap is even on both sides. That way it won't look like so big of a space.
  3. Phendyr_Loon

    Phendyr_Loon

    Joined:
    Sep 4, 2010
    Moving the pickup to center is the first thing I thought.

    Or you could grind a 1/4" off the bass and glue a book matched top on it. This suggestion might be biased due to my preference for a figured top over seeing a racing stripe through the face of the body. However that is an expensive fix.
  4. chiselhead

    chiselhead

    Joined:
    Mar 18, 2009
    Location:
    Knox, New York
    You could rout the hole even bigger all the way around then glue a block of contrasting wood into the hole and rerout the pickup hole in the center of the new glued in block. Do this for both pickup cavities and it will look as if you intended to have an outline of contrasting wood color around your pickups. Yeah I know that that is a lot of work but then again these type of fixes makes you more careful the first time around, at least it does for me.
  5. Register to disable this ad
  6. electracoyote

    electracoyote

    Joined:
    Jan 2, 2009
    Location:
    Purple Mountain Majesties
    Will you be using foam underneath the pickups for height adjustments? If so, make it black.
  7. Arnie

    Arnie

    Joined:
    May 14, 2005
    Location:
    Kingston, NY
    Yes black foam. that might hide a multitude of sins!
  8. Beej

    Beej

    Joined:
    Feb 10, 2007
    Location:
    Canadia
    Another idea is to line the sides of the pickup route with wenge veneer (I assume that's wenge on your bass). If you put a thin veneer around the inside edge of the route, when you sand it back, etc, you'll have a small, thin, brown detail inside your routes. If you put a 1/8" roundover on it, it would look pretty hot IMHO... :)
  9. msaone

    msaone

    Joined:
    May 13, 2012
    How about finishing the cut that is too wide and recenter the pick up in the slightly larger hole?
  10. pacojas

    pacojas "FYYA BUN" Supporting Member

    Joined:
    Oct 11, 2009
    Location:
    MEXICANADAMERICA
    just put a Fender decal on the head stock!:bag:
  11. Itchy 47

    Itchy 47

    Joined:
    Oct 30, 2012
    I'd also go this Route,no pun intended.Also measure twice and take your time.It looks like you've put a lot of time into this.
  12. Mister Know Not

    Mister Know Not

    Joined:
    Aug 27, 2011
    Location:
    Papendrecht, Holland
    LOL...
  13. cnltb

    cnltb

    Joined:
    May 28, 2005
    ...and once screening paint or copper foil is applied it may even look deliberate.
  14. cnltb

    cnltb

    Joined:
    May 28, 2005
    Excellent , this one!!!:hyper:
  15. Vincent P

    Vincent P Supporting Member

    Joined:
    Jul 13, 2007
    Location:
    Toronto Ontario, Canada
    Easiest solution; center it in the cavity.
  16. Arnie

    Arnie

    Joined:
    May 14, 2005
    Location:
    Kingston, NY
    lol
  17. Arnie

    Arnie

    Joined:
    May 14, 2005
    Location:
    Kingston, NY
    First route I did (Bridge pickup) came out perfect, second template slid.
  18. Arnie

    Arnie

    Joined:
    May 14, 2005
    Location:
    Kingston, NY
    Boy, I like that idea! You are right its a lot of work and Im a Newbie.. A Paduak or Wenge? Man that would be cool.
  19. Beej

    Beej

    Joined:
    Feb 10, 2007
    Location:
    Canadia
    My comment above gives you the same result with less work... :) I'd go wenge...
  20. Snort

    Snort

    Joined:
    Aug 31, 2010
    Location:
    A Brit Abroad Halifax Canada
    I would probably go for filling in the area, and using a wood or metal bezel around both pickups.

    Although I also like the idea of putting a veneer edging strip around the inside of the route cavity and centering the PUPS within, you would have to make both routes the same size to pull that off, but with a contrasting wood would certainly highlight against the already stunning looks of those stripes.

    Or if you are realy adventurous make Pickup covers from matching woods and carry the stripe through the pickups, obviously making both routes the same size.
  21. Nomad98

    Nomad98

    Joined:
    Dec 13, 2005
    Location:
    Minneapolis
    Make a ramp, but the fender decal is also a great idea.
