overdrive/fuzz quest part 2

Discussion in 'Effects [BG]' started by johnk_10, Apr 9, 2013.


  1. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    with over 50 pages in part one, I figured that it's probably time to start part two.

    since the last thread, i've built a few new ones, including the Black Cat OD-1, the D*A*M red Rooster, the Smallsoundbigsound Sparkle Motion, Death by Audio Fuzz War (V1), Paul Nelson's Citrus Graphic (only I omitted the FAC on it since I like it better without it), the Baldwin-Burns Buzzaround (exact clone) and mictester's 'Buzzaround-Alike'.

    on all of them, I first built them completely stock and then slightly modded them to make them more to my liking.

    to start part 2, i'm posting the only one that's mounted in an enclosure (I should have a few others mounted in a few days). the Black Cat OD-1 (a.k.a. the Freddie Fuzz)

    i built it following the schematic exactly, but to be honest, I really didn't care for it at all. it was kinda muddy and the distortion had a fizzy decay on all of the notes. here's what the manufacturer says about it:

    " The Black Cat OD-1 is an original design Fred created based on the unique properties of the OP275, a dual operational amplifier chip made by Analog Devices. The OP275 is a high-quality op-amp that gives a distinctive linear output waveform. The Black Cat OD-1 can go from clean, to slightly crunchy, to all-out saturated distortion. It is unique in that it is extremely sensitive to the guitar; it responds to the player's pick attack, and like a good Fuzz Face, it cleans up well when you roll back the volume on the guitar. The Black Cat OD-1 has been used by Scott Henderson, Steve Lukather, Beck, Lyle Workman, Kyle Cook (Matchbox Twenty), and many others."

    that sounded pretty impressive to me, and the youtube clips of it sounded pretty darn good, so that's why I built it, but unfortunately, for me, it was a mediocre sounding pedal at best, and I wasn't even going to mount it in an enclosure to complete it. :bawl:

    i've found that this circuit has actually been around quite a while, and some of the schematics used an LM1458 in it so decided to try 20 other dual opamps in it to see if I could solve the fizzy decay issue. some did it less and others did it more. I also first tried running it on 18 volts but that didn't help (it actually made it a little worse).

    the chips that I tried were:
    OP275 (the specified chip for it)
    TL062
    TL072
    TL082
    JRC4558D
    JRC4558DD
    JRC4580D
    JRC4562D
    JRC4559D
    JRC4559DD
    TLC2262
    LM2904
    OPA2134 (burr-brown)
    LF353N
    LF358N
    LM833N
    NE5532
    RC4558P
    HA1458
    LM1458
    OPA2604

    well, after all of that (a couple of hours), the OPA2604 was the only one that did the trick, and got rid of all of the fizz. now, to give it a little more top end but keep it smooth, I replaced the three small picofarad filter caps with lower values and used silver mica ones. finally, i removed the 430 ohm power limiting resistor and replaced it with a jumper so the pedal got the full 9 volts. after those mods it sounds great, still retains all of the character of the original design, but got rid of everything that I didn't like about it.

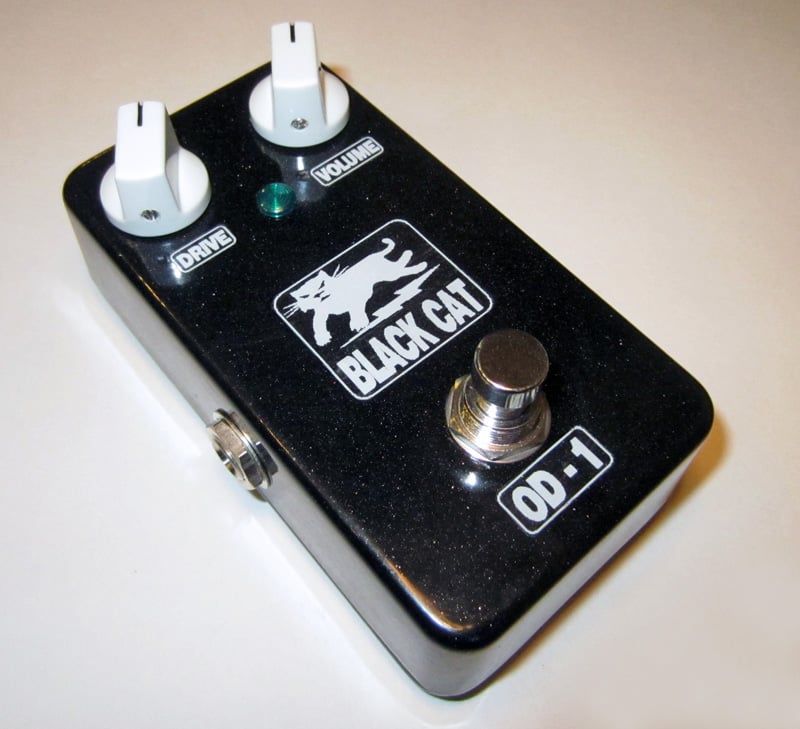

    so......... here's a pic of the completed pedal:

    [​IMG]
    Joe Louvar, andrew and ex-tension like this.
  2. blindrabbit

    blindrabbit

    Joined:
    Apr 22, 2011
    Location:
    Calgary, Alberta, Canada
    Great to see this thread continuing! I've lost track of the number of times I read through or referred to the old one.

    I'm eager to hear your thoughts and experiences with the Sparkle Motion. I don't suppose you've also had a chance to try a ss/bs Mini overdrive?
  3. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    IMO, the Sparkle Motion is a super simple circuit and IMO, it's okay stock (and i built mine to the exact stock specs), but I find the circuit to be a little dark & muddy, which is usually the case for a single germanium transistor booster. i didn't find a use for the bright setting so i'll end up omitting the switch for it in mine. it's basically a booster with a little bit of 'hair' when you adjust the bias. SS/BS recommends an NPN ge tranny with an hfe of about 100 and that's what I used. I also tried ones with higher and lower hfe's but the one that measured 98 sounded the best to me. I also tried using a few different silicon transistors in it and I actually like them better. they're not as dull sounding and can provide a little more dirt without being too fizzy about it. I ended up using a 2N5089 (with a lot higher gain than the ge) and then modded the bias control and I really like the pedal now.

    and no, I haven't tried a SS/BS mini overdrive yet.
  4. Low Sound Love

    Low Sound Love

    Joined:
    Mar 25, 2010
    Location:
    Ghent, Belgium
    John, with all your knowledge and experience with dirt pedals, haven't you ever felt like designing your own stuff and beginning an online shop? Kinda like what Fuzzrocious is doing? I'm pretty sure would buy your pedals without hesitation.
  5. Smurf_Byte

    Smurf_Byte Supporting Member

    Joined:
    Aug 21, 2011
    Location:
    Connecticut
    John does sell some on his site. See his signature for the link.
  6. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    i've built and sold a few special requests, and have built a few for friends, but i really don't have the time to make very many of them for sale. I've also designed a couple of my own, but generally like to make clones of my favorite circuits and then, if necessary, mod them more to my liking. after making about 110 different ones, i've found that most boutique pedals are pretty much existing designs with a couple of tweaks here and there.
  7. Roboglitch

    Roboglitch

    Joined:
    Jan 1, 2013
    Which is sad and which is why more people should consider the DIY route.
  8. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    hmmmm. i guess that i don't find it to be sad since it seems that almost every individual player is looking for something a little different in each pedal(& we all have different tastes). sometimes you'll hear someone say that they love a particular pedal but wish it had a little more of this, or a little less of that.
  9. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    i built a couple more yesterday and finished testing them. i'm just waiting for their enclosures to arrive. one of them is the 1978 opamp big muff (a super heavy fuzz/distortion) with an added clean blend. it's quite a bit different sounding than the standard four tranny muffs. the other one is the Crowther Hotcake XLF. the hotcake can go from a clean boost to a slight overdrive, to a very heavy distortion.
  10. vegas532

    vegas532 Supporting Member

    Joined:
    Nov 10, 2006
    Location:
    Claremont, CA.
    I have a weird question: I've owned both the old and new Crowther P&C pedals at one time or another and, to my ears, the old single switch sounds better. I'm wondering if adding that second switch somehow adds resistance in the circuit or if the whole thing is my imagination and I need to get a life somehow? :D
  11. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    I didn't know about the two different versions but IMO, the extra switch wouldn't make any difference. it makes me think that there were possibly other slight changes to the circuit between the two. the only one that I have the schematic for is the later one.
  12. Silver Blues

    Silver Blues

    Joined:
    Jul 8, 2012
    Location:
    Atlantic Canada
    Subbed, looking forward to the development of this thread!
    Glad to hear you got the Black Cat working, John.

    --Silvie
  13. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    yeah, me too. the Bad Cat sounds pretty nice now and i like it a lot.

    as far as the hotcake goes, i first built it compleltely stock (only with the vintage version's LM741 chip, but with the modern version's presence control) and it was okay, but it lost a little low end and was a bit too fizzy up top. after modding the clipping filter to what I believe is the XLF version, it's an awesome sounding overdrive and sounds like no other pedal that i have.
  14. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses

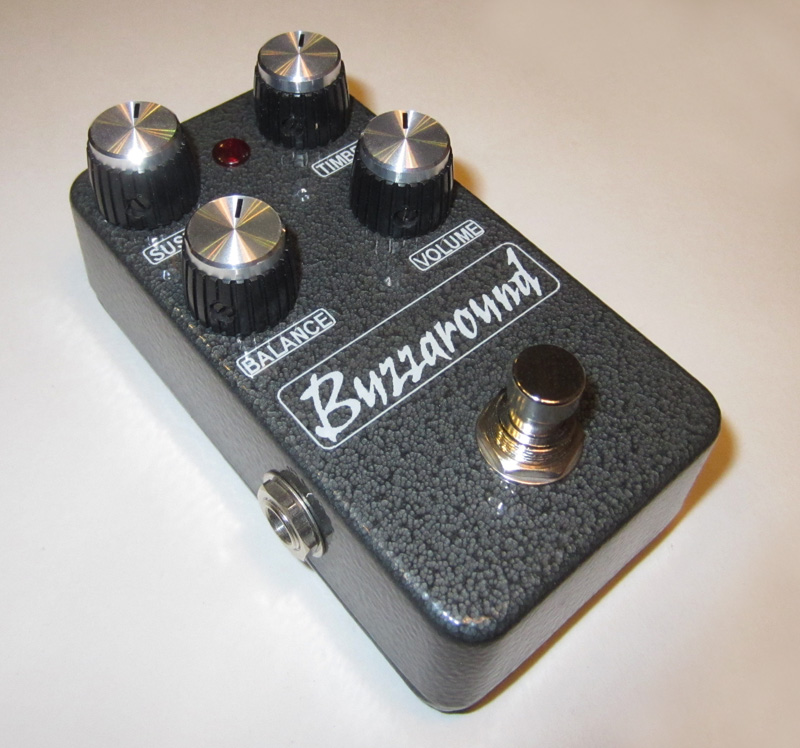

    got the buzzaround completed. I love this one! :)

    [​IMG]

    I added a master volume to it since the stock 'balance' control actually changes the tone and drive since it loads the output of the circuit (when you turn the balance down, it actually gets grittier). that way I can get even more sounds out of it.

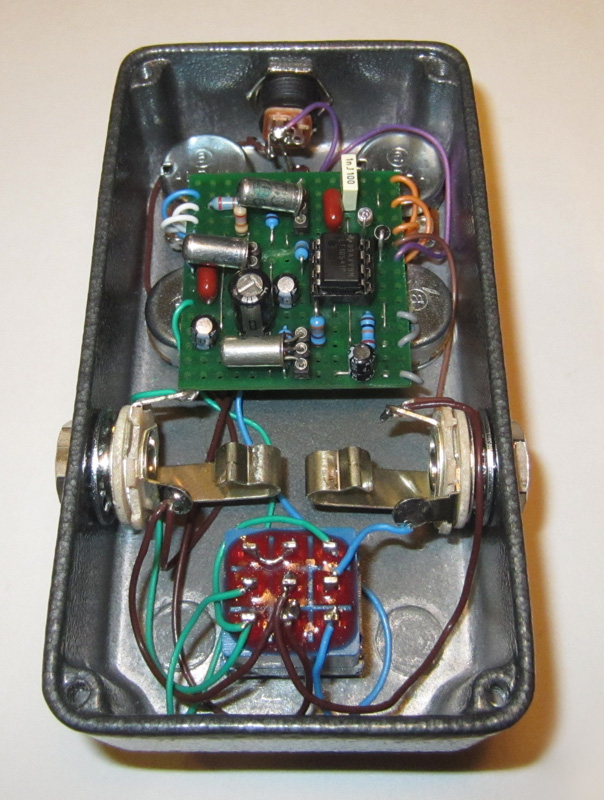

    the chip that you see in the internal pic below is just a charge pump to reverse the polarity from +9 volts to -9V since it uses three NOS Ge transistors. that way I can run it with a standard 9V boss adapter.

    [​IMG]
  15. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses

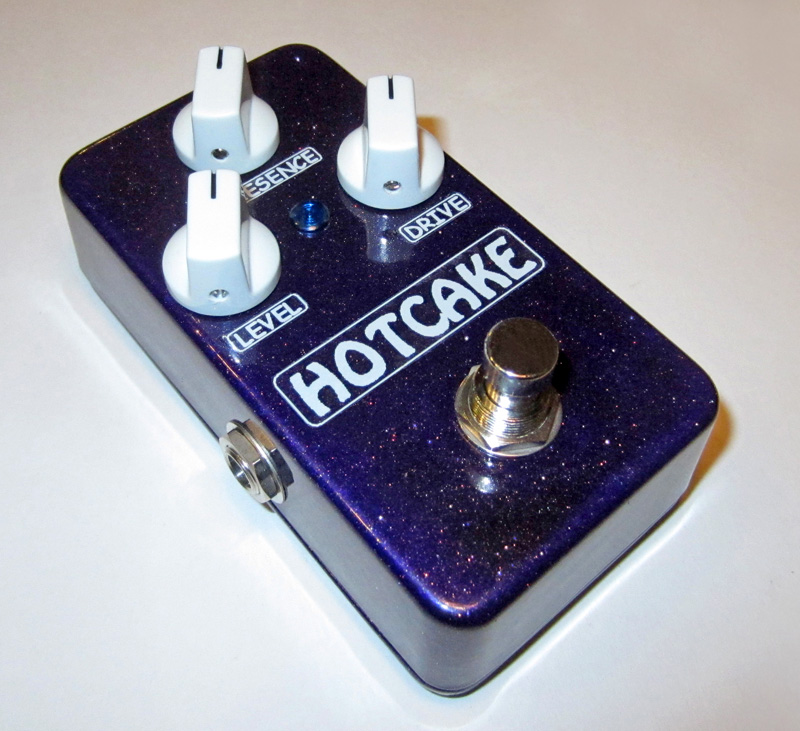

    I also got the Hotcake completed. i'll try to post some sound clips of it and the buzzaround tomorrow.

    [​IMG]
  16. KeithKlaxwell

    KeithKlaxwell

    Joined:
    Apr 18, 2011
    Location:
    Santa Monica Beach, CA
    are your Soundcloud clips done pre-mods or post? Thanks!
  17. jwr

    jwr Supporting Member

    Joined:
    Jun 28, 2010
    Location:
    Overland Park, KS
    So do you just trace the circuits?
  18. Roboglitch

    Roboglitch

    Joined:
    Jan 1, 2013
    Don't misunderstand me. The only thing I find sad is that most "boutique" pedals are simply overpriced clones with a few tweaks. You said it yourself.

    I think it's awesome that you're building your own and sharing info here.
  19. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    post.
  20. johnk_10

    johnk_10 vintage bass nut Supporting Member

    Joined:
    Feb 16, 2008
    Location:
    Thousand Oaks, CA
    Disclosures:
    John K Custom Basses
    i gather as much info about each pedal as i can (schematics, versions, etc) and sometimes have the original to go by and compare them to.
