Rickenbacker Laredo 8 string Mod question...

Discussion in 'Basses [BG]' started by larryelwood, Feb 27, 2014.

  1. larryelwood

    larryelwood Supporting Member

    Joined:
    Jan 22, 2004
    Likes Received:
    0
    Hi All,

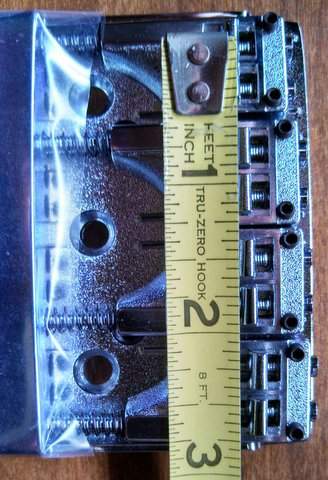

    I'm thinking about acquiring a Rickenbacker Laredo specifically to modify to an 8 string bass. I have a schaller 8 string bridge and wonder if the neck width of the Laredo is wide enough as well as the pickups. The schaller's E-G spacing is 2 5/8" (see photo). Any input would be greatly appreciated!

    Thanks!

    Attached Files:

  2. woodyng

    woodyng

    Joined:
    Dec 19, 2007
    Likes Received:
    0
    Well,it has been done,and Dane Wilder is the guy to ask. I would love to own an 8-string 4004,myself.
    I'm pretty sure he used the Schaller 8-string bridge,too.
  3. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19

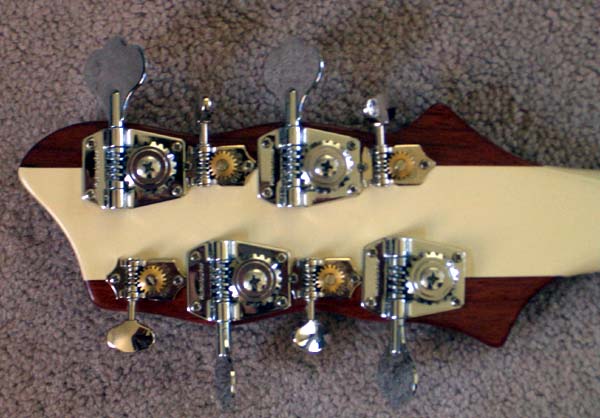

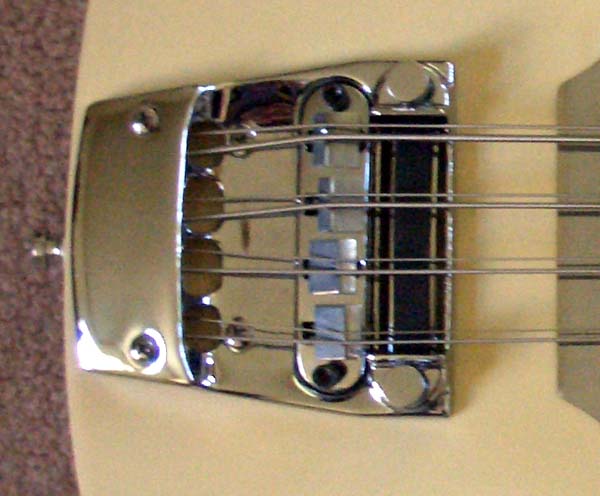

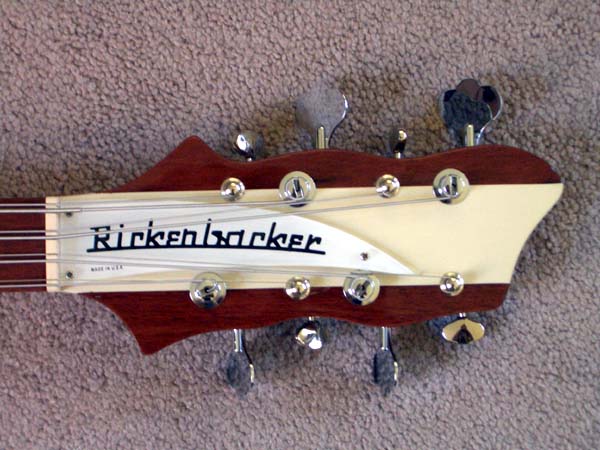

    Here's some pics of Dane's bass

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  4. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19

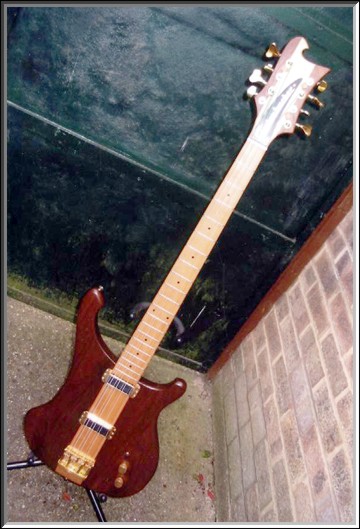

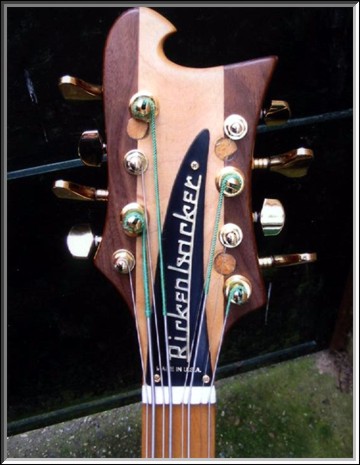

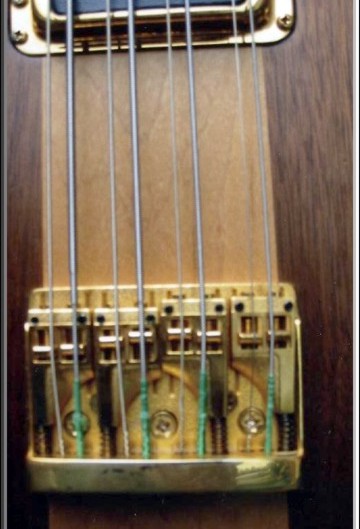

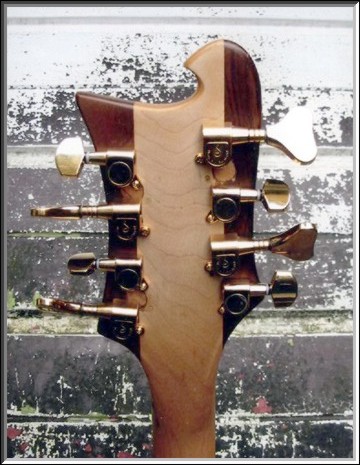

    Here's one done by Simon Mole

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  5. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19
  6. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19
  7. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19
  8. Ric5

    Ric5 Supporting Member

    Joined:
    Jan 29, 2008
    Likes Received:
    19
    Rickenbacker pickups are designed for a 2 1/8" string spacing. The older 4004 basses have a wide enough neck. The newer ones probably not. Get a pre 2008 4004 and modify or replace the bridge pickup and it will work.

    The strings will be close to the edge of the neck even on an older 4004.
  9. larryelwood

    larryelwood Supporting Member

    Joined:
    Jan 22, 2004
    Likes Received:
    0
    Thanks everybody. Great info.
  10. rekesbass

    rekesbass

    Joined:
    Dec 12, 1999
    Likes Received:
    0
    Seeing these pics of 8 strings is really making me wish I never sold my 4008 years ago..I really miss that bass..it's truly my only regret as far as basses I've owned in the past.
  11. larryelwood

    larryelwood Supporting Member

    Joined:
    Jan 22, 2004
    Likes Received:
    0
    Yeah, Those are soooooo rare to find. That's why i'm making my own. I just don't care for any of the manufacturer offerings out there, and beautiful high quality multistring basses just arent out there.
  12. fretno

    fretno Supporting Member

    Joined:
    May 10, 2009
    Likes Received:
    4

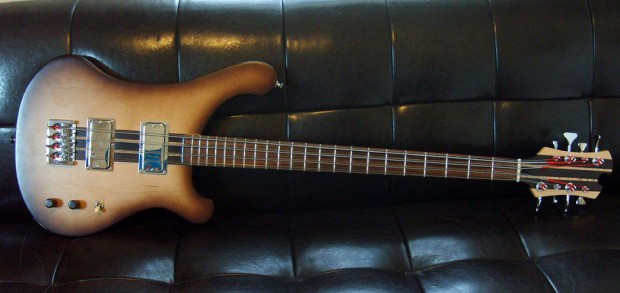

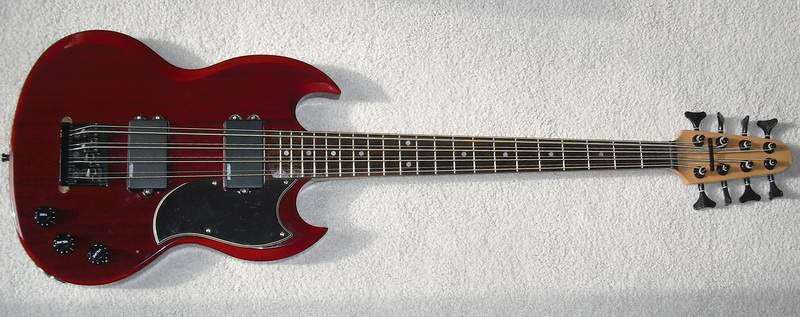

    here is a "before" pic for ya :p

    [​IMG]

    [​IMG]
