Show your pedal guts.

Discussion in 'Effects [BG]' started by iamdenialNJ, May 1, 2010.

  1. iamdenialNJ

    iamdenialNJ Supporting Member

    Joined:
    Feb 17, 2009
    Likes Received:
    0
    I did a search and nothing turned up so I'm going to start a pedal guts thread. This is all about pedal guts. I'll start:

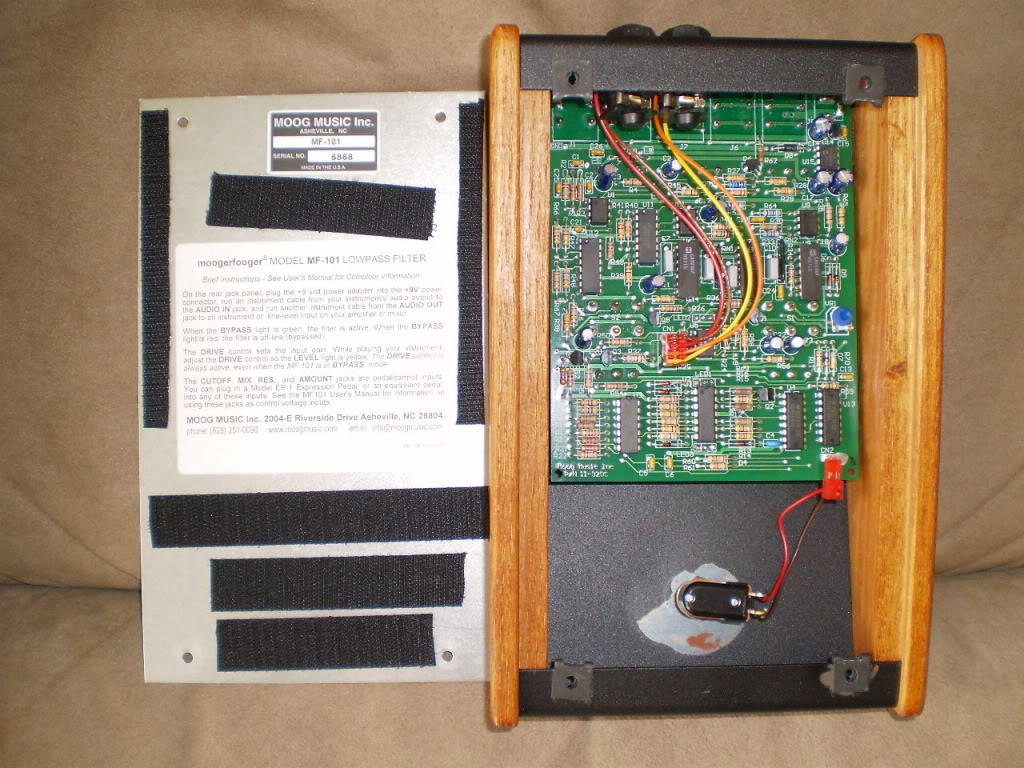

    MF-101
    [​IMG]
  2. Eric!

    Eric!

    Joined:
    Jan 22, 2009
    Likes Received:
    0
    I just want to see the ASSMASTER's entrails.
    and Geiger Counter. Even though I had one, I couldn't get the darn screws to turn.
  3. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    I'll live on the edge... Just don't tell Malekko ;)

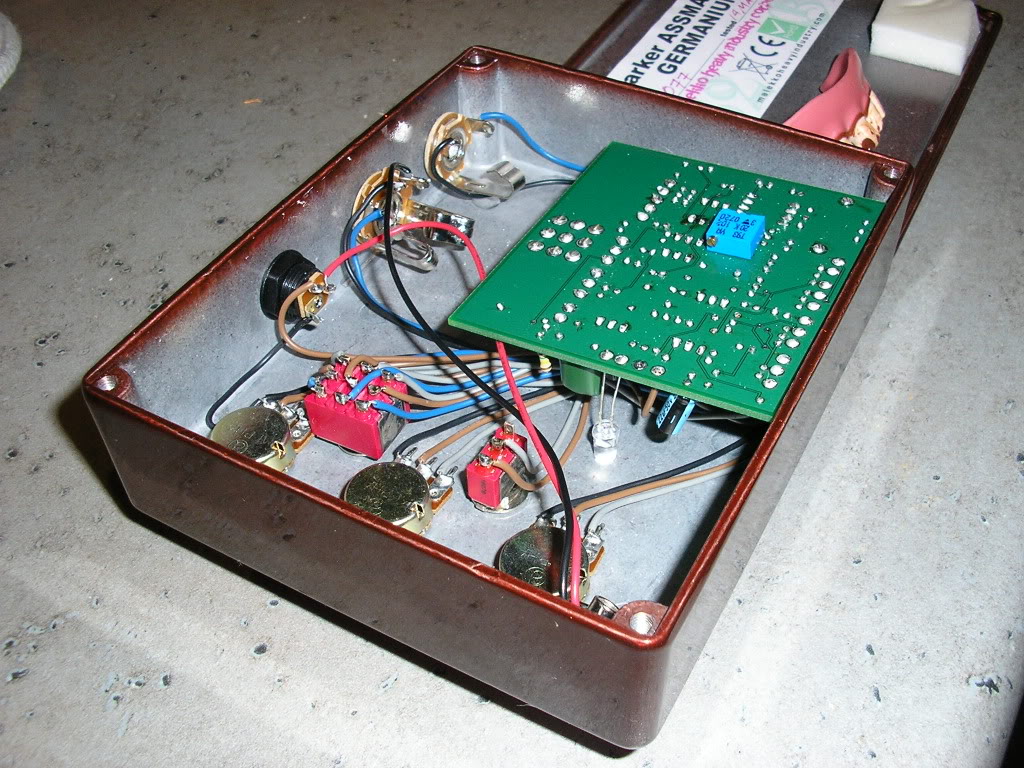

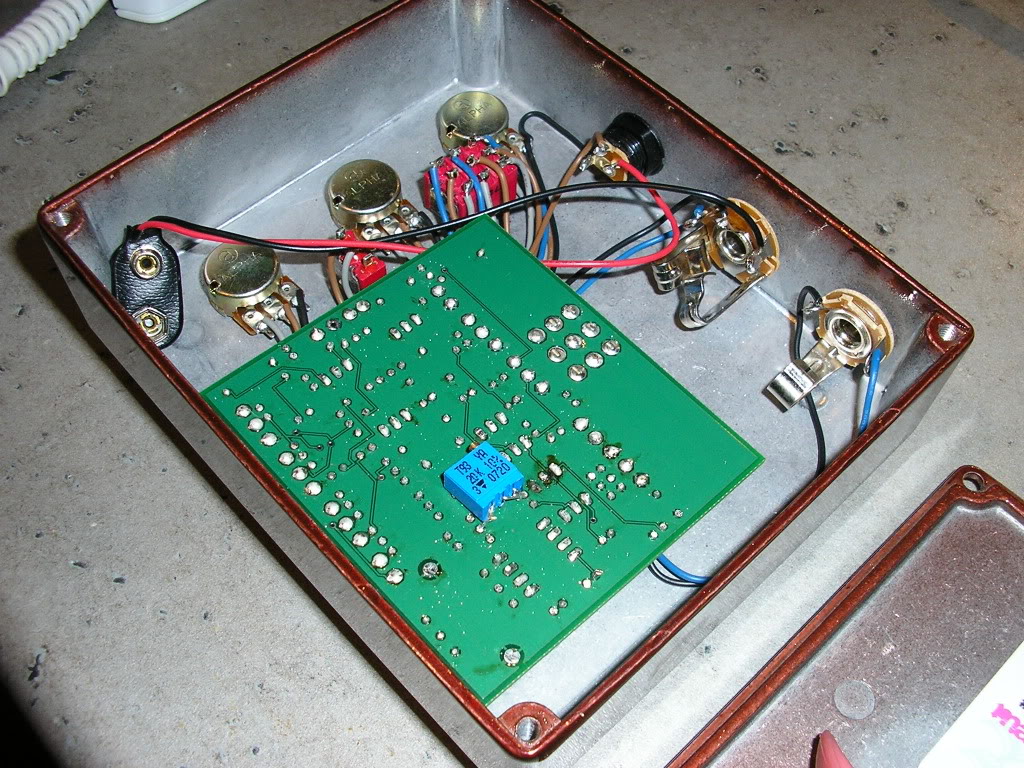

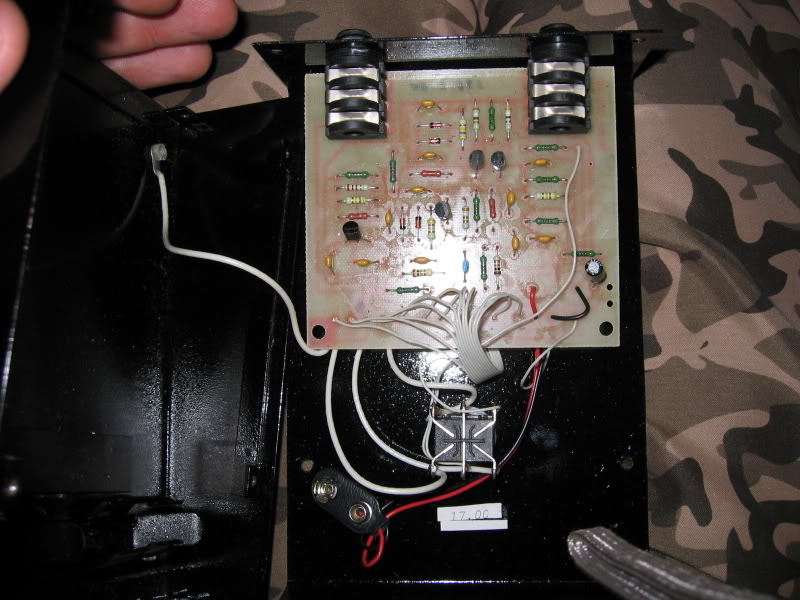

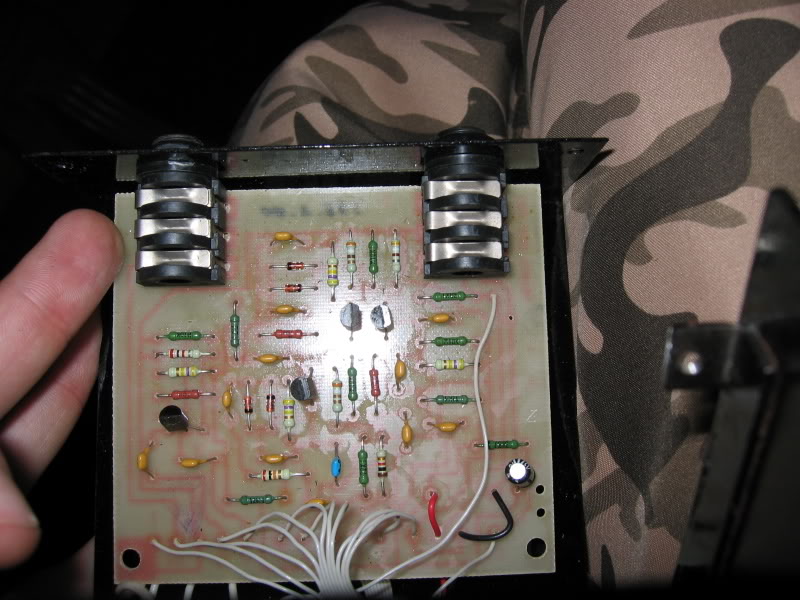

    Couldn't be bothered at 2am removing the switch to show the other side of the board though...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
  4. rcubed

    rcubed

    Joined:
    May 8, 2008
    Likes Received:
    0
    I'd be curious to see where he uses the germanium transistors in that circuit.
  5. andvari7

    andvari7

    Joined:
    Aug 28, 2004
    Likes Received:
    0
    Why do you have my dentures?

    See, kids, that's what will happen if you smoke three lighters' worth of cigarettes a day.
  6. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0

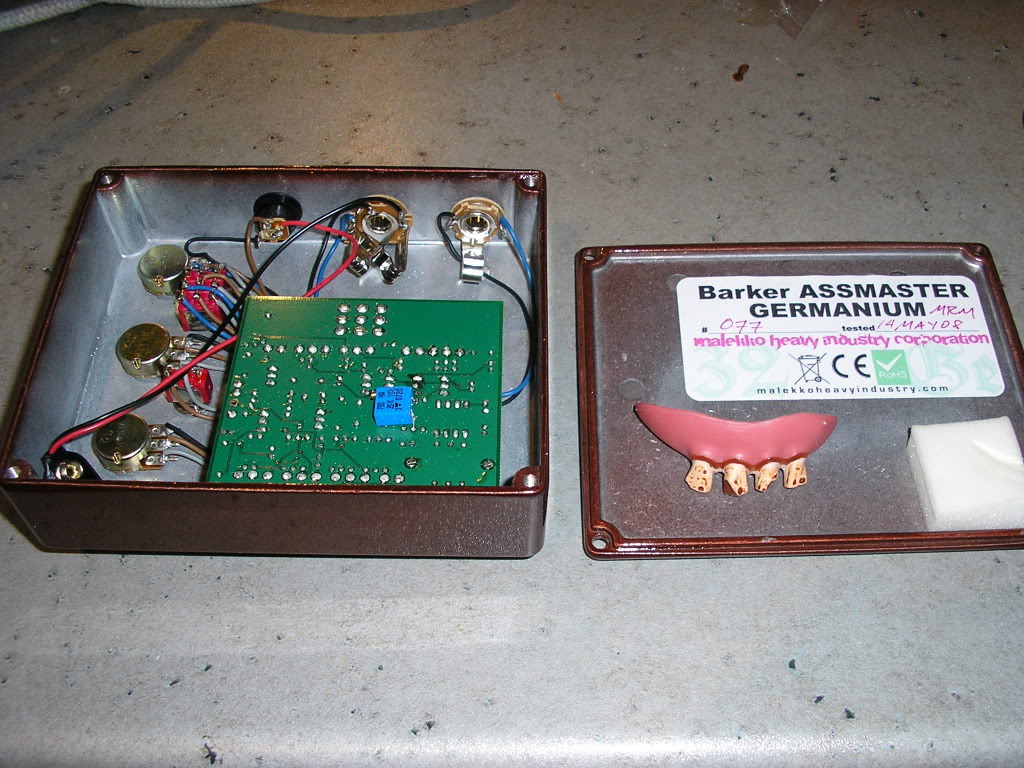

    :D They came stashed in the pedal. I went looking inside for drawings or a little note from Malekko. Ended up finding a skanky set of teeth...
  7. SmittyPedals

    SmittyPedals

    Joined:
    Apr 28, 2010
    Likes Received:
    0
    I was so busy ranting I forgot to add a gut shot.

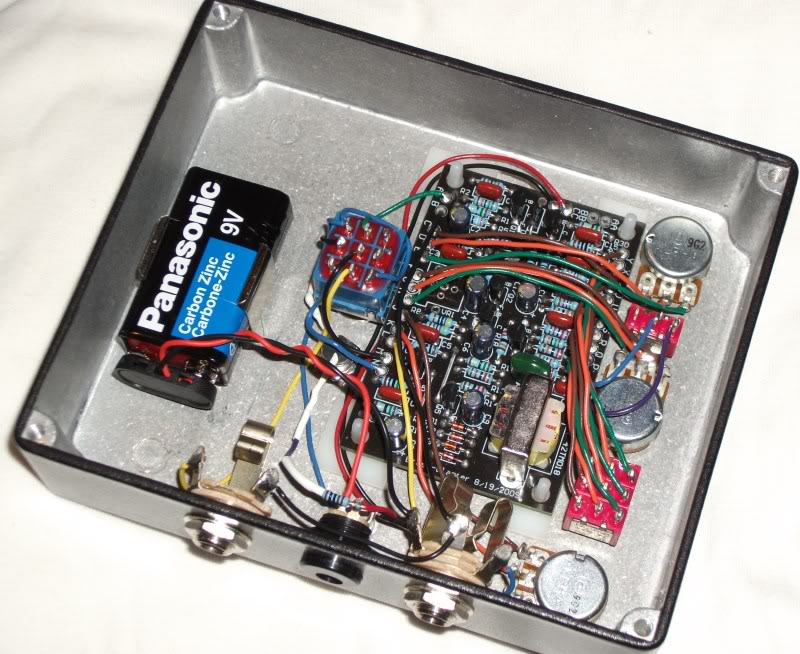

    GGG Brass Master

    [​IMG]
  8. rcubed

    rcubed

    Joined:
    May 8, 2008
    Likes Received:
    0
    Nice and clean, but I would have rotated the board 180 degrees for shorter leads.
  9. Kromwarp

    Kromwarp

    Joined:
    Sep 16, 2008
    Likes Received:
    0
    Disclosures:
    Master Luthier: Ironclad Bass Guitars
    Do Buckteeth enhance the tone?
  10. Eric!

    Eric!

    Joined:
    Jan 22, 2009
    Likes Received:
    0
    That's it? I wanna rehouse it! Slimmer = better :D
  11. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    Enhance the tone? When the teeth aren't in the pedal, the pedal doesn't even work anymore... It's all in the teeth!
  12. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    How would you fit the teeth in? :confused:
  13. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    Come on guys... Play nice :)

    Some 'guts' to get this thread back on track :hyper:

    Something I'm toying around with at the moment: Devi Ever Hyperion

    [​IMG]

    [​IMG]
  14. SmittyPedals

    SmittyPedals

    Joined:
    Apr 28, 2010
    Likes Received:
    0

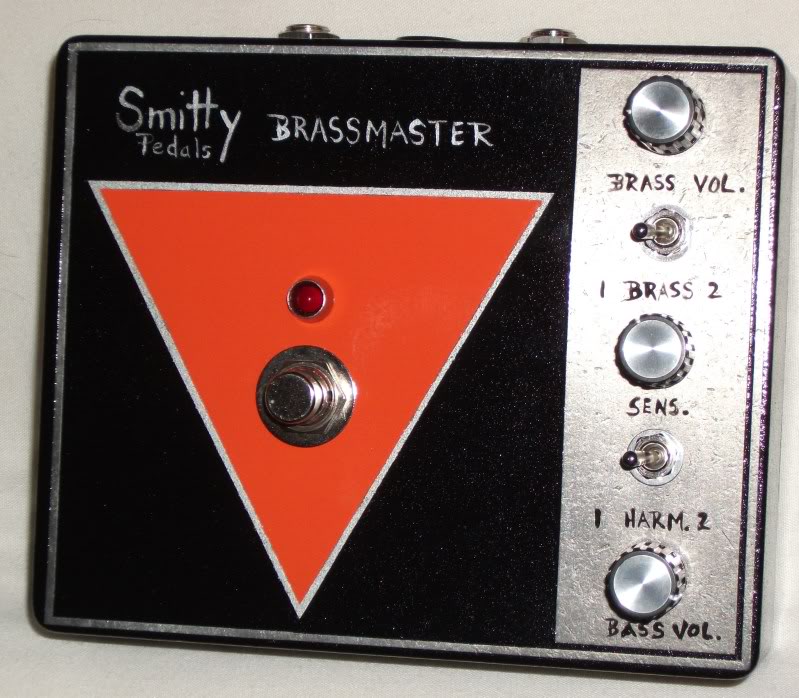

    The board wouldn't fit in that space if it was rotated 180 degrees. I could have moved the switch to give me space to do that but then everything wouldn't have lined up on the outside to look like this:

    [​IMG]
  15. rcubed

    rcubed

    Joined:
    May 8, 2008
    Likes Received:
    0
    Yep, typical Devi gutshot with the split PWBs. Are tracing it out?
  16. SmittyPedals

    SmittyPedals

    Joined:
    Apr 28, 2010
    Likes Received:
    0
    Just to make it clear. I don't build the GGG Brass Master and sell it to the general public claiming it to be my own as a certain person (you know who you are) is implying. It was a one off that I built as a special request for a customer who did not have the skills to build the kit himself.
  17. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    I only started getting into it this evening. I was going to screw around with it on the beavis board, but I jumped on TB and lost track of time... It's 4:40am here, so I'll be leaving it till during the week now!
  18. Eric!

    Eric!

    Joined:
    Jan 22, 2009
    Likes Received:
    0
    I'd also do naughty things to see the inside of an Octavius Squeezer :p
  19. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    As much as I like naughty things :)ninja:), I can't help with that one sorry...
  20. KarateKid25

    KarateKid25

    Joined:
    May 6, 2006
    Likes Received:
    0
    Remembered that I have some others in my photobucket, so I might as well post them too.

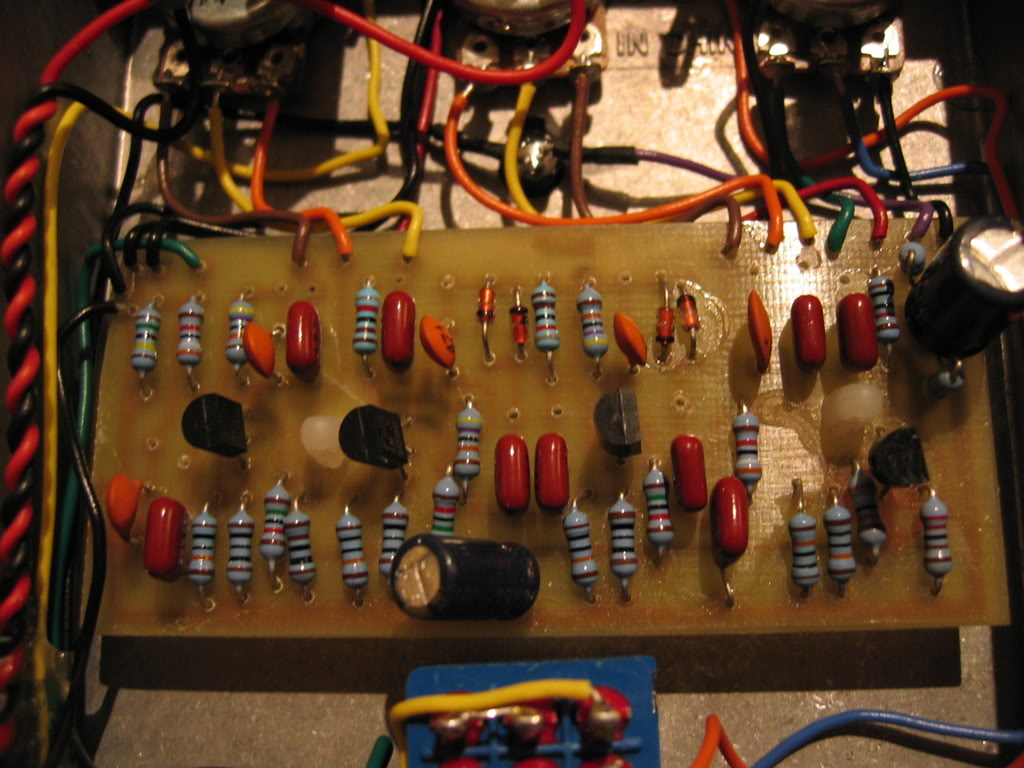

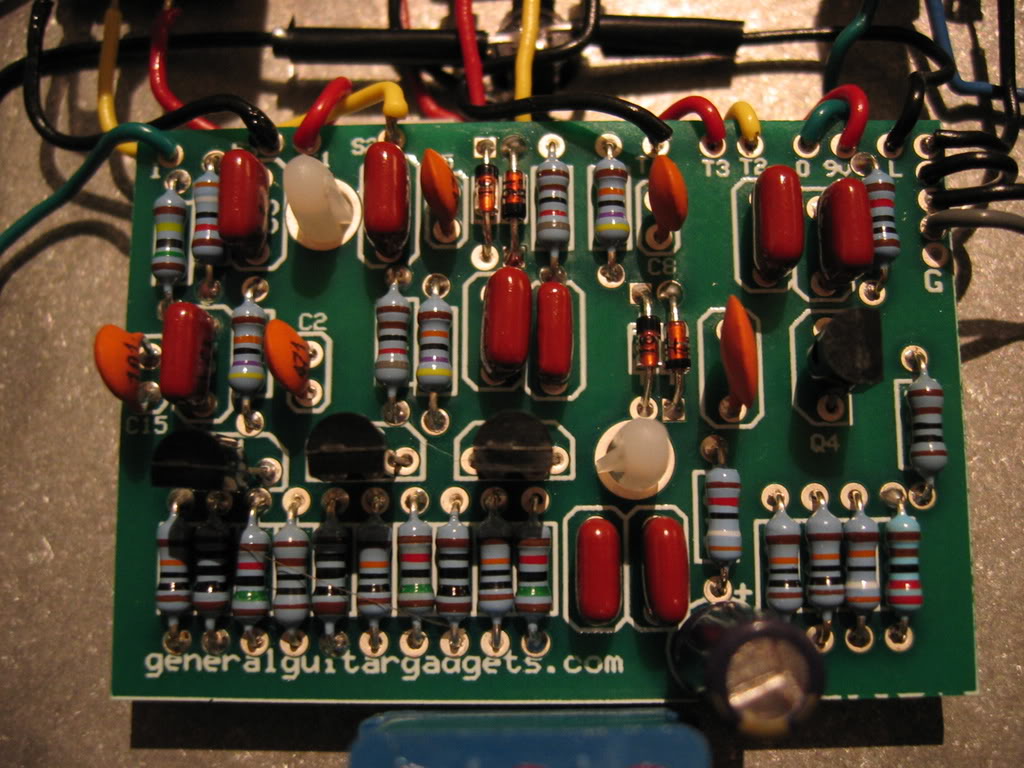

    Sanford & Sonny Blue Beard Vs GGG tuned Muff:

    [​IMG]
    [​IMG]
    [​IMG]

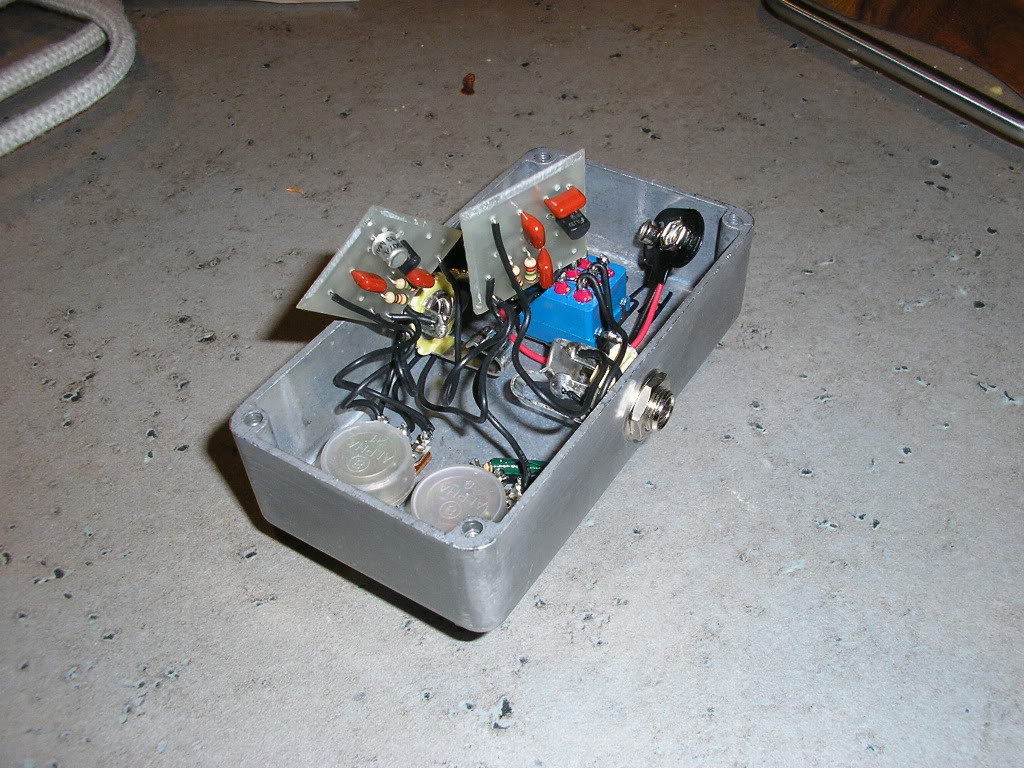

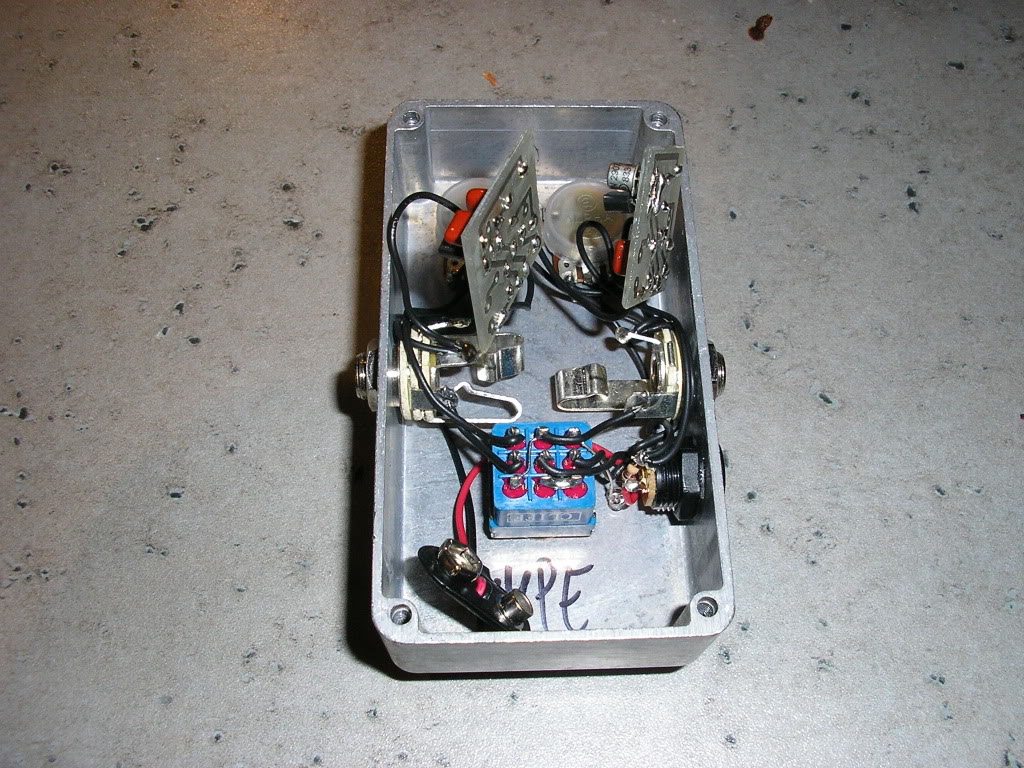

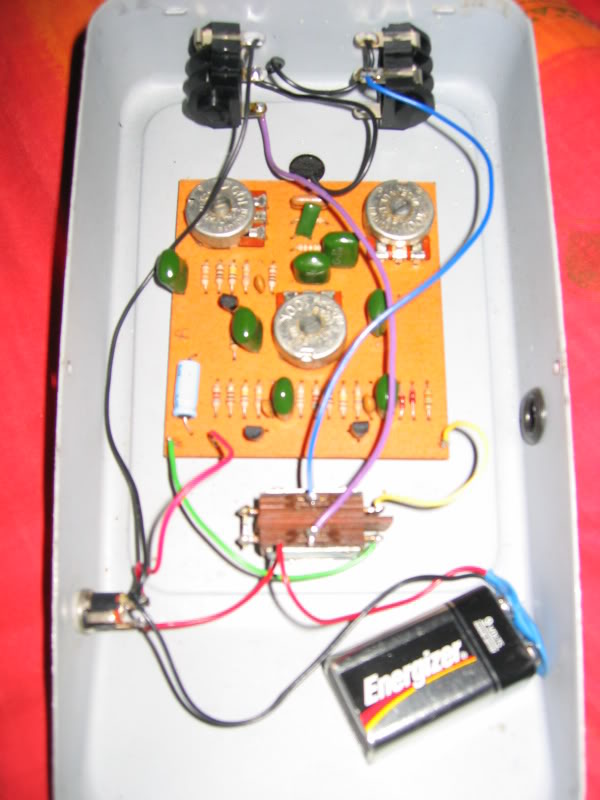

    An original 70's Jumbo Tonebender:

    [​IMG]

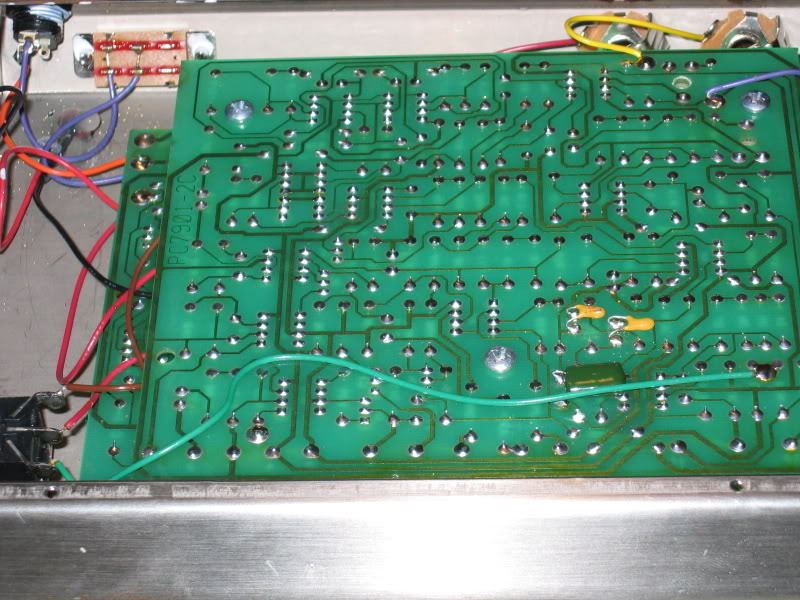

    EHX Bass Micro Synth:

    [​IMG]

    EHX black russian Muff:

    [​IMG]
    [​IMG]
