Speaker plans

Discussion in 'Amps [BG]' started by Pellepop, Jan 6, 2013.


  1. Pellepop

    Pellepop

    Joined:
    Jun 10, 2010
    Location:
    Sweden
    Hi
    Does anyone know off any good speaker plans for a 15" cabbinet?
    I would like to use the Eminence KAPPA-15LFA.
    I know Eminence has a software for that but it´s only available for PC and I´m on mac. Greatful for any tips.

  2. BogeyBass

    BogeyBass

    Joined:
    Sep 14, 2010

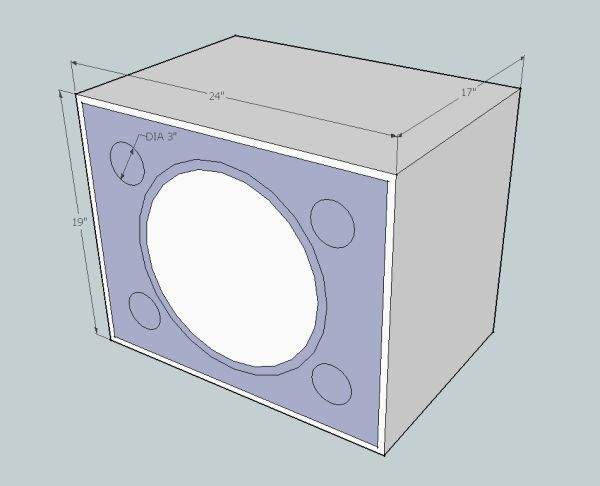

    24w x 19h x 17d

    the kappa 15lfa has no highend as a fullrange speaker.
    I would do a search for better fullrange drivers.

    such as the faitals or beyma

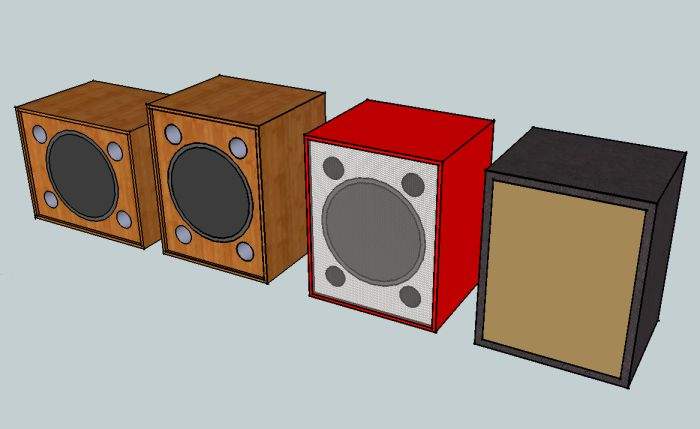

    Attached Files:

  3. Pellepop

    Pellepop

    Joined:
    Jun 10, 2010
    Location:
    Sweden
    O sorry I should have mentioned that I´m not looking for a fullrange speaker, just a very low end complement to exisiting speakers.

  4. Syco_bass

    Syco_bass Supporting Member

    Joined:
    Aug 13, 2008
    Location:
    Tucson, Arizona
    Disclosures:
    Custom builder - Arizona Bass Company/Curcio Custom Basses
    I used the cabinet design for the fEarful 15sub. Worked out great. EZ build solid, light and works great with 3015lf. Might work with that speaker also.

    Good luck.

  5. Register to disable this ad
  6. T-Bird

    T-Bird

    Joined:
    Apr 29, 2007
    Location:
    Finland (Northern Europe)
    Hi.

    I don't remember whether there's plans for that driver in the Eminence site or not.
    Worth taking a look anyway.

    WinISD is free, Alpha Pro is very extensive but can be a major PITA if You're not familiar with its design philosophy, Beta is a breeze to use but a bit more limited.

    Regards
    Sam

  7. CL400Peavey

    CL400Peavey Supporting Member

    Joined:
    Nov 7, 2011
    Media:
    11
    Albums:
    1
    Location:
    Grand Rapids Michigan
    Eminence 3015 or Faital Pro 15PR400 in a TL606 cab. Plans are free online.

  8. Mr. Foxen

    Mr. Foxen

    Joined:
    Jul 24, 2009
    Location:
    Bristol, UK
    Disclosures:
    Amp tinkerer at Ampstack
    You'll need to mess with a crossover for it to be worthwhile, rather than linking two different cabs to the same amp.

  9. 1958Bassman

    1958Bassman

    Joined:
    Oct 20, 2007
    Have you checked their website? They have a button at the top of the data page for each driver called 'Cabinet Design'. It also has "Use a steep High Pass
    filter at 35 Hz to protect woofer from overexcursion." at the top of the design page.

    This matters a lot.
