Squier VM Mustang Project...Pic Heavy

Discussion in 'Basses [BG]' started by TK4261, Sep 18, 2011.


  1. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California

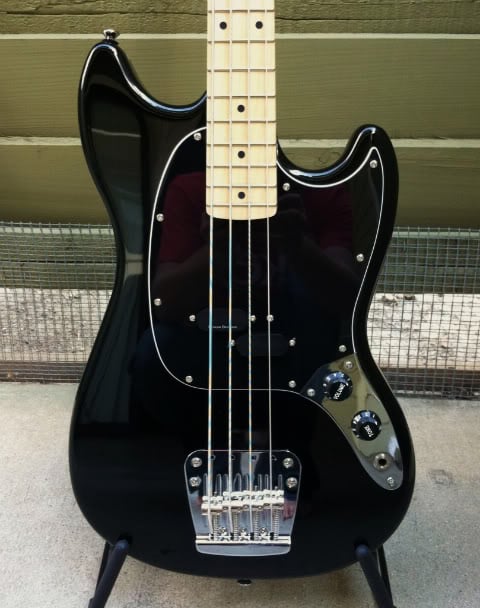

    I just received this Squier Vintage Modified Mustang a few days ago for a project I've been wanting to do for a while. Always wanted an original Mustang but I never had the $$$ when the opportunity presented itself. But since they just came out with these Squier VM Mustangs for an affordable price, I decided to get one and customize it to my liking. :D
    [​IMG]
    [​IMG]
    [​IMG]

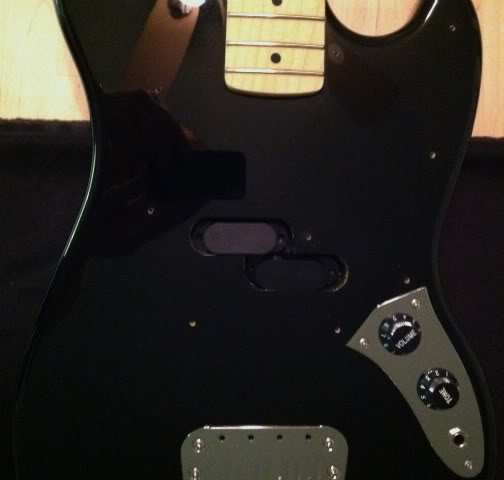

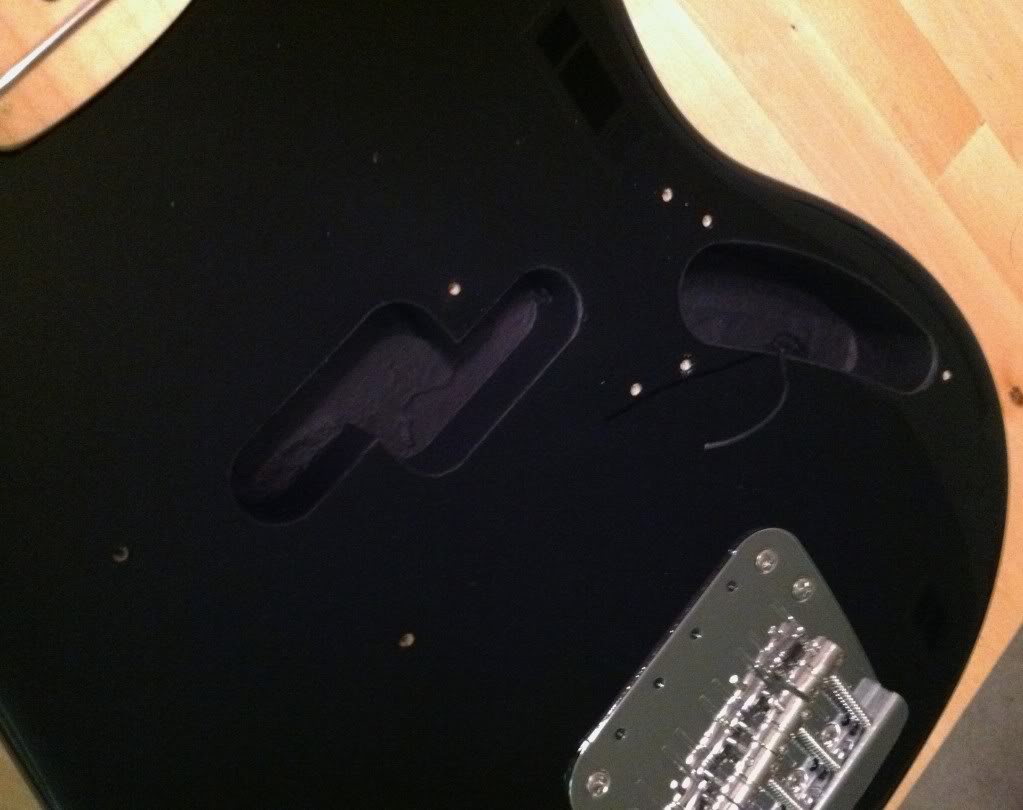

    I took the pick guard off and sent it out to a Luthier to have a custom Maple pick guard made...
    [​IMG]

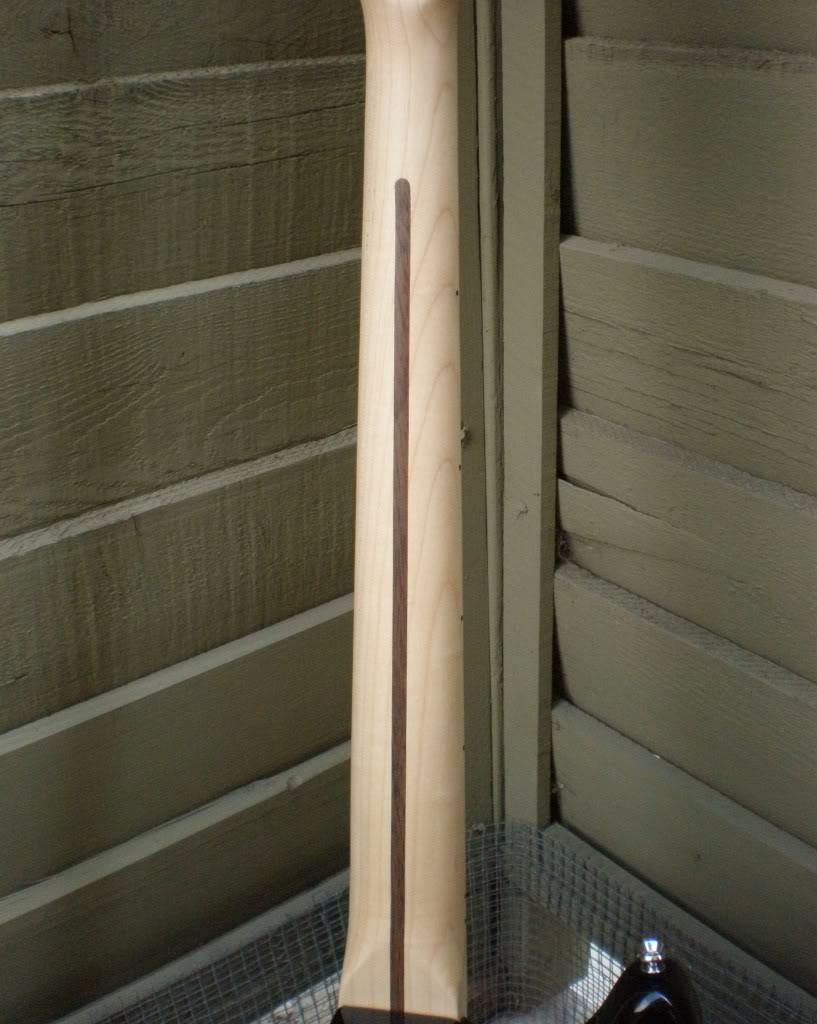

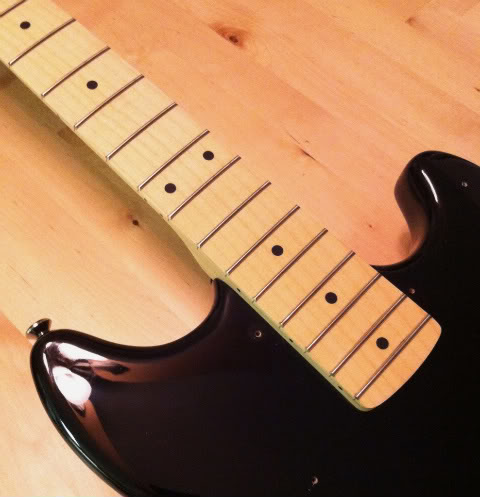

    I was very pleased with the the Wood grain that is on the neck & headstock. I was a little worried since I ordered it online but ended up being happy with the outcome...
    [​IMG]
    [​IMG]

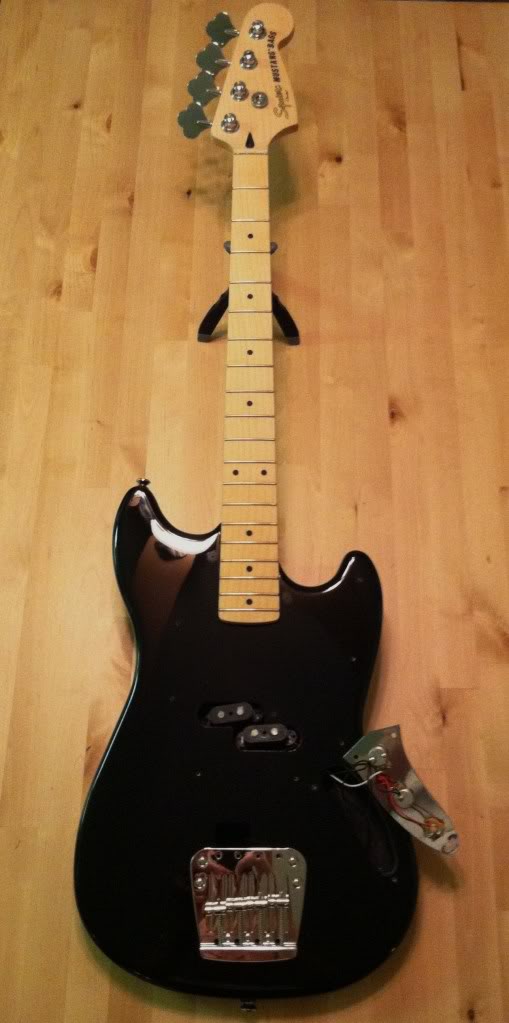

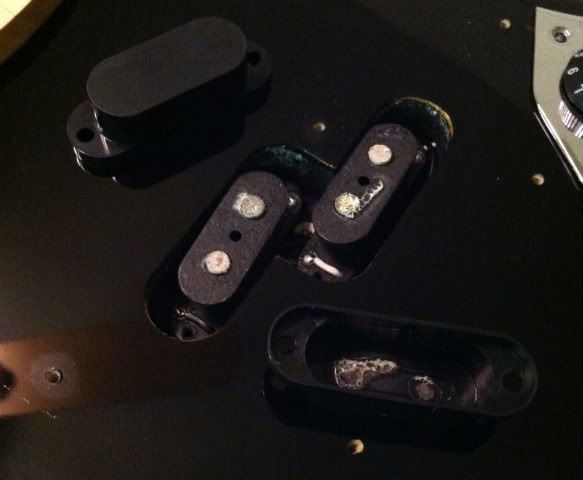

    The pickups will be coming out and replaced. There was a lot of nasty glue in the pickup covers when I finally got them off. I had to use my heat gun to get them off...
    [​IMG]

    After taking off the control plate I noticed they used the small Alpha 250K Volume/Tone pots. Those will also be replaced along with a new input jack. And it looked like a sloppy one coat layer of Conductive shielding paint..
    [​IMG]
    [​IMG]

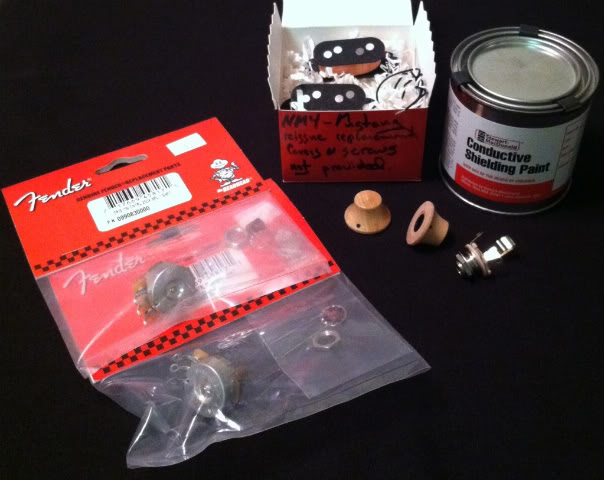

    These are the parts that I will be replacing everything with:
    Nordstrand NM4 Mustang replacement pickups, Fender 250k CTS volume/tone pots, Maple bell knobs, Switchcraft SC-11 input jack and a couple more clean coats of the conductive shielding paint. Also my Maple pick guard when it shows up...

    [​IMG]

    While I'm waiting for my Maple pick guard to arrive, I will be redoing the electronics and working on a template to drill holes through the pick up covers to expose the pole pieces on the Nordstrands. That will be in the next progress post.

    Stay tuned
    :cool:

  2. sloppy_phil

    sloppy_phil Supporting Member

    Joined:
    Aug 21, 2011
    Messages:
    886
    Location:
    Toronto, ON, Canada
    nice! can't wait to see how it looks when completed, or at the least, updated

  3. PBnJBassist

    PBnJBassist

    Joined:
    Mar 8, 2011
    Messages:
    713
    Location:
    Dallas, TX
    You should refinish her in pink-burst. ;)

  4. Sifl

    Sifl

    Joined:
    May 14, 2008
    Messages:
    464
    Location:
    Seattle, WA
  5. Register to disable this ad
  6. ghostdog93

    ghostdog93

    Joined:
    Jul 27, 2010
    Messages:
    1,730
    Location:
    Washington, USA
    Looks pretty nice in black. The woodgrain on the neck is sweet.

    Do the Nordys fit into the Squier covers?

  7. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    Thanks! A couple of weeks to completion at the latest :cool:

    Thinking...:confused:...How about....NOT!:eyebrow: lol...

    The Nordy MN4's fit perfect in the stock covers. ;)

    More to come :D

  8. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    I was able to make some more progress on the Mustang project today :cool:

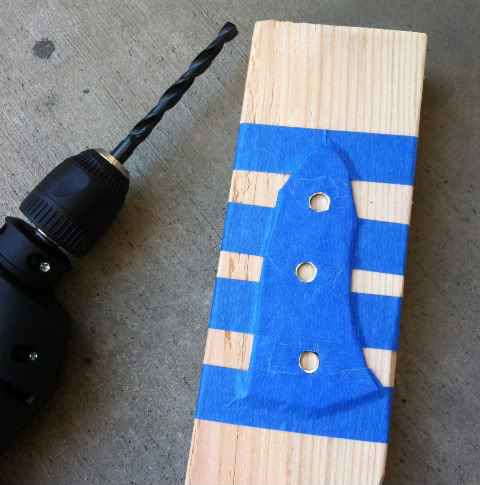

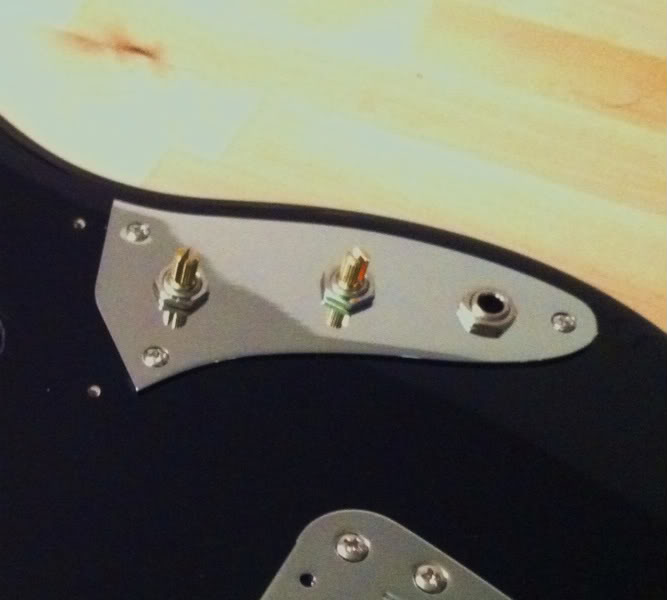

    I came across my first problem today. The holes in the control plate were to small for the Fender CTS pots. I had to enlarge all three holes from 11/32 to 3/8. That took up more time today cause I had to go buy a 3/8 drill bit. :meh:
    [​IMG]

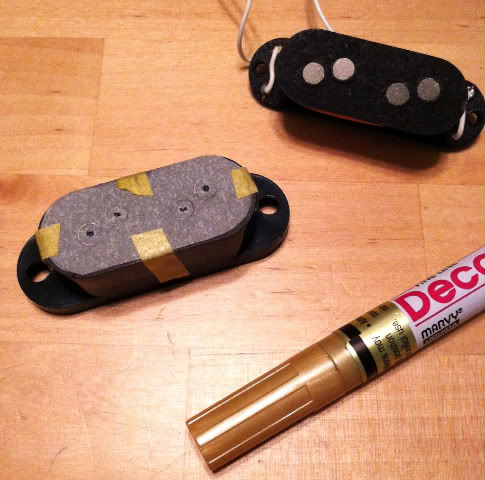

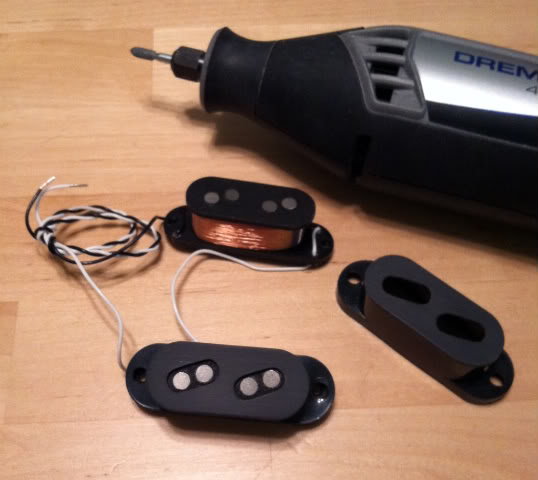

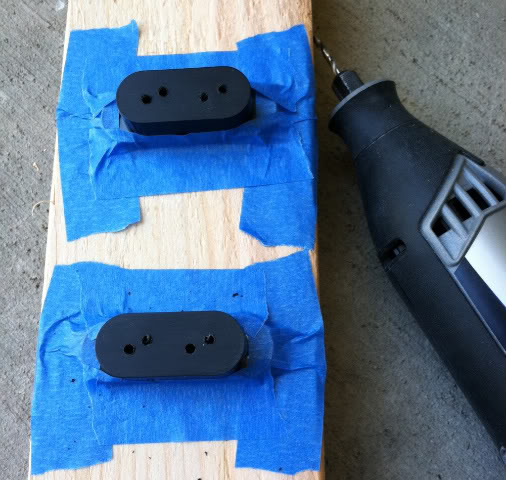

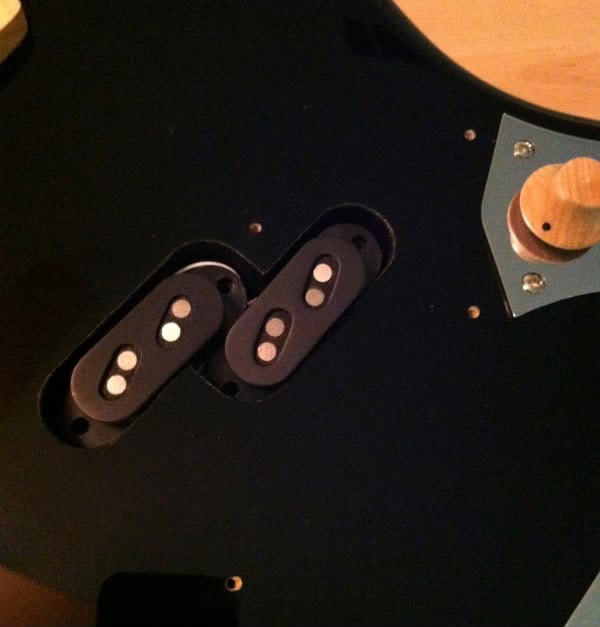

    I really wanted to drill individual holes in the covers for all the pole pieces on MN4's but it turned out to be a bit hard to get them exact. So I just used my Dremel to make holes for each pair of 2 pole pieces. I dremeled matched them up and then dremeled some more and so on.. I think they turned out pretty good though. :hyper:
    [​IMG]
    [​IMG]
    [​IMG]

    More to come..stay tuned :bassist:

  9. SBassman

    SBassman Supporting Member

    Joined:
    Jun 8, 2003
    Messages:
    7,411
    Location:
    Northeast, US
    Disclosures:
    Dealer: PiccoBass Guitar-scale Basses
    Great thread.

    Great looking neck on that bass.

  10. ::::BASSIST::::

    ::::BASSIST:::: Expectation Is The Root of All Suffering. Supporting Member

    Joined:
    Sep 2, 2004
    Messages:
    12,456
    Location:
    Vancouver, BC Canada
    Nice looking bass. How much $ was it stock?

  11. atomicdog

    atomicdog Supporting Member

    Joined:
    Jun 18, 2011
    Messages:
    670
    Interesting project to be sure. I'm curious about the final investment (time and money) and the resulting sonic differences. Was sonics the purpose or was it aesthetics?

  12. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    Thank you!

    Got it from Sweetwater for $279 (no tax and free shipping) This was the first bass that I purchased online. I was a bit worried about not playing the Bass first before buying it, but my experience was great and they packed it really good ;)

    Thanks, Total cost is somewhere around $430. Though the sonic difference might not be huge, There should be a decent difference with the Nordstrands in it. Plus I finally get to have a Bass with a set of Nordy's on it and cosmetically look how I would like it at an affordable price. :cool:

  13. ghostdog93

    ghostdog93

    Joined:
    Jul 27, 2010
    Messages:
    1,730
    Location:
    Washington, USA
    Nice job on those covers - they look really cool.

    I had read that some people were having problems with fitting the Nordys into some Fender Mustang pickup covers, but it looks like you didn't have that issue.

  14. bassist4dalord

    bassist4dalord

    Joined:
    Dec 13, 2007
    Messages:
    3,907
    Location:
    Woodstock, Illinois
    That's awesome! We will want sound clips :D Any ideas what you'll string it up with?

    Very cool project- Subscribed!

  15. CrankenStein

    CrankenStein

    Joined:
    Apr 11, 2009
    Messages:
    203
    Location:
    Huntington Beach, CA
    dude, those pickups are SWEET!

  16. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    Thanks, I like how they turned out. Very glad the Nordy's fit just fine in the Squier covers...

    :D I Should have it all done by the end of next week when My pick guard arrives. I'll make a quick video too...

    Hoping they sound sweet..I cant wait till I get to plug it in.. :bassist:

  17. funkytoe

    funkytoe Supporting Member

    Joined:
    Jan 17, 2008
    Messages:
    1,495
    Location:
    Northern California
    Awesome project with quality parts upgrade. I bet she is going to sound as good as she looks. Hope soundclips are in our future. :bassist:

  18. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    Thank you FunkyToe!
    I will definitely have a soundclip at the end of this project :D

  19. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California
    Made some more progress yesterday :D



    I sanded down whatever was in the pickup & control cavity today. It flaked off really easy. It looked like both the pickup/control cavity was quickly sprayed with what looked like conductive shielding paint. It was very sloppy, rough and wasn't covering all the way around. :eyebrow: Only took all of 10 minutes to sand it down smoother.
    [​IMG]

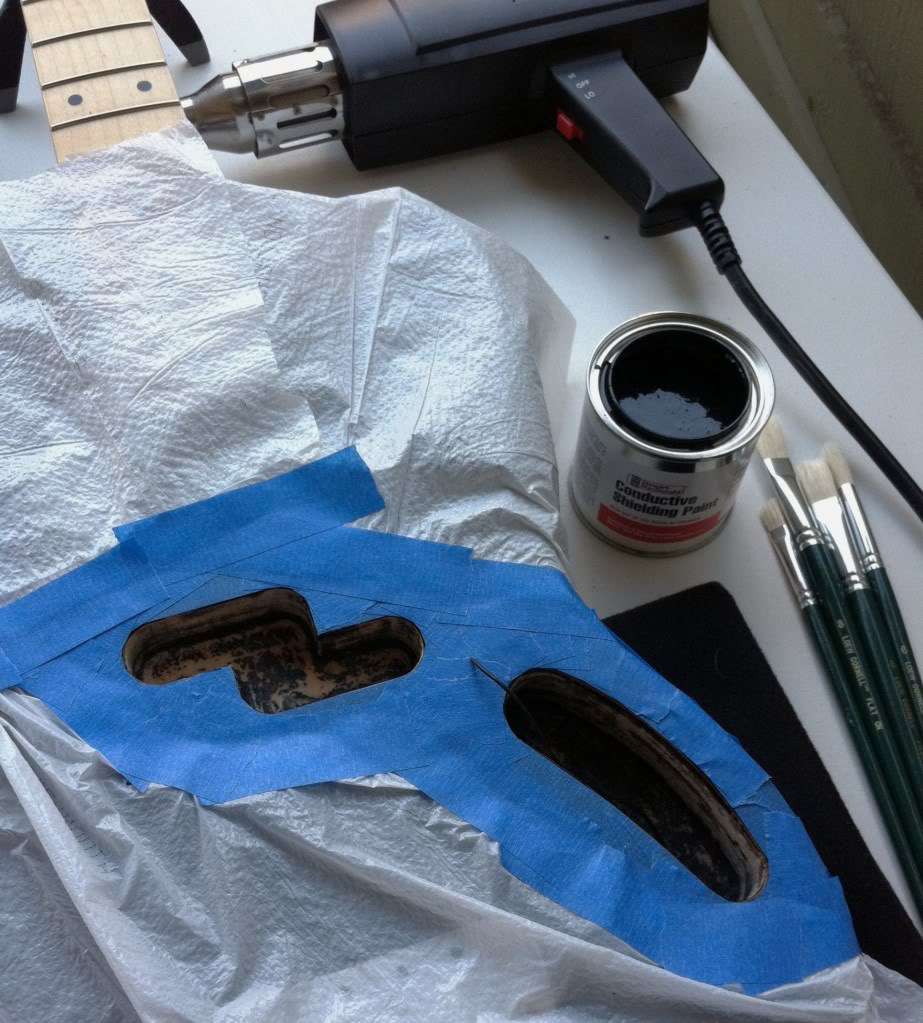

    I added 4 coats of conductive shielding paint and used my heat gun in between coats, so it only took a little over an hour to do both cavities. Instead of waiting the 24 hours between coats like it says on the can. Turned out nice. ;)
    [​IMG]

    Next I'll be putting on the volume/tone pots and input jack onto the control plate and soldering them together.

    More to come..Stay tuned.
    :bassist:

  20. TK4261

    TK4261 Supporting Member

    Joined:
    Aug 27, 2010
    Messages:
    797
    Location:
    Yucaipa, California

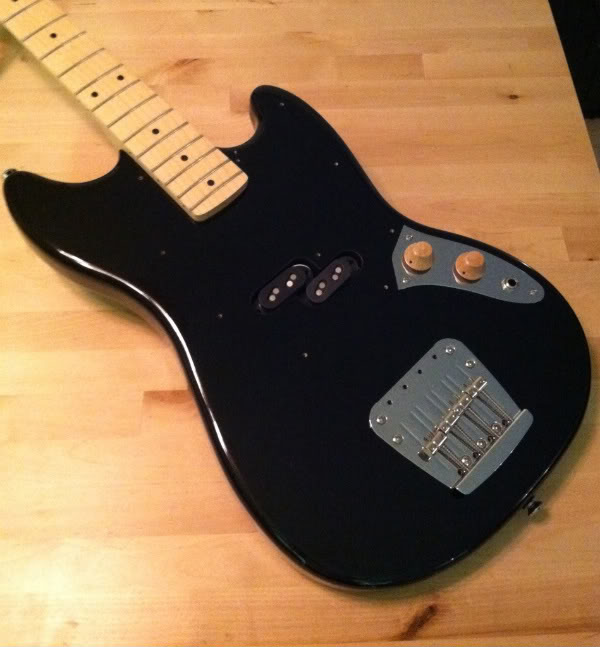

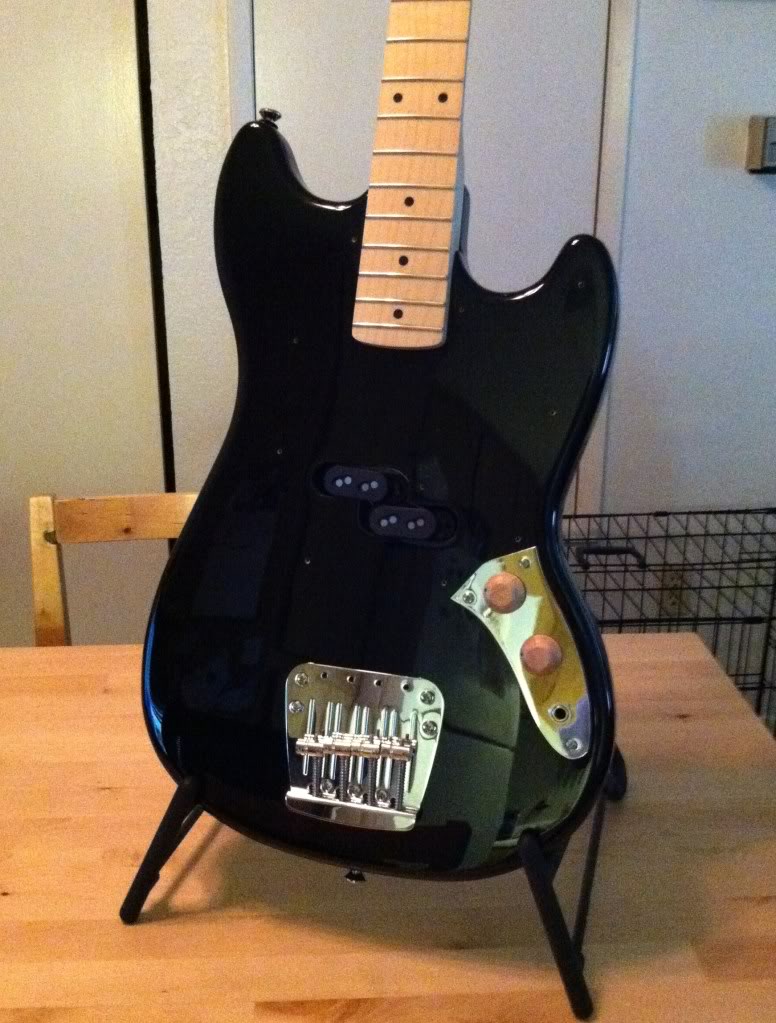

    Mustang progress for the day...Almost done :D

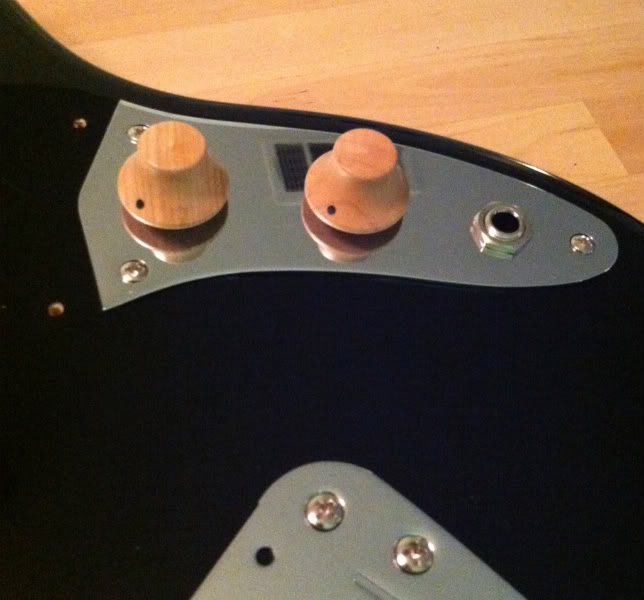

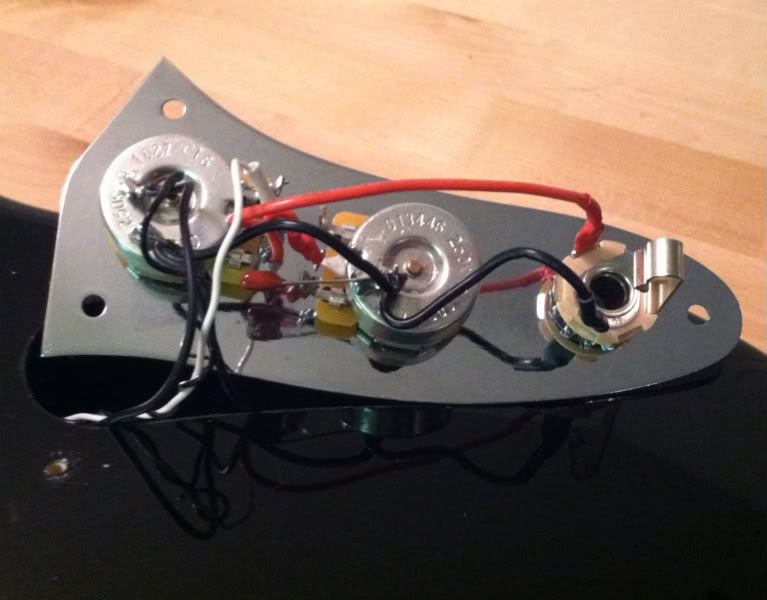

    This evening I installed the electronics/pickups. Wiring on the Mustang is fairly easy. There is not much to it. I didn't think the control cavity was going to be big enough due to the size of the CTS pots compared to the small Alpha pots. Everything fit in though, with no extra room. ;)
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    I'm pretty much all done...Now I am just waiting on my Maple pick guard to arrive from the Luthier. Hopefully by the end of next week. I also need to decide on which strings to use. Even though it is 30" scale neck, it is strung through the body. I was thinking I can put regular scale strings on it. I Have an extra set of R. Cocco 40-100 Nickels and I am hoping they will fit ok.

    Stay tuned...more to come :bassist:

  21. tjh

    tjh Supporting Member

    Joined:
    Mar 22, 2006
    Messages:
    4,091
    Location:
    Minnesota
    ... a few thoughts and inquiries while looking/reading ... no channel routing!!, nice ... also I cant tell from the pics, is the bridge top load capable, or is it STB only ? ... speaking of bridge, 7 screws to hold the bridge on a 30" scale bass ... huh, they just use 3 on the MIA STB 34" counterparts ... ??

    ... very nice job, thanks for sharing ... did you by chance record the sound with stock gear, to get a comparable with the aftermarket?? ... thanks again
