Stoner/Doom Bassists Thread Pt. 45: Rule 34: Handwired Gear Pronz

Discussion in 'Bassists [BG]' started by dunwichamps, Jan 29, 2013.

  1. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
  2. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0
    Hey nick you check the pics of that fuzz i posted? Can't wait to try it.
  3. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    little bit but I was busy last night, link me
  4. mc_muench

    mc_muench

    Joined:
    Sep 28, 2010
    Likes Received:
    7
    Perfect! Now where some NSFW pics or NSFTB I should say
  5. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
  6. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0

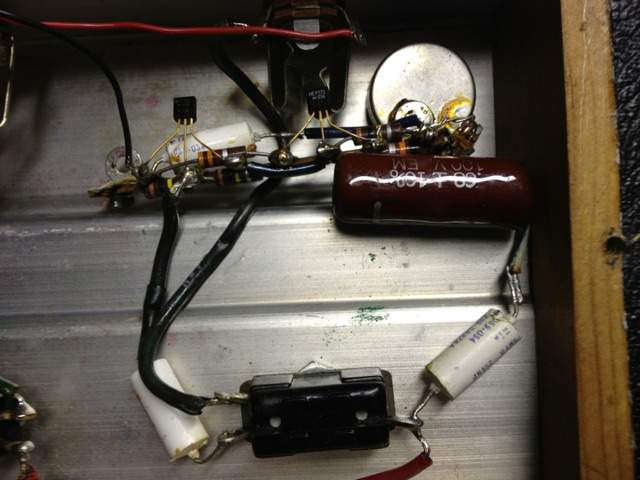

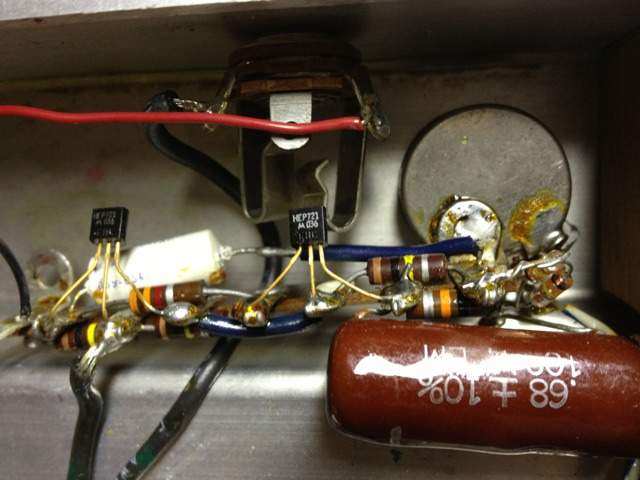

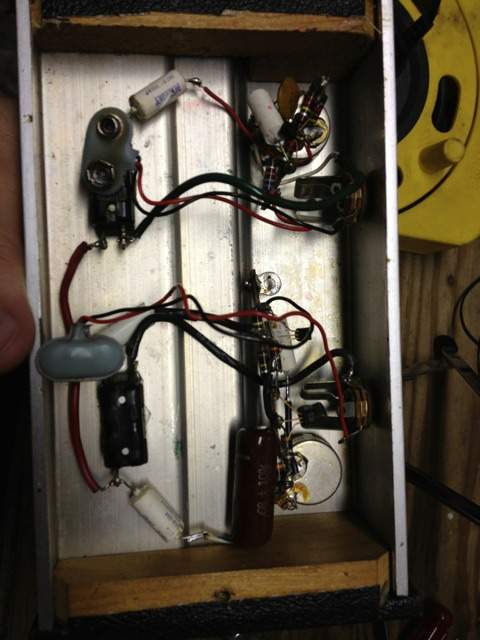

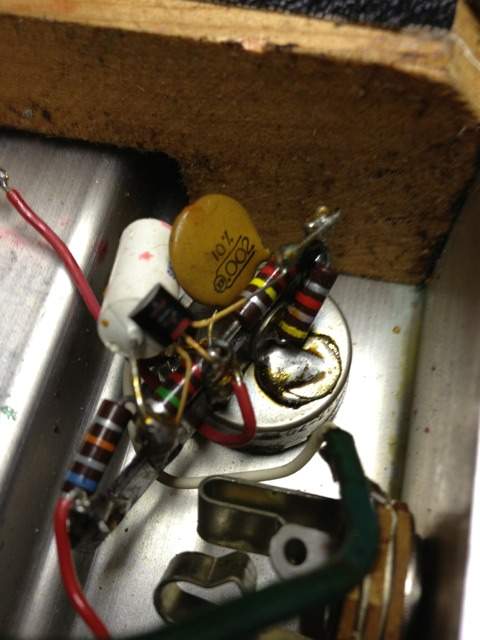

    The inside of the fuzz pedal. [​IMG][​IMG]

    [​IMG][​IMG]
  7. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    Looks like its Silicon FuzzFace but I do see 2 diodes. They could be part of the feedback loop in the FF circuit I have seen that before
  8. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0

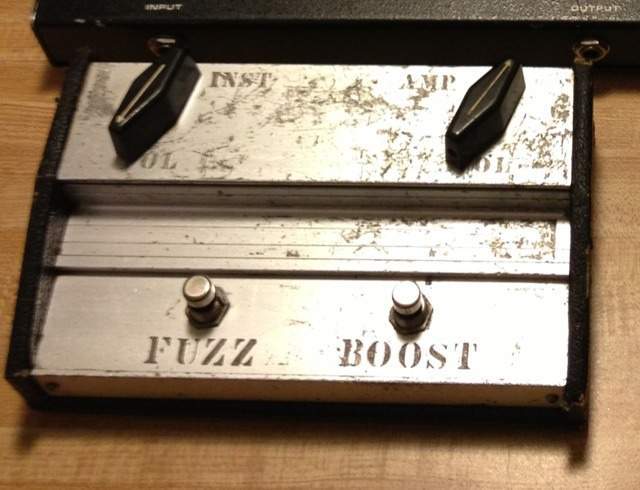

    Runs a 9 volt for each switch. Fuzz and boost switches. Only a volume for each.
  9. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    weird. Whats the name on it?
  10. bassboysam

    bassboysam Supporting Member

    Joined:
    Apr 26, 2001
    Likes Received:
    7
  11. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0

    It's crazy. So heavy. Wood and metal. Huge. My guitarist was saying I shouldn't mod it to have 9v power jacks. Said it would hurt the value and it might not sound as good. Can't find anything on it to say who made it.
  12. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0
    That's not a dream. That's a full blown nightmare.
  13. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    damn no idea. Throw some batteries in and rock it!
  14. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0
    I know that's right!

    He said some guy made it for him in the 70s. The boost was the big deal about the pedal.
  15. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    Could be like a fuzzface + a boost stage
  16. Ron Now

    Ron Now Supporting Member

    Joined:
    Sep 3, 2003
    Likes Received:
    13
    Disclosures:
    Endorsing Artist: Fuzzrocious Pedals, Blackout Effectors
    You could always get some of those 9v battery connector adapters. Run them through a hole in the bottom of the chasis (if there is a place to do that). Avoids having to mod the pedal, and you can still run it off a power supply. I've done this with a bunch of battery only pedals over the years.
  17. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    You should also trace the scheme if you have some time
  18. DethByDoom

    DethByDoom Supporting Member

    Joined:
    Sep 23, 2012
    Likes Received:
    0
    Man I wouldn't even know where to begin. My schematic reading is questionable. Maybe after I play with it a bit you could borrow and poke around in it your self? If you want.
  19. dunwichamps

    dunwichamps

    Joined:
    Jul 23, 2012
    Likes Received:
    1
    Disclosures:
    Owner: Dunwich Amps
    possibly. A bit busy at this moment tho
  20. Corey Y

    Corey Y Supporting Member

    Joined:
    Jun 3, 2010
    Likes Received:
    9
    Coffee and pervin my preamp pedal pr0n...yumadumdum.

    Mark from BNA also emailed me last night to let me know all the parts for my Dually should be ready to assemble in about a week. Looks like this new rig should come together just about in time for when we start recording our demo. So I'll get plenty of quality time to experiment with it and make some good gear demo clips as well.
