stripped bass bridge problem

Discussion in 'Hardware, Setup & Repair [BG]' started by Alik, Jan 27, 2014.


  1. Alik

    Alik

    Joined:
    Apr 13, 2013
    [​IMG]

    >>>>> PROBLEM SOLVED, SEE PICTURES BELOW <<<<<<

    hi people, i have this Squier jazz bass deluxe V and i noticed recently that my bass bridge was a little bit raised from the body, only on the lower part, near the knobs. I tried to tighten the screws but I found they were stripped. I read somewhere here on the forums about the toothpick trick. Has anybody actually done that? and which glue do you recommend for that purpose
    By the way, the body is basswood, which is kind of soft.
    :help:

    [​IMG]

  2. The Nameless

    The Nameless

    Joined:
    Apr 12, 2009
    Location:
    Charleston, SC
    Elmer's, or any wood glue. Screw in the screws while still drying, they'll still be removeable, but not on their own. Check the bridge for warpage. Tryin to screw down a bent bridge can be frustratin. Heh.

  3. Robert B

    Robert B Supporting Member

    Joined:
    Jan 21, 2000
    Location:
    Hampton, Va USA
    For something that is going to be under tension, I'd do a more sturdy repair. Have someone drill out the stripped hole, larger than the original, and glue in a hard maple dowel in the hole, cut flush to the top. Than redrill the hole in the maple and you're good to go.

  4. Batmensch

    Batmensch

    Joined:
    Jul 4, 2010
    Location:
    Chester, Pa.,USA
    If you do the toothpick thing right, it can be plenty sturdy, sturdy enough you don't need to dowel and redrill.

  5. Register to disable this ad
  6. 96tbird

    96tbird This Indian movie is really boring man.

    Joined:
    Dec 13, 2010
    Location:
    Manitoba, Canada
    It's been a while...

  7. Pilgrim

    Pilgrim Supporting Member

    Joined:
    Jul 8, 2004
    Location:
    Fort Collins, Colorado
    Yeah, it must have been all of 48 hours since someone asked this.

    Toothpicks and white Elmer's glue. Don't make it complicated, because it's not.

  8. warnergt

    warnergt

    Joined:
    Oct 25, 2007
    Location:
    Vortex of sin and degradation
    +1

  9. 96tbird

    96tbird This Indian movie is really boring man.

    Joined:
    Dec 13, 2010
    Location:
    Manitoba, Canada
    Elective surgery^

  10. bobdabilder

    bobdabilder

    Joined:
    Feb 5, 2013
    Location:
    mississippi, usa
    try the toothpicks and elmers. if that fails (which it won't), you can use a dowel (which you won't need to).

  11. Rocky McD

    Rocky McD Supporting Member

    Joined:
    Jun 28, 2005
    Location:
    San Antonio, Texas
    Disclosures:
    Builder,mcdcustomguitars
    Even though the bridge is under tension, the pull of the strings is at a 90 degree angle to the screws. There is little, if any pull upwards on the screws. Toothpick repair will probably be sufficient. Neck screws usually need a dowel insertion.
    Rocky

  12. bobdabilder

    bobdabilder

    Joined:
    Feb 5, 2013
    Location:
    mississippi, usa
    my first 5er which is an ibanez has this exact repair performed to 2 of the 4 neck screws. In case anyone is curious about performance of the repair.

  13. Turnaround

    Turnaround

    Joined:
    May 6, 2004
    Media:
    1
    Albums:
    1
    Location:
    Toronto Canada
    Disclosures:
    Bass Technician, Club Bass - Toronto
    This will be no stronger that a well-done toothpick repair. The problem with a dowel is that the screw will be going into the end grain of the dowel. Screws in end-grain do not hold well. If you drill out the holes you will need to put in a plug with the grain oriented the same way as the body, not perpendicular to it.

  14. 96tbird

    96tbird This Indian movie is really boring man.

    Joined:
    Dec 13, 2010
    Location:
    Manitoba, Canada
    Yep. Screw threads cut across the fibers instead of between them on the cross grain plug.

  15. Maynjo

    Maynjo

    Joined:
    Jan 28, 2014
    I had one of the strap button screws on my fender jazz strip out the same way, I just put some Gorrila Glue in the hole, screwed the screw back in, let it dry, haven't had a problem since. Its probably been 5 years since that happened, strap button hole still works great, can unscrew it and screw it back in no problem.

  16. walterw

    walterw Supportive Fender Gold Supporting Member

    Joined:
    Feb 20, 2009
    gorilla glue foams up and wrecks finish; avoid.

    all we need is regular titebond wood glue and toothpicks, it's a really minor repair.

  17. Alik

    Alik

    Joined:
    Apr 13, 2013
    Thanks to all of you guys,
    i thought about selling
    this bass because of this minor problem
    but now i'll keep it. :p
    :bassist:

  18. fhm555

    fhm555 So FOS my eyes are brown Supporting Member

    Joined:
    Feb 16, 2011
    ^this^ ^this^ ^this^

    Just don't try it with string tension on the bridge.

  19. Alik

    Alik

    Joined:
    Apr 13, 2013

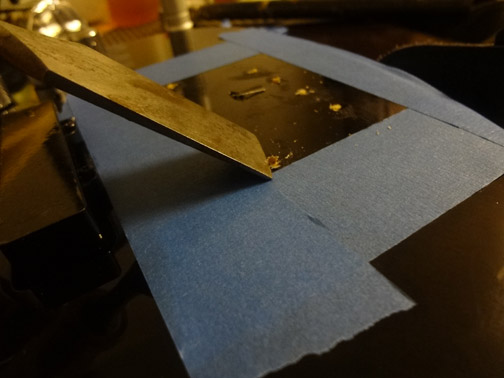

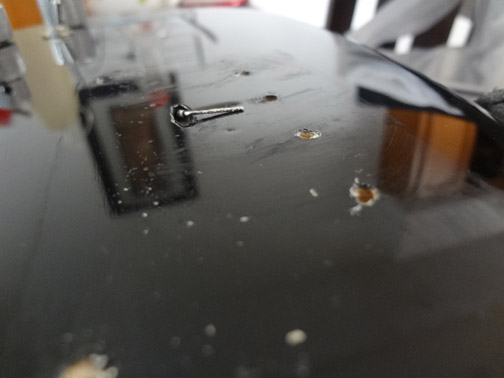

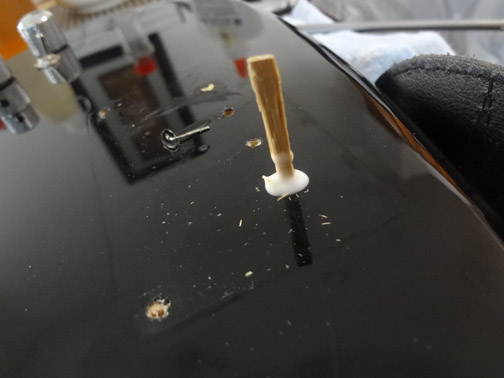

    some pictures of my bass bridge being done:
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
    this is how my bridge looks after the work done

  20. walterw

    walterw Supportive Fender Gold Supporting Member

    Joined:
    Feb 20, 2009
    and you cranked the screws in while wet? nicely done.

    the chisel was an unnecessary step, though; after stuffing the wood slivers into the holes, just use wire cutters or something to pull the sticks up by 1/16" or so, cut them off flush, then shove them back down into the hole.

    alternately, pre-measure the wood slivers against a thin allen wrench or whatever stuck down into the hole so that the slivers are short enough to not stick out.

  21. Alik

    Alik

    Joined:
    Apr 13, 2013
    I let the wood slivers dry for a good 4 days before attempting to reinstall the screws.
    I used a power drill to start the screws going in, and then switched for a screwdriver to finish the job.
    As for the chisel tool I just used it to illustrate the need to have a flat surface for the bridge, I really didn't use it.
    Instead I used these long pliers:
    [​IMG]
