tele jazz in the works ...

Discussion in 'Basses [BG]' started by tedsalt, Dec 3, 2011.


  1. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest

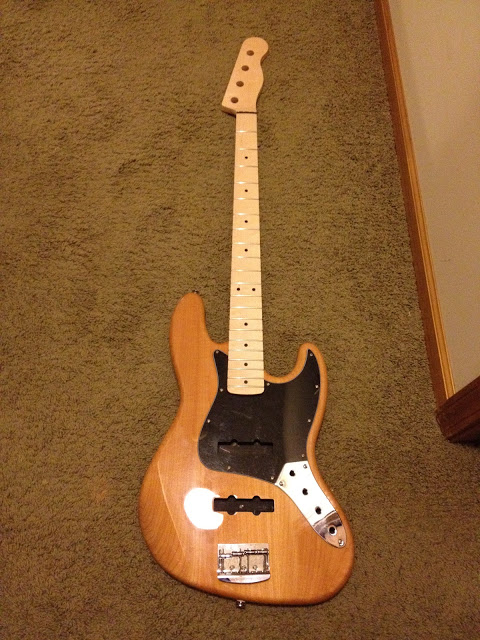

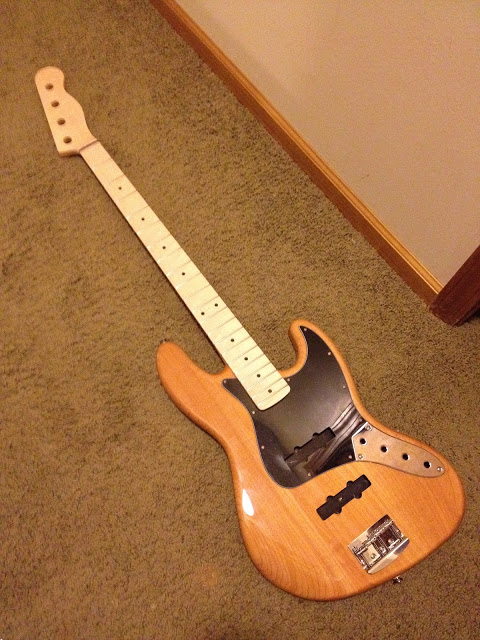

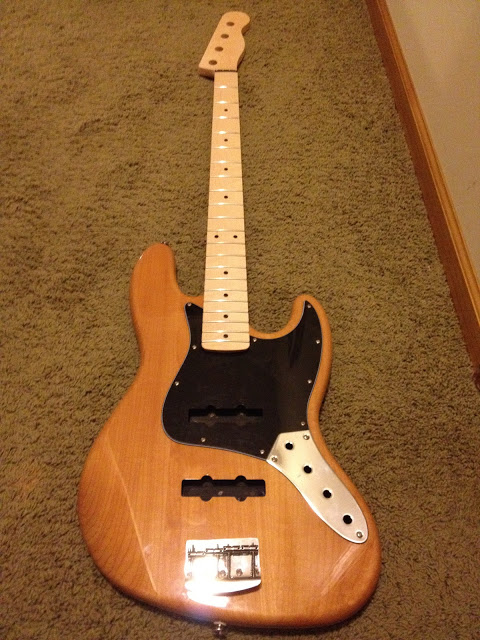

    Just received a birdseye maple Warmoth wide tele neck for a jazz body I bought a while back. Currently the neck is unfinished. The jazz body has what appears to be a thick clear poly finish. I'm tempted to just put clear or nitro on it and play it that way for awhile. But I also think that ultimately I'd like to finish it with reranch neck amber, and strip and paint the body vintage cream.

    Have nordy nj4 pups, a hipshot vintage bridge, hipshot ultralites, etc, and will wire it up passive VVT with a Stellartone ToneStyler. I have both 500K and 250K pots. Typically I use 250K pots, as I like the warmth. But I might try the 500Ks just to see what they'll do.

    I'd like to just put it together and play it, but I should prolly take my time and do it the way I'd ultimately like it, even tho that will take longer.

    I've never done any finish work before, so I tend to procrastinate ...

    [​IMG]

    [​IMG]

    [​IMG]
  2. UnDoNe

    UnDoNe

    Joined:
    Dec 6, 2002
    Location:
    UK

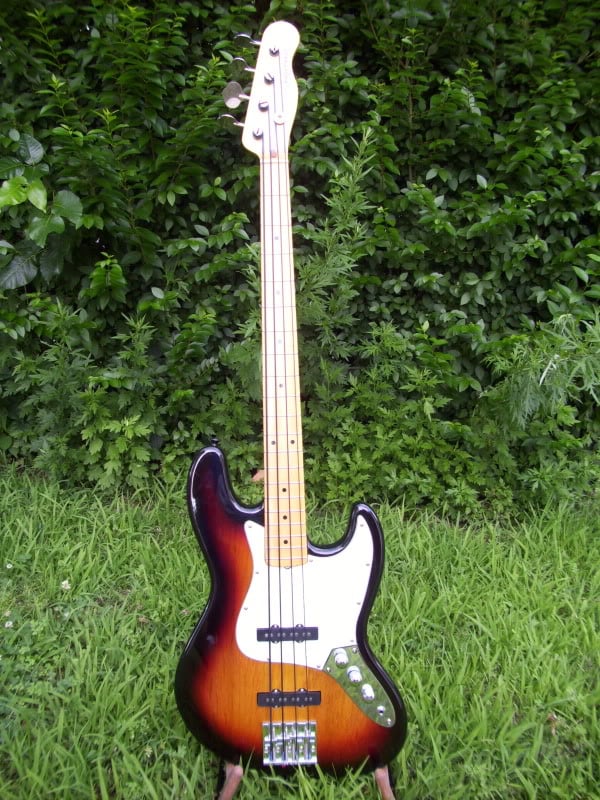

    I love tele basses. I built one earlier this year, using a Geddy body and a Warmoth Birdseye Maple and Ebony neck. Great quality parts from those folks. Good luck with the build.

    [​IMG]
  3. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Can I spray reranch vintage cream over the poly finish on the body? Then after it's covered well, then clear coat that? Not sure I wanna deal with taking the poly finish off ...
  4. Avezzano

    Avezzano

    Joined:
    Feb 8, 2000
    Location:
    Avezzano AQ (Italy)
    spraying is one of the most %$&£ tasks on the planet!!! Anything you "think" to hide below the coats will eventually pop up when the bass has been mounted, even months after!!! Definitely leave the body as is and maybe just spray something on the neck to darken it a bit. But this will happen automatically anyway with time.

    Mind you: NEVER spray as-it-is!!! Always sand the surface to be painted to opaque 500 grit sandpaper at least, so that the painting will "grip". Otherwise you will have soon a... scratch & dented vintage vibe thing!!!!!

    you'll double the effort and the amount of time/troubles...

    :rolleyes:
  5. Register to disable this ad
  6. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    I think I found my answer here ... Guitar Refinishing ~ Solid Colors, Metallics and Blonde

    "If the old finish is a polyurethane finish you will have a difficult time completely stripping the finish back to raw wood. It is acceptable with poly finishes to sand the old finish with #220 dry and use the old finish as the base. If that is to be your direction skip ahead to the section on priming"
  7. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    ok, my order is in for white primer, vintage cream, fender neck amber, gloss clear coat and a pack of sandpaper. I already have satin clear coat for the neck. I'll sand the poly, then prime, paint, and gloss clear coat. The neck will get amber then satin clear coat.

    hmmm ... I haven't done any finish work on basses before. But then I hadn't done electronics work on basses a year ago either, and I've completely rewired several since then. :D
  8. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Undone, that's a sweet looking tele jazz! I like!
  9. Avezzano

    Avezzano

    Joined:
    Feb 8, 2000
    Location:
    Avezzano AQ (Italy)
    you'll see: it's a... small nightmare!!! :D

    only three advises from me:

    1) PATIENCE
    2) PATIENCE
    3) PATIENCE
  10. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Message from The Guitar ReRanch:
    You can track your shipment at UPS.com ...

    my nightmare cometh! can't wait! Luckily I do have a fair amount of patience.
  11. BoRadBass

    BoRadBass

    Joined:
    Feb 4, 2009
    Location:
    CT,USA
  12. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Nice Jazz-Caster BoRad! Thanks for your link. I'm sure I've seen it before when researching for my project. And the first reply to your link is kinda what I'm going for, only I'm hoping my vintage cream body is not that dark, at least to start out with. That's probably from age I suppose. Link from your thread ...

    [​IMG] <<< ReRanch Vintage Cream

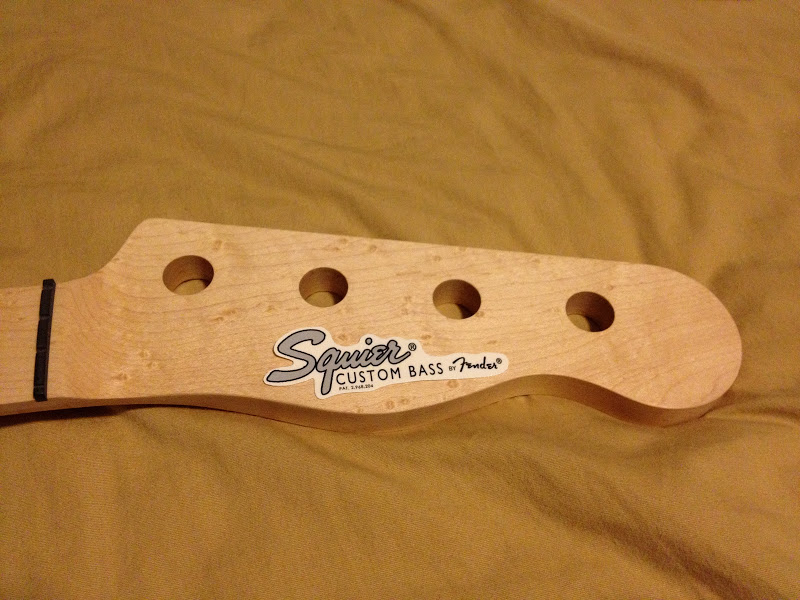

    ... and the waterslide I'll add to the headstock ...
    [​IMG]

    Yeah, I'm a fan of the latest squiers ...
  13. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Anyone know where I can get a jazz pickguard with no pup cutouts? I think this build is taking a turn. I'm now thinking about selling my NJ4s and picking up a '51 P split coil and a NJ4SV and running it passive V/V/T ...
  14. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest

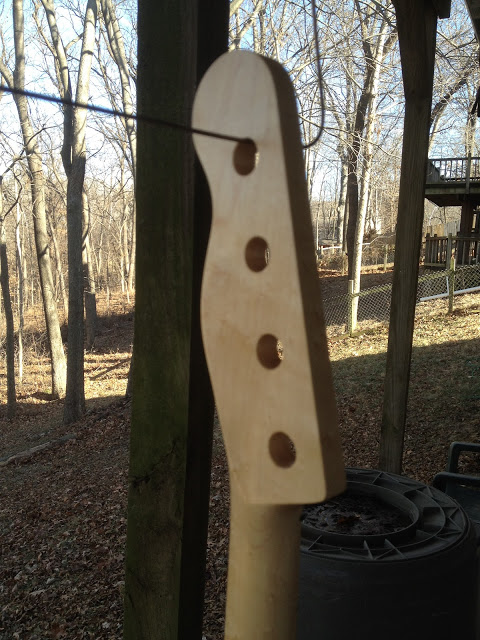

    Spraying the neck with reranch satin nitro ...

    [​IMG]

    [​IMG]

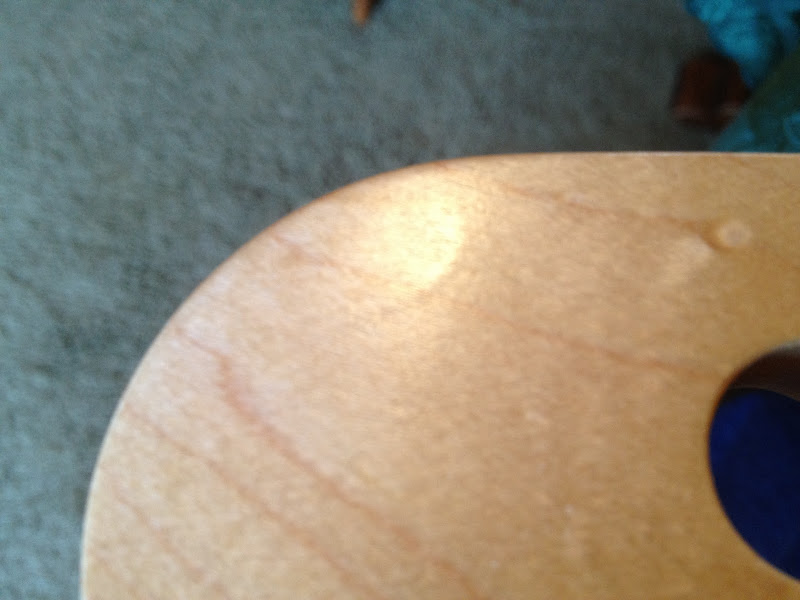

    ... small run on back of headstock ...
    [​IMG]

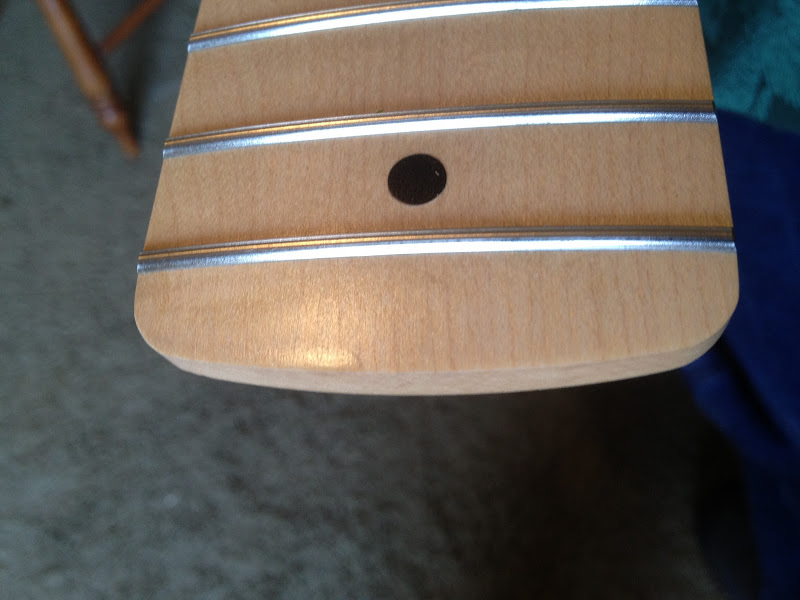

    ... and at the heel ...
    [​IMG]

    Although they're hardly noticeable, I'm sanding and re-spraying ...
  15. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest

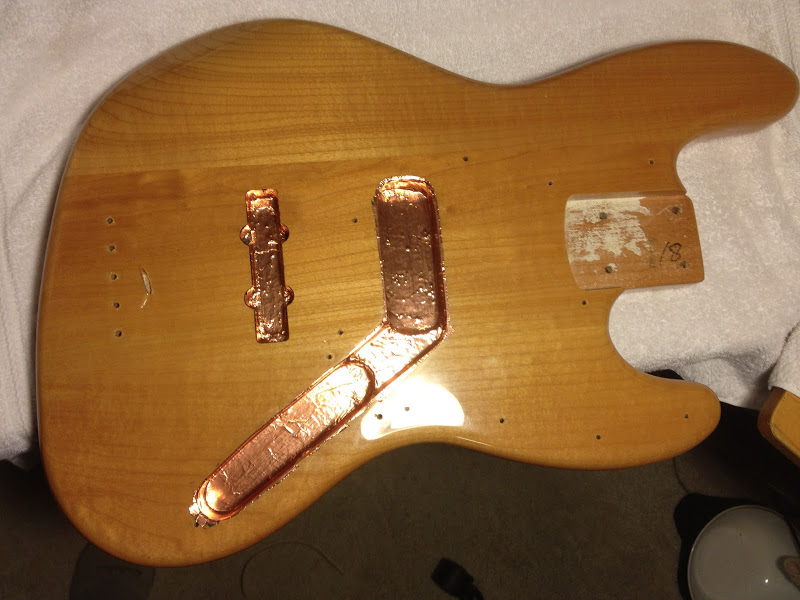

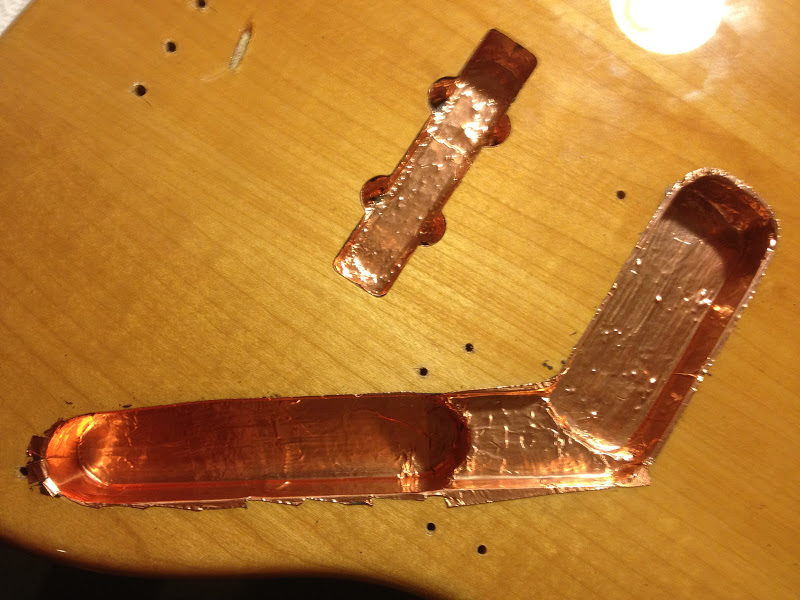

    shielded the cavities ...
    [​IMG]

    [​IMG]

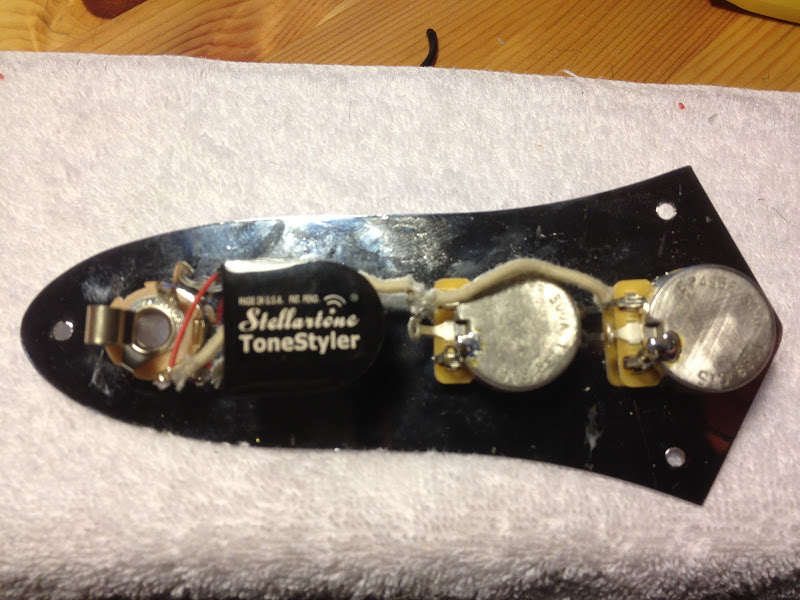

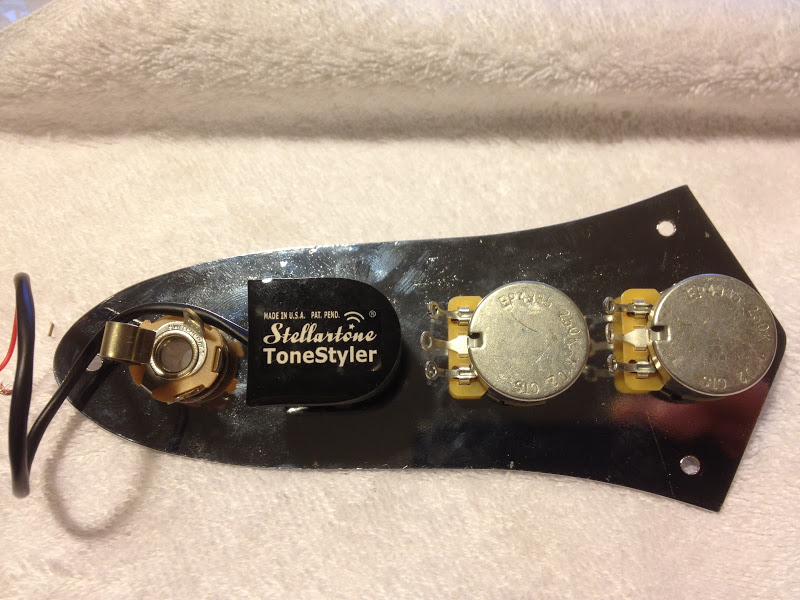

    wired up the control plate using a tonestyler ...
    [​IMG]

    found my 500k linear taper pots ...
    [​IMG]

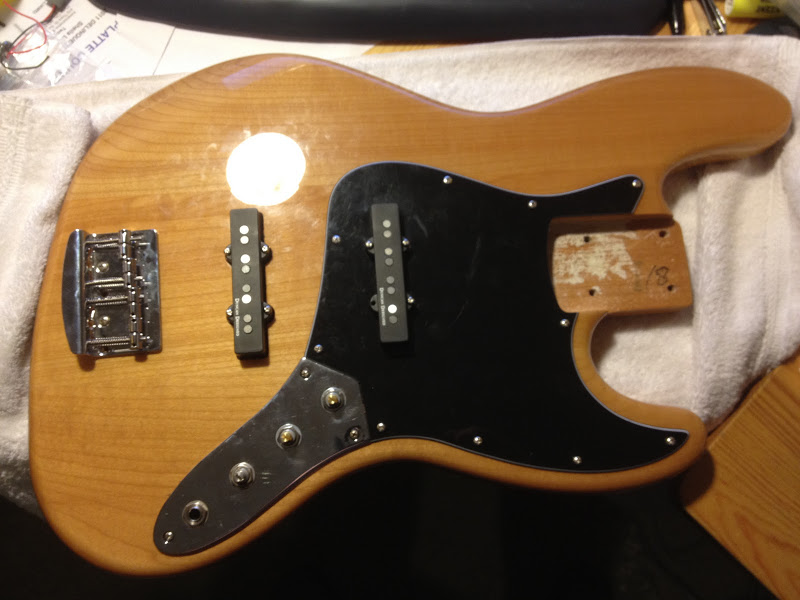

    body / electronics pretty much together ...
    [​IMG]

    adjusting the neck ...
    [​IMG]

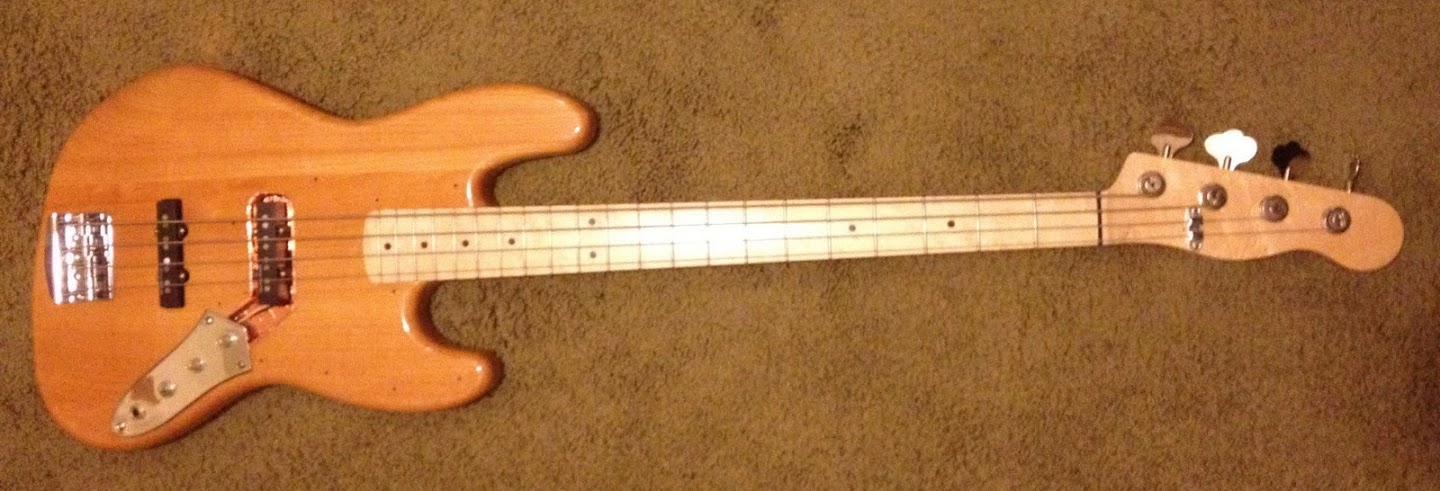

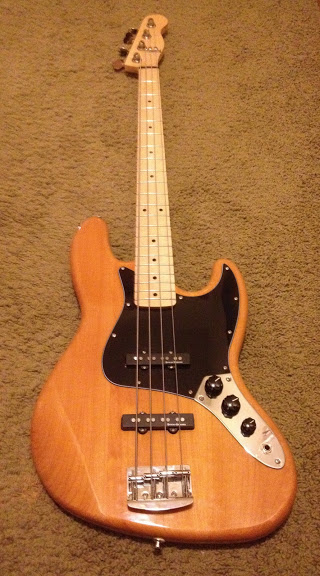

    completed project ...
    [​IMG]

    I decided to keep the body with the poly clear coat. Just sprayed the neck with reranch satin nitro. It's playing nicely, altho the sound guys where I normally play say it sounds "bassier" than my usual five stringers. I'm digging it. It has Duncan Designed jazz pups in it. Was gonna throw some Nordies in there, but I sold my NJ4s thinking I'd get some SE's, but they sold to someone else. Oh well ...
  16. novenpeter

    novenpeter

    Joined:
    Oct 18, 2011
  17. MarcMurder

    MarcMurder #IIAmerica Supporting Member

    Joined:
    Mar 9, 2010
    Location:
    El Paso, Texas
    makes me want to stop procrastinating on my telebass... only been like a 4 year project
  18. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    Thanks novenpeter! Maybe someday I'll finish the body differently, but I'm really enjoying playing it the way it is ...
  19. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    that's a bad habit of mine too. When you have all the parts, it's easier ...
  20. MarcMurder

    MarcMurder #IIAmerica Supporting Member

    Joined:
    Mar 9, 2010
    Location:
    El Paso, Texas
    its actually assembled set up and everything... i just never painted it:)
  21. tedsalt

    tedsalt Supporting Member

    Joined:
    Aug 5, 2010
    Media:
    1
    Albums:
    2
    Location:
    The Mild Midwest
    yeah, I only had to spray the new unfinished neck. not enough patience to do the body at this point. heck, I haven't even sanded down the sprayed neck (except where I had a couple of runs). I'll take some really fine steel wool to the back of the neck, otherwise, it doesn't look too bad the way it is ...
