There's another storm brewing!

Discussion in 'Luthier's Corner' started by pilotjones, Dec 7, 2012.


  1. pilotjones

    pilotjones Supporting Member

    Joined:
    Nov 8, 2001
    Location:
    US-NY-NYC
    Storm King #2! Here we go!

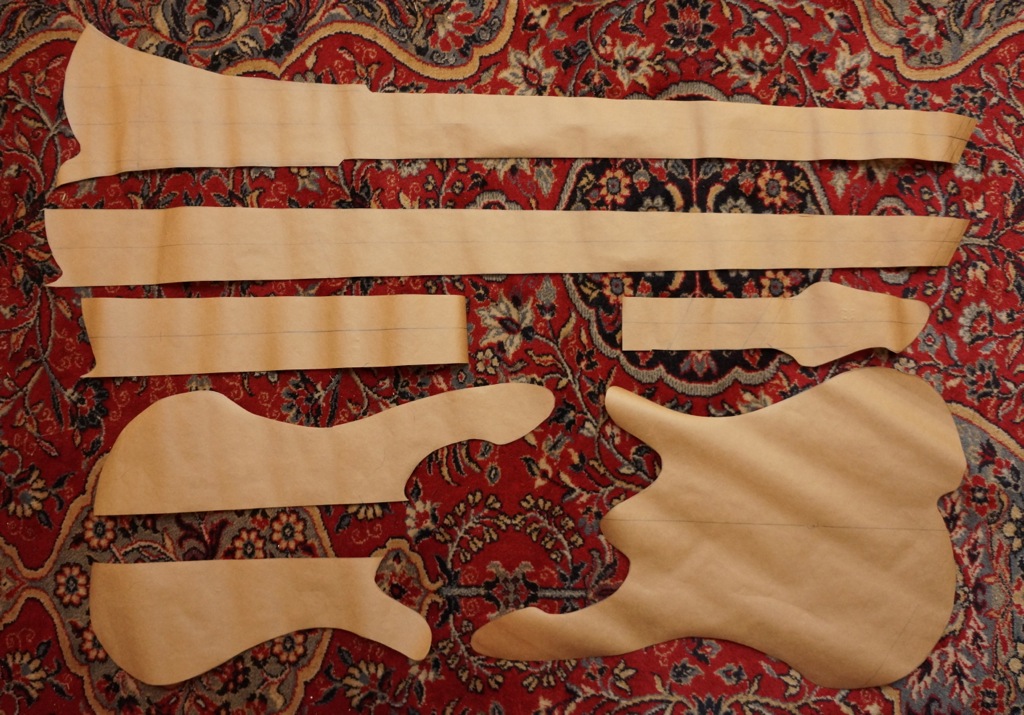

    Specs to follow -- CAD render to follow -- description et cetera to follow -- but in the tradition of showing the details that are not often shown, here are the paper templates for doing wood selection. These will be sent to the wood vendor for selection purposes.
    [​IMG]
    This sending out templates is a new thing for me. Should be interesting.
  2. ctmullins

    ctmullins Registered 8er Supporting Member

    Joined:
    Apr 18, 2008
    Location:
    MS Gulf Coast
  3. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Location:
    Norway
    Oh, I will be watching this. :)
  4. roberthabraken

    roberthabraken

    Joined:
    Jan 8, 2009
    Location:
    The Netherlands
    Cool! I'm in :smug:
  5. Splods

    Splods

    Joined:
    Oct 7, 2012
    Location:
    Adelaide, SA
    Oh god, This might ruin me, seeing another one of your awesome basses take shape.

    Sub'd
  6. Geoff St. Germaine

    Geoff St. Germaine

    Joined:
    Aug 31, 2001
    Location:
    Dartmouth, Canada
    Sweet! This might motivate me to get my fanned 6 moving, though with three archtops and a bass on the go right now I may still have to wait. Can't wait to see progress and anything you may do differently on this build.
  7. Andyman001

    Andyman001 Supporting Member Supporting Member

    Joined:
    Feb 11, 2010
    Location:
    Long Beach, CA
    After the 1st one, definitely subscribed!!!!!!!!!
  8. HaMMerHeD

    HaMMerHeD

    Joined:
    May 20, 2005
    Location:
    Norman, OK
    Well, I was wondering how I would fill the void your 1st build had filled for the past couple of years.
  9. pilotjones

    pilotjones Supporting Member

    Joined:
    Nov 8, 2001
    Location:
    US-NY-NYC
    Thanks, all.

    This one is taking shape a little differently, in that since I'm taking a different route in getting the wood, I am doing more planning in advance. The layers and the construction technique have to be strategized, right on up through the headstock. This is actually good, it should make it move along more quickly. It's probably more in line with how most of you guys go about things.

    As timeline goes, my hope this time is to be able to halve the construction time to one year. So, by the end of 2013. The only problem with that may be in doing finishing during the cold weather. We'll see.


    So, onward.


    General ideas and specs
    • Slightly altered Storm King shape
    • Same general idea of horizontal, symmetrical neck laminations
    • Fanned fret 5er. Will either keep the same 33.5-36" scale, or alter it slightly.
    • Fingerboard through body, with sculptural aspect
    • Another new bridge design
    • Will have to figure out an accompanying new design for string anchorage
    • Not sure about doing another double-dovetail cavity cover. That was a pain. Maybe Pedulla style this time. Almost certainly with magnets, and grain-matched.
    • Will be chambered if the wood weight warrants it
    • If it works out, another new method of doing fret position markers
    • An interesting pickup configuration
    • Some ambitious pickup covers
    • Pickups custom by Kent Armsrong
    • ? preamp. Will likely add a passive treble rolloff
    • Will stick with the Gotoh 350 ultralite tuners


    I'm sure there will still be room for some improvisation along the way. I think the most rewarding parts of the last build were running into a problem or design challenge, and finding something cool to solve it and make it better than it would have been had the issue not popped up.

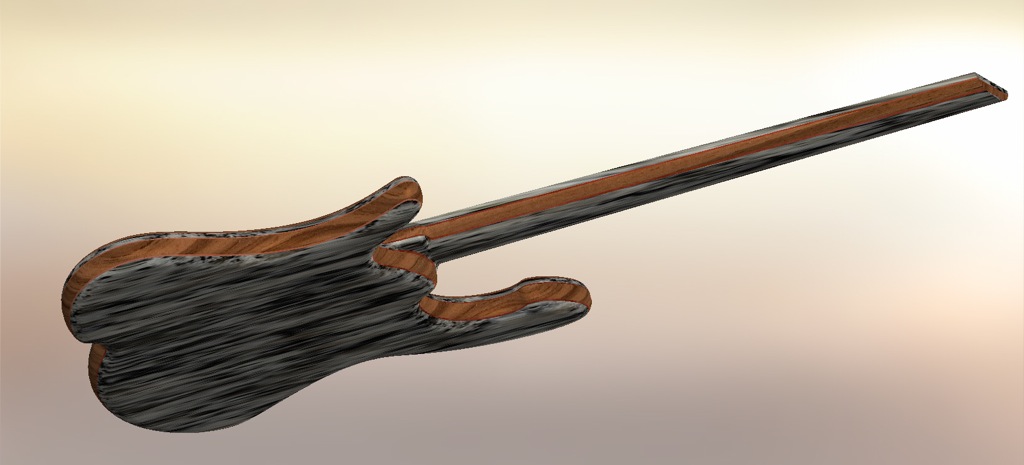

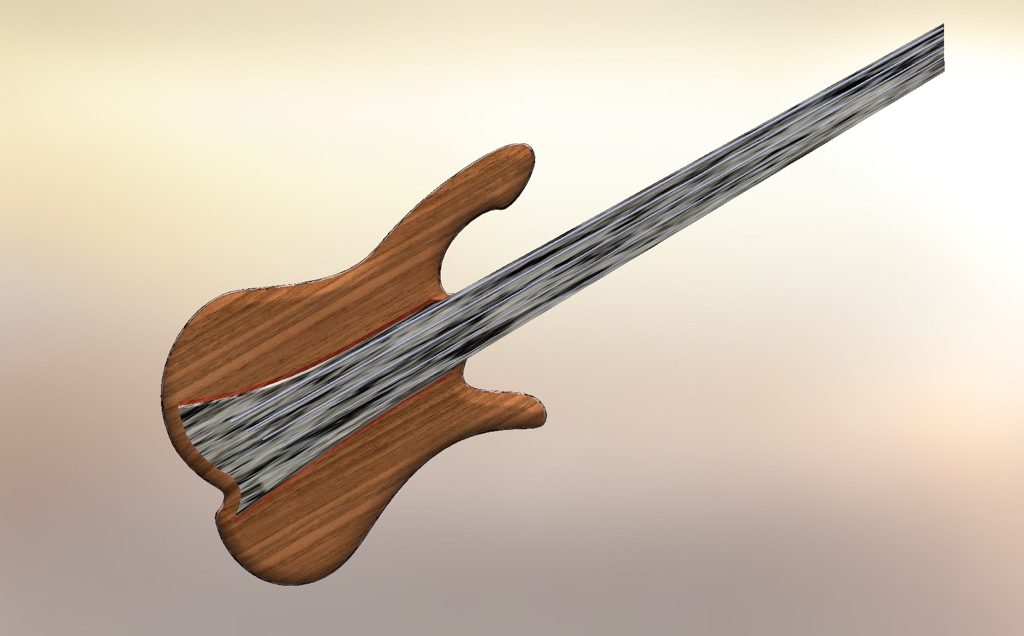

    Here's a general rendering. Note that
    - the fingerboard sculpting is only roughly approximated. And the tail end will not be abrupt like that.
    - the heel will look nothing like that. It would take me longer to model it in CAD than to carve it.
    - this shows the wood scheme, but not the actual woods - the colors are vague references only
    - yes, it will have a headstock
    [​IMG]
    [​IMG]

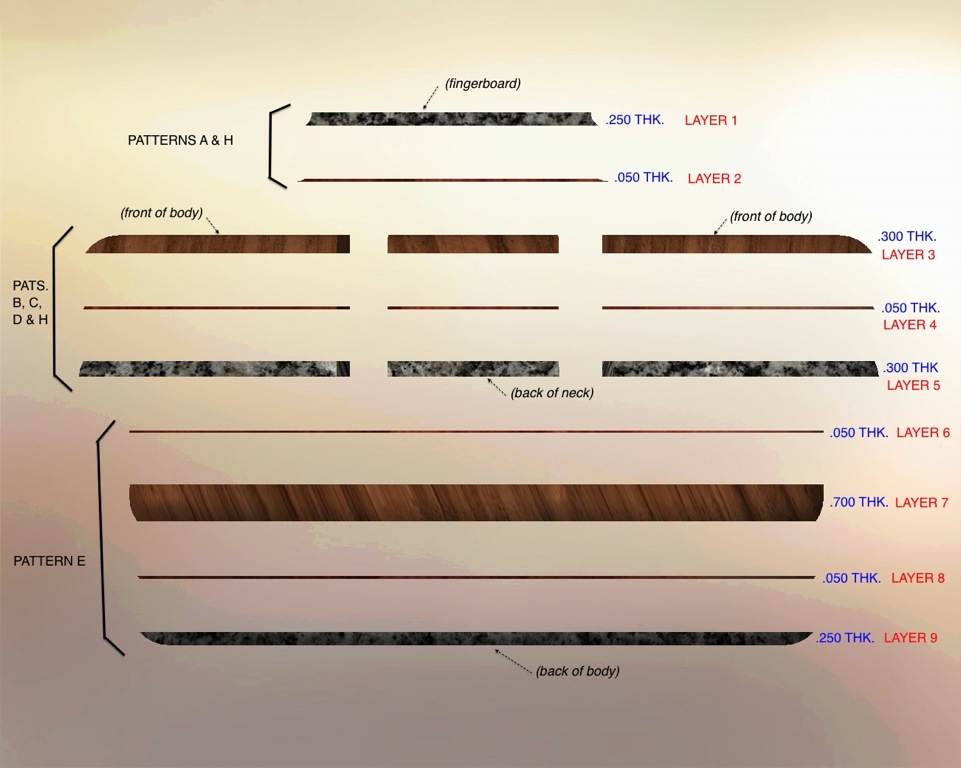

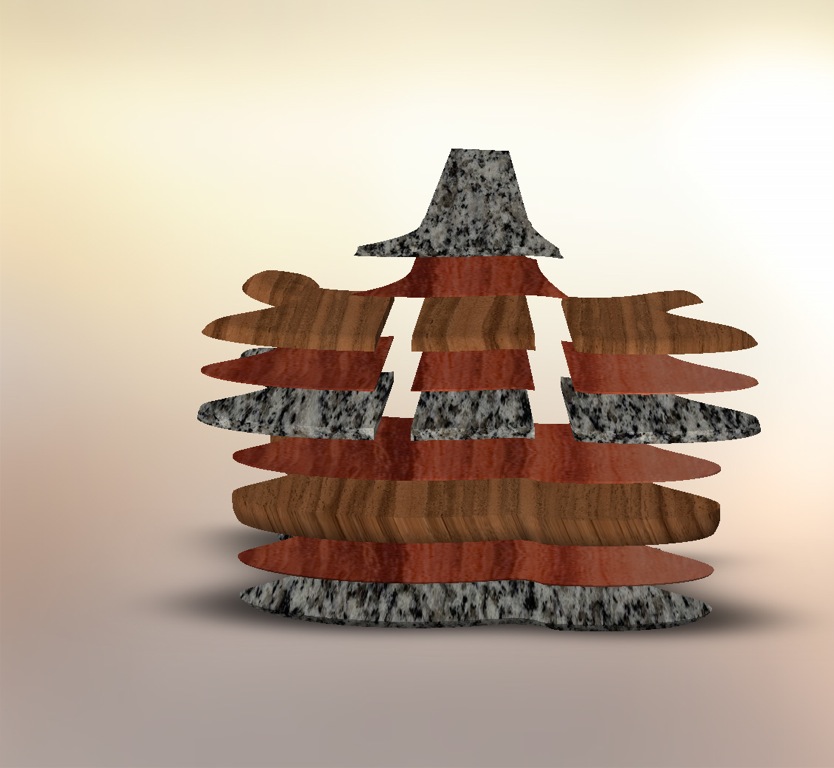

    Here are the layers, broken up.
    [​IMG]
    [​IMG]
  10. Musiclogic

    Musiclogic

    Joined:
    Aug 6, 2005
    Location:
    Southwest Michigan
    Disclosures:
    Owner/Builder: HJC Customs USA, The Cool Lute, C G O
    Will be expecting a very cool result. Have fun with it PJ.
  11. iamlowsound

    iamlowsound

    Joined:
    Nov 30, 2005
    Location:
    Listowel/KW Ontario
    Ooooooh! I am excited for this! You last build thread was the best build thread ever, not to put any pressure on you for this or anything :ninja:

    lowsound
  12. HaMMerHeD

    HaMMerHeD

    Joined:
    May 20, 2005
    Location:
    Norman, OK
    Is that...granite?
  13. pilotjones

    pilotjones Supporting Member

    Joined:
    Nov 8, 2001
    Location:
    US-NY-NYC
    Yes, indeed, the CAD material is granite. I don't have any contrasty-stripey woods, so I put that at a couple of degrees angle so that it stretched across the surface. But, no actual granite in the bass.

    (Although I've considered it. It's with all the woods in my material properties spreadsheet.)
  14. HaMMerHeD

    HaMMerHeD

    Joined:
    May 20, 2005
    Location:
    Norman, OK
    I think it'd be interesting to work with a granite fingerboard.
  15. Smilodon

    Smilodon Supporting Member

    Joined:
    Feb 18, 2012
    Location:
    Norway
    Think about the end result, though. It would probably be awesome on a fretless.

    May be a bit on the weighty side, though. :smug:
  16. miziomix

    miziomix Über on my mind Supporting Member

    Joined:
    Sep 28, 2009
    Location:
    Milan, Kuala Lumpur
    I vote for granite all the way and await WIP pictures with a beer mug in my hand :D
  17. loopee

    loopee Gold Supporting Member

    Joined:
    May 12, 2009
    Location:
    Surrey, B.C. Canada
  18. pilotjones

    pilotjones Supporting Member

    Joined:
    Nov 8, 2001
    Location:
    US-NY-NYC
    Www.nexus-guitars.comNexus makes instruments with granite fingerboards. It's a cool idea, but I'd rather not get into gluing frets at this point. (And sourcing or manufacturing glueable fretwire.)

    Also I like having symmetry in the neck for stability reasons, and I wouldn't want a granite back of the neck.
  19. Musiclogic

    Musiclogic

    Joined:
    Aug 6, 2005
    Location:
    Southwest Michigan
    Disclosures:
    Owner/Builder: HJC Customs USA, The Cool Lute, C G O
    I wonder if PJ hums "Stormy Weather" when he starts builds....LOL. with a micro brew of course.
  20. mikebpeters

    mikebpeters

    Joined:
    Aug 29, 2011
    Location:
    NS, Canada
    very exciting - if this build is only half as good as the last one it will still be the second best build thread here :)
