Tube tester

Discussion in 'Amps [BG]' started by two fingers, Jan 23, 2013.

  1. two fingers

    two fingers Loud Mouth Know It All Blowhard Gold Supporting Member

    Joined:
    Feb 7, 2005
    Likes Received:
    0
    So, these days, where would you guys (who are into that kind of thing) go about finding a tube tester? What kind? Who calibrates them (or can I)?

    Background: I'm in school for electronics and one of my goals is to be able to hot rod and fix amps, even if only a hobby for myself.

    If this is in the wrong spot, please throw it over where it belongs. Thanks!
  2. B-string

    B-string Supporting Member

    Joined:
    Nov 21, 2008
    Likes Received:
    7
    Ebay is usually your friend here or estate/garage sales, sometimes CL. Brands? Hickok, Sencore, Eico. Most you can do a search and find repair and calibration info. No tube tester is 100% and testing methods very. I like my Sencore MU-140 for the Gm, Emission, grid leak and simple "life test". The very best tube tester is the circuit in which it is used.
  3. seamonkey

    seamonkey

    Joined:
    Aug 6, 2004
    Likes Received:
    2
  4. jnewmark

    jnewmark Supporting Member

    Joined:
    Aug 31, 2006
    Likes Received:
    1
  5. beans-on-toast

    beans-on-toast

    Joined:
    Aug 7, 2008
    Likes Received:
    25
    The best way to test a tube is at the plate voltage that it will see in service. That's why may say that the best tube tester is the amp itself. All but a couple of testers operate at relatively low plate voltage levels. This doesn't mean that tube testers can't be useful. They can do a lot. I tend to use mine to screen batches of tubes that I get. This is what you want to aim for. Of course, testers like the AT1000 are too expensive for casual use.

    What to look for? A mutual conductance tester should be at the top of the list. Hickok and testers and those made by them under other names are good because they are well made and documentation is available. Documentation includes tube charts (these things are useless without them), schematics, and calibration procedures. There are a number of military testers available. One nice one is the TV-7D. It is small and portable and will test any instrument amp tube. There is a guy in NC that specializes in TV-7 units. He might be able to help you locate one but his prices are up there. Many others offer this kind of service, google "tube tester calibration and repair service".

    Prices of these tester keep going up. People collect them which doesn't help. One good source where prices are low is hamfests. You can find one in your area here. They are a good source for NOS tubes as well. If you're patient, you can find $100 or less deals on all kinds of test equipment.
  6. two fingers

    two fingers Loud Mouth Know It All Blowhard Gold Supporting Member

    Joined:
    Feb 7, 2005
    Likes Received:
    0
  7. jnewmark

    jnewmark Supporting Member

    Joined:
    Aug 31, 2006
    Likes Received:
    1
    Well then, there is alot alot of good info in that thread, most of which I did'nt understand ! :oops:
  8. Bassmec

    Bassmec

    Joined:
    May 9, 2008
    Likes Received:
    1
    Disclosures:
    Proprietor Springvale Studios

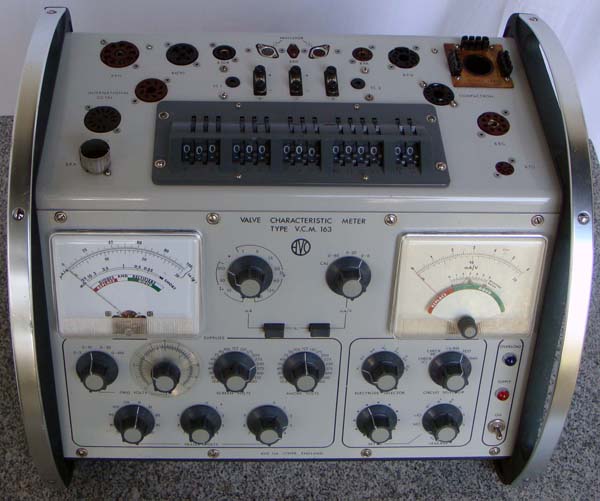

    You need a VCM 163
    [​IMG]
    of course there are other tube testers?, but they just don't tell you anything much about the actual state of the tube you are testing.
    This is what we used when I was at college and nobody thought it wasn't the best by a long long way.:bassist:
  9. beans-on-toast

    beans-on-toast

    Joined:
    Aug 7, 2008
    Likes Received:
    25
    Find an old amp with a good very high voltage power supply, find some surplus rheostats, switches, tube sockets, etc. then build one as a course project and get credit for it. Make everything variable so that you can examine all the operating parameters of the tube. Use a micro controller such as an Arduino and interface it to a computer. Make it even better than an AT1000. That's good for more than one project. If you want to go one step further, make it function as a curve tracer.

    Approach Loud and see if they will donate a junker SVT that you can cannibalize to build a tester. Yes I know, the temptation to fix it and use it as an amp would be too great. :p
  10. nashvillebill

    nashvillebill

    Joined:
    Oct 13, 2002
    Likes Received:
    0
  11. beans-on-toast

    beans-on-toast

    Joined:
    Aug 7, 2008
    Likes Received:
    25
    This site has some interesting info.

    Here are some nice Hickok testers. I have the Western Electric one.
  12. two fingers

    two fingers Loud Mouth Know It All Blowhard Gold Supporting Member

    Joined:
    Feb 7, 2005
    Likes Received:
    0
    Now that thing looks cool. I haven't read up on it yet so that's all I can say right now.

    Edit to add: There don't seem to be any for sale here in the states, but I'll keep my eyes open.
  13. hodgy

    hodgy

    Joined:
    May 5, 2004
    Likes Received:
    0
    Disclosures:
    Tech Support- Ampeg/ Mackie
    I love my Maximatcher.
  14. Franklin229

    Franklin229

    Joined:
    Jul 25, 2004
    Likes Received:
    0
    Hickok 600A owner here-got it from an old guy years ago who was closing up his TV repair shop and retiring. Its built really well and while I don't use it that often, it sure has come in handy.
  15. seamonkey

    seamonkey

    Joined:
    Aug 6, 2004
    Likes Received:
    2
    Ampeg Heritage Endorsement right here :)
  16. T-Bird

    T-Bird

    Joined:
    Apr 29, 2007
    Likes Received:
    0
    Hi.

    ^This.

    And especially THIS^^^

    Back in the late 80's/early 90's I was dying to get a tube tester.

    I searched high and low, actually long enough that my immediate desire to test tubes practically faded (USSR vanished, and the price of bulk tubes skyrocketed), but one thing became very clear.

    There was no such thing as a tube tester for audio use. Not one costing less than a fortune anyway.

    If beans-on-toast's suggested approach of gutting a SVT (I was going to suggest the same because of the high enough anode voltage :)) still sounds too complicated or too expensive, folks have built a lot of tube testers for audio use from the simple AX84.com circuits.

    Good luck.

    Regards
    Sam
  17. Pilgrim

    Pilgrim Supporting Member

    Joined:
    Jul 8, 2004
    Likes Received:
    1
    I have two tube testers, one is a Heathkit assembled in the 60's; the other is a briefcase-sized unit. They're around if you search Ebay and other sites...don't know about prices, because I got both free by being in the right place, right time.

    Don't get too obsessive about exotic tube testing procedures. A general purpose tube tester will tell you whether a tube is functional or not. Seems like people think tubes are big ju-ju now, but I grew up when every grocery store had a tube tester sitting next to the checkout counters.
  18. seamonkey

    seamonkey

    Joined:
    Aug 6, 2004
    Likes Received:
    2
  19. B-string

    B-string Supporting Member

    Joined:
    Nov 21, 2008
    Likes Received:
    7
    YEA more snake oil! Do you need a $1500 power cord or just 2 AA batteries :D
  20. DJJazzV

    DJJazzV Spaulding get your foot off the boat! Supporting Member

    Joined:
    May 17, 2007
    Likes Received:
    0
    I like my DynaJet Model 606 tester. Less than $150 on ebay a while back. Tells me Shorts, Grid Emission, and Quality of the new or vintage tubes. I've tossed a few tubes in the garbage before they got put in amps or preamps thanks to this tester. Simple, compact, and useful.
