Weird Truss Rod Nut Issue

Discussion in 'Hardware, Setup & Repair [BG]' started by JC87, Dec 24, 2013.


  1. JC87

    JC87 Supporting Member

    Joined:
    Sep 25, 2013
    I have a 1992 Fender Jazz Bass Plus, that I have had for years that has a truss rod issue. Can anyone tell me what i cn do when my truss rod looks like this?

    [​IMG]

  2. Zooberwerx

    Zooberwerx Gold Supporting Member

    Joined:
    Dec 21, 2002
    Location:
    Virginia Beach, VA
    Difficult to make out the finer details but it appears whatever is visible would accept a narrow flathead screwdriver. I'd hold off until some of the Fender experts chime in.

    Edit: is there anything at the butt-end of the neck?

    Riis

  3. JC87

    JC87 Supporting Member

    Joined:
    Sep 25, 2013
    Nope i removed the body

  4. NYCbassist

    NYCbassist Supporting Member

    Joined:
    Mar 10, 2007
    Location:
    Mount Airy, North Carolina
    Yep, Use a flat head and remove whatever that is and get a real Fender nut to put back in. Remember to relieve the tension before removing it by placing it on a flat surface and pushing down in the middle. ie; a kitchen table or a workbench.

  5. Register to disable this ad
  6. JC87

    JC87 Supporting Member

    Joined:
    Sep 25, 2013
    Thanks for the advice! Ill give it a shot!

  7. Zooberwerx

    Zooberwerx Gold Supporting Member

    Joined:
    Dec 21, 2002
    Location:
    Virginia Beach, VA
    Have you ever seen anything like that before?

    To the OP: if you're able to remove the component in question, please post a pic. If resistant, leave it be and at least determine if it works.

    Riis

  8. NYCbassist

    NYCbassist Supporting Member

    Joined:
    Mar 10, 2007
    Location:
    Mount Airy, North Carolina

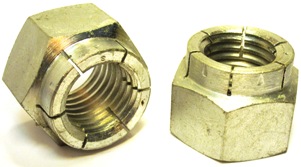

    That looks like a locknut to me. I'd bet dollars to donuts:)
    [​IMG]

  9. JustForSport

    JustForSport

    Joined:
    Nov 17, 2011
    If that is a split type locknut, it's not in original condition.
    Doesn't look like enough space to get a socket on it.
    Any way to get a super-macro photo with a bit more light in there?
    Maybe a large Torx bit will get a good enough purchase on 6 points, but like was mentioned previously, sure need to relieve all pressure from the trussrod first.
    A very small drop of penetrating oil applied with a needle tip an hour or so before trying may help, also.
    Really hard to see what that is in there, tho, from the one photo.

  10. JC87

    JC87 Supporting Member

    Joined:
    Sep 25, 2013
    So i tried to remove it with all the tools i have and still got no where, ill have to take it to a luther and see what they can do with it. I was able to get a closer pick and was a able to get it cleaned up a bit

    [​IMG]

  11. JustForSport

    JustForSport

    Joined:
    Nov 17, 2011
    Sort of looks like those locknuts posted earlier, but with no flats on the outside. And the inside hex corners don't line up with the 6 outer slits...weird.
    Looks like maybe a filler, glue or something over the outer hex flats.
    Did you try a spiral grooved Easy-Out?

  12. BAce

    BAce

    Joined:
    Jul 31, 2012
    Watcha got right there is called a castellated nut. And a damaged one at that. It may take some doing to get it out. Worst case scenario, a saw blade on a dremel, at parallel to the neck/fretboard joint, saw right through the wood and cut a slot into the nut so you can remove it with a flat blade screwdriver. Before you install a new "proper" nut you'll have to repair the saw slot in the wood with a piece of veneer and glue. Not an easy job at best. First I'd try futzing about with various other tools to try to get a good enough purchase on that nut to loosen it off.

  13. 96tbird

    96tbird This Indian movie is really boring man.

    Joined:
    Dec 13, 2010
    Location:
    Manitoba, Canada
    ^That's a great idea. NOT.

    My eyes say that is a stripped our Allen nut. Am I seeing things? I see a socket a with score marks in it from something like an easy out. I see a truss rod in the center that is corroded and frozen to the nut that the easy out chewed out. I see splits at the points of the old hex where it split when someone tried driving a larger Allen in after it was stripped to try and gain purchase to turn it out. Next the easy out was used and just chewed it out because it is split in six places and couldn't get a grip.

    I could be wrong but not as wrong as slicing the neck in half! At some point you'll likely have to either get the board pulled to replace the rod or get a new neck.

  14. Zooberwerx

    Zooberwerx Gold Supporting Member

    Joined:
    Dec 21, 2002
    Location:
    Virginia Beach, VA
    The second pic appears markedly different from the original. Did pieces snap off during your attempts to remove it? As Walter points out, the component may be chewed beyond redemption. The only last-ditch thing I can think of would be:

    *Zap it with some type of thread-buster.

    *Heat it with soldering iron.

    *Use a Dremel burr bit (mounted on a flex cable) and working from the inside-out, "trench" the existing slots I see at the 10 and 4:00 positions. Again, I'm working on the pretense the remnants will accept a FH screwdriver tip. I've done this before w/ 3mm truss rod nuts (stripped / dual acting).

    Edit: after reviewing the pic for the umpteenth time, the nut (or whatever it is) appears to be sitting in some sort of well or receiver (shiny outer perimeter) which, in all likelihood, does not turn. OTOH, the score marks on top transcend both the nut and receiver. The point being that when introducing a tool of any type, make sure contact is focused on the nut itself and nothing else.

    Riis

  15. Geri O

    Geri O

    Joined:
    Sep 6, 2013
    Location:
    Florence, MS
    I may the kind that gives up too easily, but by the time I made it to the second pic, my replacement neck would be on its way to my house.

    Geri O

  16. JC87

    JC87 Supporting Member

    Joined:
    Sep 25, 2013
    I really wish i could get an aftermarket neck cheap and easily, but this bass has one of Fender's 22 fret necks and isnt easy to find after market. So as of now im stuck with it in this condition unless i can pop that nut off, or replace the rod and frets.....

  17. Stealth Fighter

    Stealth Fighter

    Joined:
    Apr 14, 2013
    Location:
    Eastern North Carolina, USA
    It appears that the end of the truss rod is somewhat mushroomed over then end of the nut (thingamabob). If this is correct, it seems that the first step should be to grind away the mushroomed portion of the TR. Then, I would try some of these:
    [​IMG]

  18. walterw

    walterw Supportive Fender Gold Supporting Member

    Joined:
    Feb 20, 2009
    great picture!

    yeesh, that looks to me like no truss rod nut at all, no truss rod end either (sheared off flat at the "bottom of the well" there) and some sort of metal collar or sleeve around the whole thing.

    bad news, i don't even know if the stew mac truss rod saver thing will fix this since that collar or whatever is in the way.

    we might be looking at a fretboard removal and truss rod replacement to have any hope here.

  19. walterw

    walterw Supportive Fender Gold Supporting Member

    Joined:
    Feb 20, 2009
    OR...

    it also looks like the entire thing is the truss rod nut! i have a faint memory of some weird pre-american standard basses using a really big hex wrench size, like bigger than 3/16" or 5mm. i can just see 6 little ridges down the sides of the well, that may be what's left of the hex shape.

  20. 96tbird

    96tbird This Indian movie is really boring man.

    Joined:
    Dec 13, 2010
    Location:
    Manitoba, Canada
    That was my guess some posts back. The splits could be caused by banging a larger Allen in to try and gain purchase on the stripped socket.

  21. walterw

    walterw Supportive Fender Gold Supporting Member

    Joined:
    Feb 20, 2009
    not the splits on the top edge there, i can see what looks like 6 faint grooves on the sidewall, a good 5 or 10 degrees counterclockwise from the splits.
