Wiring Diagram if possible

Discussion in 'Pickups & Electronics [BG]' started by bmayolle, Nov 13, 2012.


  1. bmayolle

    bmayolle

    Joined:
    Nov 1, 2009
    Location:
    Ossining, N.Y.
    I have a set of Nordstrand dc5 pups...and would like to wire

    with 2 volume 1 Blend 2 switches on/on/on


    neck
    1 volume series/ parallel /single coil

    Blend

    Bridge
    1 Volume series/ Parallel / single coil


    Any help would be awesome....Thanks in advance

  2. iiipopes

    iiipopes Supporting Member

    Joined:
    May 4, 2009
    Have you contacted Nordstrom directly?

  3. ctmullins

    ctmullins Registered thumper Supporting Member

    Joined:
    Apr 18, 2008
    Location:
    MS Gulf Coast
    Ummmmm - two volumes and a blend? Why would you want to do that?

  4. bmayolle

    bmayolle

    Joined:
    Nov 1, 2009
    Location:
    Ossining, N.Y.
    I meant to say tone but have to many things in my head at same time. Late and long night

  5. Register to disable this ad
  6. line6man

    line6man

    Joined:
    Jun 20, 2008
    Location:
    Close to Los Angeles, CA

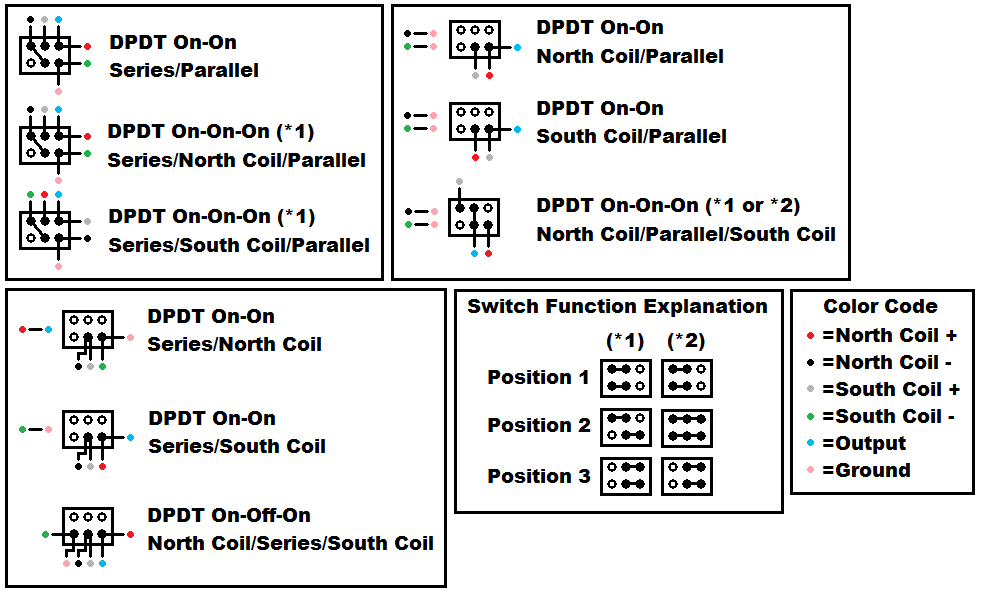

  7. bmayolle

    bmayolle

    Joined:
    Nov 1, 2009
    Location:
    Ossining, N.Y.
    TY that's excellent
