Wiring Help

Discussion in 'Pickups & Electronics [BG]' started by SwagAttack, Dec 24, 2013.

  1. SwagAttack

    SwagAttack

    Joined:
    Sep 14, 2011
    Likes Received:
    0

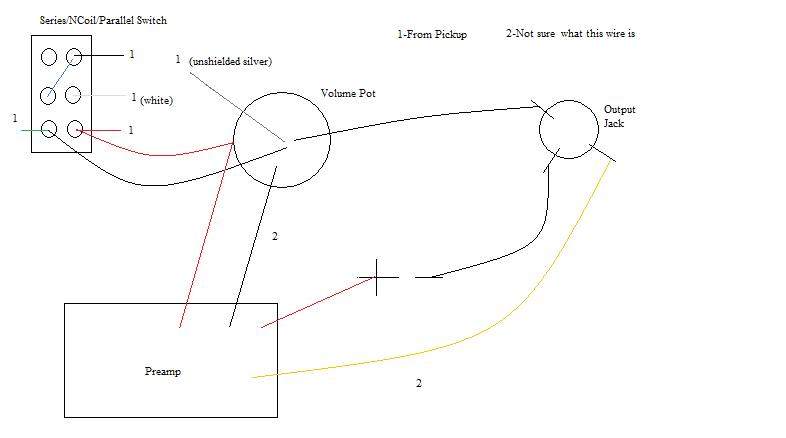

    I have a MEC humbucker and a Bass Mods preamp I am trying to wire up with a series/Ncoil/parallel switch. I wired everything together but no sound is coming out, and I can't figure out why. I have attached a diagram of what I have so far (omitting the bass/treble and other prewired stuff). The only thing I was not sure of was the orange and black wire which come out of the preamp.

    Attached Files:

  2. SwagAttack

    SwagAttack

    Joined:
    Sep 14, 2011
    Likes Received:
    0
    Did a quick work around to check if the switch was working correctly, and it was. So there is a problem sometime after the switch.
  3. line6man

    line6man

    Joined:
    Jun 20, 2008
    Likes Received:
    2
    The volume pot is not wired properly.

    You should have the signal hot going to the first terminal, the second terminal (the wiper) going to the preamp, and the third terminal grounded.
  4. SwagAttack

    SwagAttack

    Joined:
    Sep 14, 2011
    Likes Received:
    0

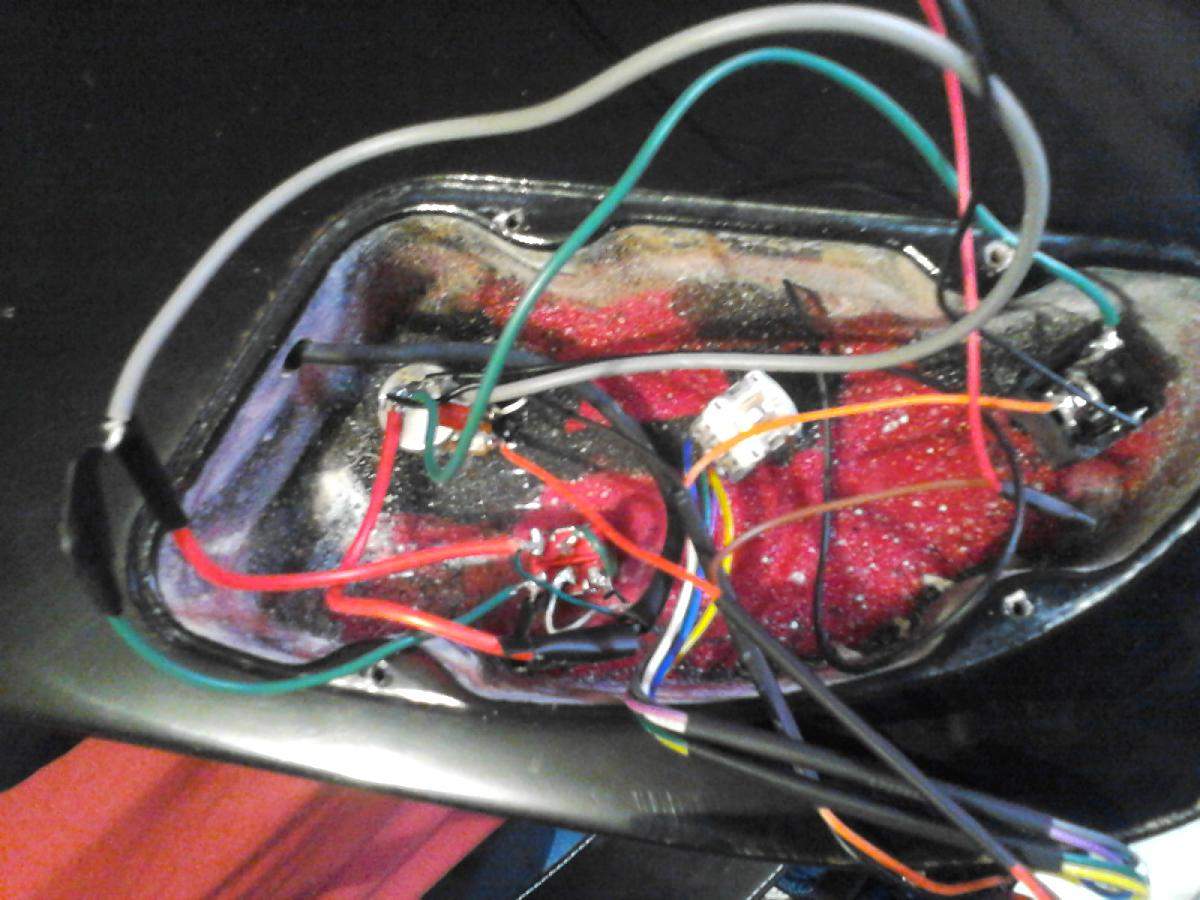

    I didn't include the specifics of the volume pot since it was prewired. I took a picture of it to maybe give a better image of what it looks like
    Grounds on the volume pot: black from preamp, black from bridge, green from jack, unshielded from gray wire, and red from silver unshielded from pickup
    The silver wire on top contains the hot and ground from switch, which goes to the volume ground (as mentioned before) and node.
    The jack has the ground from the battery, green from volume ground, and the orange from the preamp.

    The ones i am unsure of are the orange and black from the preamp. I just couldn't think of anything else to do than put the orange to the jack and the black to the volume ground.

    Attached Files:
