DiMarzio Area J 5 dimensions

Discussion in 'Pickups & Electronics [BG]' started by nacho-, Mar 31, 2016.


  1. Hi there!!

    since dimarzio official website has no information maybe some of you can answer my question.

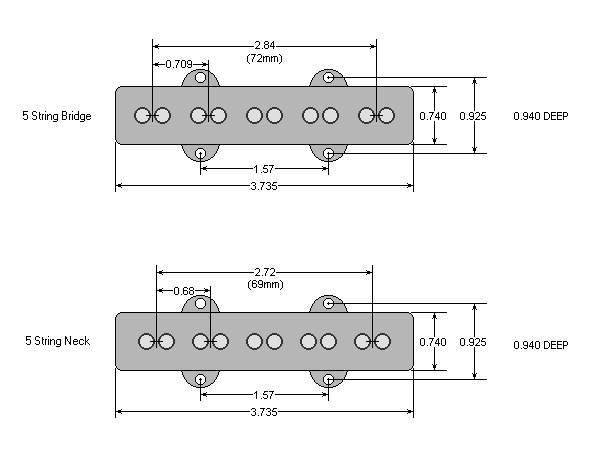

    Are the Area J 5 dimensions the same as the Ultra Jazz 5?? because in the official website there is only information about the Ultra Jazz 5

    http://www.dimarzio.com/sites/default/files/diagrams/549dim.pdf

    and tech support does not mail me back.

    thanks from Argentina !!

    Nacho.

  2. Kalango

    Kalango

    May 9, 2005
    Brazil
    Yes, same length and width. Both 95 mm x 19 mm. As the Area set I measured is installed, I don't know if the depth is the same, but I'm pretty sure the Ultrajazz is a bit deeper.

  3. niiiice, thanks !
