Making the most of a 31 band EQ

Discussion in 'Live Sound [BG]' started by eukatheude, Oct 3, 2013.


  1. So i got myself a cheap 31 band EQ to stack on top of my rig. I've been experimenting a bit with it during rehearsals, but aside from some nice sounds i haven't been able to use it efficiently. Won't have a chance to test it live in a while, since i just moved here and i'm still working on the repertoire with the two bands i found, but i'd like to be prepared when the time comes. Like how to understand which freqs are conflicting with other instruments, hear myself/be heard well, and so on.
    Any tips or links to reading on the matter would be great.
    Thanks.

  2. RustyAxe

    RustyAxe

    Jul 8, 2008
    Connecticut
    This might help ...

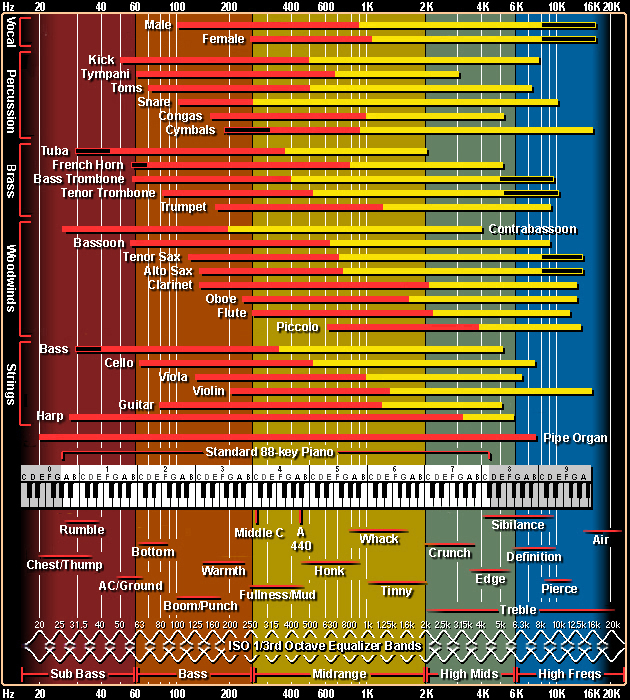

    main_chart.

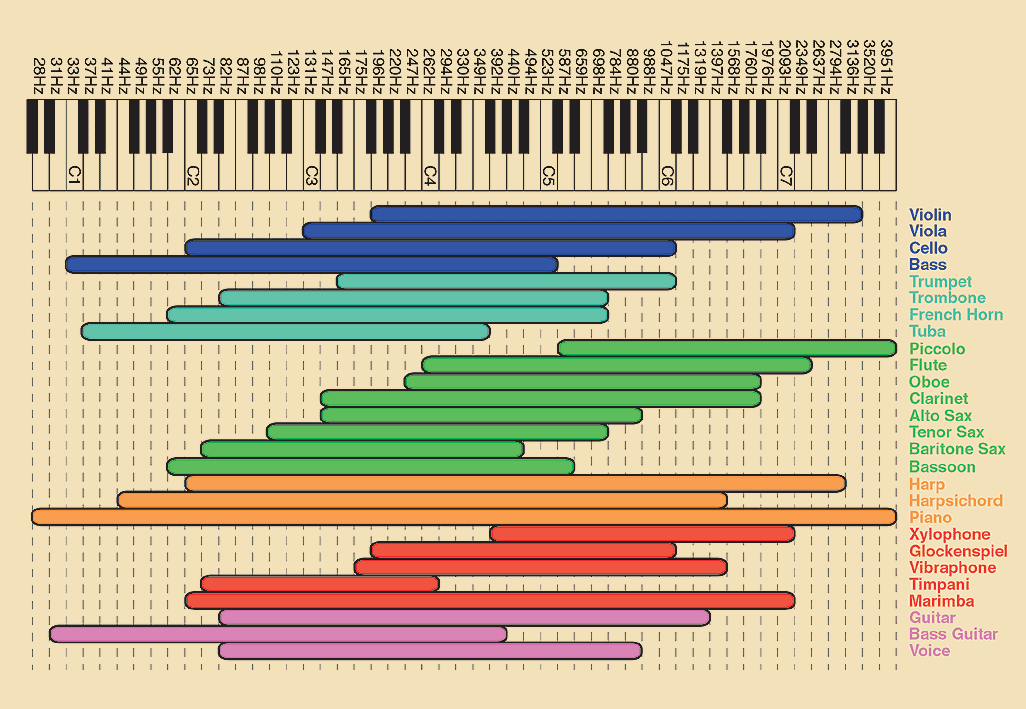

    EQ2.

    [​IMG]

  3. kevinpmajka

    kevinpmajka Supporting Member

    Mar 25, 2013
    Tempe, AZ
    Great charts for novices like myself. Thanks for sharing.

  4. RustyAxe

    RustyAxe

    Jul 8, 2008
    Connecticut
    Goes to show that if you have a pipe organ in your band ... yer screwed! :D

  5. Thanks for sharing! I'm also looking for some general tips.

  6. walterw

    walterw Supportive Fender Gold Supporting Member Commercial User

    Feb 20, 2009
    alpha-music.com
    tip 1?

    skip the 31-band on your bass rig :)

    sorry, there's not much point, and EQ, especially a cheap EQ, is not "free"; you get tone loss and phase shift from all those individual filters, making it usually not worth using here.

    use the graphic on things that need more EQ control, like mains, monitors, maybe acoustic instruments, stuff that the benefit of that much processing is worth the tonal "price".

  7. Awesome charts there Rusty! Thanks for posting

  8. ddhm

    ddhm

    Mar 18, 2011
    Memphis Tn USA
    +1 to Walter

    The typical use of a 31 band graphic EQ is for room correction/speaker correction in either a P.A. or monitor. I'm guessing that you are inserting it in your EFX loop? You've not stated why you wanted that EQ.

    I am of the belief that less filters is better. A 31 band EQ has 31 filters. A parametric EQ has 3 or 4 usually. Shoot, I use a parametric as opposed to graphics @ F.o.H. in all cases if I can. If I can't make it sound good with 3 or 4 filters, it's time to go look at the amps or do it on the channels if it's a bad day..

    beardedclam likes this.
  9. JohnMCA72

    JohnMCA72

    Feb 4, 2009
    Many (most?) people use 31-band GEQs for feedback control. If you can, put one on every individual monitor plus the mains. Where multiple wedges or other monitor speakers are on the same monitor mix, put an EQ on each unit, not just 1 on the mix, because each one will be in a different place & may be susceptible to feeding back on different frequencies.

    Start with all bands flat (no boost, no cut) & mics open/un-muted. Raise the volume until you start to hear a feedback, then back it off until the feedback goes away.

    One at a time, boost each frequency band. If you don't get any feedback, set it back to 0. If you do get some feedback, reduce it below 0 by about the amount above 0 where the feedback started. In other words, if you start feeding back at +6, set it to -6, etc.

    Raise the volume on that mix again & repeat the above. Repeat again for each mix. It may sound like a lot to do, especially if you have multiple monitors, stereo mains, etc., but it can actually be done pretty quickly with a little practice.

    Avoid boosting if you can help it. Whatever you boost comes out of your headroom. Headroom is the amount of power you have available between your average "program" & clipping. That clip point isn't going to move, & any frequency band you boost will be that much closer to clipping. When you get a high-level peak, there will be nowhere to go.

  10. walterw

    walterw Supportive Fender Gold Supporting Member Commercial User

    Feb 20, 2009
    alpha-music.com
    well said!

    parametrics are "real" EQs.

    even then, a full-on 4-band fully parametric EQ is probably still more complexity than you need on a bass rig. the same principle applies here, if you need that much EQ there's something wrong with the rig.

  11. Zooberwerx

    Zooberwerx Gold Supporting Member

    Dec 21, 2002
    Virginia Beach, VA
    Less is more...

    A simple 3 band EQ: treble shelving, bass shelving, and parametric mid will deliver the goods 99% of the time.

    Riis


  12. I understand there must be some "tone suck" and that a para would be better (realised it only after buying the eq), though for what my ears tell me, the tradeoff is acceptable for the tones i'm able to dial in, mostly when using it direct to my audio card. For a while i'll only be using it on the bass (bass > eq > head > cab) since i moved to this city not a while ago and still woodshedding with my new bands. :D


    Great info, thanks! I'll be sure to put this in practice when i get the chance.

    IME 3 controls aren't enough, though i've never owned something with a para mid control.

  13. Stumbo

    Stumbo Wherever you go, there you are. Supporting Member Commercial User

    Feb 11, 2008
    Intergalactic Mind Space CA
    Song Surgeon slow downer software- full 4 hour demo
    Make the bottom end of your eq. into a high pass filter by cutting everything below 40hz.
    If the kick drum is miked, cutting everthing below about 50hz would be good. Attenuating up to 120 or so depending on the venue is helpful to reduce boominess.

    Also, cutting everything above 4khz or so will reduce clankiness, depending on your tone.

    Going wireless(or use a long cord) so you can go FOH is always helpful in setting up your eq.

    Good luck.

    PS. once you find a setting you like, take a picture of it for future reference.

    I use a slow down program (that has a 31 band eq.) , Song Surgeon Pro, that has a fully functional 4 hour demo. You might want to down load it and practice with it so it may help you hear how each frequency changes the tone of the music. http://www.songsurgeon.com/page/demo_or_trial_versions.html?idev=443

  14. Thanks! The EQ already has a builtin HPF and a LPF, i'm already using them. I've found that crazy boosting (+12) the 4k and 5k sliders gives me a lovely kind of clankiness, maybe it's a little bit distorted but i like it.
    I'm already taking pictures.

  15. 1958Bassman

    1958Bassman

    Oct 20, 2007
    When an audio system is installed for fixed installation, the equalization for the system itself is set using an RTA (Real-Time Analyzer) if sound quality is important. This provides the most consistent performance and often, the settings are locked in the menu or the controls are covered, to prevent people from messing with them.

    If you aren't running your signal through the PA, fine- get your sound and make it whatever you want but if you DO go through the PA, you'll usually find that the FOH sound won't necessarily be great if you get your sound and then the PA operator EQs it. The chance of conflicts is greater if your rig contributes substantial SPL.

    I would recommend not using the EQ for gigs until you get up to speed on using it effectively. WRT hearing yourself/being heard well, you'll need to learn about human hearing, a bit about acoustics and the way they interact. Without understanding these, it's going to be an uphill climb. Download a program like TrueRTA or RoomEQ Wizard for a free RTA- TrueRTA is only one band per octave, so it's a lot less able to show what each band is doing but RoomEQ Wizard will show much finer detail. You can inject the signal using a smart phone, tablet or laptop with an audio cable that has a 1/4" plug. The mic and sound card should be fine for this use.

    Now that you have found the effect of boosting the 5-6KHz bands, you need to learn that boosting by 12dB will cause problems- you already hear the distortion, now here's the reason: each time you increase the level of a signal or EQ band by 3dB, you have doubled the energy at that frequency (and nearby frequencies, subject to the Q of the filter). Increasing it by 12dB means that you have doubled it four times- (+3dBx4=12dB), resulting in a boost in energy of 16 times. If you're running at 100W, you have now attempted to force the amp to output a lot more power than is possible and if you do this at lower frequencies, you WILL kill some drivers. This isn't just a possibility, it's a certainty. Boosting also increases noise.

  16. Thanks for the advice! I don't have a mic ATM, but will probably get one when the need arises. Do you know of any study material that i could use for learning more about acoustics?
    I understand that. That little distortion i hear, i would call it desirable. I know it's going to create trouble with lower freqs and won't boost them that way. I also know that boosting will increase noise, but so far it has remained within acceptable levels.
