Moonshine presents the platypus of basses... The Rip-O-Nator!

Discussion in 'Luthier's Corner' started by moonshinegtrs, Dec 22, 2018.


  1. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars

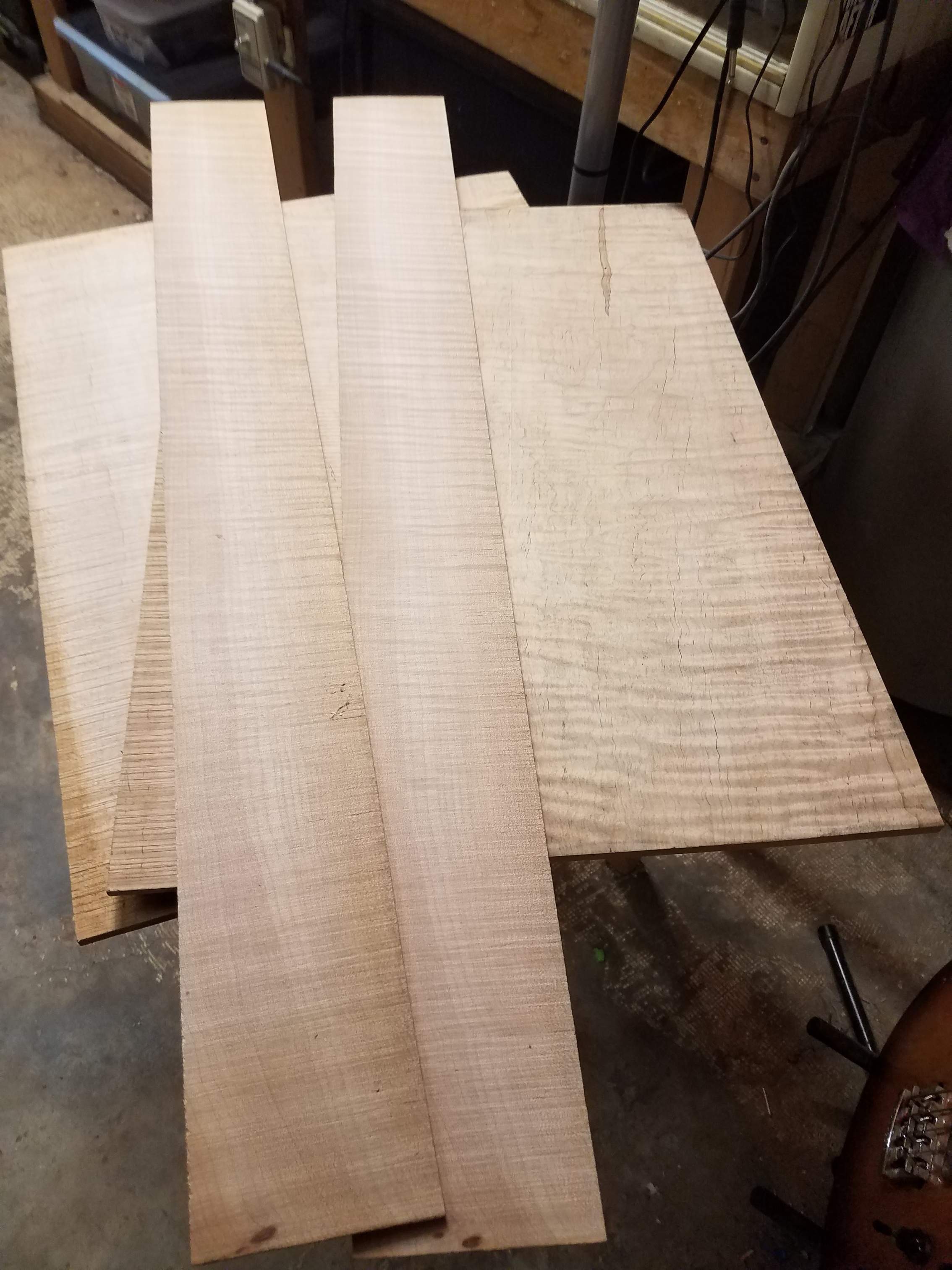

    Wood pic (complete with requested post...):
    mashup.

    These humble beginnings are the start of a journey into madness... Otherwise known as the "Moonshine Zone" (think cheap synths and two tin foil pie pans taped together with Christmas lights...). Cue the freaky music!

    Moonshine’s Entry: The Trip-O-Nator Bass
    (a mashup of Gibson’s iconic instruments)

    Here is my design elements:
    * Loosely based on the Trini Lopez model guitar (F-holes, inlays, etc…)
    * Les Paul Signature Bass Body (bound top/back)
    * Pickups: 1 Ripper and 1 EB0 Mudbucker pickups
    * Modified Thunderbird style headstock
    * Dobro style 10 ½” resonator (modified via MCG custom resonator design) with Dobro Mississippi Voodoo chrome resonator coverplate (Dobro is a Gibson owned company).
    * Bridge/Tailpiece: Dobro Spider style (Moonshine custom redesigned).
    * 7 pc. (?) Thunderbird style Mahogany (thru) neck with ebony fretboard (neck blank is approx 48” long).
    * Curly Maple steam bent rims (ala ES-335)
    * Bookmatched Curly Maple Top/Back; .100” arched and braced (standard Gibson
    acoustic style)
    * Double White/Black/White Binding (most Gibson ES model instrument Translucent Blue (ala Gibson EB650)
    * Chrome Tuners… Hipshot?

    Allllright Everybody!... Everything's cool. .. We're amongst friends...


    Bring it on. ;)



    Moonshine :bassist:

    Freekmagnet, kesslari, Jisch and 8 others like this.
  2. ctmullins

    ctmullins fueled by beer and coconut Gold Supporting Member

    Apr 18, 2008
    MS Gulf Coast
    I'm highly opinionated and extremely self-assured
    Bring it on! :thumbsup:

  3. Jon Clegg

    Jon Clegg Supporting Member

    Feb 9, 2015
    Northern Virginia
    Can't wait to see it!

    moonshinegtrs likes this.
  4. Sounds definitely cool. Likes me some reso bass.

    moonshinegtrs likes this.
  5. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars
    Here is a rough sketch...
    TB Winter Build Off 2018 1.

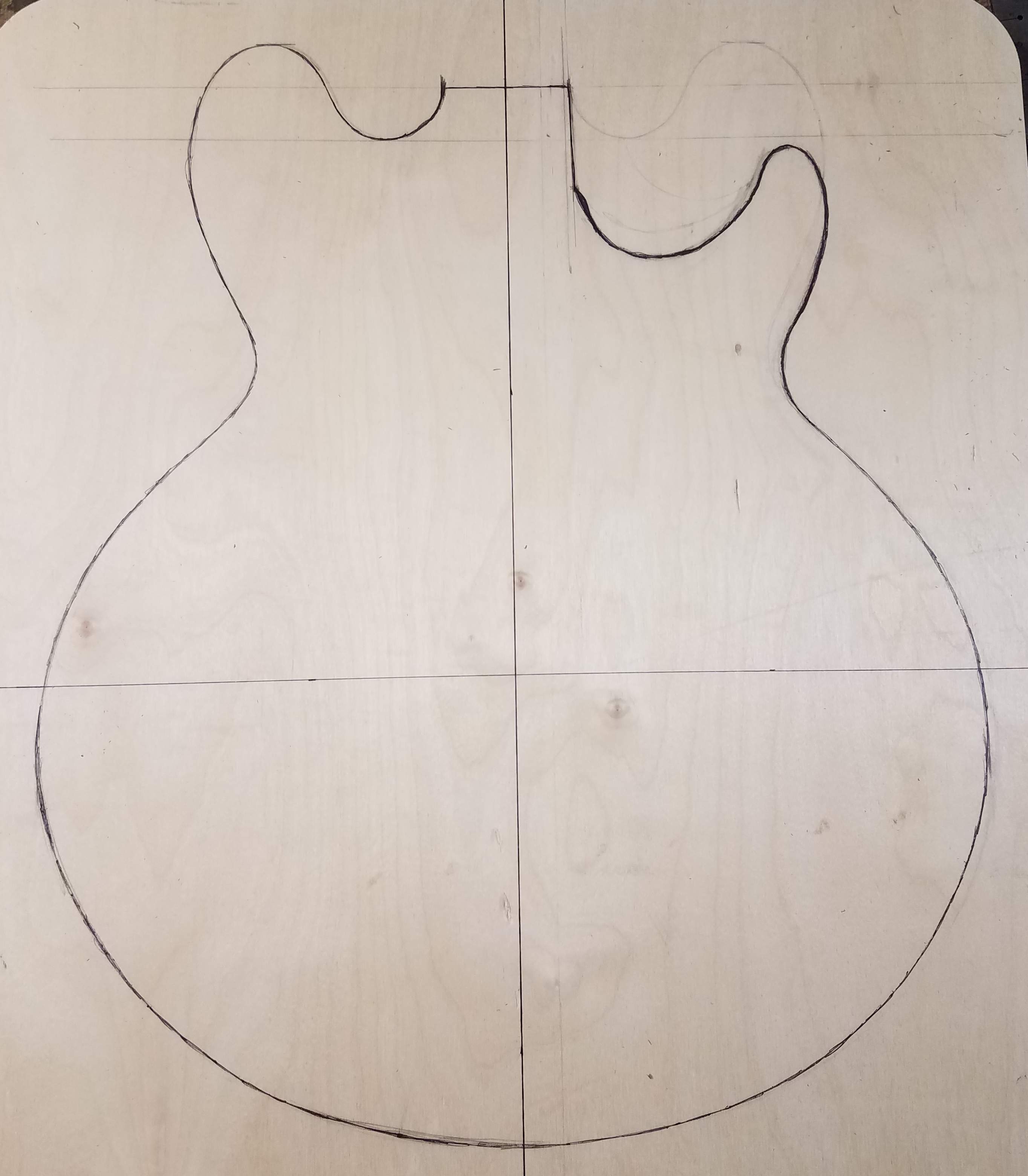

    I first drew out a body outline on a piece of 3/4" plywood, originally this was going to be the top layer of a mold (cut out the inside and cut in half, two layers to make 1 1/2" thick) but then I remembered that I had decided to make this a neck thru bass, so I will need to rethink my approach.
    TB Winter Build Off 2018.

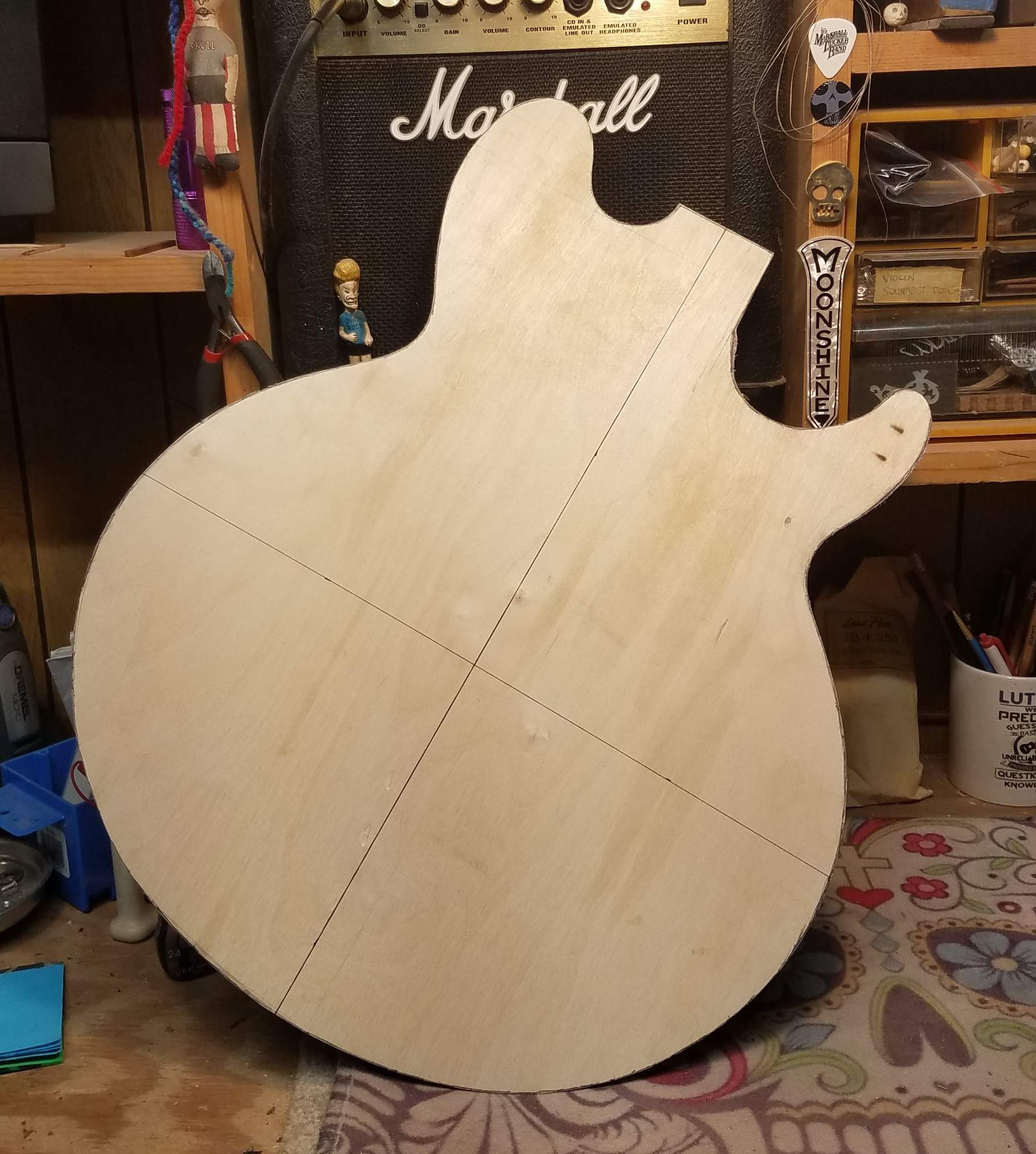

    Instead I cut it out as a template.
    20181221_181423_resized.

    Next I went to work in the headstock. I wasn't happy with the initial drawing, I also decided to use a Tbird shape instead of a Victory bass. I have always had trouble trying to reshape a Tbird headstock. I started with this. The Fender style tuner spacing proved to be too wide so I made adjustments.

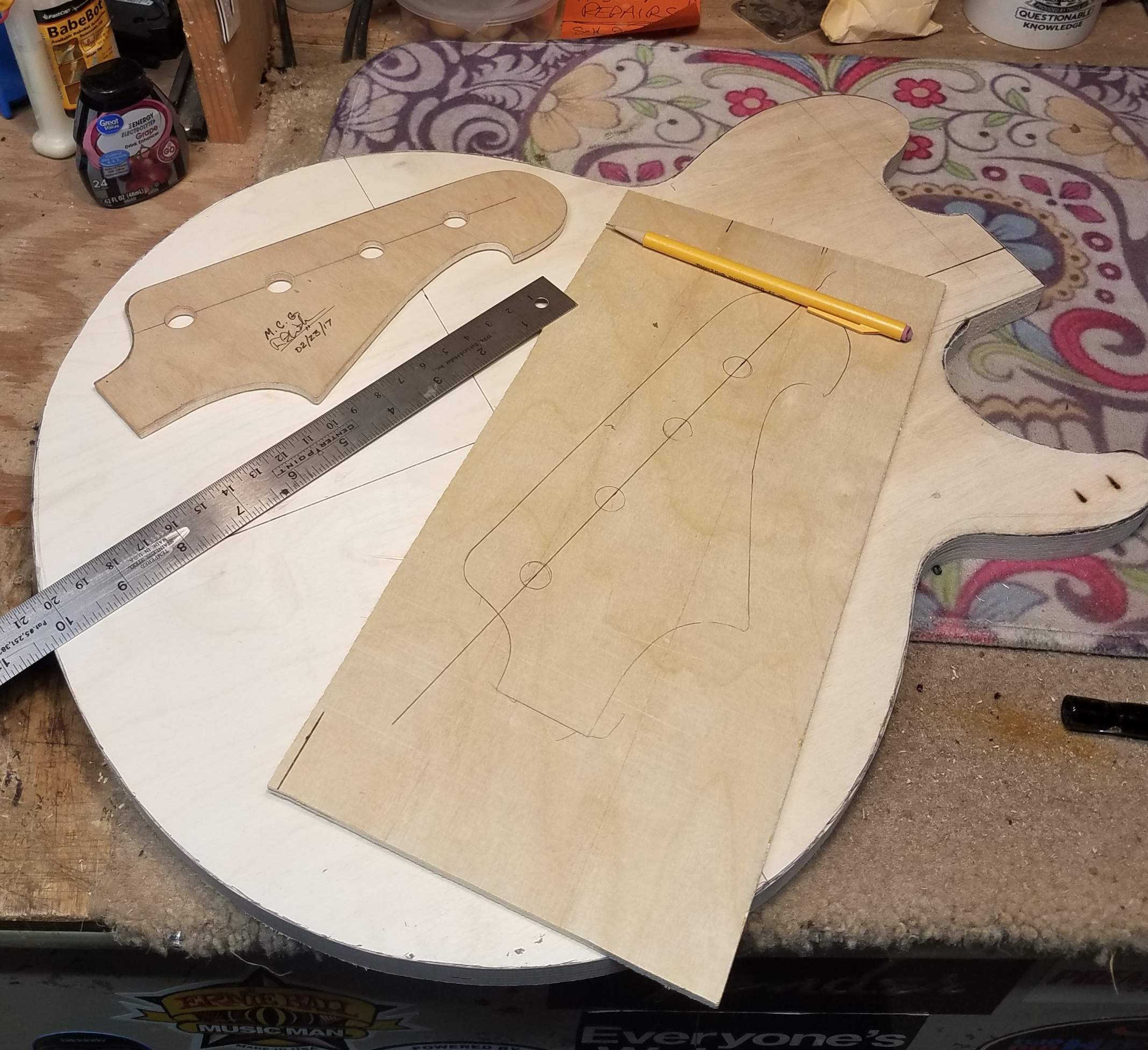

    20181221_181447_resized.

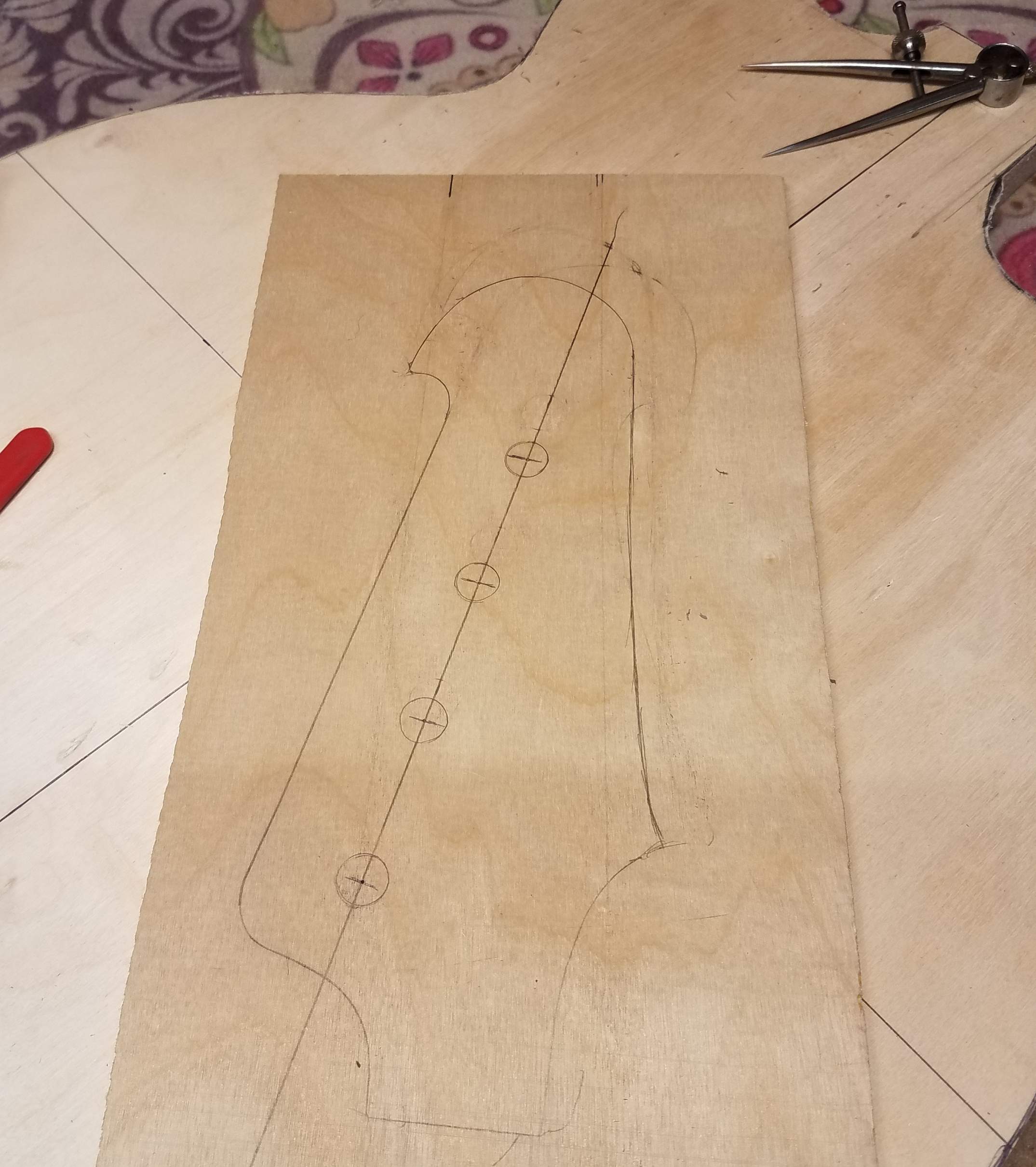

    I then a sketched a TBird peghead and started drawing my design over it. I downsized it as much as I could while still trying to retain the original shape (somewhat, I wanted to put more curve in the design).
    20181221_181505_resized.

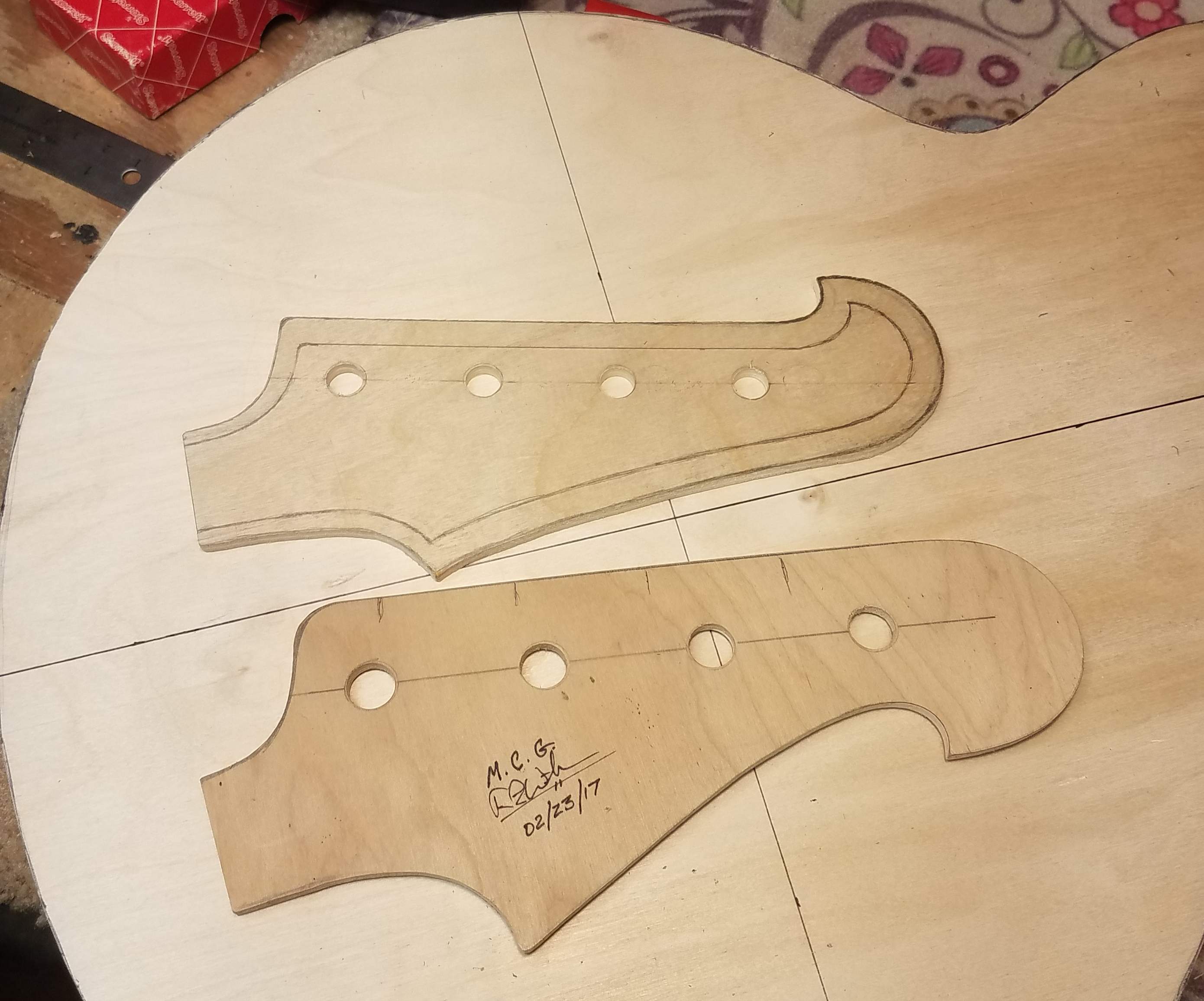

    Final outcome.

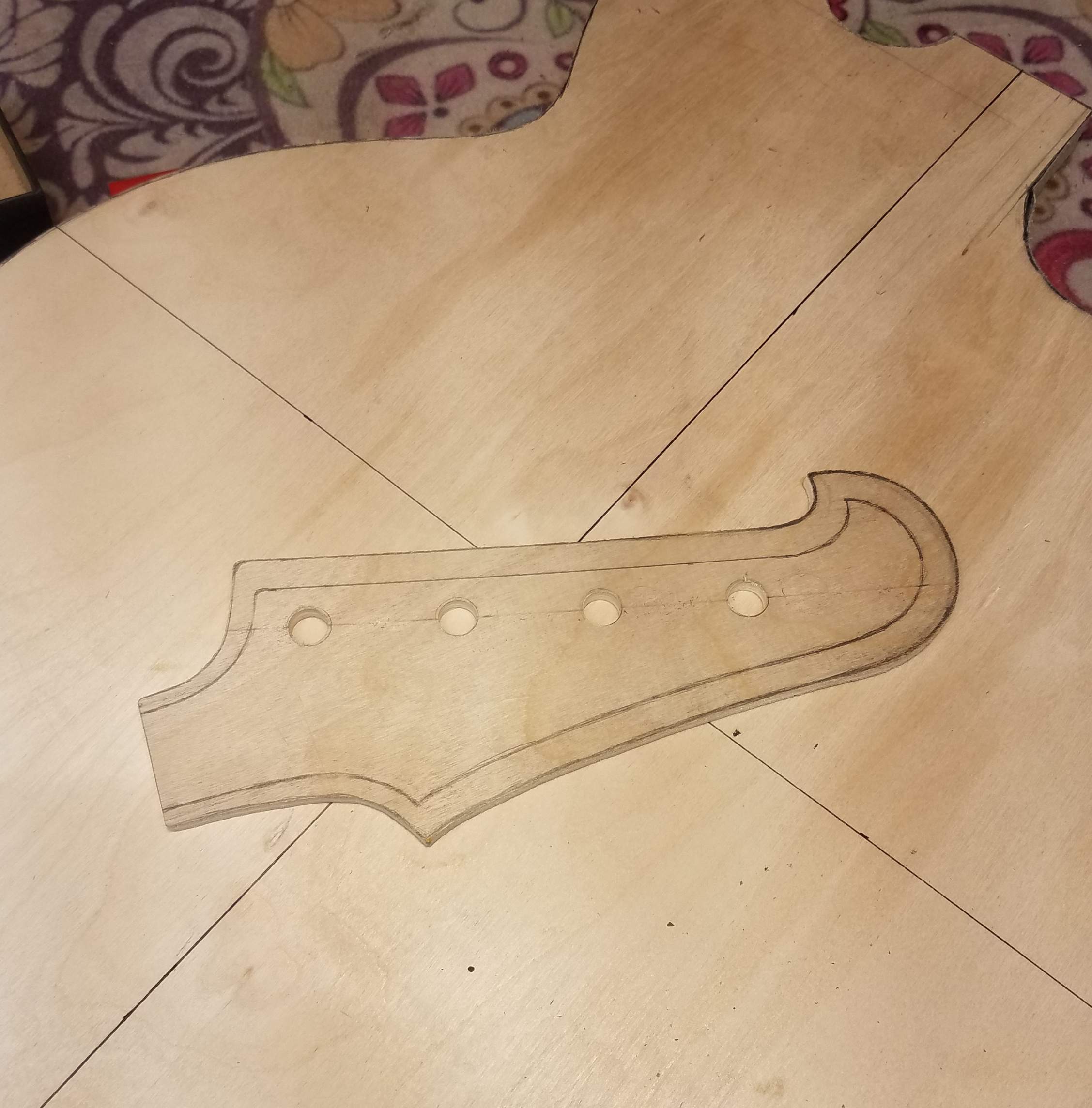

    20181221_181522_resized. 20181221_181545 (1).

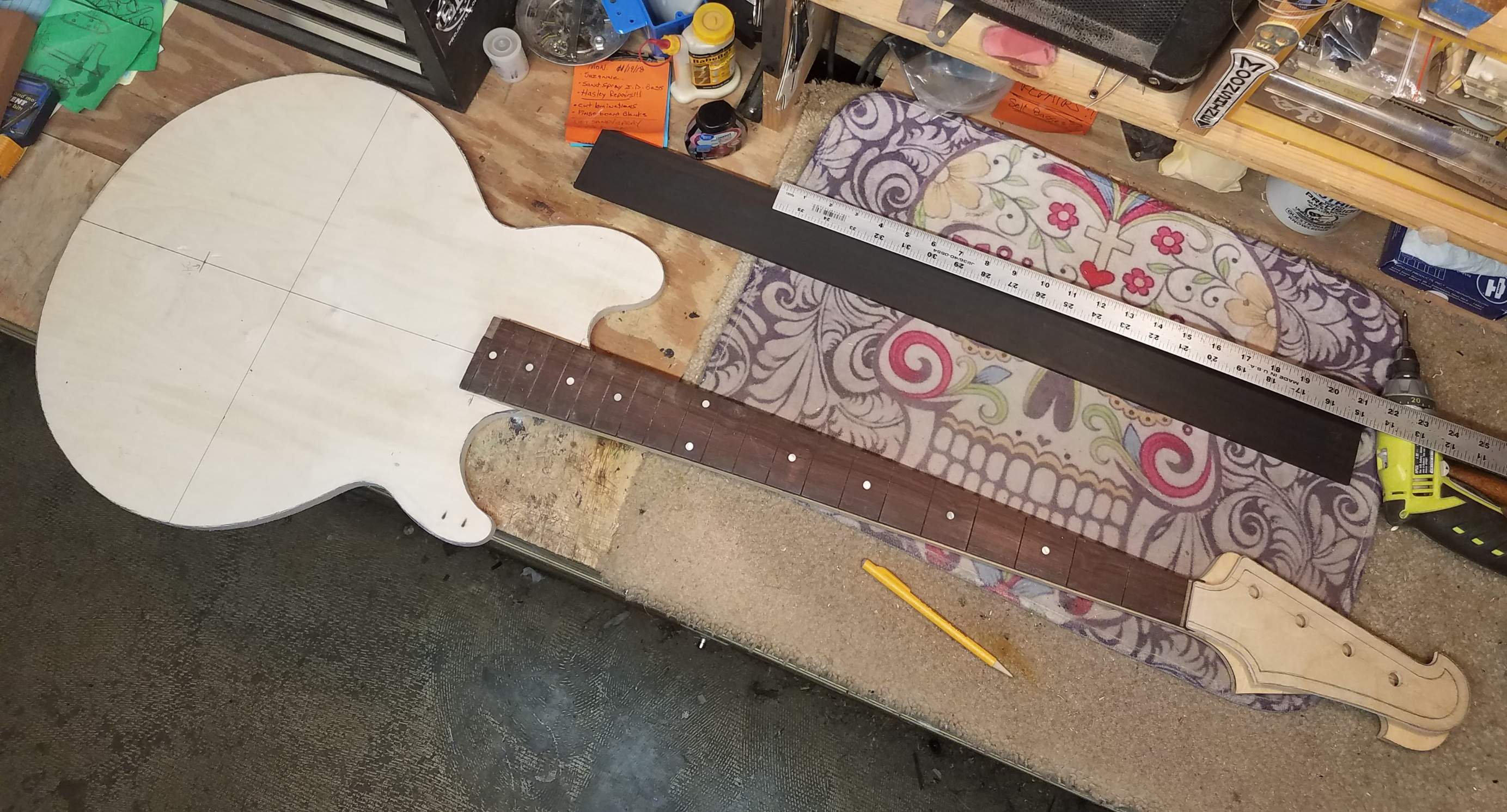

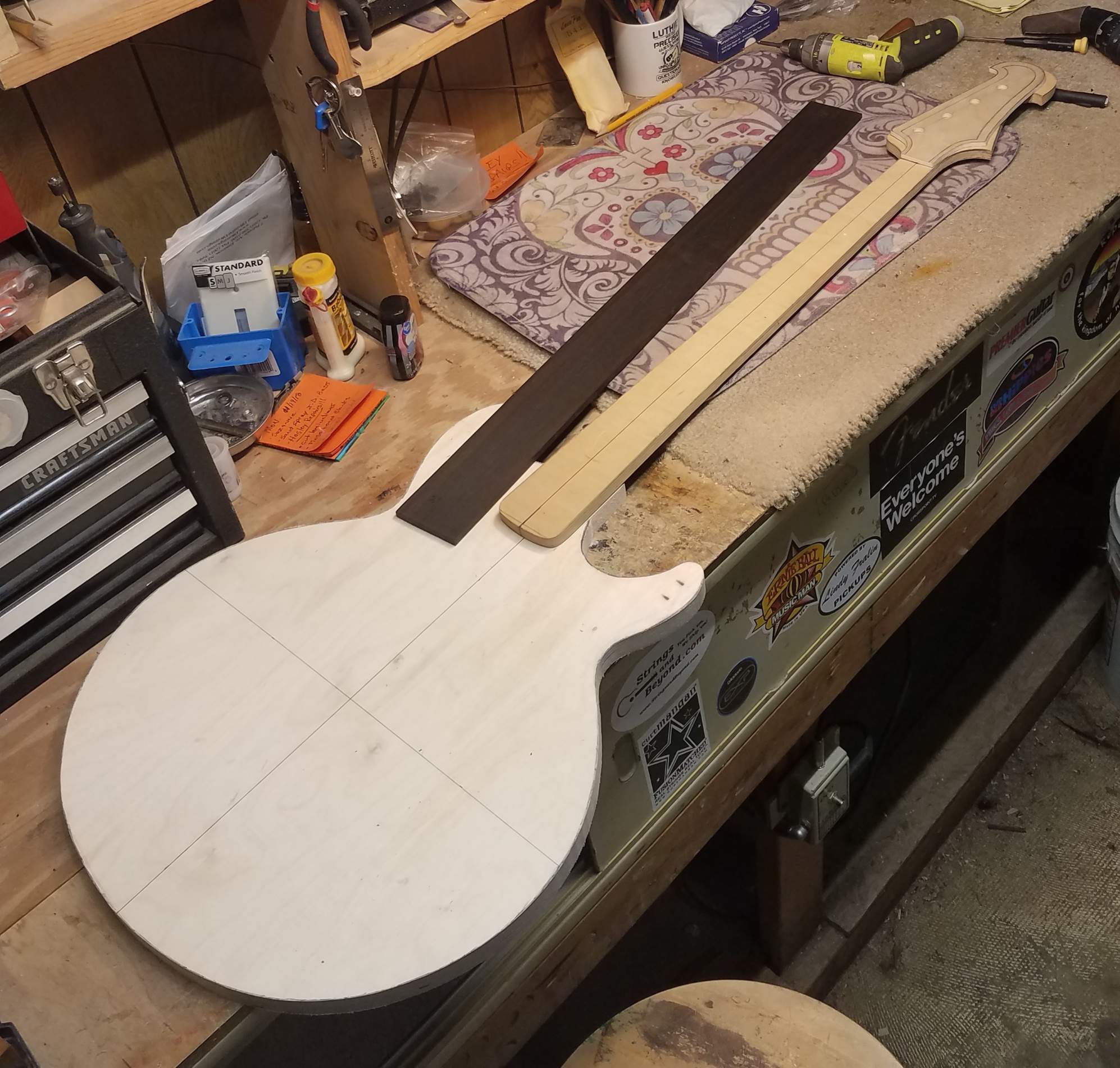

    Mocked up. Also you can see the ebony fretboard blank that I will be using (the rosewood board in the lower pic is just for the mock up).
    20181221_181606_resized_1.
    20181221_181727_resized_1.



    Moonshine :bassist:

  6. IconBasser

    IconBasser Scuba Viking Supporting Member

    Feb 28, 2007
    Alta Loma, California
    This is gonna be awesome!

  7. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars
    I actually got something done over the holidays...

    First, reviving an old tradition; The hair shot.
    20181229_161854_resized.
    Scary... Huh?

    Okay now that that's done, Let's get to work.

    First up is the neck thru section. I am building this as a (somewhat) copy of Gibson's 9 pc. laminated necks that was utilized in their Firebird/Thunderbird instruments.

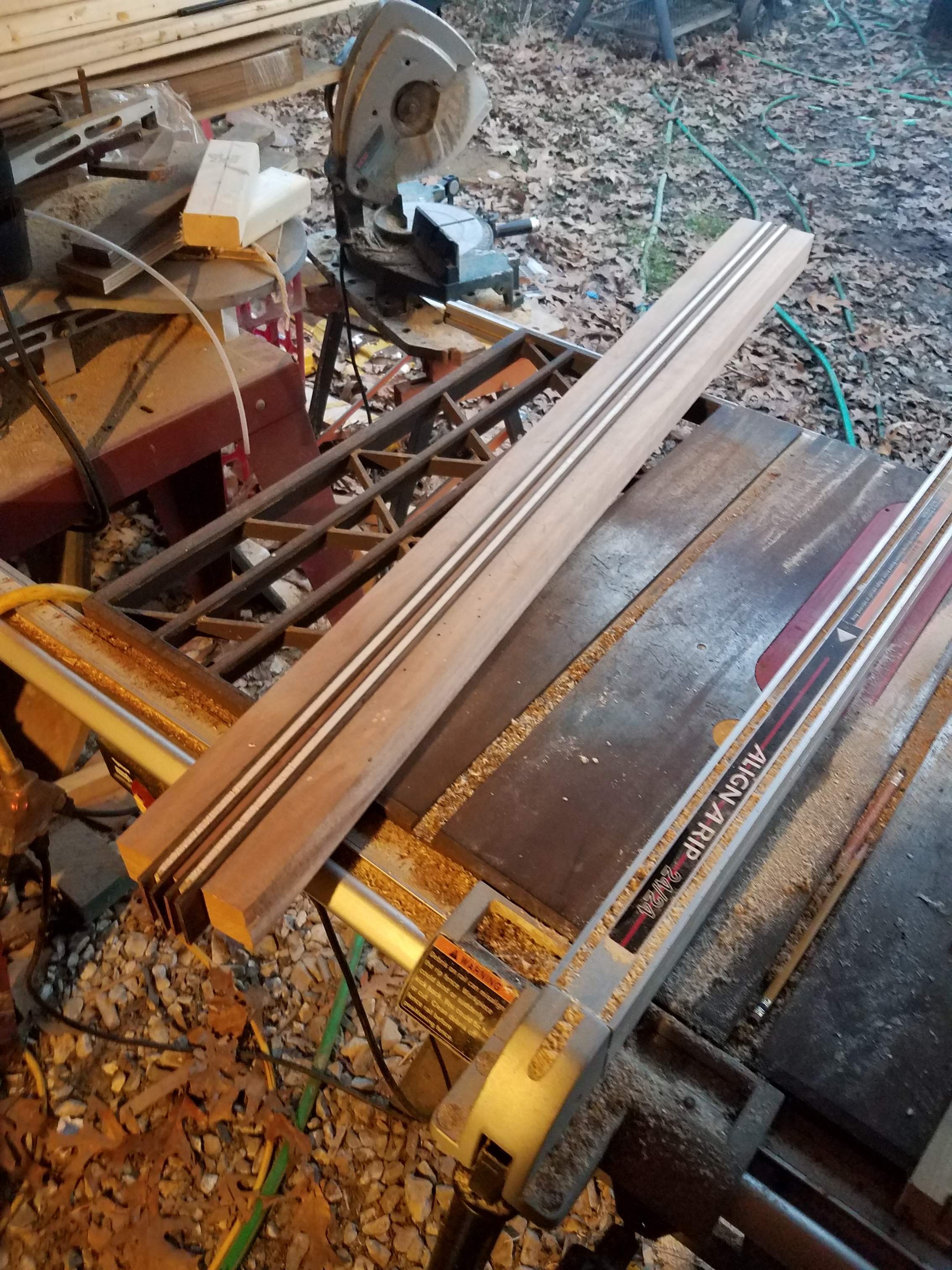

    20181229_164744_resized_1.

    I decided to use a neck made from: Mah/Wenge/Maple/Wenge/Mah/Wenge/Maple/.Wenge/Mah.

    Being New Years, I was busy smoking BBQ at the same time as I was working on the Rip-O-Nator...

    Seems fitting.

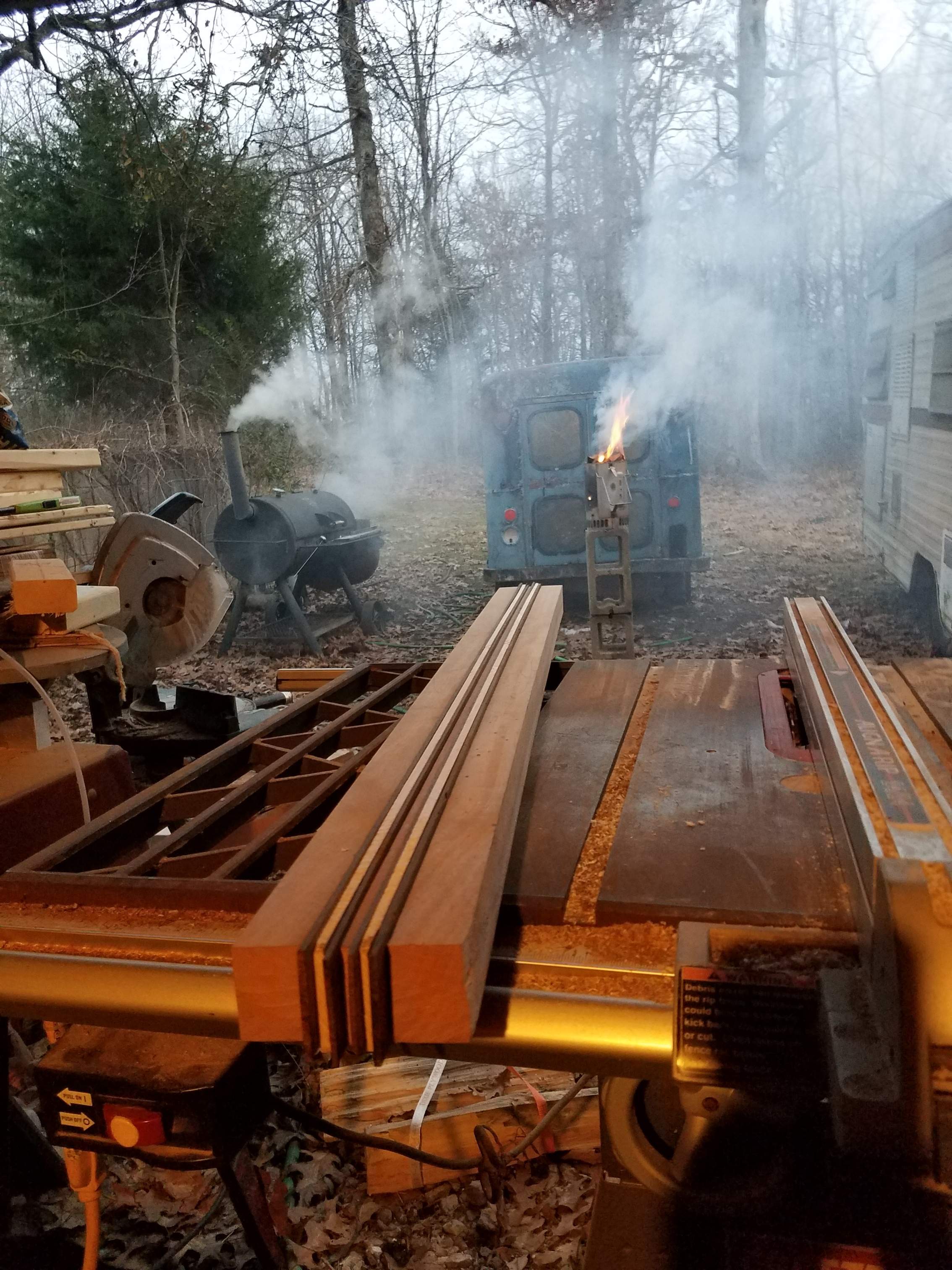

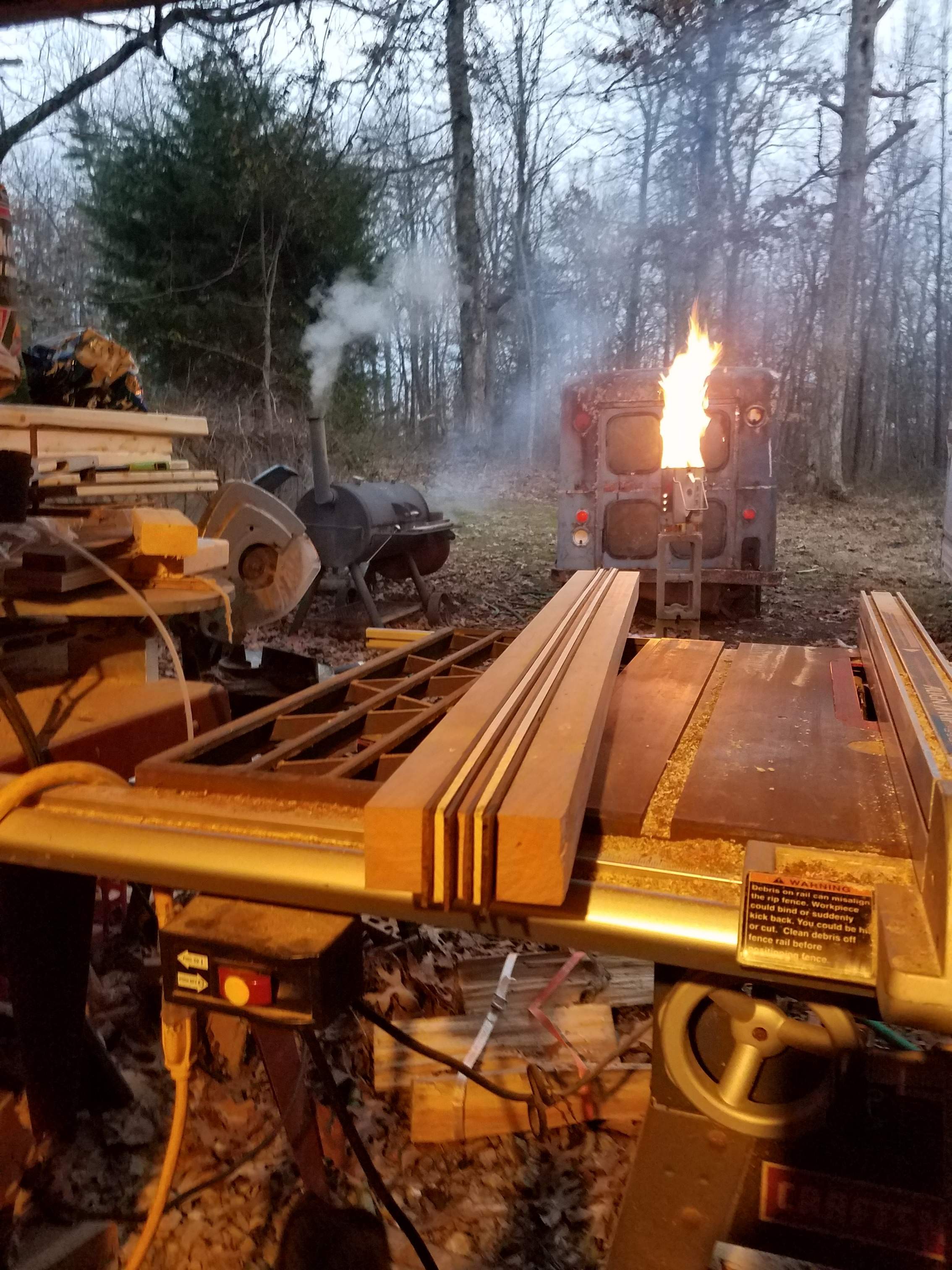

    20181229_164945_resized. 20181229_165615_resized.
    20181229_165716 (1).

    more to come.


    Moonshine :bassist:


    Attached Files:

    Last edited: Jan 4, 2019
  8. Scoops

    Scoops Why do we use base 10 when we only have 8 fingers Supporting Member Commercial User

    Oct 22, 2013
    Sugar Creek, Wisc
    I am me
    MMMM....MMMMMM....MMMMM....MMMMMM...MMMMMMMMMMM!

    Ta heck with the build, what wood you using for the BBQ?

    Mbechmann and moonshinegtrs like this.
  9. Bruce Johnson

    Bruce Johnson Commercial User

    Feb 4, 2011
    Fillmore, CA
    Professional Luthier
    I'm assuming that the still is cookin' up some 'shine away over on the other side of the hill?

    This looks like a cool project. I want to see how far you can push the resonator design. Get a resonator cone mechanism that has enough travel to really throw bass frequencies. There's an unexplored frontier out there in that direction. Go for it!

    Last edited: Jan 4, 2019
  10. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars
    @Scoops ; I'm old school (big surprise there :bored:)...

    I use any wood I can get my hands on as long as it's Hickory.

    @Bruce Johnson ; Ixnay on the illstay... ;)

    Thanks, We have discussed this before.
    Blast from the past... Resonator bass revisited.

    I am using the above concept for the first time with this bass. I've had good results but this will be the first real world test.


    Moonshine :bassist:

    Will_White and wraub like this.
  11. Scoops

    Scoops Why do we use base 10 when we only have 8 fingers Supporting Member Commercial User

    Oct 22, 2013
    Sugar Creek, Wisc
    I am me
    Yum....

    Next Question:

    Sauce or Rub?

    Will_White and moonshinegtrs like this.
  12. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars
    Really??? Is this a trick question? :eyebrow:



    Rub (my own recipe).



    Moonshine

    Will_White likes this.
  13. Jon Clegg

    Jon Clegg Supporting Member

    Feb 9, 2015
    Northern Virginia
    I gotta believe that barbeque with Moonshine is a treat.

  14. Scoops

    Scoops Why do we use base 10 when we only have 8 fingers Supporting Member Commercial User

    Oct 22, 2013
    Sugar Creek, Wisc
    I am me
    Sorta a trick question....

    For years, when I slow cook meat, I have used apple wood. Sometimes mesquite, sometimes hickory. (mesquite is my fav when I can get it)

    What I had been doing is making 1/2 of the meat with a rub, and then the other half, a sauce.

    When I ask my guests, what do you prefer, it was always a toss up.

    A couple years ago, I started doing the whole batch with the rub first, and at about the 75% cooked mark, I'd put on a sauce

    Pick that up from a guy at a cook off.

    But, as my uncle Frank used to say "To each their own"

    moonshinegtrs and Will_White like this.
  15. Will_White

    Will_White

    Jul 1, 2011
    Salem, OR
    Dang it now I want bbq.

    Reedt2000 and moonshinegtrs like this.
  16. moonshinegtrs

    moonshinegtrs Banned SUSPENDED Gold Supporting Member Commercial User

    Jan 28, 2009
    White Bluff,Tn.
    Owner: Moonshine Custom Guitars
    With BBQ, it's definitely to each their own...sounds like you know what you're doing.

    I have messed with sauces (I make a killer tequila lime sauce), but I love rubs.

    I'm into BBQ almost as much as building.

    We might need a thread;

    " Blues, Brews & BBQ"


    Moonshine. :bassist:

    Will_White likes this.
  17. two fingers

    two fingers Opinionated blowhard. But not mad about it. Gold Supporting Member

    Feb 7, 2005
    Eastern NC USA
    Rip-O-Nator?

    You can use it to take over the tri-staye area!!!!
    dr__doofenshmirtz__guitar_player__animated__by_jaycasey-d57ye4s.

    (Sorry. Totally indulgent Phineas and Ferb reference. Please, continue. I'll be going now.)

  18. Jon Clegg

    Jon Clegg Supporting Member

    Feb 9, 2015
    Northern Virginia
    When a build thread makes you hungry: drool

    moonshinegtrs likes this.
  19. Gilmourisgod

    Gilmourisgod

    Jun 23, 2014
    Cape Cod MA
    The real unanswered question: would BBQ sauce work well as a meaty transparent stain? Building the bass out of hickory would Align The Stars.

    moonshinegtrs likes this.
  20. Slidlow

    Slidlow Supporting Member

    Apr 15, 2009
    Oshawa, Canada
    Would hickory smoke impart a better sound into your tone wood? :woot:
