Pickup Wiring - Cigar Box Build

Discussion in 'Pickups & Electronics [BG]' started by ffutterman, Aug 21, 2012.


  1. ffutterman

    ffutterman Talentless Bass Enthusiast

    May 7, 2010
    Philadelphia
    I'm working on a cigar box bass (build thread forthcoming), and am using an Ashbory pickup/bridge system. Problem is, I have no earthly idea what I'm doing and I don't know which wire connects to what.

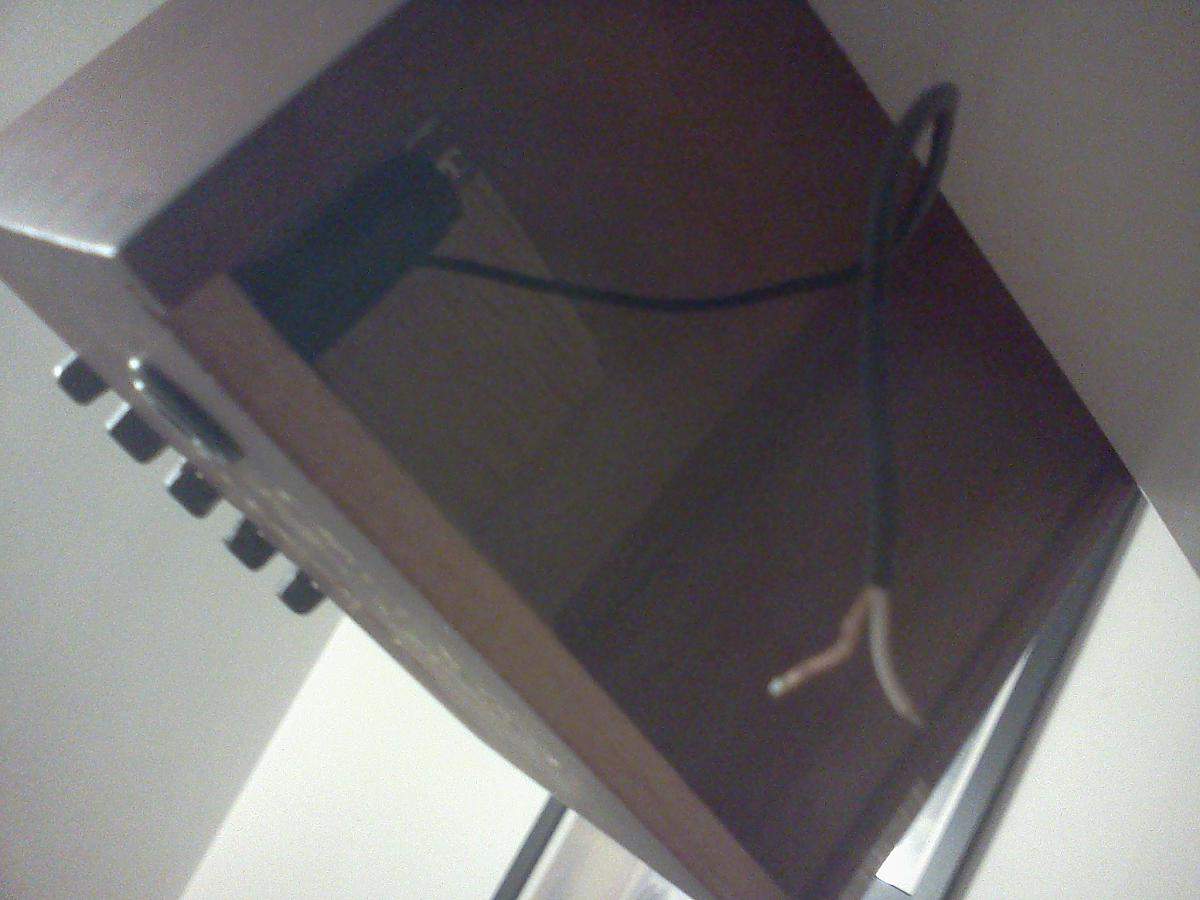

    Attached is a picture of the two wires coming from it, one white and one copper. Here's a picture of the type of jack I'm using (on the right):

    Picture-12-573x400.

    I'm not using a preamp, so which wire's the ground and which wire's hot? Again, sorry for my newbishness. :bag:


    Attached Files:

  2. sharp8874

    sharp8874

    Jan 10, 2011
    The white wire is hot and the copper is ground.

  3. Inner conductor to the tip, braid to the sleeve. You might consider a resistor parallel to the signal to drop the output impedance to where it would be with a volume pot in the circuit.

  4. ffutterman

    ffutterman Talentless Bass Enthusiast

    May 7, 2010
    Philadelphia
    Thanks a ton! That's all I needed to know. Volume works fine
