SWR SM-900 footswitch

The SM-900 footswitch is just switches between EQ1 and EQ2, right? I think you'll be able to use any 'on/off' switch for this.

Something like this would probably be overkill, but would work:
http://www.behringer.com/EN/Products/AB200.aspx

This one has only one channel and lights up:
http://www.rolandus.com/products/productdetails.php?ProductId=478&ParentId=52

And something like this is probably work just fine...maybe:
http://www.rolandus.com/products/productdetails.php?ProductId=56&ParentId=52

And I found this on Ebay:
http://cgi.ebay.co.uk/BRAND-NEW-Gen...0?hash=item53dc150878&_trksid=p3286.m63.l1177

I'm sure if you wanted to make your own, you'd need a simple three pole switch, an enclosure, a TRS connector and some cable. You're only switching between A and B, not A, B, A/B, or off.



iirc the swr sm900 swtiched between eq one, eq two Or both.

even so that's a really simple switch. i can't imagine swr designing a special one just for that amp. i guaranetee you can have someone make you one or make one yourself once you get the actual layout from someone who knows. have you asked swr?



It'd be simple to make. Mono 1/4 cable, on/off switch, that's all there is to it.



Yeah...I googled it, found the manual, and after a quick scan it said that it just switched between 1 and 2, not both.

I might be wrong.



well in that case super easy. with a trs jack looks like you just got yourself a fancy where does the power go box.

fwiw, i always liked using both eqs at once on the 900



My bad, it doesn't work the way I said. It does require a stereo cable/jack/on/off/on switch. I just fired mine up and figured it out:

Ring to tip= upper EQ
Open circuit= Both EQ's
Tip to sleeve= Lower EQ

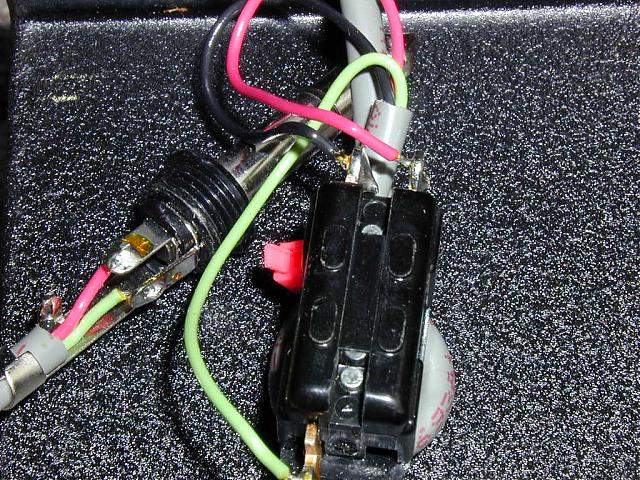

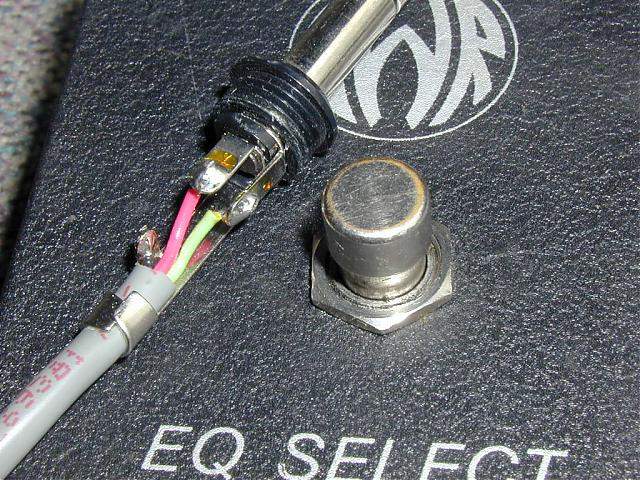

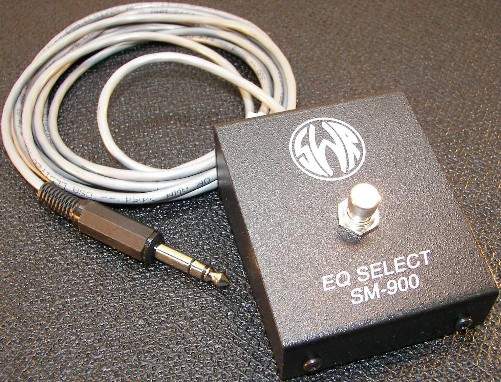

Here are the shots I sent to jazza42uk ...
