TRACE ELLIOT AH250 SMX HELP NEEDED!!

Discussion in 'Amps and Cabs [BG]' started by PEERLESS, Jun 3, 2014.


  1. PEERLESS

    PEERLESS

    Feb 1, 2013

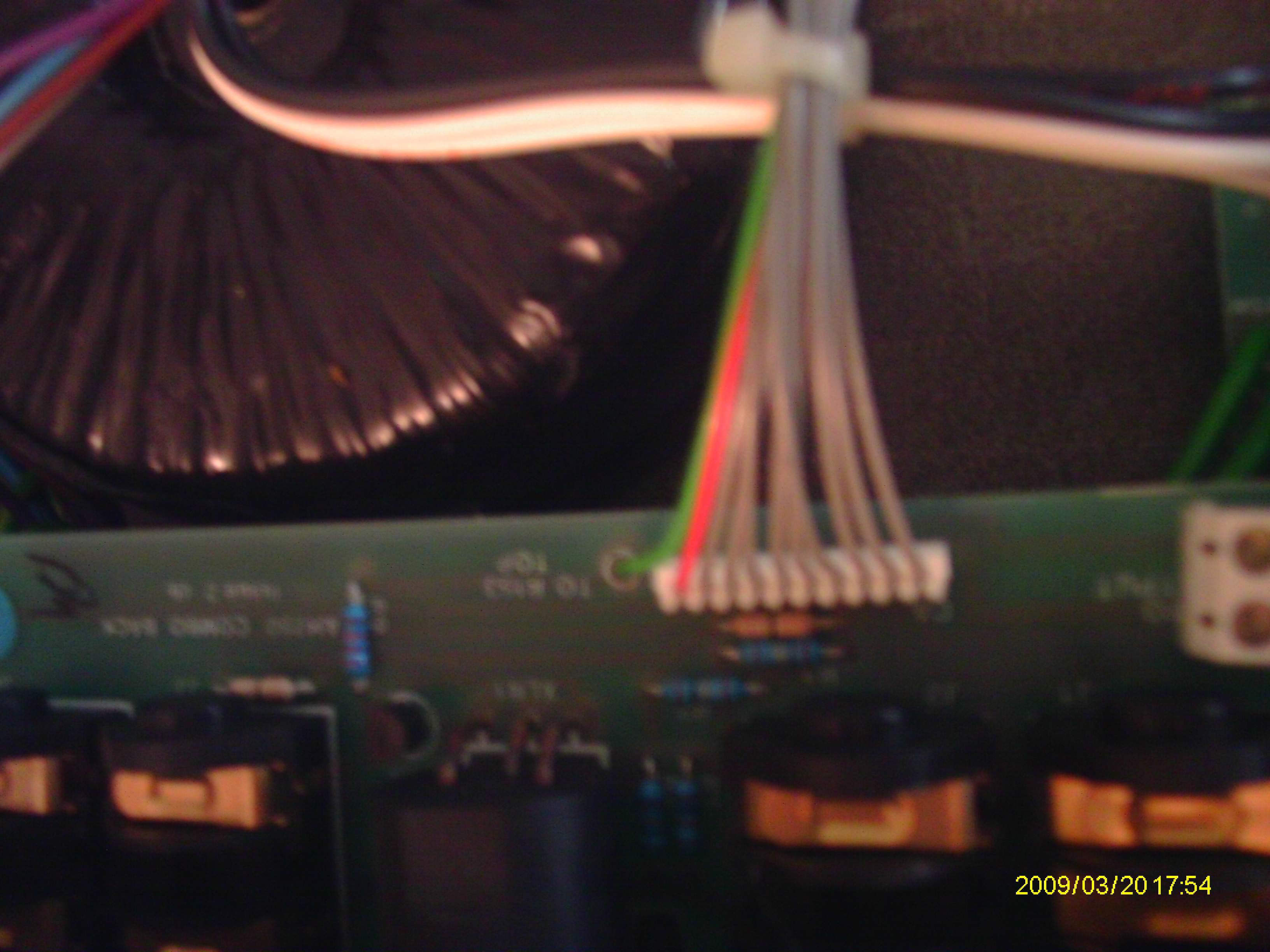

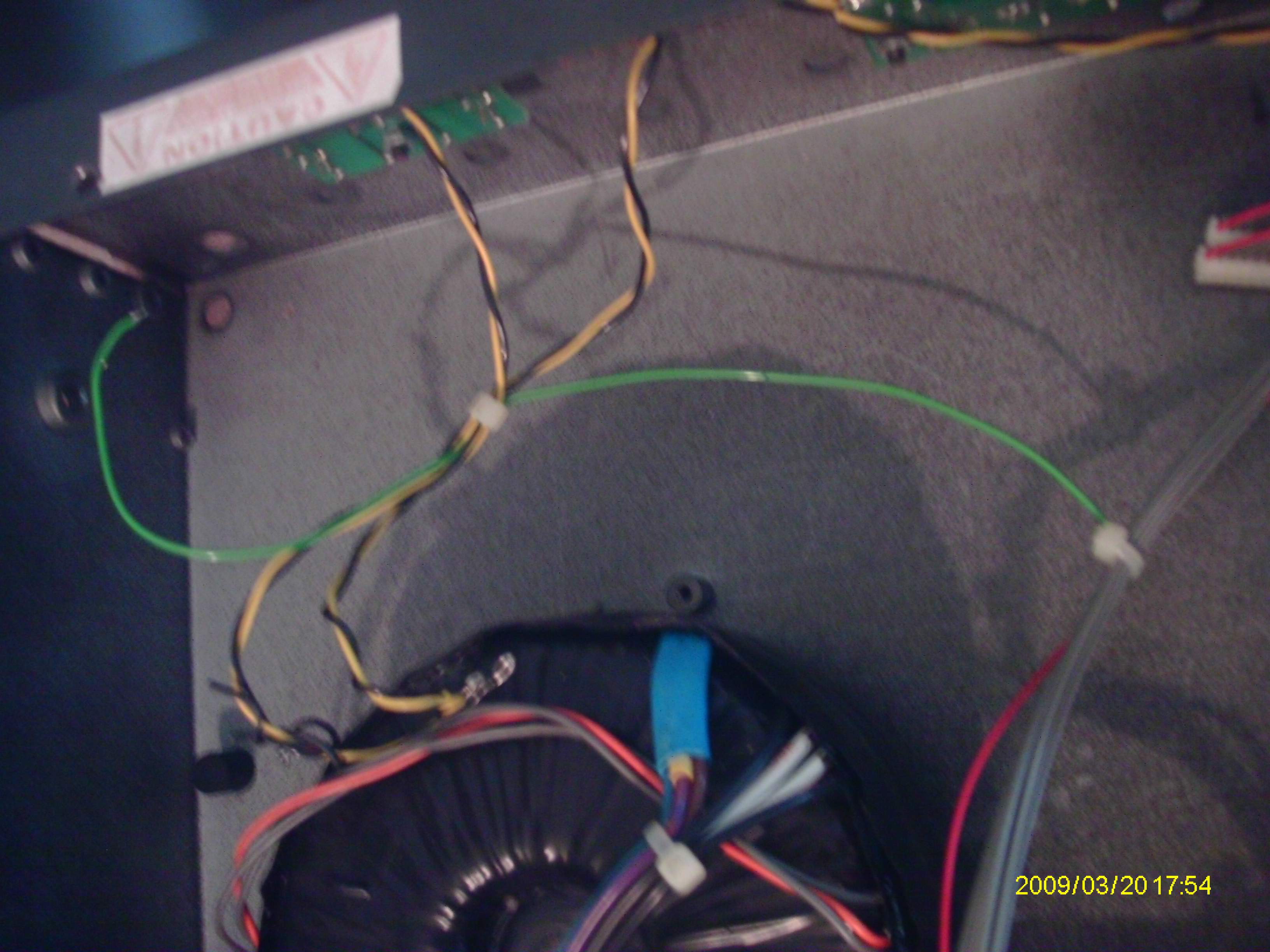

    .OK, so ive rebuilt my trace Elliot..i am a qualified tech.i took pics of my disassembly ...however the phone used to do so was lost...so im down to one wire..can someone please tell me where this wire goes...its the green one coming from the back board.says"to r13 top" next to it...any help would be greatly appreciated!
    thanks in advance!!


    Attached Files:

  2. I looked through my trace files and identified a service manual for a SMX 250W amplifier using the GP12 pre-amp.

    If this is what you are looking for PM me with a proper email address and I'll send it to you.

  3. PEERLESS

    PEERLESS

    Feb 1, 2013
    pm sent to the above......still need help.

  4. Check your inbox it should be there by now. Good luck with the repair. :)

  5. PEERLESS

    PEERLESS

    Feb 1, 2013
    thank you!!!

  6. PEERLESS

    PEERLESS

    Feb 1, 2013
    im still in need of some pics!! thank you!!
