Wiring diagram needed (rotary switch)

Discussion in 'Pickups & Electronics [BG]' started by matt8602, Jul 14, 2020.


  1. matt8602

    matt8602

    Dec 12, 2009
    Hello,

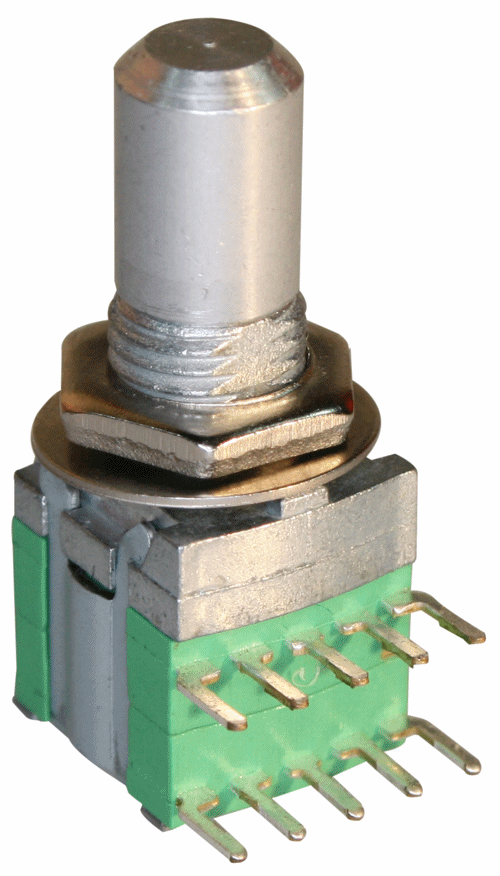

    I have this mini 2P3T rotary switch (2x 5 pins)
    Anybody know how to wire it as a standard 3 way pickup selector ? (neck / neck-bridge / bridge) ?

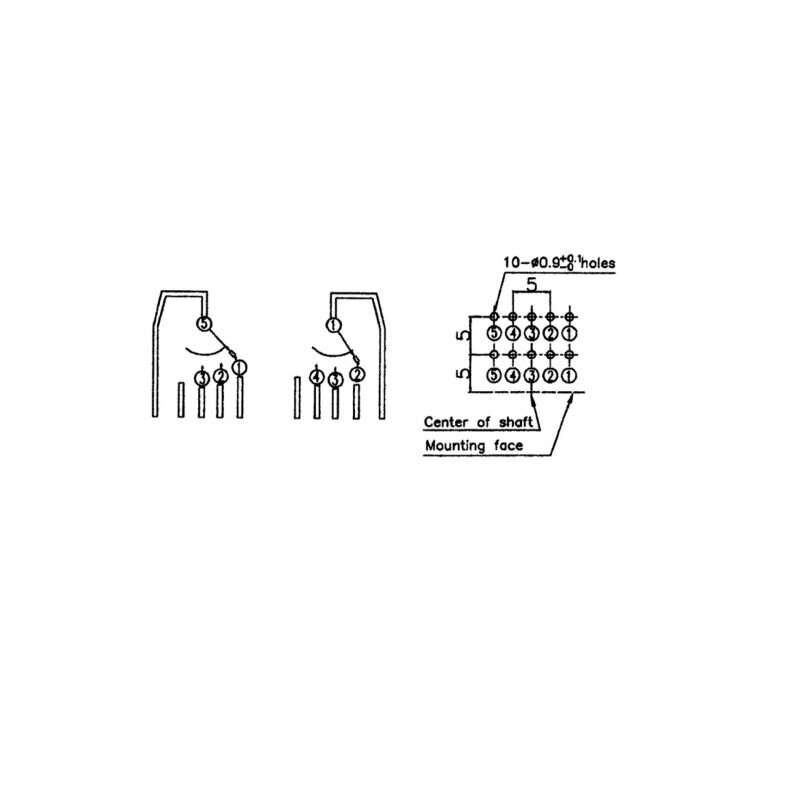

    Here's some pics and diagram:
    rotary1.gif rotary-switch-2p3t~3.jpg

  2. Crater

    Crater

    Oct 12, 2011
    Dallas, TX area
    This is what the schematic looks like. It's the same as a telecaster type pickup switch, works exactly the same. HOWEVER, I would confirm the connections with an ohm meter, because their scheme for labeling the terminals doesn't make sense to me. What's the point of numbering terminals if two terminals share the same number?
