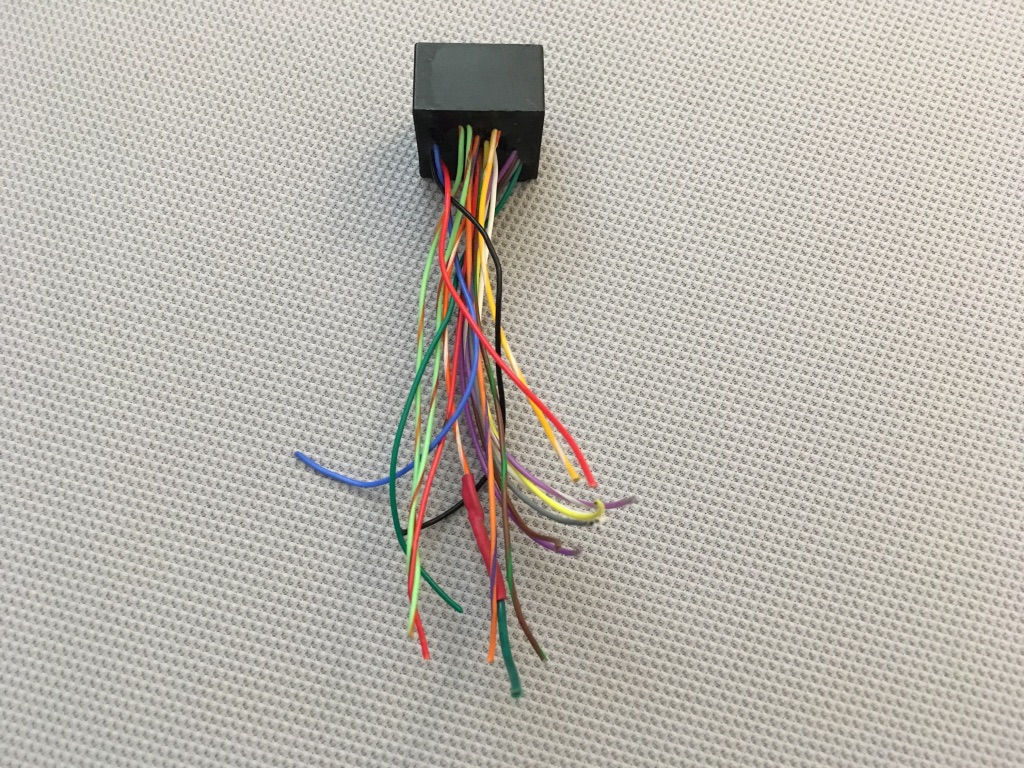

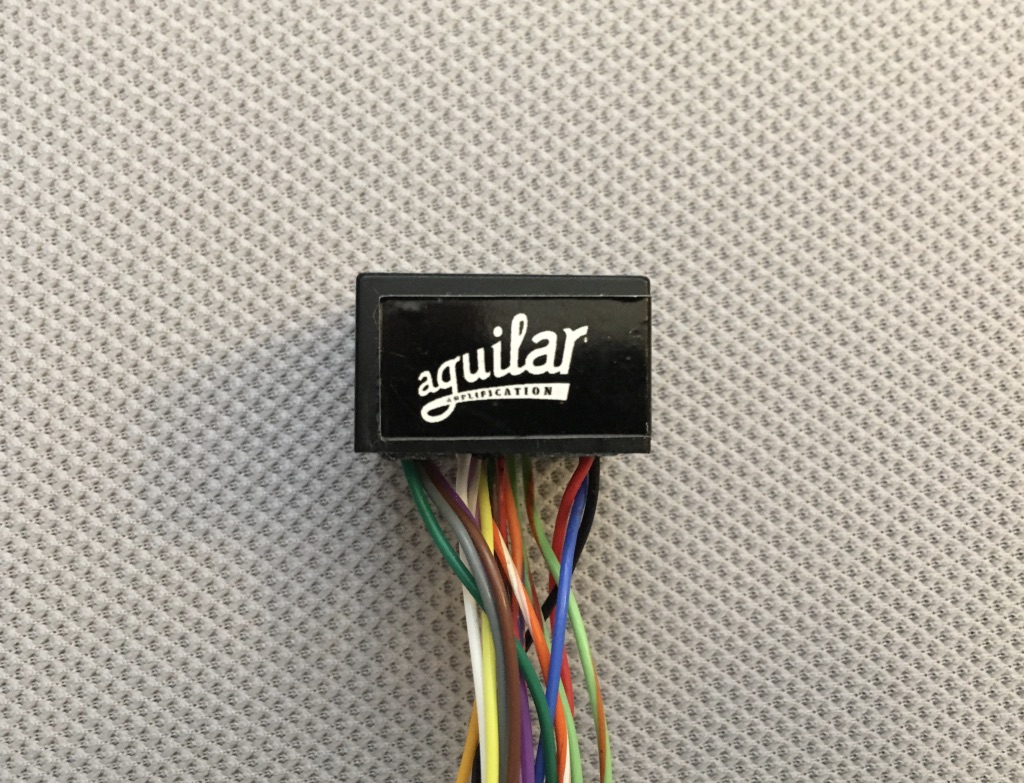

New and never installed. Endless wiring possibilities including active / passive, push/pull or switch for different mid EQ frequencies points. All wiring diagrams free online.

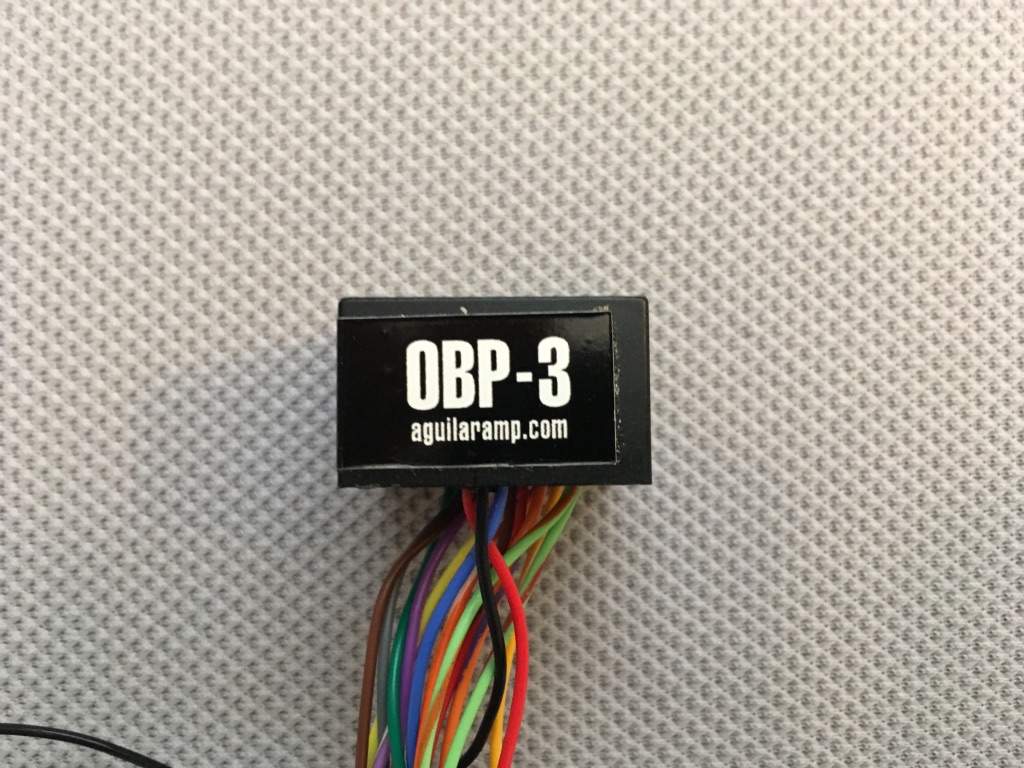

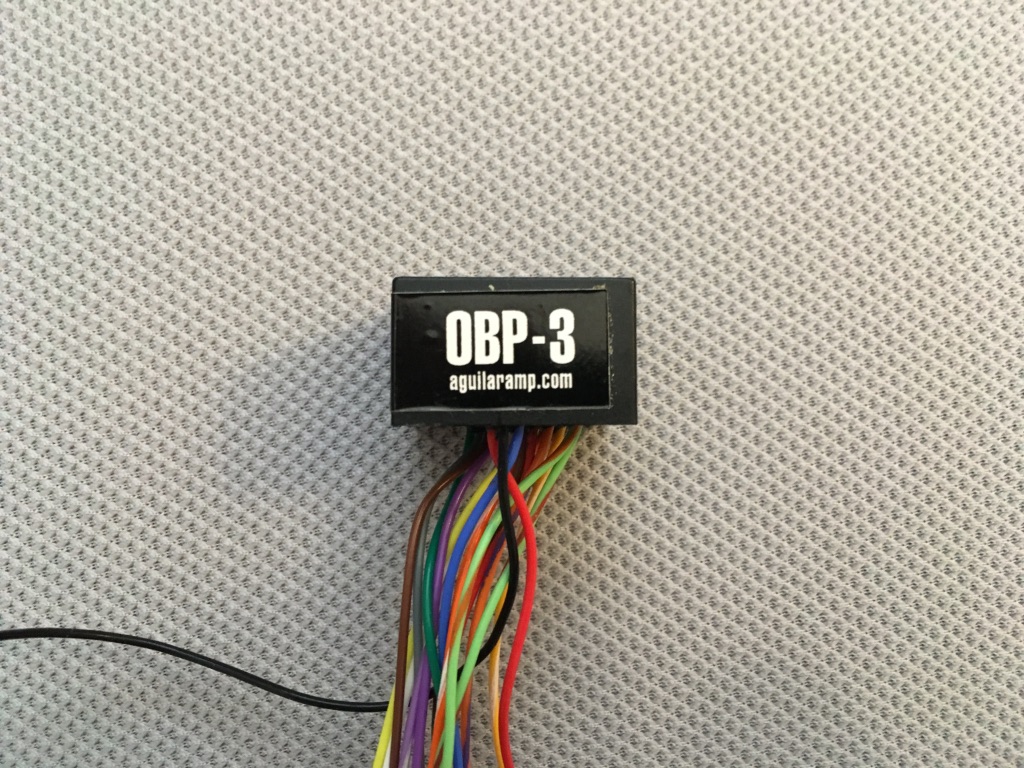

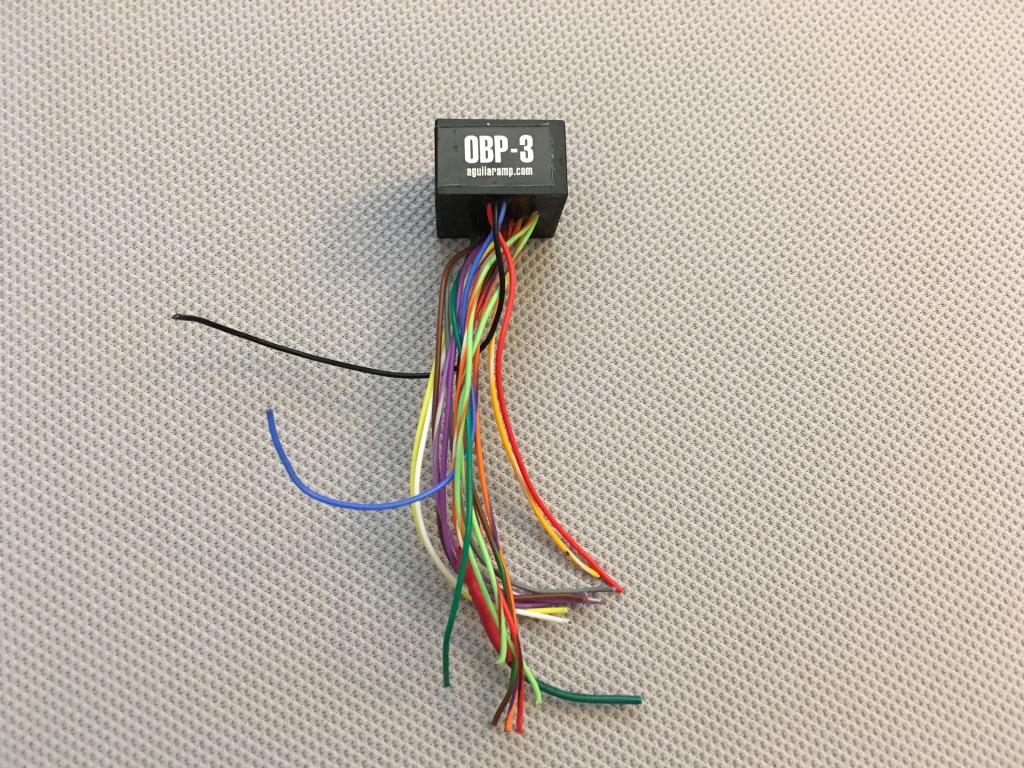

OBP-3
3 BAND, BOOST/CUT
9 OR 18 VOLT ON BOARD PREAMP
The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.
OBP-3
3 BAND, BOOST/CUT
9 OR 18 VOLT ON BOARD PREAMP
The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.
