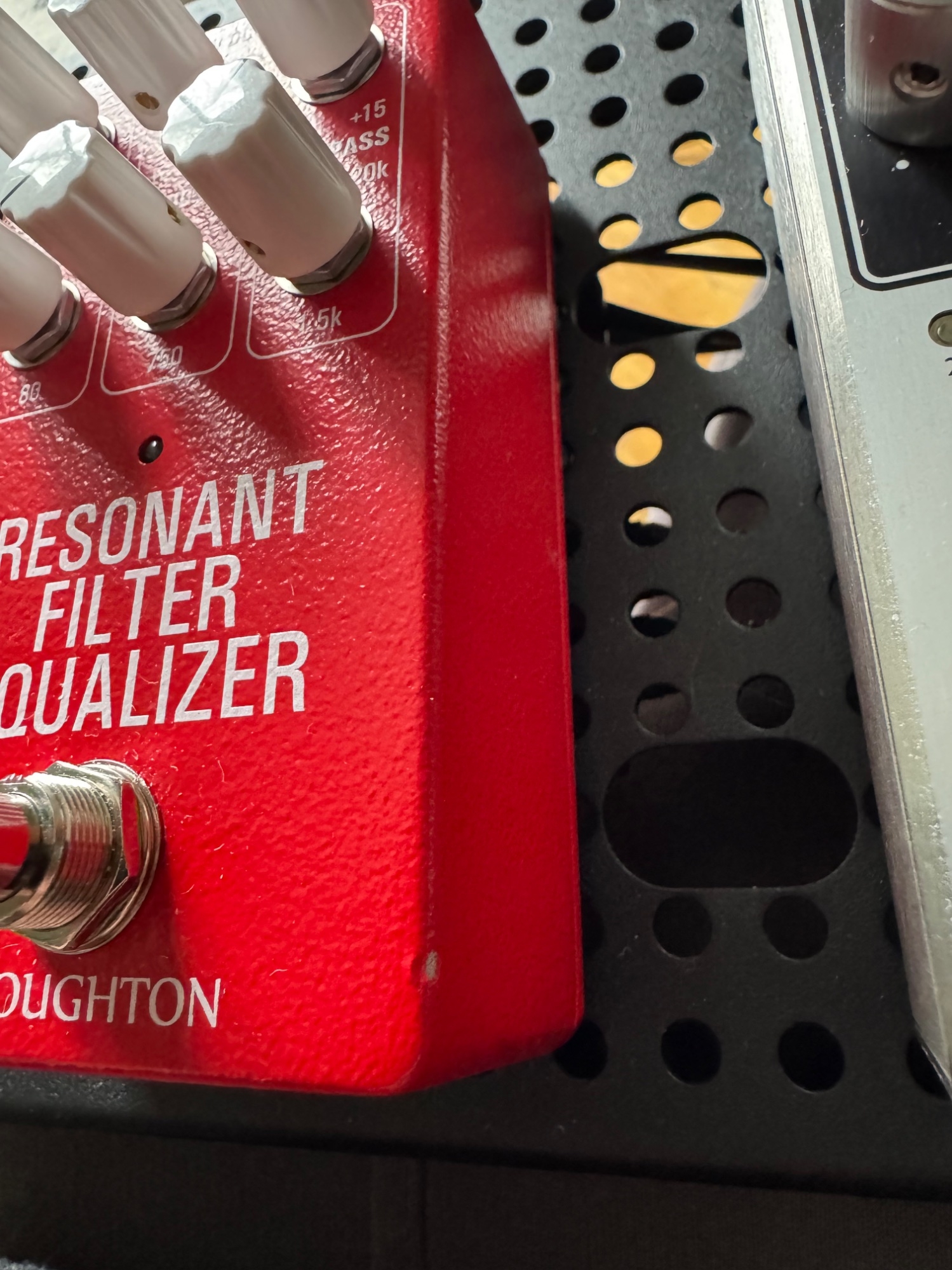

Broughton Audio Resonant Filter Equalizer in mint condition except for the small ding pictured in the second photograph. No Velcro and comes with the white box.
US$140 shipped

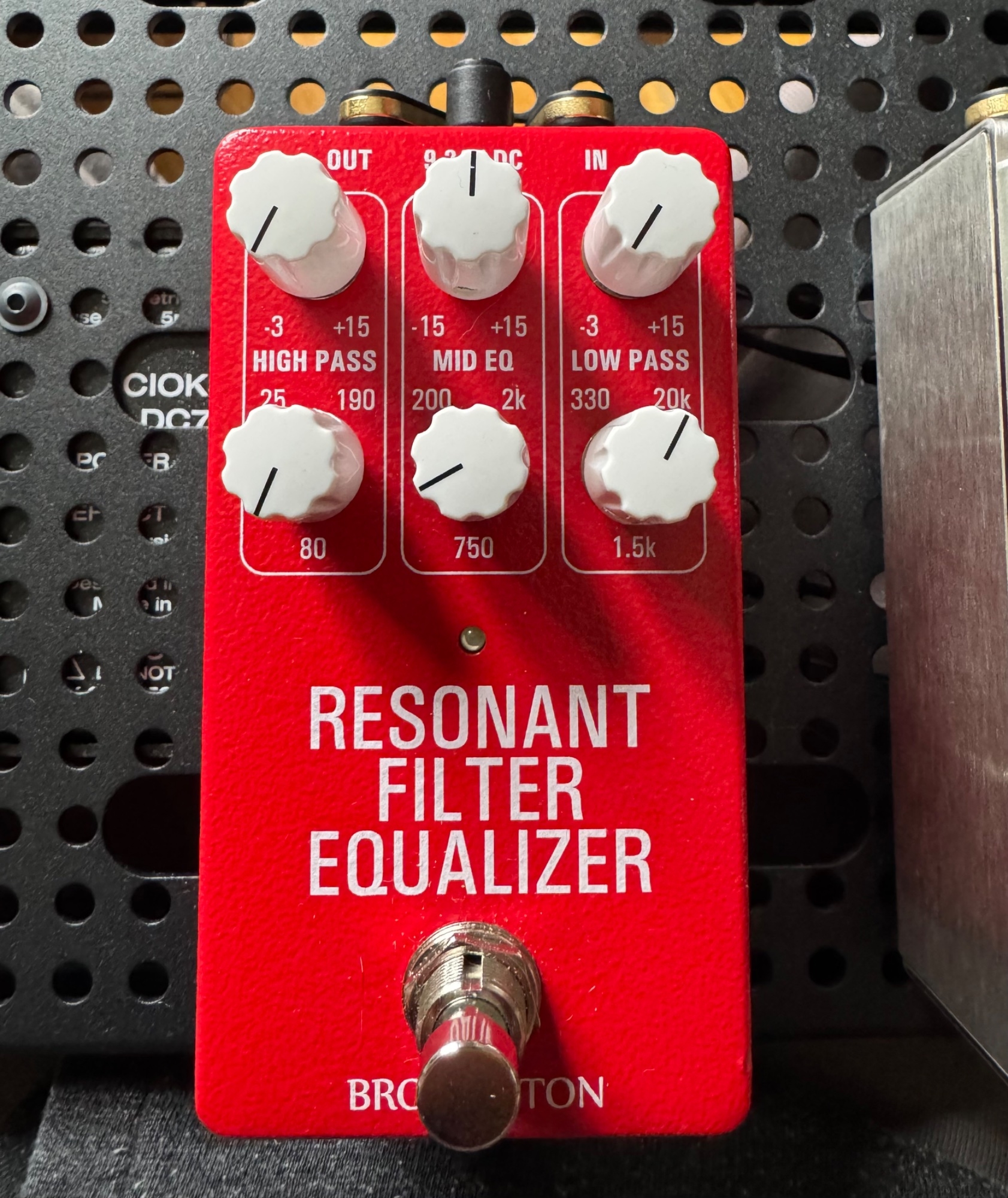

The Resonant Filter Equalizer creates unique tone control by combining a high pass filter, low pass filter, and middle equalizer. Both filters have their own resonance control, allowing a bump at the cutoff frequency, accentuating the effect of the filters. The semi-parametric middle eq includes a variable frequency control.
The resonance of the filters ranges from -3dB all the way up to +15dB. The -3dB setting is what you would expect from a standard, non-resonant filter. Adding resonance to the filters boosts the level of the cutoff frequency.
The filters have a slope of -12 dB/octave. The filters are the same in performance to the other standard Broughton filters, with the added ability of increasing resonance.
The input impedance is 1MΩ, and the output impedance is 100Ω.
The Resonant Filter Equalizer requires a DC power supply (not included). The DC supply should be a standard Boss style connector, center negative polarity. It can accept 9 to 24 volts. Although 9 volts is sufficient for most applications, higher voltages will provide more headroom when using the pedal with hotter signals. If you intend to use this pedal with line level signals, you should use at least 12 volts for sufficient headroom. The current draw is approximately 20 mA. A 24 volt power supply may be purchased separately.
The Resonant Filter Equalizer has a true bypass switch.
Dimensions: 4.77" long x 2.6" wide
