Sold as is.
Very recently removed from Carvin Icon 6 String, working perfectly.
Pickups seem to be bar type humbuckers.
Electronics are quiet and flexible.
Active/passive pull switch.
Volume, pan, bass/treble, mid/frequency.

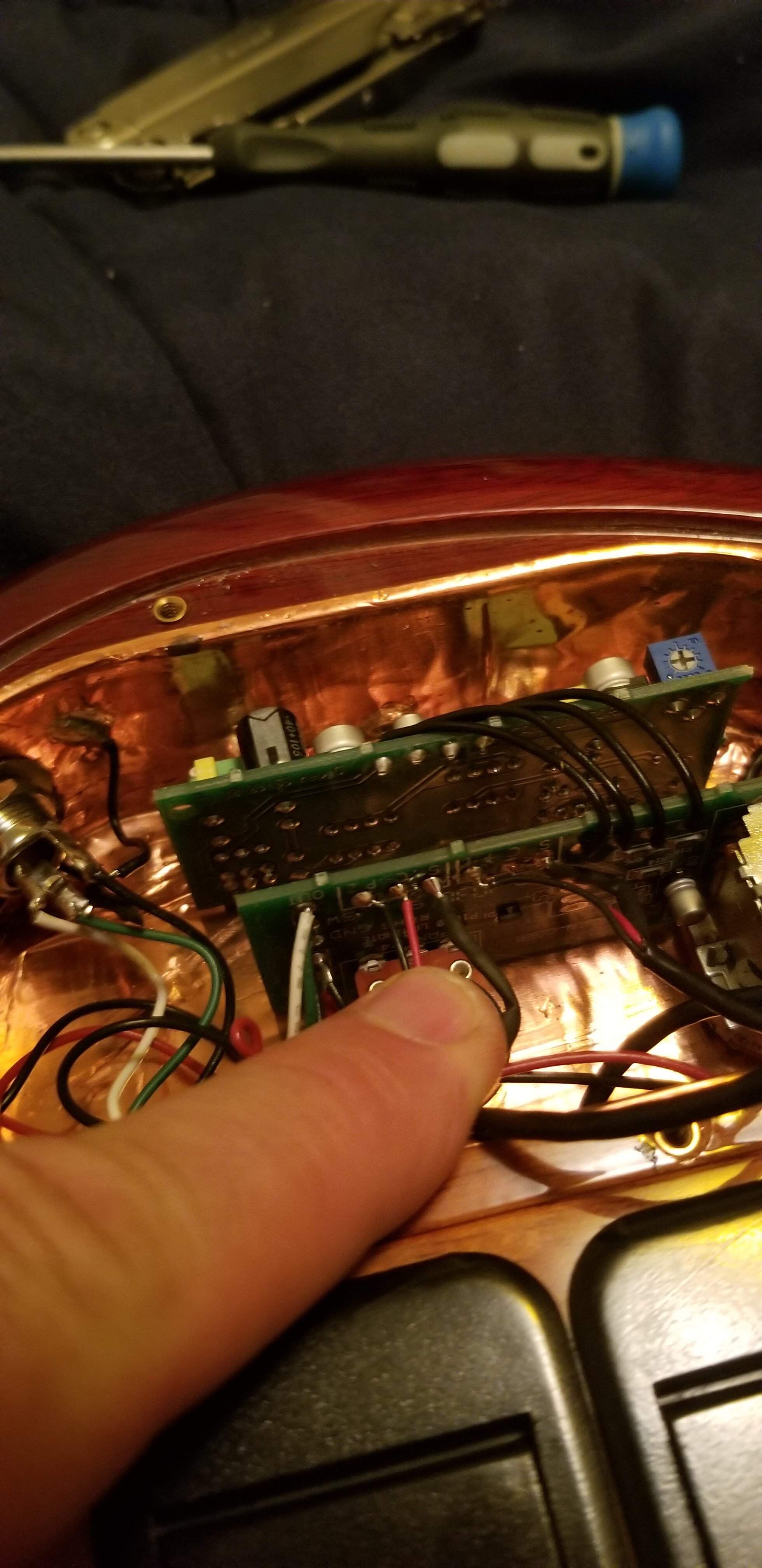

Circuit board is pretty well labeled and the photos and following notes should remove any doubt.

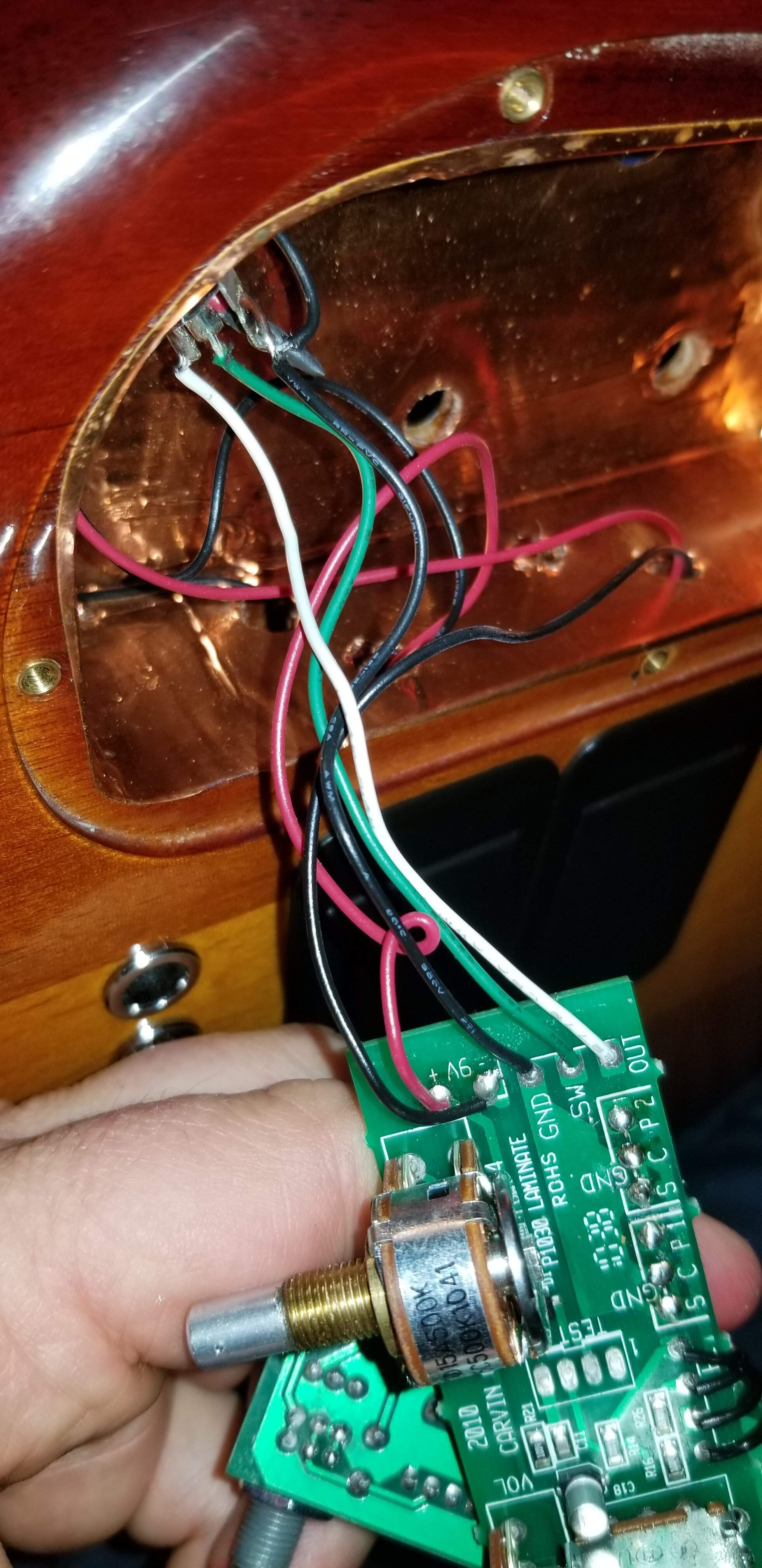

Pickup leads go black, red, shield where it says P1 and P2 on the circuit board.
To the jack: out is shown here as white, green is common, and black is ground, also labeled well on the circuit board. The 9V + and - inputs are right next to the jack wiring and labeled clearly.

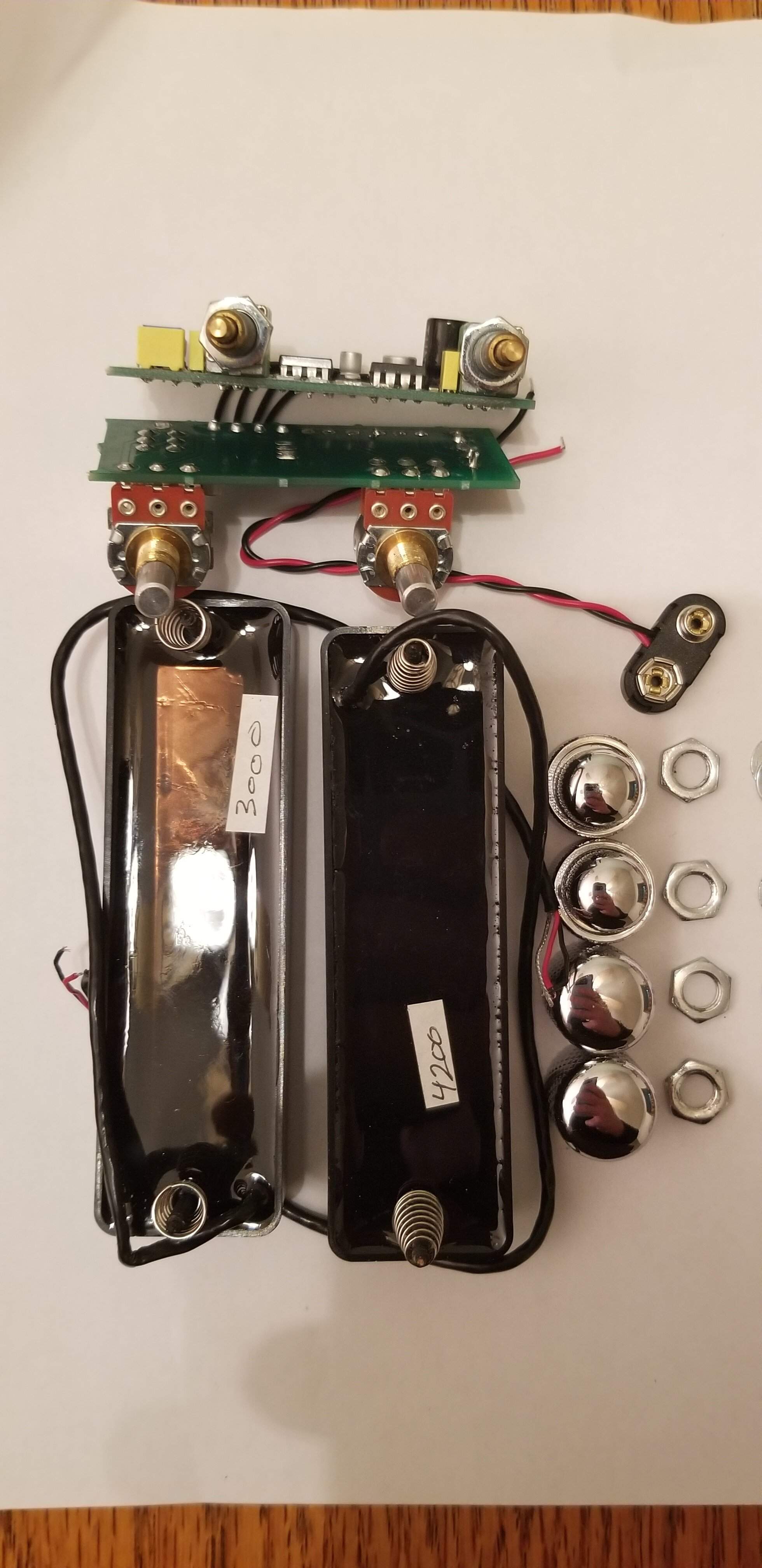

Pickups are:
1.21" wide, 4.23" long, .737" high
Routed for IC6:
1.287 " x 4.281" and .156"radius corners and .56"deep
Basically smaller than emg 45 or bart P4.
Might work for a five string with larger routes than listed above.
