For Sale Only
Fantastic power supply that will fit under your PT Nano/Nano +.

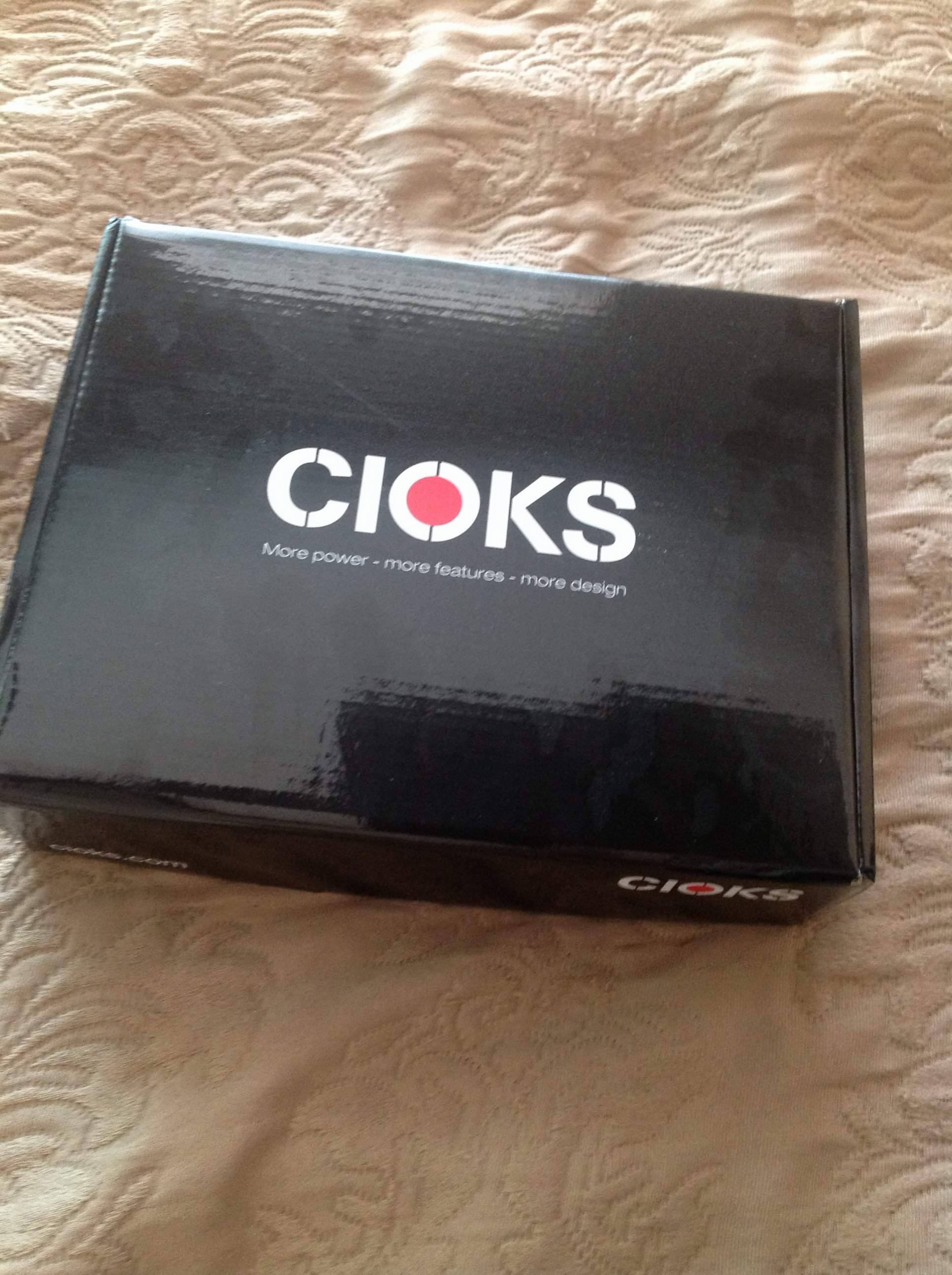

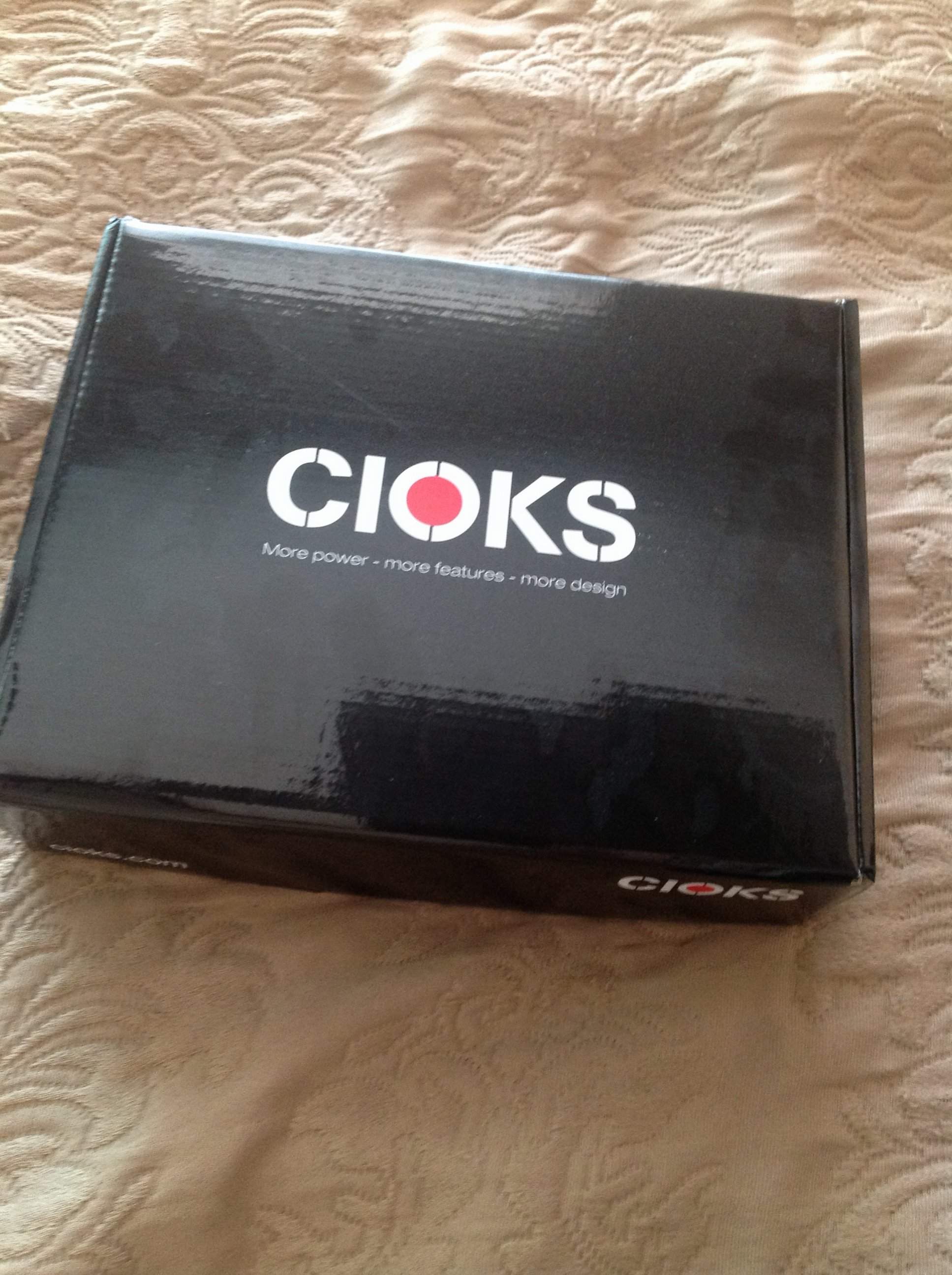

$140 Shipped CONUS - payment via PayPal - ships with original box. I'm not interested in any trades at the moment.
Cioks DC5 link
Power Supply

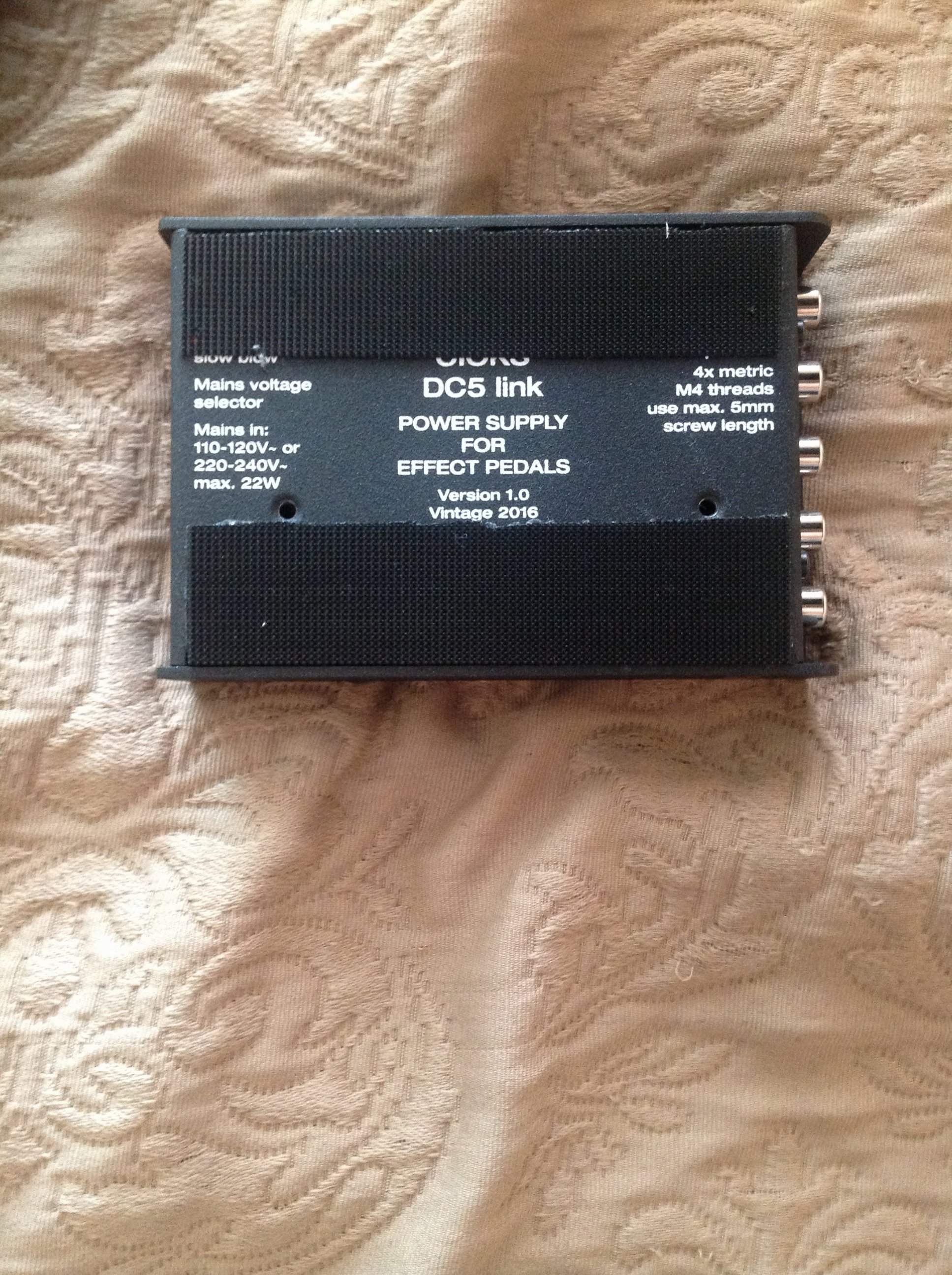

DC5 link is a professional, small and very flat power supply for effect pedals with 5 isolated outlets. Being only 31mm high, it fits under the smallest Pedaltrain board models PT-nano or PT-mini. It offers voltages 9, 12 or 18V and has a total output current of 900mA. The top two switchable 9 or 12V outlets can power any two Strymon, Eventide or other two medium to high current pedals. The middle outlet in 18V setting can power one or two dirt pedals, Pigtronix, MXR or other 18V pedals. The bottom two outlets configurable to either 9 or 12V can power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. In 12V setting using Stack Flex, they'll power a 24V pedal. If needed, all 5 isolated outlets will give you 9V DC in the default position of the settings switch.
Features:

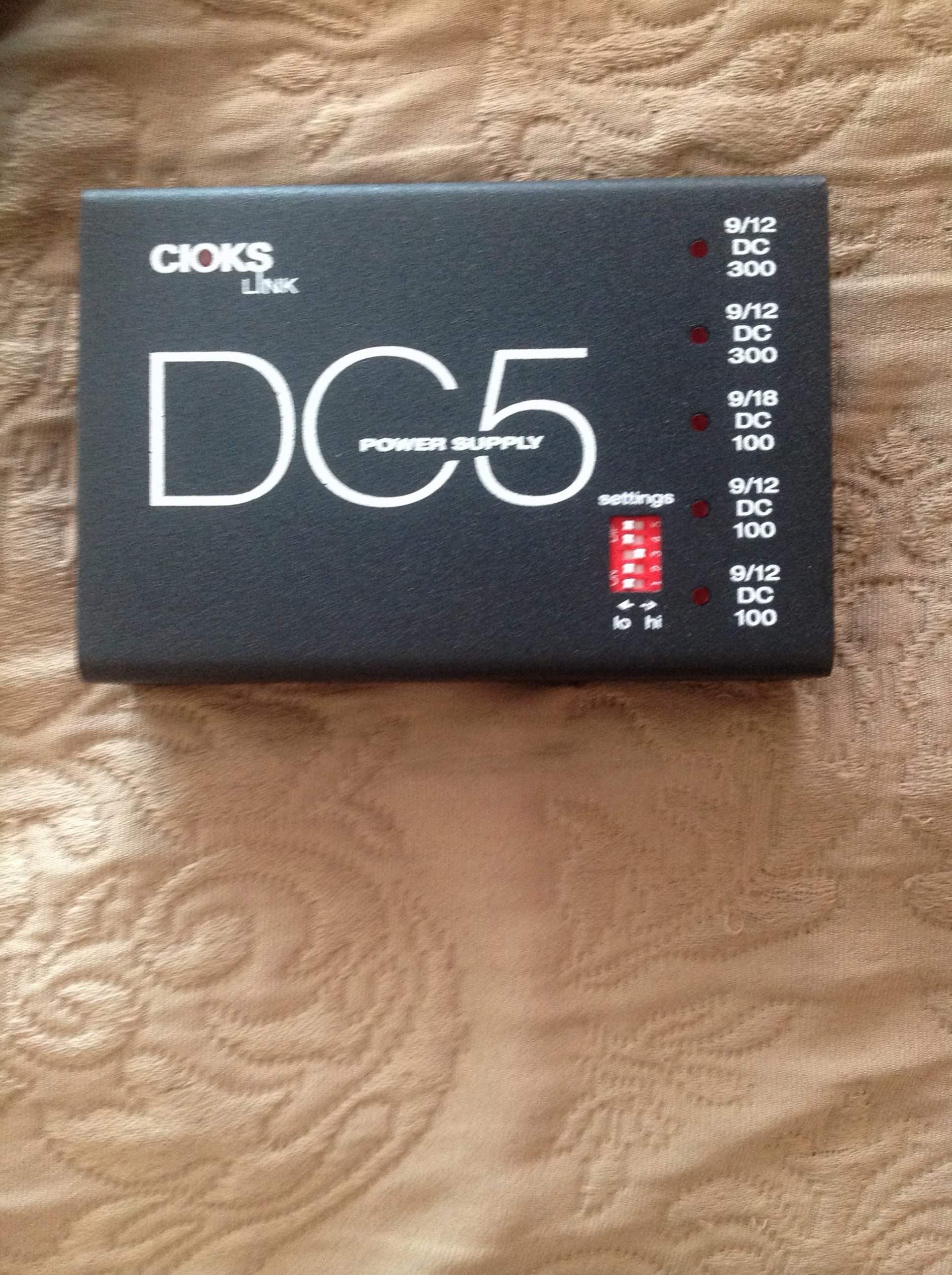

Outlet 1-2: 9 or 12V DC / 100mA each
Outlet 3: 9 or 18V DC / 100mA
Outlet 4-5: 9 or 12V DC / 300mA each
Size: 130x88x31mm (excl. detachable rubber feet)
Weight: 0,7kg
Fantastic power supply that will fit under your PT Nano/Nano +.
$140 Shipped CONUS - payment via PayPal - ships with original box. I'm not interested in any trades at the moment.
Cioks DC5 link
Power Supply
DC5 link is a professional, small and very flat power supply for effect pedals with 5 isolated outlets. Being only 31mm high, it fits under the smallest Pedaltrain board models PT-nano or PT-mini. It offers voltages 9, 12 or 18V and has a total output current of 900mA. The top two switchable 9 or 12V outlets can power any two Strymon, Eventide or other two medium to high current pedals. The middle outlet in 18V setting can power one or two dirt pedals, Pigtronix, MXR or other 18V pedals. The bottom two outlets configurable to either 9 or 12V can power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. In 12V setting using Stack Flex, they'll power a 24V pedal. If needed, all 5 isolated outlets will give you 9V DC in the default position of the settings switch.
Features:
- 5 isolated outlets with 9, 12 or 18V
- total output current of 900mA
- two powerful outlets, 300mA each
- one outlet configurable to 18V
- high efficiency toroidal transformer
- short circuit protection of all outlets
- advanced LED monitoring of each outlet
- 120 or 230V mains voltage operation
- detachable mains power cord
- with CIOKS unique mains link feature, DC5 easily adds 5 extra isolated outlets to another link power supply

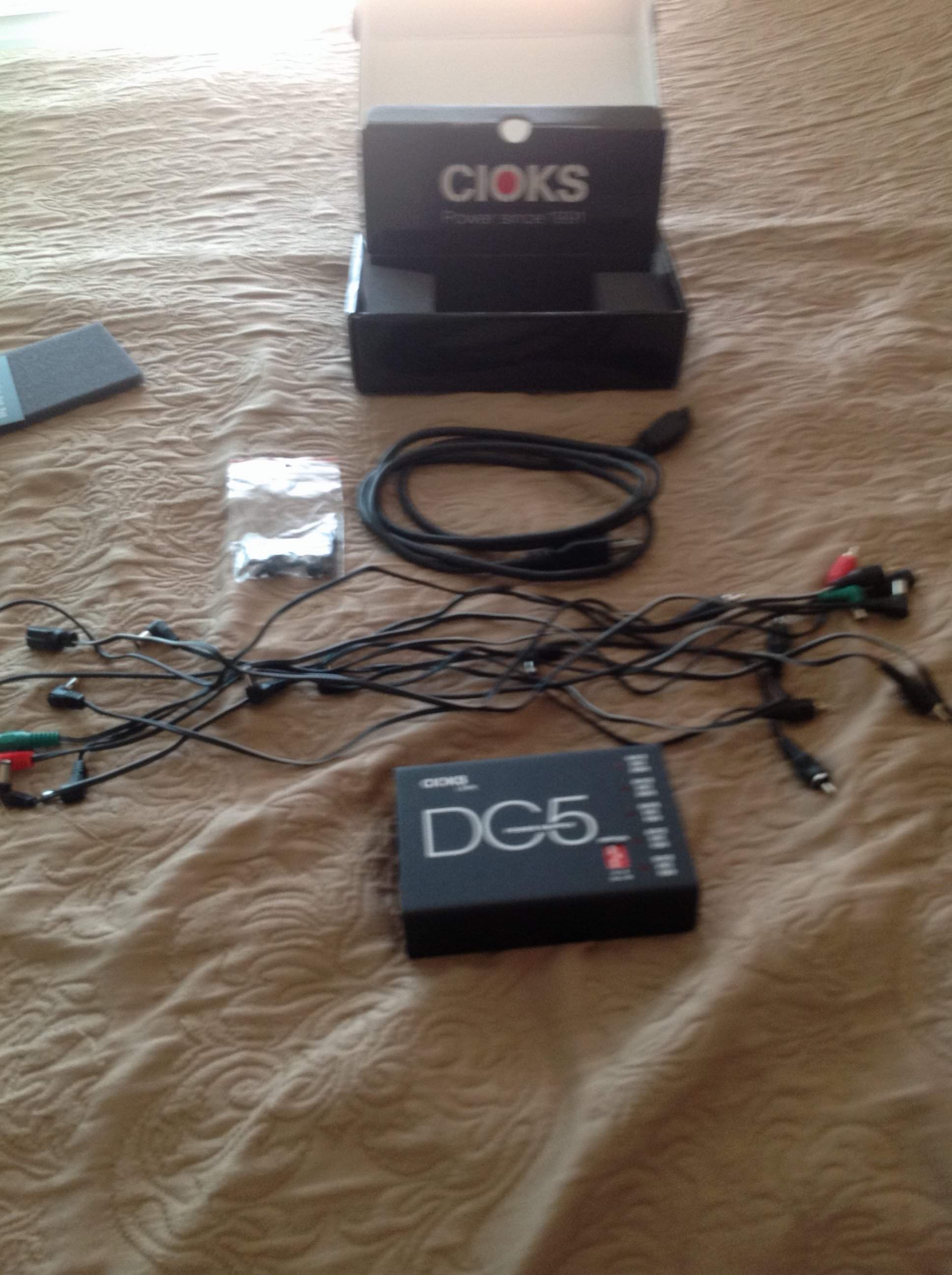

- 10 Flex cables included
- Split Flex included
- super flat design, fits under Pedaltrain PT-nano or PT-mini
- mounts easily to pedal boards
Outlet 1-2: 9 or 12V DC / 100mA each
Outlet 3: 9 or 18V DC / 100mA
Outlet 4-5: 9 or 12V DC / 300mA each
Size: 130x88x31mm (excl. detachable rubber feet)
Weight: 0,7kg
