This pre is great a little to much over time for my liking and I'm currently switchinG (Chasing.)
my tone.
Open to trade:
A\p preamp with vtc.
4 string p/j pups
4 string P bass pups and $
V/v stack, b/t stack, M, A/p switch, mid switch 400-800k

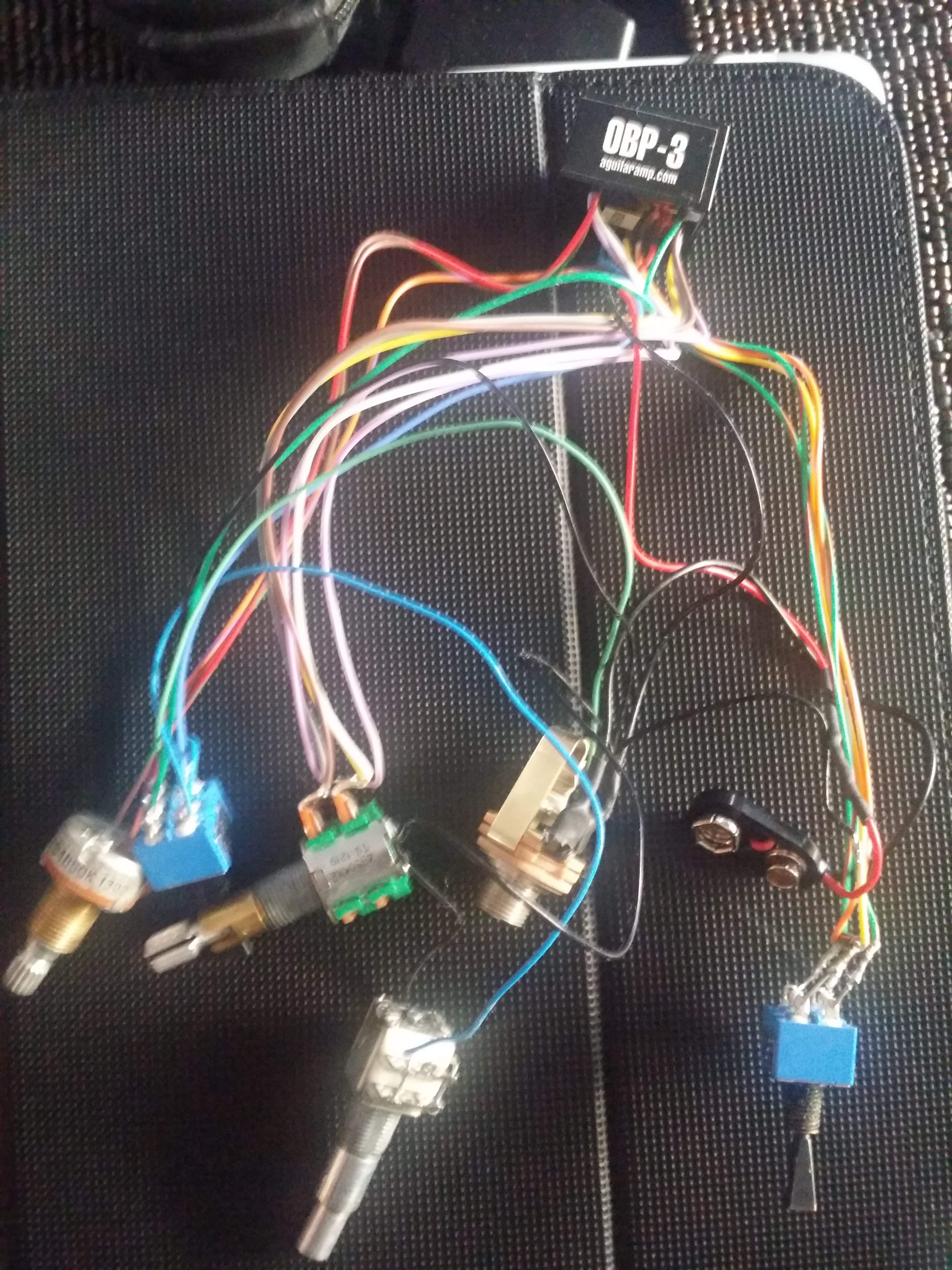

I left the pots,switches,battery clip and input jack attached for a reference...
*blend pot is scratchy* and may need replacing, but all hardware is functioning.. this sale is for the brain of the preamp not the pots ect....
(I can remove all and send the brain upon request)
The Aguilar OBP3 was built from the ground up to be the ultimate source of full-bodied tone, transparency, and versatility for your bass.
Three bands of boost/cut and a selectable midrange frequency provides flexibility to dial in just the right tone. The treble control delivers up to 16dB of boost/cut at 6.5Hz and captures the dynamic of a "Passive Tone Control" when rolled off. The powerful midrange control offers user selectable frequencies of 400 or 800Hz, each with a full 16dB boost/cut capability. The midrange retains constant bandwidth in any setting so there is no "muddy" frequency overlap. The bass control features a boost/cut of up to 18dB at 40Hz, adding Aguilar's signature thickness to any instrument.
The Aguilar OBP-3's small size makes it an easy retrofit in almost any bass. Combining high headroom and low noise, the OBP-3 is unmatched in providing tonal flexibility while retaining the true character of any bass!
Pickup Compatibility:
The preamp can be used with active or passive pickups.
On the configuration page there is an option for pickup impedance.
If you have passive pickups like Bartolini ®, Nordstrand ®, Aguilar ®, Seymour Duncan ®, and others then choose "For Passive Pickups"
If you have active pickups such as EMG®, Warwick® MEC, and others then choose "For Active Pickups".
Specifications:
my tone.
Open to trade:
A\p preamp with vtc.
4 string p/j pups
4 string P bass pups and $
V/v stack, b/t stack, M, A/p switch, mid switch 400-800k
I left the pots,switches,battery clip and input jack attached for a reference...
*blend pot is scratchy* and may need replacing, but all hardware is functioning.. this sale is for the brain of the preamp not the pots ect....
(I can remove all and send the brain upon request)
The Aguilar OBP3 was built from the ground up to be the ultimate source of full-bodied tone, transparency, and versatility for your bass.
Three bands of boost/cut and a selectable midrange frequency provides flexibility to dial in just the right tone. The treble control delivers up to 16dB of boost/cut at 6.5Hz and captures the dynamic of a "Passive Tone Control" when rolled off. The powerful midrange control offers user selectable frequencies of 400 or 800Hz, each with a full 16dB boost/cut capability. The midrange retains constant bandwidth in any setting so there is no "muddy" frequency overlap. The bass control features a boost/cut of up to 18dB at 40Hz, adding Aguilar's signature thickness to any instrument.
The Aguilar OBP-3's small size makes it an easy retrofit in almost any bass. Combining high headroom and low noise, the OBP-3 is unmatched in providing tonal flexibility while retaining the true character of any bass!
Pickup Compatibility:
The preamp can be used with active or passive pickups.
On the configuration page there is an option for pickup impedance.
If you have passive pickups like Bartolini ®, Nordstrand ®, Aguilar ®, Seymour Duncan ®, and others then choose "For Passive Pickups"
If you have active pickups such as EMG®, Warwick® MEC, and others then choose "For Active Pickups".
Specifications:
- Bass Control: plus/minus 18 dB @ 40 Hz.
- Mid Control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center.
- Treble control: plus/minus 16 dB @ 6.5 KHz.
- Input Impedance: 1 meg ohm
- Output Impedance: 100 ohm
- Power Requirements:9 or 18 volts operation. Additional 6dB headroom with 18 volts.
- Distortion: .019 into 10k ohm load
- Noise: -95 dBm unweighted.
- Battery Life: 324 hours
- Wire lead length: 6.50 inches
- Dimensions: 0.98"W x 0.98"L x 0.59"D
