DSM Noisemaker OMNICABSIM
Highlights

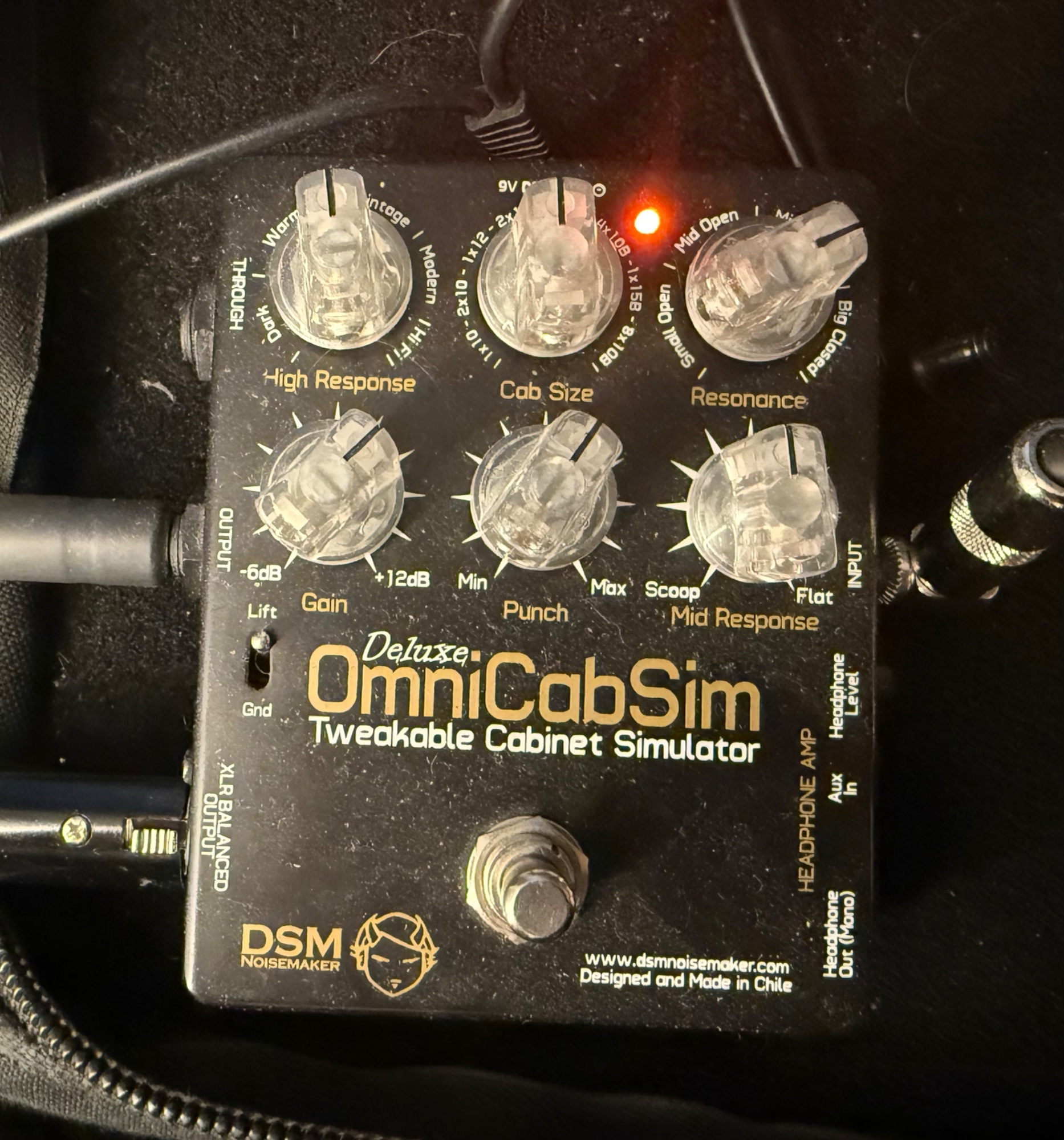

The OmniCabSim Deluxe from DSM Noisemaker is a cabinet simulator in a stompbox form factor. Entirely analog in signal path, it reproduces the frequency characteristics of various amplifier cabinets, achieving this effect through the use of various filters to approximate the high-cut/low-end roll off typical of many speakers. Also modeled is the resonance point of the low-end roll-off, as well as two different midrange responses. With this pedal, you can approximate the "scooped" sound of different kinds of cabs, leave the response flat, add a little punch at 800 Hz, and what is more, achieve a realistic amp/cab sound for your electric guitar or bass without schlepping the heavy gear about town. This makes the unit particularly suitable for touring and recording musicians.
A gain knob regulates the output signal from -6 to +12 dB, allowing you to use this pedal with line- or mic-level sources. The OmniCabSim Deluxe includes a 1/4" output, a 1/4" pass-through port, and a balanced XLR output. Should you wish to practice silently, a 350mW headphone amplifier has been built into the unit, the level of which you can attenuate with a knob. You can also route signal from an MP3 player or smartphone into the 3.5mm auxiliary input, which will process the sound through the headphone amplifier; in this manner, you can jam along to backing tracks or monitor signal while recording through the pedal. Please note: do not plug your amplifier's power amp output into the OmniCabSim Deluxe, or else you will destroy it.
Key Features at a Glance
Highlights
- For Electric Guitar and Bass
- Simulates a Wide Variety of Cabs
- All Analog Signal Path
- Controls over Highs, Lows & Midrange
- Gain Range of -6 to +12 dB
- Built-In Headphone Amp with Level Knob
- 1/4" Input & 3.5mm Auxiliary Input
- 1/4" Headphone, Through & Output Jacks
- Balanced XLR DI Output
The OmniCabSim Deluxe from DSM Noisemaker is a cabinet simulator in a stompbox form factor. Entirely analog in signal path, it reproduces the frequency characteristics of various amplifier cabinets, achieving this effect through the use of various filters to approximate the high-cut/low-end roll off typical of many speakers. Also modeled is the resonance point of the low-end roll-off, as well as two different midrange responses. With this pedal, you can approximate the "scooped" sound of different kinds of cabs, leave the response flat, add a little punch at 800 Hz, and what is more, achieve a realistic amp/cab sound for your electric guitar or bass without schlepping the heavy gear about town. This makes the unit particularly suitable for touring and recording musicians.
A gain knob regulates the output signal from -6 to +12 dB, allowing you to use this pedal with line- or mic-level sources. The OmniCabSim Deluxe includes a 1/4" output, a 1/4" pass-through port, and a balanced XLR output. Should you wish to practice silently, a 350mW headphone amplifier has been built into the unit, the level of which you can attenuate with a knob. You can also route signal from an MP3 player or smartphone into the 3.5mm auxiliary input, which will process the sound through the headphone amplifier; in this manner, you can jam along to backing tracks or monitor signal while recording through the pedal. Please note: do not plug your amplifier's power amp output into the OmniCabSim Deluxe, or else you will destroy it.
Key Features at a Glance
- Integrated headphone amplifier with Volume knob, 1/4" Headphone jack, and 3.5mm Auxiliary input
- NE5532-based XLR DI output with +6 dB line level boost
- Powder-coated, CNC-machined enclosure
- Mic and Line output (levels adjustable via Gain control)
- High Response knob emulates the steep low-pass filter that different speakers produce
- Cab Size knob controls the low-end roll-off characteristic of various speakers
- Resonance knob lets you dial the degree of the low-end roll-off point, reproducing the effect of closed- or open-back cabinets, and anything in between
- Mid Response knob lets you dial "modern" or "vintage" responses
- Punch control boosts the 800 Hz band, allowing you to cut through a mix with while retaining warmth
- Suitable for basses and electric guitars
